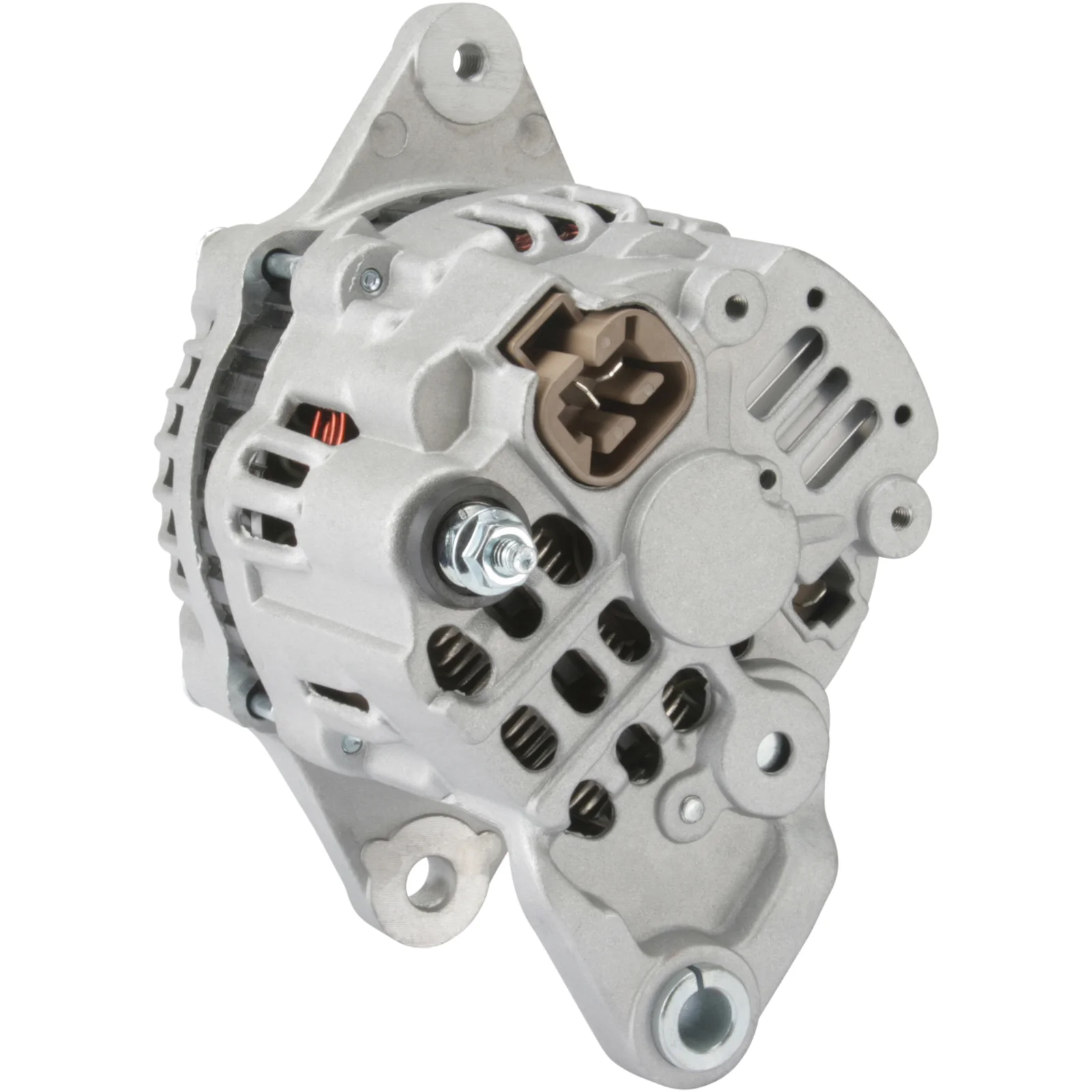

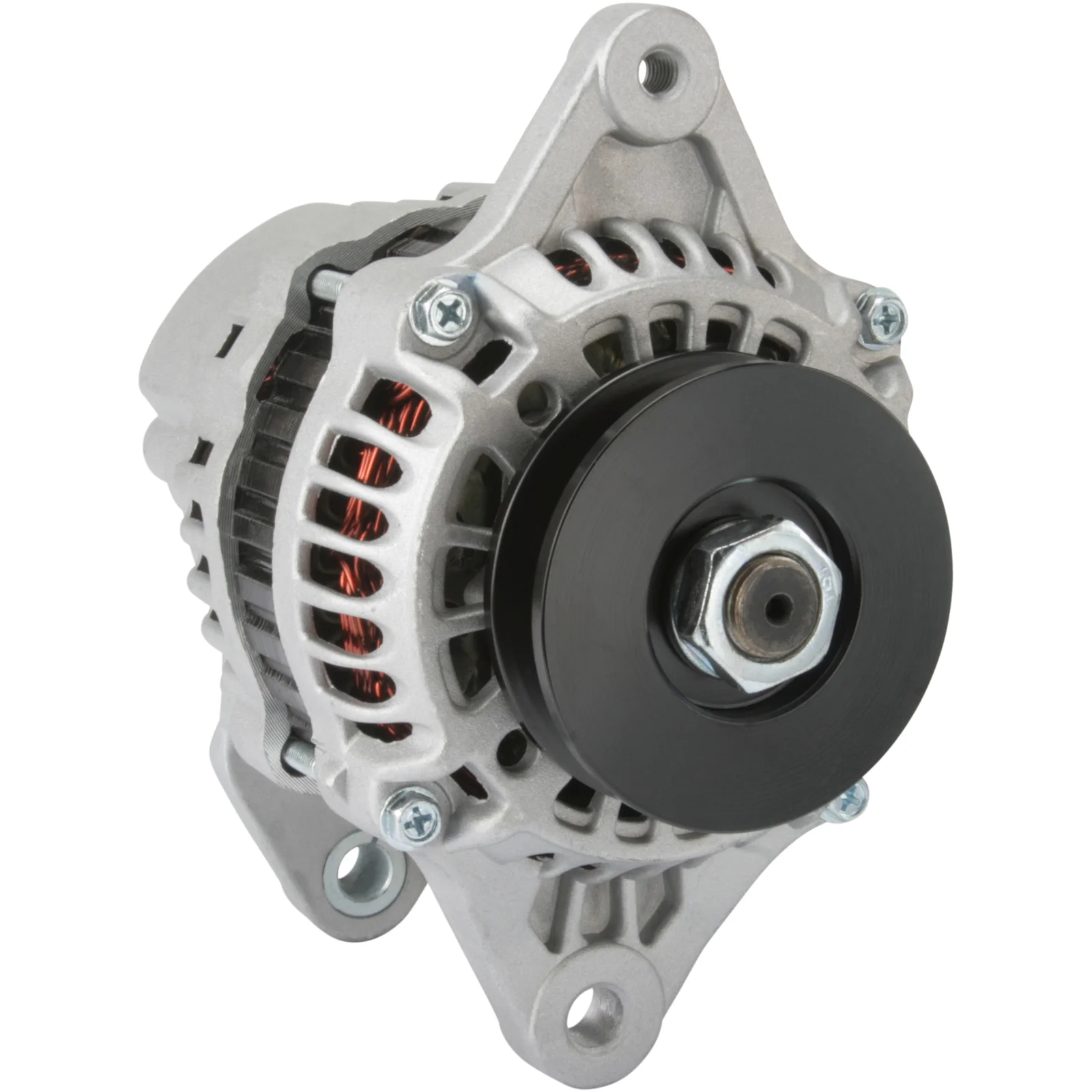

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111495

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 40, Rotasjon: CW, Monteringsbrakett avstand: 81,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 40
Terminal: W
Drevavstand: 42.00
Bredde/holderarm: 13.00
Festebrakettavstand: 81.50
Gavlshull: 10.00
Bæltesjust.brakettpos.: 60
Bæltesjust.brakettshull 1: M8
Drev diameter: 74.00
Gjenvinning/ Drev: 1
Radius: 77.00
Radius 2: 77.00
B+: M6
Posisjon/B+ i min.: 45
Rotasjon: CW
Plugg nr.: PL09
Total lengde mm: 161.00
Drev: P
Regulator type: IR
Prod. info: BN
Service: Hyster

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 81.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.00
Position/B+ in min. 45
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 42.00
Radius 77.00
Radius 2 77.00
Regulator type IR
Rotation CW
Servicing Hyster
Grooves/pulley 1
Terminal W
Voltage 14
Total length 161.00 mm
Width/holder arm 13.00
Amp 40

  • OEM
    A007T03277, A007T03277A, a7t03277, a7t03277a, F032111495, LRA002043, S5SN-18-300, S5SN-18-300A, 00591-33580-81, 00591-55973-81, 1500145-04, 2690027-70, 5059605-60, 5059765-79, 5800009-90, 8000456-00, 9019488-01

  • Konkurrentreferens
    A-8560, A5168, ALT28001, ALT28002, AMT0001, BAO3173, CAL35203, DRA0065, LRA02043, 1-1960-01MI, 8EL011712-761, 28-3966, 90-27-3189, 12138, 12138N, 12138R, 111167, 553096RI, 20140109

  • NormaliseratArtNr
    a007t03277, a007t03277a, a5168, a7t03277, a7t03277a, a8560, alt28001, alt28002, amt0001, bao3173, cal35203, dra0065, f032111495, lra002043, lra02043, s5sn18300, s5sn18300a, 8el011712761, 12138, 12138n, 12138r, 111167, 283966, 553096ri, 1196001mi, 20140109, 90273189, 150014504, 269002770, 505960560, 505976579, 580000990, 800045600, 901948801, 005913358081, 005915597381

  • Passar modeller
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Sumitomo Model: Various Models Model series: Various Models Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: DBFE Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: DBHA Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: FE Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: HA Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: XA Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 40
    Terminal: W
    Drevavstand: 42.00
    Bredde/holderarm: 13.00
    Festebrakettavstand: 81.50
    Gavlshull: 10.00
    Bæltesjust.brakettpos.: 60
    Bæltesjust.brakettshull 1: M8
    Drev diameter: 74.00
    Gjenvinning/ Drev: 1
    Radius: 77.00
    Radius 2: 77.00
    B+: M6
    Posisjon/B+ i min.: 45
    Rotasjon: CW
    Plugg nr.: PL09
    Total lengde mm: 161.00
    Drev: P
    Regulator type: IR
    Prod. info: BN
    Service: Hyster

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 81.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.00
    Position/B+ in min. 45
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 42.00
    Radius 77.00
    Radius 2 77.00
    Regulator type IR
    Rotation CW
    Servicing Hyster
    Grooves/pulley 1
    Terminal W
    Voltage 14
    Total length 161.00 mm
    Width/holder arm 13.00
    Amp 40
  • Kjøretøymatching

    • OEM
      A007T03277, A007T03277A, a7t03277, a7t03277a, F032111495, LRA002043, S5SN-18-300, S5SN-18-300A, 00591-33580-81, 00591-55973-81, 1500145-04, 2690027-70, 5059605-60, 5059765-79, 5800009-90, 8000456-00, 9019488-01

    • Konkurrentreferens
      A-8560, A5168, ALT28001, ALT28002, AMT0001, BAO3173, CAL35203, DRA0065, LRA02043, 1-1960-01MI, 8EL011712-761, 28-3966, 90-27-3189, 12138, 12138N, 12138R, 111167, 553096RI, 20140109

    • NormaliseratArtNr
      a007t03277, a007t03277a, a5168, a7t03277, a7t03277a, a8560, alt28001, alt28002, amt0001, bao3173, cal35203, dra0065, f032111495, lra002043, lra02043, s5sn18300, s5sn18300a, 8el011712761, 12138, 12138n, 12138r, 111167, 283966, 553096ri, 1196001mi, 20140109, 90273189, 150014504, 269002770, 505960560, 505976579, 580000990, 800045600, 901948801, 005913358081, 005915597381

    • Passar modeller
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Sumitomo Model: Various Models Model series: Various Models Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: DBFE Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: DBHA Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: FE Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: HA Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: XA Approved: Yes
