Varenr.: F032111598

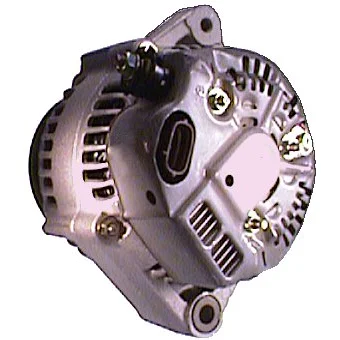

HC-Cargo Dynamo

Teknisk info:

Spenningsverdi: 14, Ampere: 80, Rotasjon: medurs, Drivskive diameter: 97,00

Beskrivelse

Spenningsnivå: 14
Amp.: 80
Drevavstand: 96.00
Bredde/holderarm: 53.00
Bærebrakett hull: 10.50
Belt. justeringsbrakett hull pos.: 55
Belt. justeringsbrakett hull 1: M8
Drevets diameter: 97.00
Riller/drev: 1
Radius: 78.50
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 50
D+ størrelse: Plugg
Rotasjon: med klokka
Plugg nr.: PL42
Total lengde mm: 162.00
Drev: P
Regulator type: IR
Prod. info: Reman
Service: Toyota

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 50
Prod. info Reman
Pulley P
Pulley dia. 97.00
Pulley dist. 96.00
Radius 78.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 1
Voltage 14
Total length 162.00 mm
Width/holder arm 53.00
Amp 80

  • OEM
    F032111598, ja1119ir, 27060-64130, 27060-64150, 101211-5130, 101211-5170

  • Konkurrentreferens
    ALT30139, CAL40173, dra3738, J5112092, lrb00336, QA2526, 8el737074-001, 28-2803, 235.158.802, 5312, 21336R, 111595, 401119RI, 437753, 9051292, 12060423, 0986045871, 944390512920

  • NormaliseratArtNr
    alt30139, cal40173, dra3738, f032111598, j5112092, ja1119ir, lrb00336, qa2526, 8el737074001, 5312, 21336r, 111595, 282803, 401119ri, 437753, 9051292, 12060423, 235158802, 0986045871, 1012115130, 1012115170, 2706064130, 2706064150, 944390512920

  • Passar modeller
    Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Estate From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes Manufacture type: sportswago
    Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Hatchback From date: 01-04-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 From date: 01-08-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsnivå: 14
    Amp.: 80
    Drevavstand: 96.00
    Bredde/holderarm: 53.00
    Bærebrakett hull: 10.50
    Belt. justeringsbrakett hull pos.: 55
    Belt. justeringsbrakett hull 1: M8
    Drevets diameter: 97.00
    Riller/drev: 1
    Radius: 78.50
    Radius 2: 85.00
    B+: M6
    Posisjon/B+ i min.: 50
    D+ størrelse: Plugg
    Rotasjon: med klokka
    Plugg nr.: PL42
    Total lengde mm: 162.00
    Drev: P
    Regulator type: IR
    Prod. info: Reman
    Service: Toyota

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 50
    Prod. info Reman
    Pulley P
    Pulley dia. 97.00
    Pulley dist. 96.00
    Radius 78.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 53.00
    Amp 80
  • Kjøretøymatching

    • OEM
      F032111598, ja1119ir, 27060-64130, 27060-64150, 101211-5130, 101211-5170

    • Konkurrentreferens
      ALT30139, CAL40173, dra3738, J5112092, lrb00336, QA2526, 8el737074-001, 28-2803, 235.158.802, 5312, 21336R, 111595, 401119RI, 437753, 9051292, 12060423, 0986045871, 944390512920

    • NormaliseratArtNr
      alt30139, cal40173, dra3738, f032111598, j5112092, ja1119ir, lrb00336, qa2526, 8el737074001, 5312, 21336r, 111595, 282803, 401119ri, 437753, 9051292, 12060423, 235158802, 0986045871, 1012115130, 1012115170, 2706064130, 2706064150, 944390512920

    • Passar modeller
      Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Estate From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes Manufacture type: sportswago
      Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Hatchback From date: 01-04-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 From date: 01-08-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
