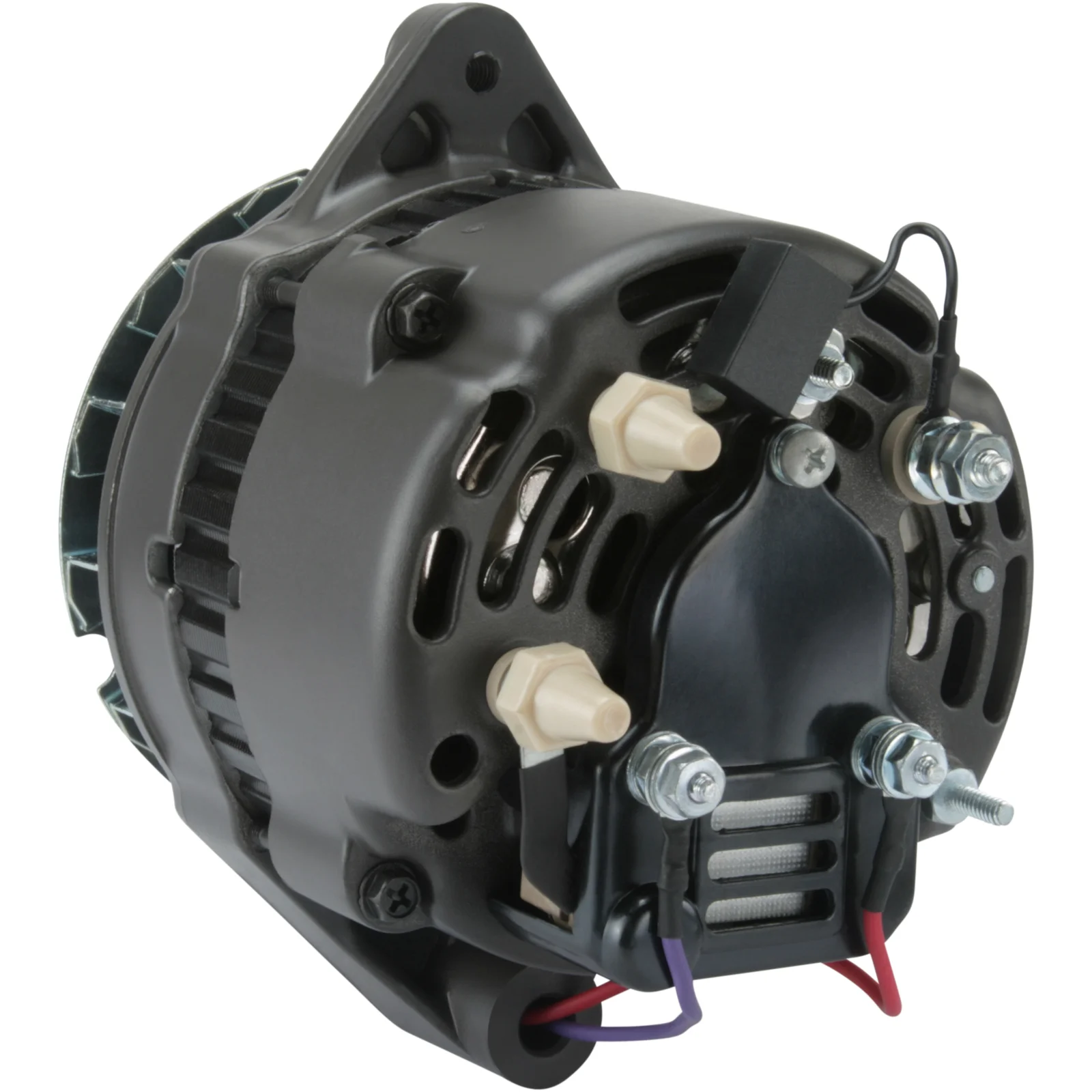

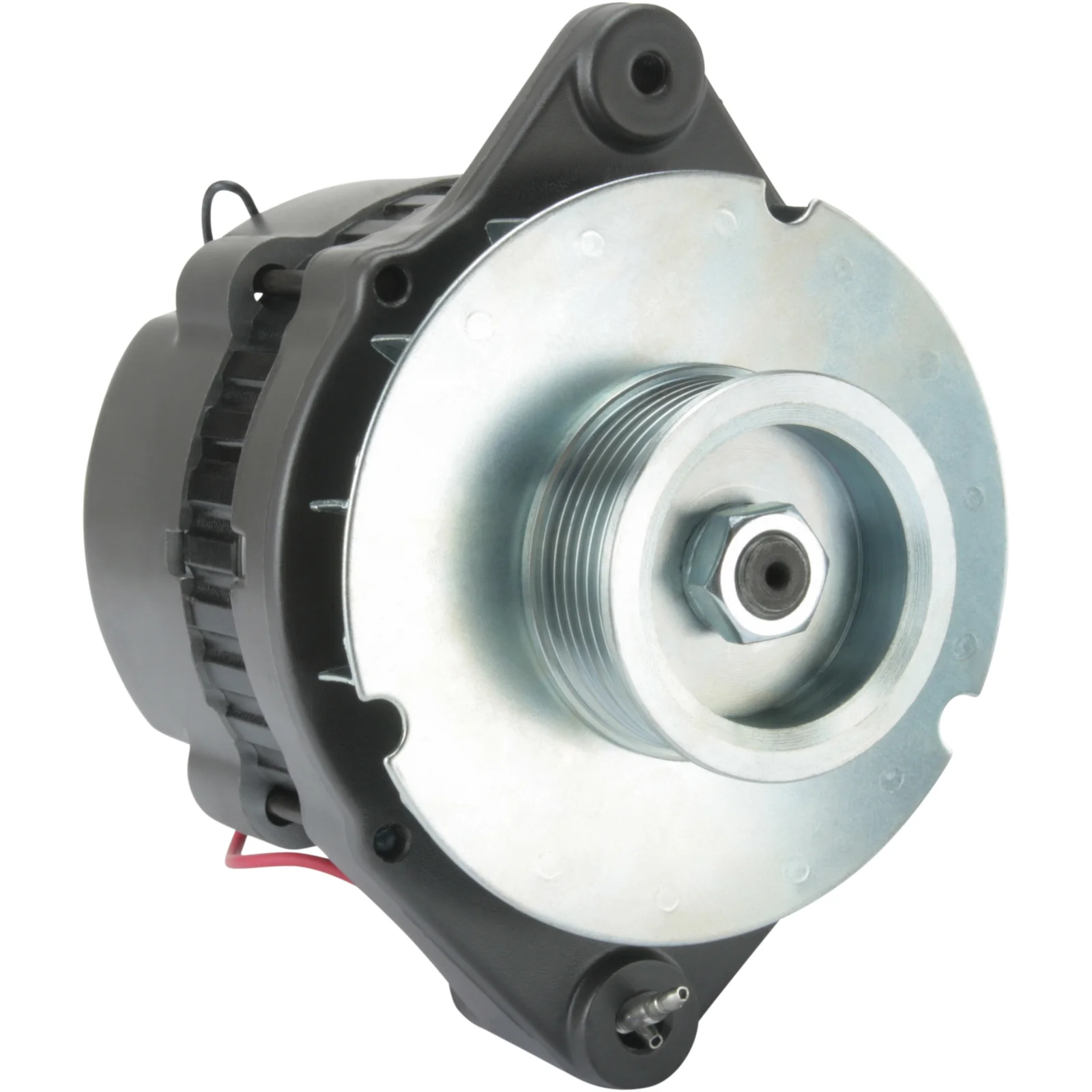

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111710

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 65, Dreiing: CW/CCW, Remskive diameter: 63.00

Beskrivelse

Mercury Marin Generator 12V-65A 12V - 65A, 6-spor reim hjul for Yourex produkt bestilling 90-370-7653

Spenning: 14
Amp.: 65
Drevet avstand: 72.00
Bredde/holderarm: 50.70
Bøssinghull: 3/8"
Reimfeste justeringshull pos.: 60
Reimfeste justeringshull 1: 5/16"
Drev diameter: 63.00
Groper/drev: 6
Radius: 83.00
Radius 2: 83.00
B+: 1/4" UNC
Posisjon/B+ i min.: 10
D+ størrelse: Plugg
Rotasjon: med urviseren/mot urviseren
Total lengde mm: 171.00
Drev: SP
Regulator type: IR
Produsent info: BN
Service: Mercury

Filer

Spesifikasjon

B+ 1/4" UNC
Belt. adj. bracket hole 1 5/16"
Belt. adj. brackethole pos. 60
Bracket hole 3/8"
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 63.00
Pulley dist. 72.00
Radius 83.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW/CCW
Servicing Mercury
Grooves/pulley 6
Voltage 14
Total length 171.00 mm
Width/holder arm 50.70
Amp 65

  • OEM
    AL-65811, F032111710, M 50924, M 59207, TA00023301, ta000b13001, ta000b28101, 80-5844t, 80-5884p, 80-5884t, 80-7652, 80-7652t, 80-7653, 80-7653t, 797E, 19685, 60065, 155614, 155616, 165610, 165616, 165617, 165618, 805447T, 805447t, 805884, 805884P, 805884p, 805884T, 805884t, 807652, 807652T, 807653, 807653T, 817119A4, 3856600, 3857561, 3860171, 20130204

  • Konkurrentreferens
    a-8323, a6510, ALT34001, ALT35009, amn0012, CAL32140, CAL32170, F042206030, LEA0199, LRA01926, LRA02062, LRA02065, OMS138, OMS140, OMS142, OMS143, 1-1948-01MD, 1-2307-31MD, 1-2309-31MD, 1-2310-31MD, 20-8601, 28-1715, 28-3812, 90-31-7003, 975.001.055, 975.001.065, 975.004.065, 3159, 12174, 12174N-6G, 12176, 12176N-1G, 12176N-6G, 12177, 12177N, 401169RI, 600087, 600088, 600089, 20130179, 32118011

  • Bilmärken
    Mercury Marine, Mariner Outboard, Yamaha

  • NormaliseratArtNr
    a6510, a8323, al65811, alt34001, alt35009, amn0012, cal32140, cal32170, f032111710, f042206030, lea0199, lra01926, lra02062, lra02065, m50924, m59207, oms138, oms140, oms142, oms143, ta00023301, ta000b13001, ta000b28101, 797e, 3159, 12174, 12174n6g, 12176, 12176n1g, 12176n6g, 12177, 12177n, 19685, 60065, 155614, 155616, 165610, 165616, 165617, 165618, 208601, 281715, 283812, 401169ri, 600087, 600088, 600089, 805447t, 805844t, 805884, 805884p, 805884t, 807652, 807652t, 807653, 807653t, 817119a4, 1194801md, 1230731md, 1230931md, 1231031md, 3856600, 3857561, 3860171, 20130179, 20130204, 32118011, 90317003, 975001055, 975001065, 975004065

  • Passar modeller
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 6-cyl Model: 262 Magnum, Alpha, Brave SD Engine type: 262-6 Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 6-cyl Model: 4.3L, 4.3LX, 4.3LXH (262CI) SD Engine type: 262-6 Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 350 Black Scorpion Ski IB Engine type: 350-8 Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 350 Magnum Ski (Gen.+) IB Engine type: w/ EFI Year: 00.94-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 350 Magnum Ski IB Engine type: 350-8 EFI, TBI Year: 00.94-00.96
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 350 Magnum Ski IB Engine type: 350-8 MPI Year: 00.95-00.96
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 350 Magnum Ski IB Engine type: 350-8 Year: 00.97-
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 454 Magnum, Bravo, SD Engine type: 454-8 Year: 00.93-00.96
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 454 Magnum (Gen.VI) SD Engine type: 454-8 MPI Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 454 Magnum Ski (Gen.VI) IB Engine type: 454-8 Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 454 Ski (Gen.V) IB Engine type: 454-8 MPI Year: 00.95-00.96
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 5.7L Alpha, Bravo SD Engine volume: 5.7 Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 5.7L Competetive Ski IB Year: 00.97-
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 5.7L IB Year: 00.97-
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 5.7L, 5.7LX Alpha, Bravo SD Year: 00.95-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 502 Magnum (Gen.VI) SD Engine type: MPI Year: 00.96-
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 502 Magnum, Bravo SD Year: 00.93-00.96
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 525 Magnum SD Year: 00.96-
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 7.4L (Gen.V) IB Engine type: 454-8 MPI Year: 00.95-00.96
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 7.4L (Gen.VI) IB Engine type: 454-8 MPI, TBI Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 7.4LX Bravo (Gen.V) SD Engine type: 454-8 EFI Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 7.4LX Bravo (Gen.V) SD Engine type: 454-8 MPI Year: 00.96-00.97
    Mercruiser, Mercury Marine Inboard & Stern Drive Series: 8-cyl Model: 8.2L IB Engine type: 502-8 Year: 01.96-
    Mercury Model: Marine Model series: Various Models Approved: Yes
    OMC Model: Engine Model series: Various Models Approved: Yes
