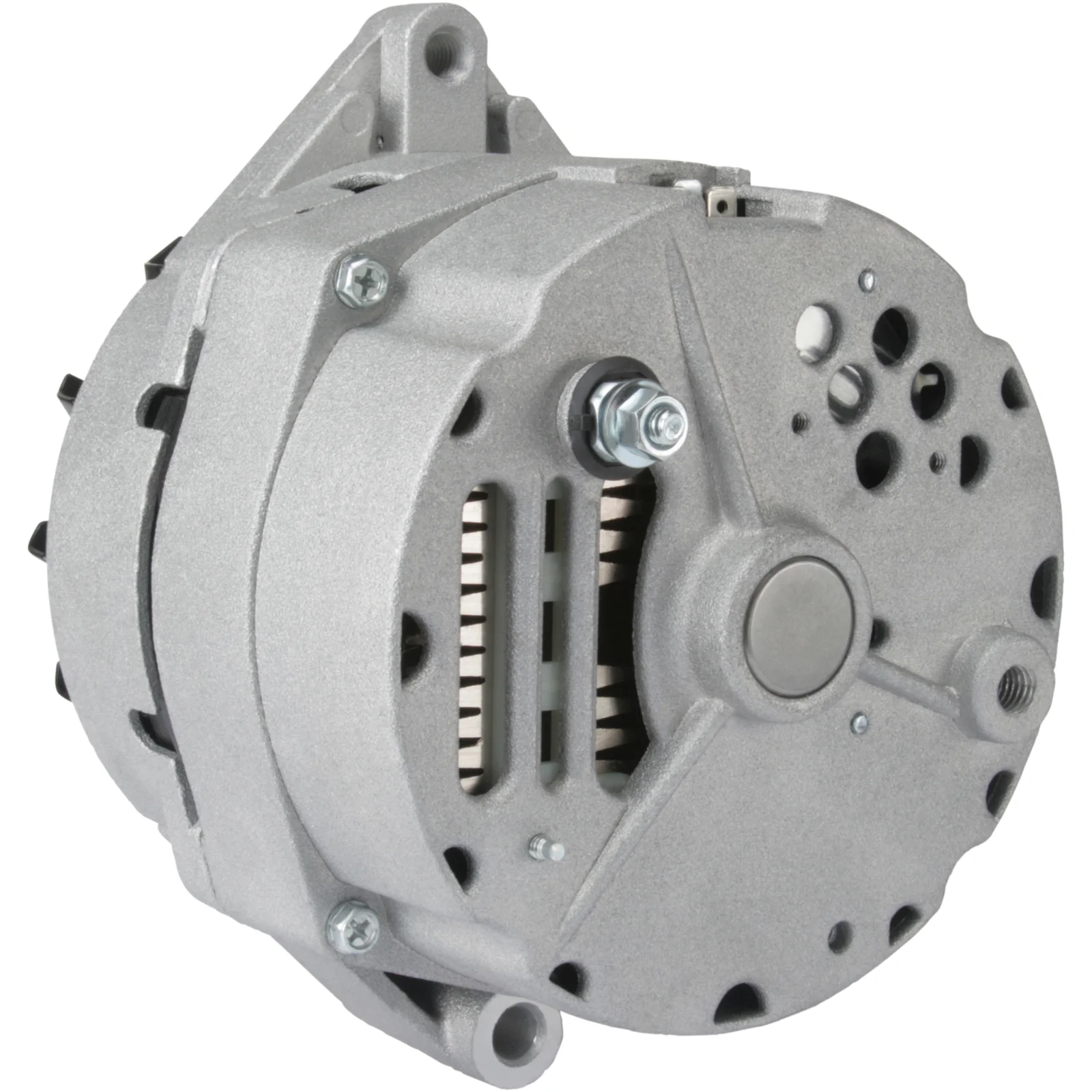

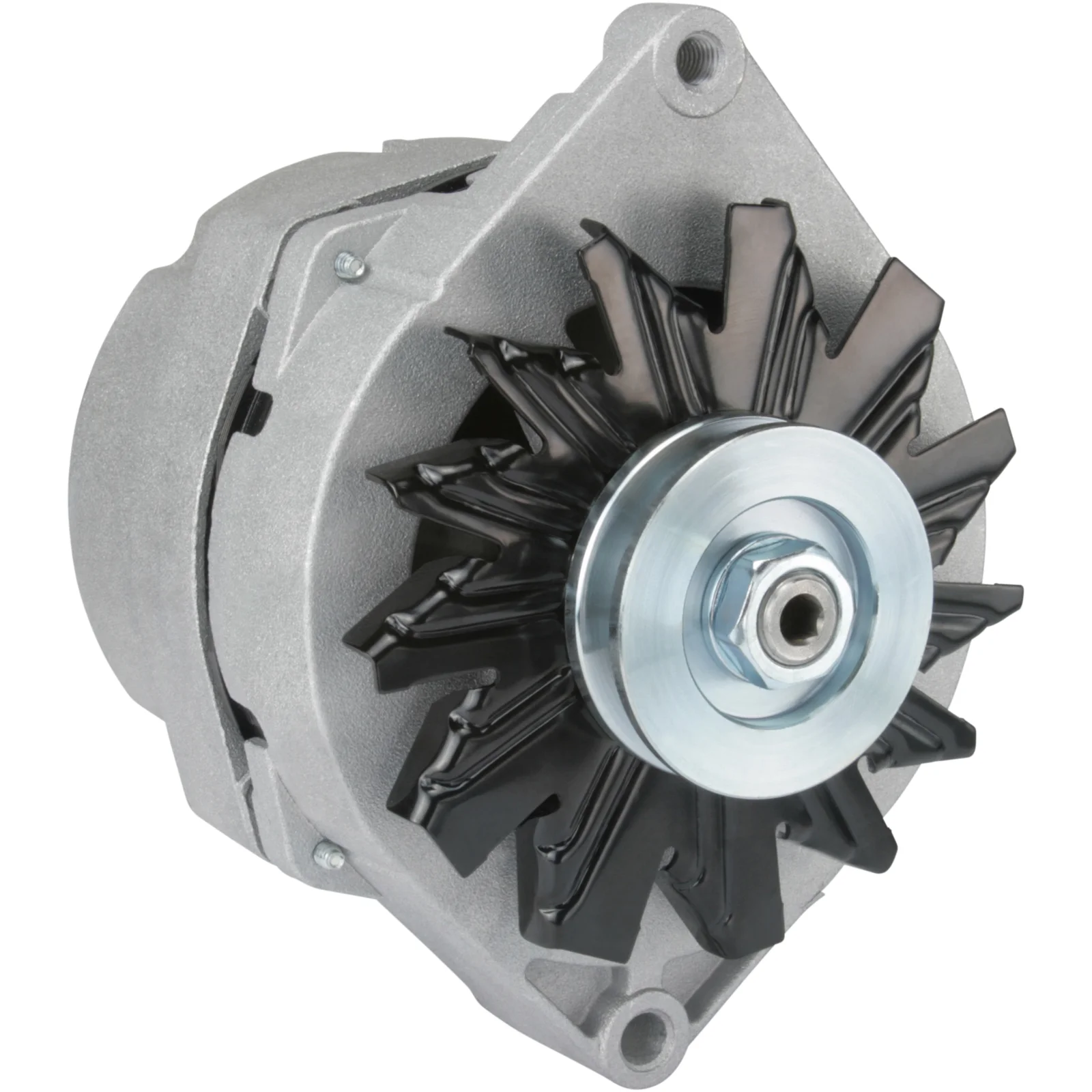

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111713

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 105, Rotasjon: CW, Drevdiameter: 69.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Amp: 105
Terminal: W
Drev dist.: 77.00
Bredde/holderarm: 50.70
Bøssing hull: 10.20
Bånd. justering. bøssing hull pos.: 60
Bånd. justering. bøssing hull 1: 3/8" UNC
Drev diameter: 69.00
Groper/drev: 1
Radius: 89.00
Radius 2: 95.00
B+: M6
Posisjon/B+ i min.: 53
D+ Størrelse: Kontakt
Rotasjon: CW
Kontakt nr.: PL123
Total lengde mm: 183.00
Drev: P
Regulator type: IR
Prod. info: BN
Vedlikehold: Kasse
Anmerkninger: Bytte ut: 15SI.

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 3/8" UNC
Belt. adj. brackethole pos. 60
Plug no. PL123
Bracket hole 10.20
Position/B+ in min. 53
Prod. info BN
Pulley P
Pulley dia. 69.00
Pulley dist. 77.00
Radius 89.00
D+ Size Plug
Radius 2 95.00
Regulator type IR
Remarks Replacing: 15SI.
Rotation CW
Servicing Case
Grooves/pulley 1
Terminal W
Voltage 14
Total length 183.00 mm
Width/holder arm 50.70
Amp 105

  • OEM
    A130672Z, F032111713, 321-667, 146487C91, 1101194, 1101205, 1101439, 1101440, 1102551, 1105418, 1105535, 1105536, 1105538, 1105539, 1105540, 1105560, 1105579, 1105609, 10479924, 10479925, 10479926, 10479927, 10479929, 10479930, 10497083

  • Konkurrentreferens
    a-1250, ADR0195, AL9970X, BAO3085, CAL60109, 1-1725-10DR, 1-1725-12DR, 1-1725-13DR, 1-1725-30DR, 1-1725-31DR, 1-1725-34DR, 1-1727-40DR, 2-1529-ND, 20-113, 20-113-1, 20-113-2, 20-113-9, 29-1345, 90-01-3151, 90-01-4082, 228.122.1002, 7500, 7853, 7853-6, 7853N, 7853R, 553925RI, 32992871

  • NormaliseratArtNr
    a1250, a130672z, adr0195, al9970x, bao3085, cal60109, f032111713, 7500, 7853, 7853n, 7853r, 20113, 21529nd, 78536, 146487c91, 201131, 201132, 201139, 291345, 321667, 553925ri, 1101194, 1101205, 1101439, 1101440, 1102551, 1105418, 1105535, 1105536, 1105538, 1105539, 1105540, 1105560, 1105579, 1105609, 1172510dr, 1172512dr, 1172513dr, 1172530dr, 1172531dr, 1172534dr, 1172740dr, 10479924, 10479925, 10479926, 10479927, 10479929, 10479930, 10497083, 32992871, 90013151, 90014082, 2281221002

  • Passar modeller
    Allis Chalmers Model: Various Models Model series: Various Models Approved: Yes
    Case Model: 400 Series Model series: 485 From date: 01-01-1982 Fuel: Gasoline Approved: Yes
    Ford Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    New Holland Model: 9000 Model series: 9030 From date: 01-01-1990 To date: 01-01-1997 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsverdi: 14
    Amp: 105
    Terminal: W
    Drev dist.: 77.00
    Bredde/holderarm: 50.70
    Bøssing hull: 10.20
    Bånd. justering. bøssing hull pos.: 60
    Bånd. justering. bøssing hull 1: 3/8" UNC
    Drev diameter: 69.00
    Groper/drev: 1
    Radius: 89.00
    Radius 2: 95.00
    B+: M6
    Posisjon/B+ i min.: 53
    D+ Størrelse: Kontakt
    Rotasjon: CW
    Kontakt nr.: PL123
    Total lengde mm: 183.00
    Drev: P
    Regulator type: IR
    Prod. info: BN
    Vedlikehold: Kasse
    Anmerkninger: Bytte ut: 15SI.

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 3/8" UNC
    Belt. adj. brackethole pos. 60
    Plug no. PL123
    Bracket hole 10.20
    Position/B+ in min. 53
    Prod. info BN
    Pulley P
    Pulley dia. 69.00
    Pulley dist. 77.00
    Radius 89.00
    D+ Size Plug
    Radius 2 95.00
    Regulator type IR
    Remarks Replacing: 15SI.
    Rotation CW
    Servicing Case
    Grooves/pulley 1
    Terminal W
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 50.70
    Amp 105
  • Kjøretøymatching

    • OEM
      A130672Z, F032111713, 321-667, 146487C91, 1101194, 1101205, 1101439, 1101440, 1102551, 1105418, 1105535, 1105536, 1105538, 1105539, 1105540, 1105560, 1105579, 1105609, 10479924, 10479925, 10479926, 10479927, 10479929, 10479930, 10497083

    • Konkurrentreferens
      a-1250, ADR0195, AL9970X, BAO3085, CAL60109, 1-1725-10DR, 1-1725-12DR, 1-1725-13DR, 1-1725-30DR, 1-1725-31DR, 1-1725-34DR, 1-1727-40DR, 2-1529-ND, 20-113, 20-113-1, 20-113-2, 20-113-9, 29-1345, 90-01-3151, 90-01-4082, 228.122.1002, 7500, 7853, 7853-6, 7853N, 7853R, 553925RI, 32992871

    • NormaliseratArtNr
      a1250, a130672z, adr0195, al9970x, bao3085, cal60109, f032111713, 7500, 7853, 7853n, 7853r, 20113, 21529nd, 78536, 146487c91, 201131, 201132, 201139, 291345, 321667, 553925ri, 1101194, 1101205, 1101439, 1101440, 1102551, 1105418, 1105535, 1105536, 1105538, 1105539, 1105540, 1105560, 1105579, 1105609, 1172510dr, 1172512dr, 1172513dr, 1172530dr, 1172531dr, 1172534dr, 1172740dr, 10479924, 10479925, 10479926, 10479927, 10479929, 10479930, 10497083, 32992871, 90013151, 90014082, 2281221002

    • Passar modeller
      Allis Chalmers Model: Various Models Model series: Various Models Approved: Yes
      Case Model: 400 Series Model series: 485 From date: 01-01-1982 Fuel: Gasoline Approved: Yes
      Ford Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      New Holland Model: 9000 Model series: 9030 From date: 01-01-1990 To date: 01-01-1997 Fuel: Diesel Approved: Yes
