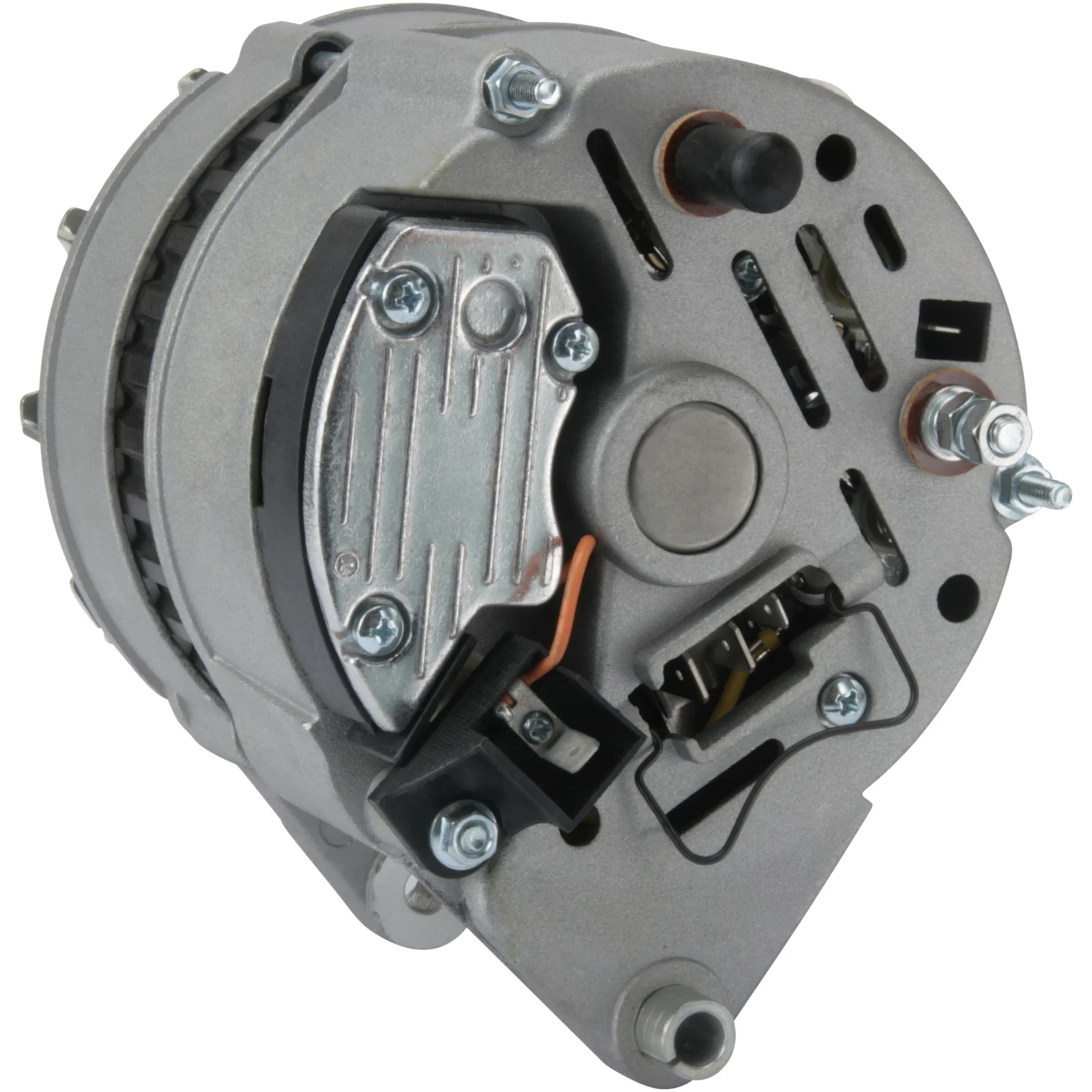

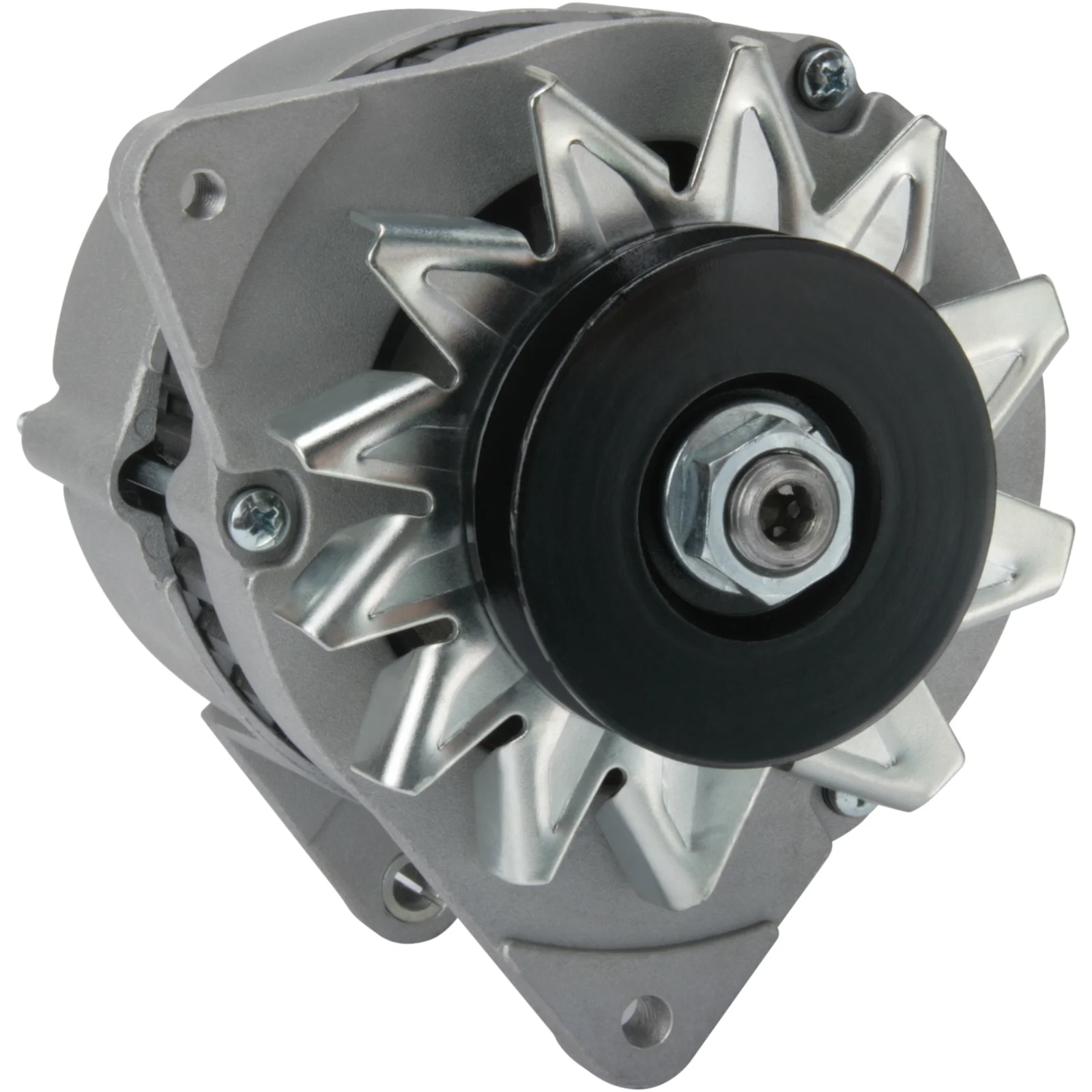

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111740

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampere: 70, Rotasjon: CW, Monteringsbrettavstand: 82.70

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 70
Terminal: BS/W
Drivehjul avstand.: 36.00
Bredde/festningsarm: 11.00
Monteringsbeslag avstand.: 82.70
Beslagshull: 8.50
Drivbåndsjusteringsbeslagshull pos.: 50
Beltjustering beslagshull 1: M8
Drivehjul diameter: 80.00
Groper/drivehjul: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Posisjon/B+ i min.: 14
D+ Størrelse: 6.30
Rotasjon: CW
Plugg nr.: PL22
W pluggtype: M5
Total lengde mm: 167.00
Drivehjul: P
Regulator type: IR
Prod. info: BN
Servicetips: Ford
Merknader: med batteritemperatursensor terminal. Sørg for at batteritemperatursensorsirkulering er til stede

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 82.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 50
Plug no. PL22
Bracket hole 8.50
Position/B+ in min. 14
Prod. info BN
Pulley P
Pulley dia. 80.00
Pulley dist. 36.00
Radius 86.00
D+ Size 6.30
Radius 2 86.00
Regulator type IR
Remarks w/ battery temp. sensor terminal. Make sure battery temp. sensor circuit is present
Rotation CW
Servicing Ford
Grooves/pulley 1
Terminal BS/W
Voltage 14
W plug type M5
Total length 167.00 mm
Width/holder arm 11.00
Amp 70

  • OEM
    AAK1343, AAK1344, C5449, CT6005706653, E3NN10B376AA, E3NN10B376AB, E4NN10B376AA, E4NN10B376AB, e7nn10b376aa, e7nn10b376ab, e7nn10b376ba, e7nn10b376bb, F032111740, RTC5053, STC1753, 11.201.503, 11.201.504, 1330ir, 2871A159, 24186, 24186a, 24186b, 24186D, 24250, 24250a, 24250B, 24274, 24274a, 24400, 24448, 54022337, 63324274, 81863039, 81868798, 835339189, 6005706653

  • Konkurrentreferens
    A4040, ALT-4039, ALT16027, ALT16034, ALT4034S, dra3434, DRA3837, F042306029, F042306032, F042A06032, IA0504, LEA0121, LEA121, lra00522, LRA01303, MG283, QA1425, 8el737507-001, 28-1602, 28-3757, 214.102.752, 220.101.702, 5982, 12047, 12090N, 12091, 13436R, 30707RI, 12044750, 063324274, 0986044751

  • NormaliseratArtNr
    a4040, aak1343, aak1344, alt16027, alt16034, alt4034s, alt4039, c5449, ct6005706653, dra3434, dra3837, e3nn10b376aa, e3nn10b376ab, e4nn10b376aa, e4nn10b376ab, e7nn10b376aa, e7nn10b376ab, e7nn10b376ba, e7nn10b376bb, f032111740, f042306029, f042306032, f042a06032, ia0504, lea0121, lea121, lra00522, lra01303, mg283, qa1425, rtc5053, stc1753, 8el737507001, 1330ir, 2871a159, 5982, 12047, 12090n, 12091, 13436r, 24186, 24186a, 24186b, 24186d, 24250, 24250a, 24250b, 24274, 24274a, 24400, 24448, 30707ri, 281602, 283757, 11201503, 11201504, 12044750, 54022337, 063324274, 63324274, 81863039, 81868798, 214102752, 220101702, 835339189, 0986044751, 6005706653

  • Passar modeller
    Ford Model: 2000 Series Model series: 2600 Approved: Yes
    Ford Model: 3000 Series Model series: 3600 Brand of engine: 175CID From date: 01-01-1975 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    Ford Model: 4000 Series Model series: 4100 Brand of engine: 183CID From date: 01-01-1975 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    Ford Model: 4000 Series Model series: 4600 Brand of engine: 201CID From date: 01-01-1975 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Ford Model: 6000 Series Model series: 6600 Brand of engine: 256CID From date: 01-01-1975 To date: 01-01-1981 Fuel: Diesel Approved: Yes
    Ford Model: 6000 Series Model series: 6610 Brand of engine: 401CID From date: 01-01-1981 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 6000 Series Model series: 6700 Approved: Yes
    Ford Model: 7000 Model series: 7710 From date: 01-01-1987 To date: 01-01-1991 Fuel: Diesel Approved: Yes
    Ford Model: 7000 Series Model series: 7600 Approved: Yes
    Ford Model: 7000 Series Model series: 7700 Approved: Yes
    Ford Model: 7000 Series Model series: 7810 From date: 01-06-1990 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Ford Model: 8000 Series Model series: 8600 Brand of engine: 401CID From date: 01-01-1975 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery I Model type: 4x4 Size of motor: 3.9 Brand of engine: 37L Type description: LJ From date: 01-09-1993 To date: 01-10-1998 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: 4x4 Size of motor: 3.9 Brand of engine: 42D Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Vogue LSE Size of motor: 4.3 Brand of engine: 40D Type description: AE, AN, HAA, HAB, HAM, HBM, RE From date: 01-09-1992 To date: 01-07-1994 Fuel: Gasoline Approved: Yes
