HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111830

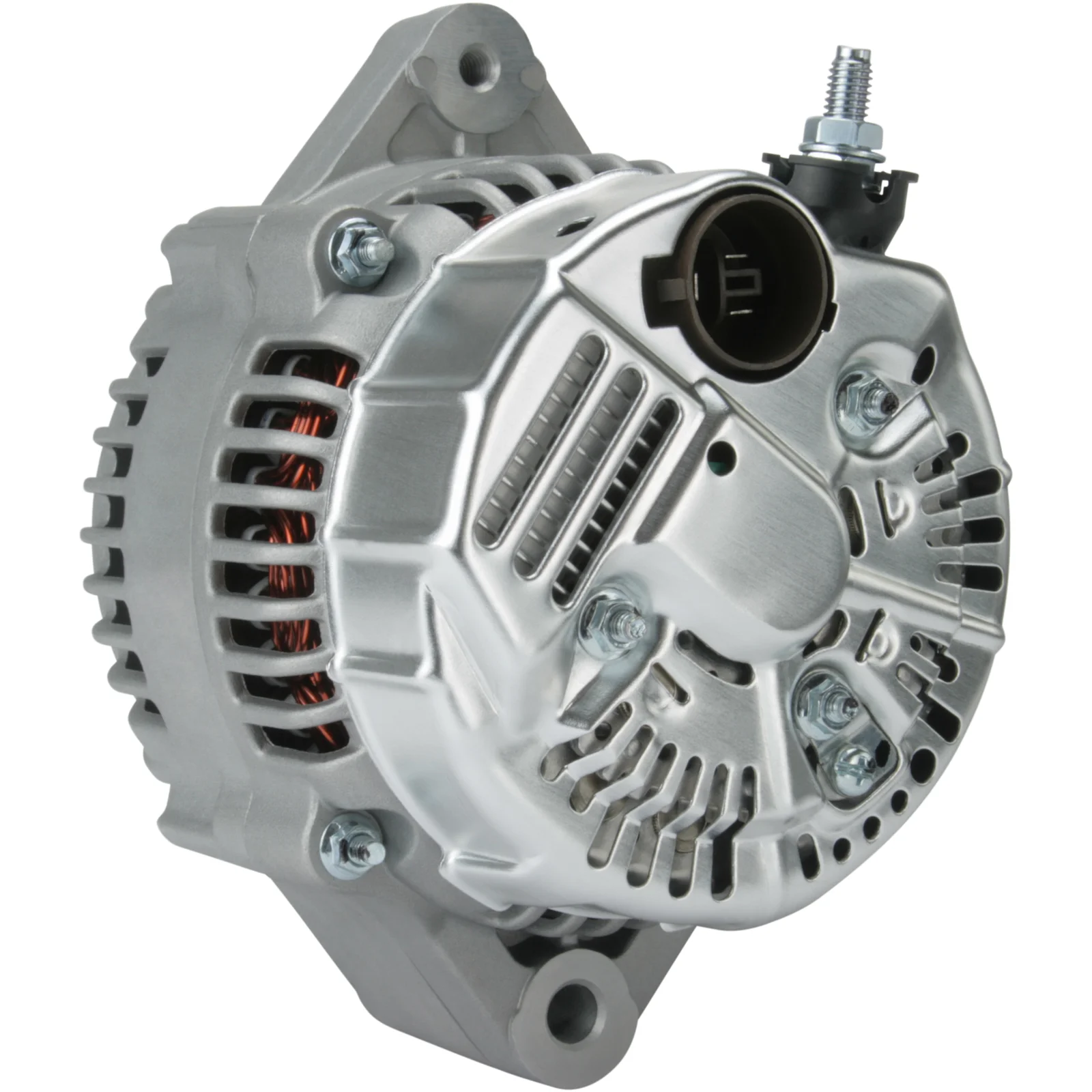

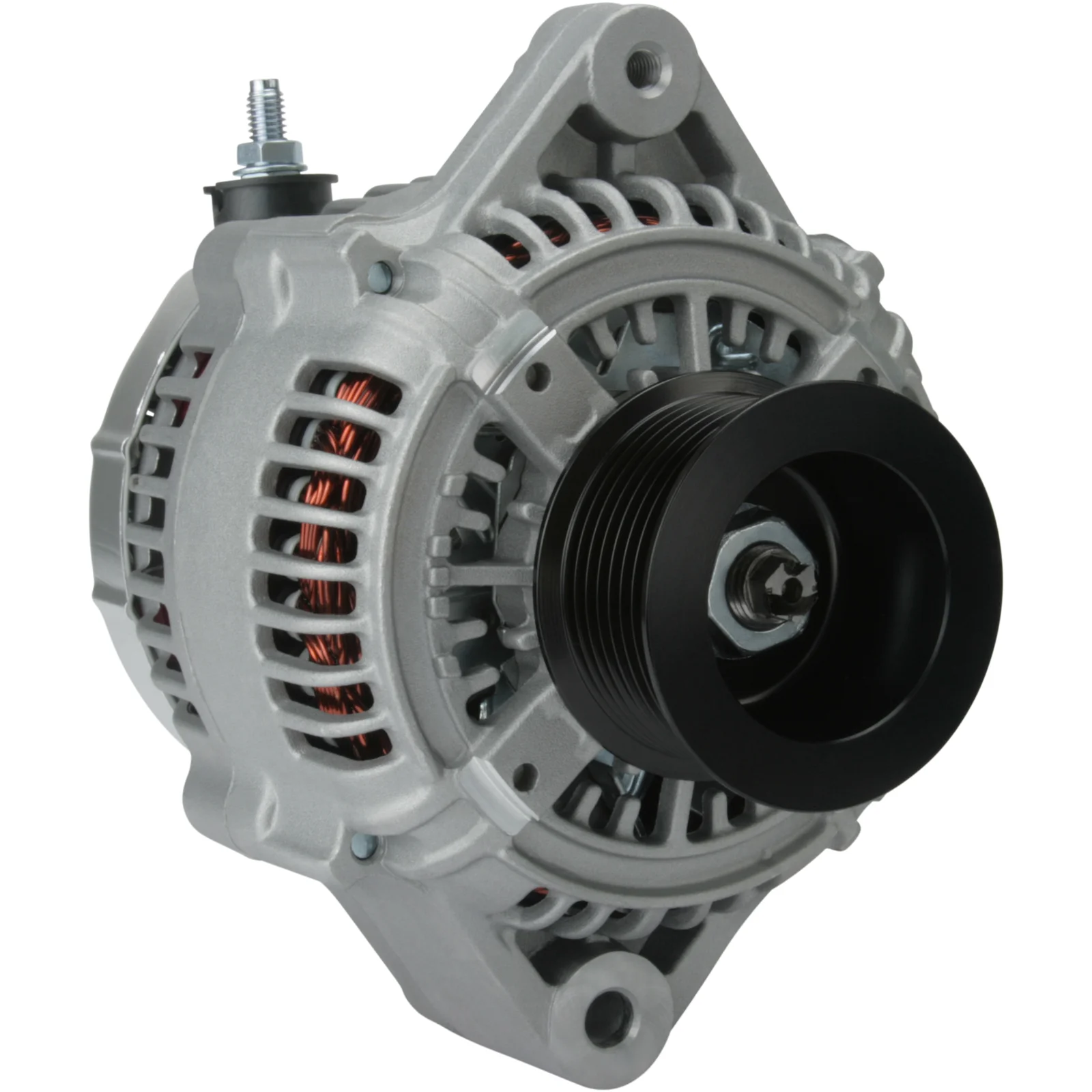

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 140, Rotasjon: CW, Drivreim-diameter: 62,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 140
Drevskive: 90.50
Bredde/holderarm: 58.00
Støttehull: 10.50
Belt. justering. brakethul pos.: 60
Belt. justering. brakethul 1: M8
Drevskive dia.: 62.50
Grooves/drevskive: 8
Radie: 82.50
Radie 2: 85.50
B+: M8
Posisjon/B+ i min.: 5
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL12
Total lengde mm: 178.00
Drevskive: SP
Regulator type: IR
Prod. info: BN
Service: John Deere gresslufthåndverk med kjøle-motor

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL12
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 90.50
Radius 82.50
D+ Size Plug
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing John Deere lawn equipment w/ cooling eng
Grooves/pulley 8
Voltage 14
Total length 178.00 mm
Width/holder arm 58.00
Amp 140

  • OEM
    F032111830, ja1616ir, re46608, ty6762, 100211-6420, 501380

  • Konkurrentreferens
    A6515S, ALT30012, CAL40214, DAN2036, LRA01943, 8EL011712-811, 28-3835, 586.105.1402, 12195, 12195N, 12195R, 119660

  • NormaliseratArtNr
    a6515s, alt30012, cal40214, dan2036, f032111830, ja1616ir, lra01943, re46608, ty6762, 8el011712811, 12195, 12195n, 12195r, 119660, 283835, 501380, 1002116420, 5861051402

  • Passar modeller
    John Deere Model: 7000 Series Model series: 7710 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 7000 Series Model series: 7800 Size of motor: 7.6 From date: 01-09-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 7000 Series Model series: 7810 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 8000 Series Model series: 8120 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 8000 Series Model series: 8120 Size of motor: 8.1 Brand of engine: 6081 HRW06 From date: 01-03-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 8000 Series Model series: 8220 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 140
    Drevskive: 90.50
    Bredde/holderarm: 58.00
    Støttehull: 10.50
    Belt. justering. brakethul pos.: 60
    Belt. justering. brakethul 1: M8
    Drevskive dia.: 62.50
    Grooves/drevskive: 8
    Radie: 82.50
    Radie 2: 85.50
    B+: M8
    Posisjon/B+ i min.: 5
    D+ størrelse: Plugg
    Rotasjon: med urviseren
    Plugg nr.: PL12
    Total lengde mm: 178.00
    Drevskive: SP
    Regulator type: IR
    Prod. info: BN
    Service: John Deere gresslufthåndverk med kjøle-motor

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL12
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 90.50
    Radius 82.50
    D+ Size Plug
    Radius 2 85.50
    Regulator type IR
    Rotation CW
    Servicing John Deere lawn equipment w/ cooling eng
    Grooves/pulley 8
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 58.00
    Amp 140
  • Kjøretøymatching

    • OEM
      F032111830, ja1616ir, re46608, ty6762, 100211-6420, 501380

    • Konkurrentreferens
      A6515S, ALT30012, CAL40214, DAN2036, LRA01943, 8EL011712-811, 28-3835, 586.105.1402, 12195, 12195N, 12195R, 119660

    • NormaliseratArtNr
      a6515s, alt30012, cal40214, dan2036, f032111830, ja1616ir, lra01943, re46608, ty6762, 8el011712811, 12195, 12195n, 12195r, 119660, 283835, 501380, 1002116420, 5861051402

    • Passar modeller
      John Deere Model: 7000 Series Model series: 7710 From date: 01-01-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 7000 Series Model series: 7800 Size of motor: 7.6 From date: 01-09-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 7000 Series Model series: 7810 From date: 01-01-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 8000 Series Model series: 8120 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 8000 Series Model series: 8120 Size of motor: 8.1 Brand of engine: 6081 HRW06 From date: 01-03-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 8000 Series Model series: 8220 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
      1 / 2
