HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111947

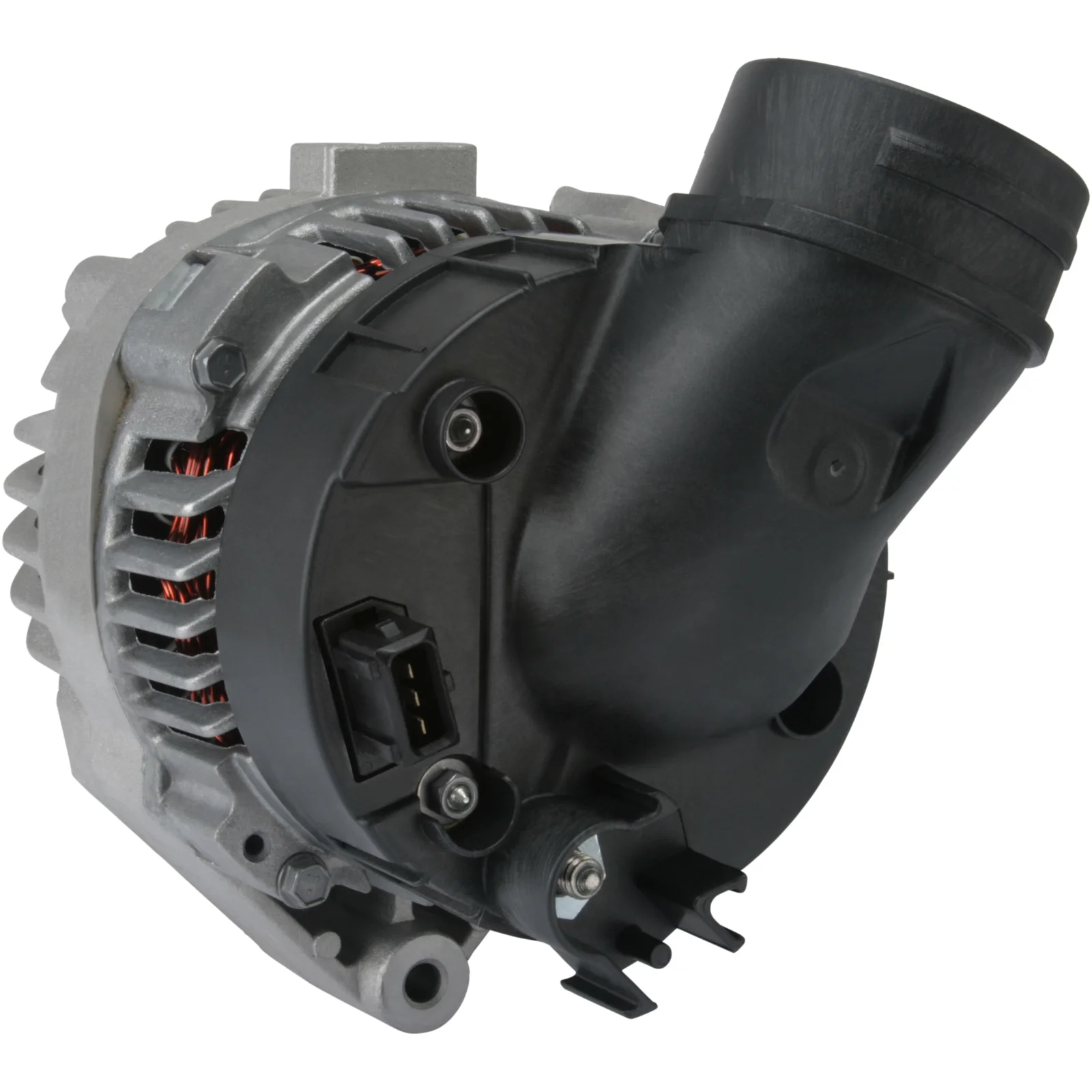

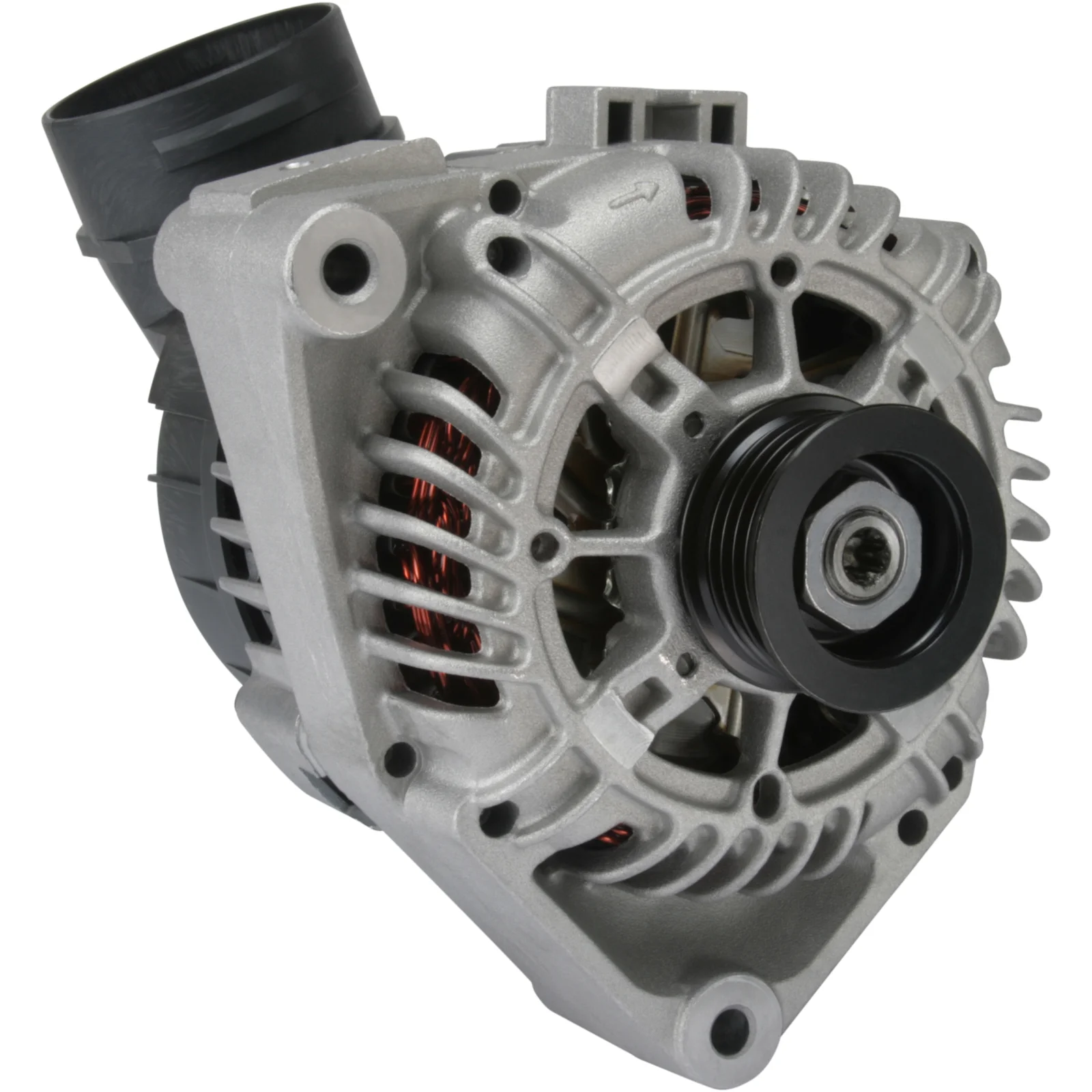

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 95, Rotasjon: med urviseren, Reimhjul diameter: 46,30

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 14
Ampere: 95
Drevkugg avstand: 77.30
Bredde/holderarm: 56.00
Bøssinghull: 8.20
Båndjustering. bøsingshullposisjon: 50
Båndjustering. bøsingshull 1: 8.20
Drevkugg diameter: 46.30
Groover/drevkugg: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 33
D+ Størrelse: Plugg
Rotasjon: medur (CW)
Pluggnr.: PL52
Total lengde mm: 218.00
Drevkugg: SP
Regulatorstype: IR
Prod. info: BN
Service: BMW

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 50
Plug no. PL52
Bracket hole 8.20
Position/B+ in min. 33
Prod. info BN
Pulley SP
Pulley dia. 46.30
Pulley dist. 77.30
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing BMW
Grooves/pulley 5
Voltage 14
Total length 218.00 mm
Width/holder arm 56.00
Amp 95

  • OEM
    a13vi130, a13vi150, F032111947, 1400ir, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12312246070, 12312246078, 12312246572, 12312246573

  • Konkurrentreferens
    A3065, ALT-H070, CAL15239, DRA4058, F042A0H070, LRA02188, NA528, 8EL011710-331, 8el737603-001, 28-4650, 215.144.952, 215.510.095, 4562, 23188R, 119030, 200141, 210522, 210522A, 301400RI, 436665, 439093, 746044, 746844, 839042, 12090019, 0986049620, 944390901160

  • NormaliseratArtNr
    a13vi130, a13vi150, a3065, alth070, cal15239, dra4058, f032111947, f042a0h070, lra02188, na528, 8el011710331, 8el737603001, 1400ir, 4562, 23188r, 119030, 200141, 210522, 210522a, 284650, 301400ri, 436665, 439093, 746044, 746844, 839042, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12090019, 215144952, 215510095, 0986049620, 12312246070, 12312246078, 12312246572, 12312246573, 944390901160

  • Passar modeller
    BMW Model: 5 Model series: 525 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25(256T1) Type description: E39 From date: 01-01-1997 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E39 From date: 01-01-1996 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25(256T1) Type description: E39 Body: Estate From date: 01-03-1997 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 7 Model series: 725 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E38 From date: 01-04-1996 To date: 01-11-2001 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningskilde: 14
    Ampere: 95
    Drevkugg avstand: 77.30
    Bredde/holderarm: 56.00
    Bøssinghull: 8.20
    Båndjustering. bøsingshullposisjon: 50
    Båndjustering. bøsingshull 1: 8.20
    Drevkugg diameter: 46.30
    Groover/drevkugg: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 33
    D+ Størrelse: Plugg
    Rotasjon: medur (CW)
    Pluggnr.: PL52
    Total lengde mm: 218.00
    Drevkugg: SP
    Regulatorstype: IR
    Prod. info: BN
    Service: BMW

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 50
    Plug no. PL52
    Bracket hole 8.20
    Position/B+ in min. 33
    Prod. info BN
    Pulley SP
    Pulley dia. 46.30
    Pulley dist. 77.30
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing BMW
    Grooves/pulley 5
    Voltage 14
    Total length 218.00 mm
    Width/holder arm 56.00
    Amp 95
  • Kjøretøymatching

    • OEM
      a13vi130, a13vi150, F032111947, 1400ir, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12312246070, 12312246078, 12312246572, 12312246573

    • Konkurrentreferens
      A3065, ALT-H070, CAL15239, DRA4058, F042A0H070, LRA02188, NA528, 8EL011710-331, 8el737603-001, 28-4650, 215.144.952, 215.510.095, 4562, 23188R, 119030, 200141, 210522, 210522A, 301400RI, 436665, 439093, 746044, 746844, 839042, 12090019, 0986049620, 944390901160

    • NormaliseratArtNr
      a13vi130, a13vi150, a3065, alth070, cal15239, dra4058, f032111947, f042a0h070, lra02188, na528, 8el011710331, 8el737603001, 1400ir, 4562, 23188r, 119030, 200141, 210522, 210522a, 284650, 301400ri, 436665, 439093, 746044, 746844, 839042, 2246070, 2246078, 2246572, 2246573, 2541848, 2541884, 12090019, 215144952, 215510095, 0986049620, 12312246070, 12312246078, 12312246572, 12312246573, 944390901160

    • Passar modeller
      BMW Model: 5 Model series: 525 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25(256T1) Type description: E39 From date: 01-01-1997 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E39 From date: 01-01-1996 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25(256T1) Type description: E39 Body: Estate From date: 01-03-1997 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 7 Model series: 725 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E38 From date: 01-04-1996 To date: 01-11-2001 Fuel: Diesel Approved: Yes
