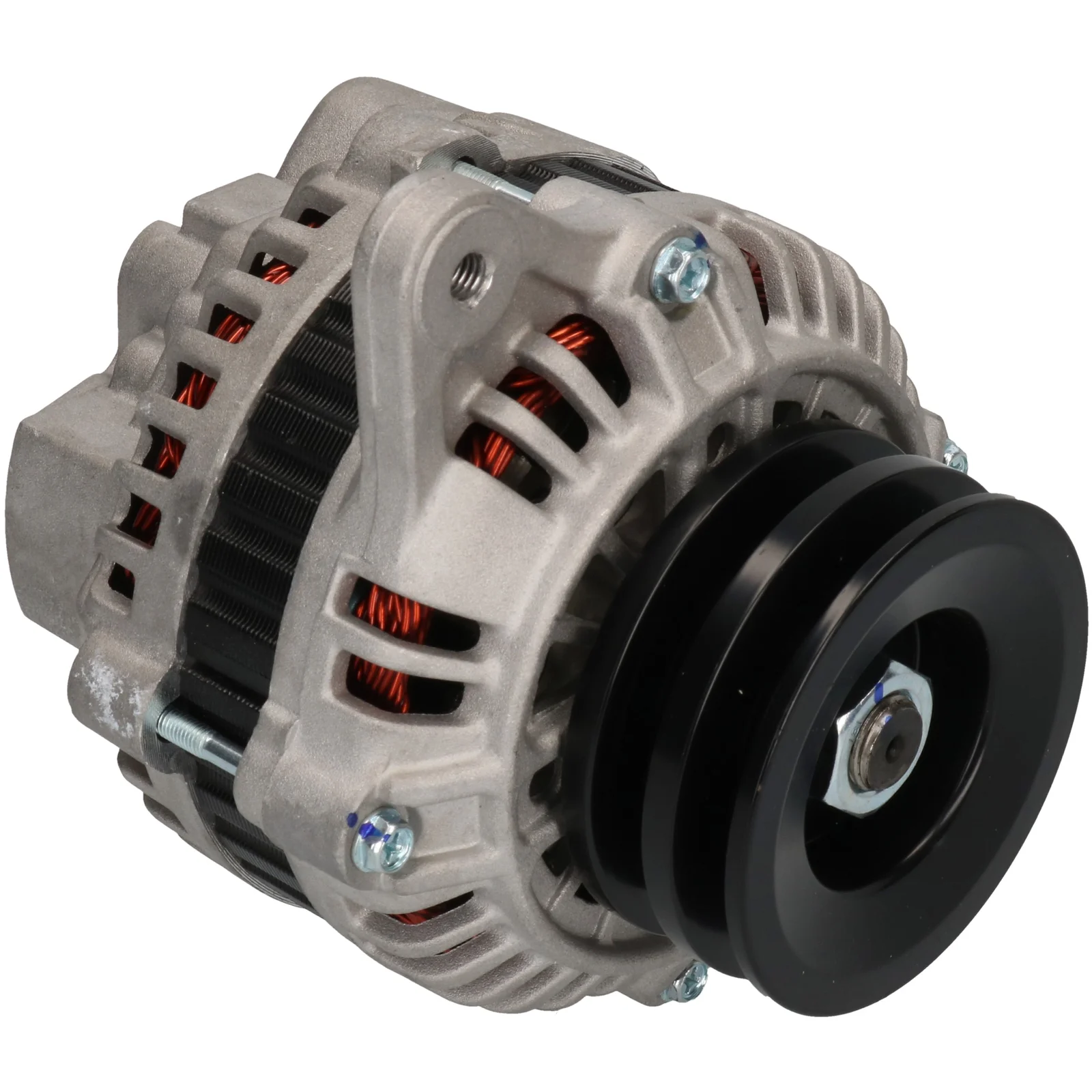

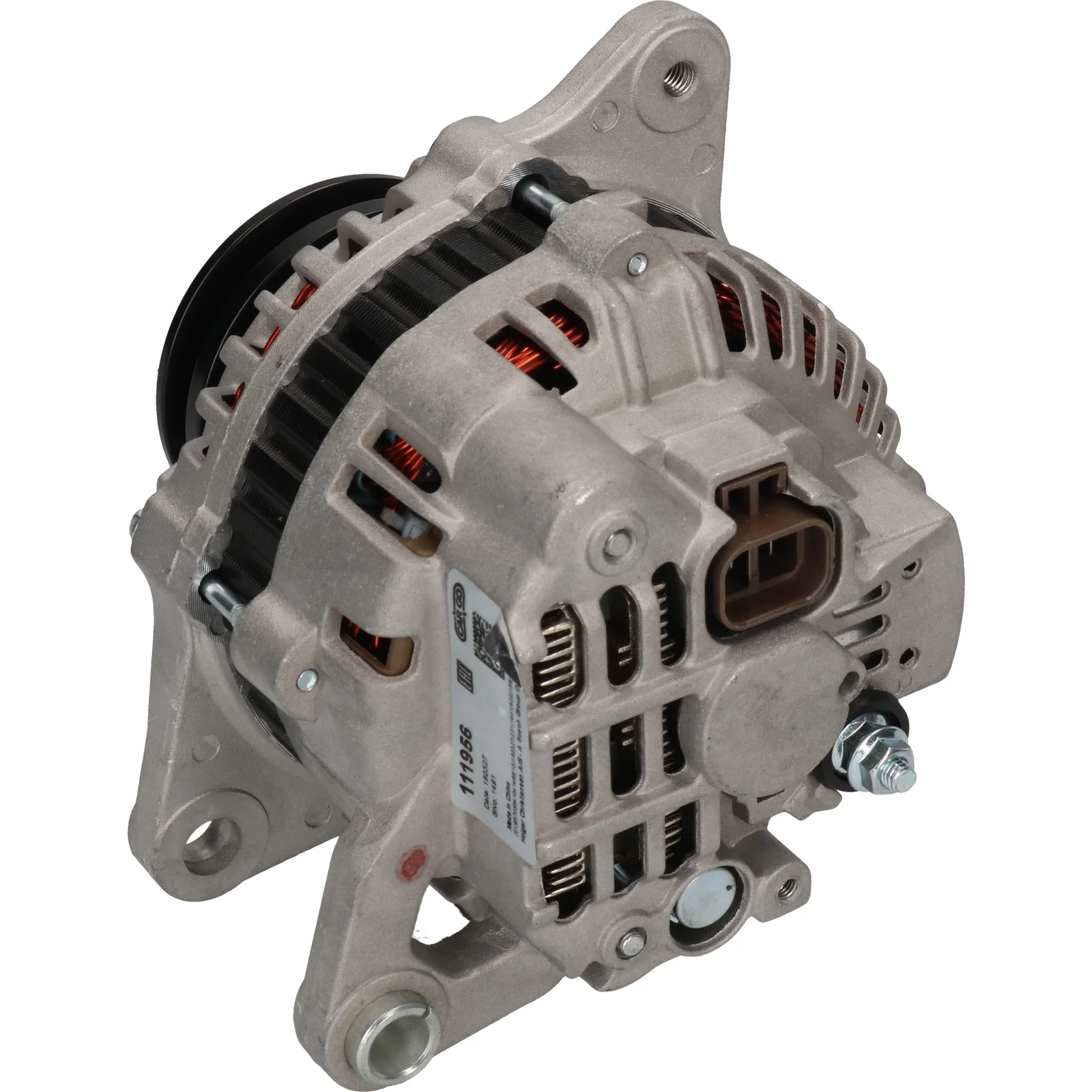

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111956

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 75, Rotasjon: CW, Festebrakett avstand: 55,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 75
Drevkugg distanse: 41.00
Bredde/holderarm: 13.00
Monteringsbukk dist.: 55.00
Bukkhull: 12.50
Belt. justeringsbukk hult pos.: 4
Belt. justeringsbukk hull 1: M8
Drevkuggs diameter: 87.00
Riller/drevkugg: 2
Radius: 90.00
Radius 2: 89.00
B+: M6
Posisjon/B+ i min.: 15
D+ Størrelse: Plugg
Rotasjon: CW
Plugg no.: PL07
Total lengde mm: 167.00
Terminaltype: L-S
Drevkugg: DP
Regulator type: IR
Prod. info: BN
Service: Mitsubishi

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL07
Bracket hole 12.50
Position/B+ in min. 15
Prod. info BN
Pulley DP
Pulley dia. 87.00
Pulley dist. 41.00
Radius 90.00
D+ Size Plug
Radius 2 89.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 2
Terminal type L-S
Voltage 14
Total length 167.00 mm
Width/holder arm 13.00
Amp 75

  • OEM
    A003T08699, A003T09199, A003T09698, A003T09699, A003TB1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, F032111956, ja1375ir, lra0469, me200696, me200698, me201838, ME202971

  • Konkurrentreferens
    A5017, A5386PR, ALT-3040, ALT31006, CAL35129, dra3473, DRA3473N, F042303011, F042511340, F042A03011, lrb00237, QA2279, 8EL012428-061, 8el737596-001, 8el737597-001, 28-2799, 28-3538, 226.142.752, 5713, 5714, 12626N, 12636R, 111683, 210491, 210491A, 401375RI, 12060202, 20130169, 0986044661

  • NormaliseratArtNr
    a003t08699, a003t09199, a003t09698, a003t09699, a003tb1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, a5017, a5386pr, alt3040, alt31006, cal35129, dra3473, dra3473n, f032111956, f042303011, f042511340, f042a03011, ja1375ir, lra0469, lrb00237, me200696, me200698, me201838, me202971, qa2279, 8el012428061, 8el737596001, 8el737597001, 5713, 5714, 12626n, 12636r, 111683, 210491, 210491a, 282799, 283538, 401375ri, 12060202, 20130169, 226142752, 0986044661

  • Passar modeller
    Mitsubishi Model: Canter Model series: 2,8 Size of motor: 2.8 Brand of engine: 4M40-T Type description: FE3, FE4 Body: Platform / Chassis From date: 01-06-1994 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 3C13 Size of motor: 3.0 Brand of engine: 4M42-0AT Type description: FE7, FE8 Body: Platform / Chassis From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-2AT Body: Platform / Chassis From date: 01-07-1998 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-A Body: Platform / Chassis From date: 01-08-1996 To date: 01-12-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 3.0 Brand of engine: 4M42-0AT Body: Platform / Chassis From date: 01-09-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 55 Size of motor: 3.0 Brand of engine: 4M42-0AT Body: Platform / Chassis From date: 01-09-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.8 Brand of engine: 4M40-T Type description: V46W From date: 01-06-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
