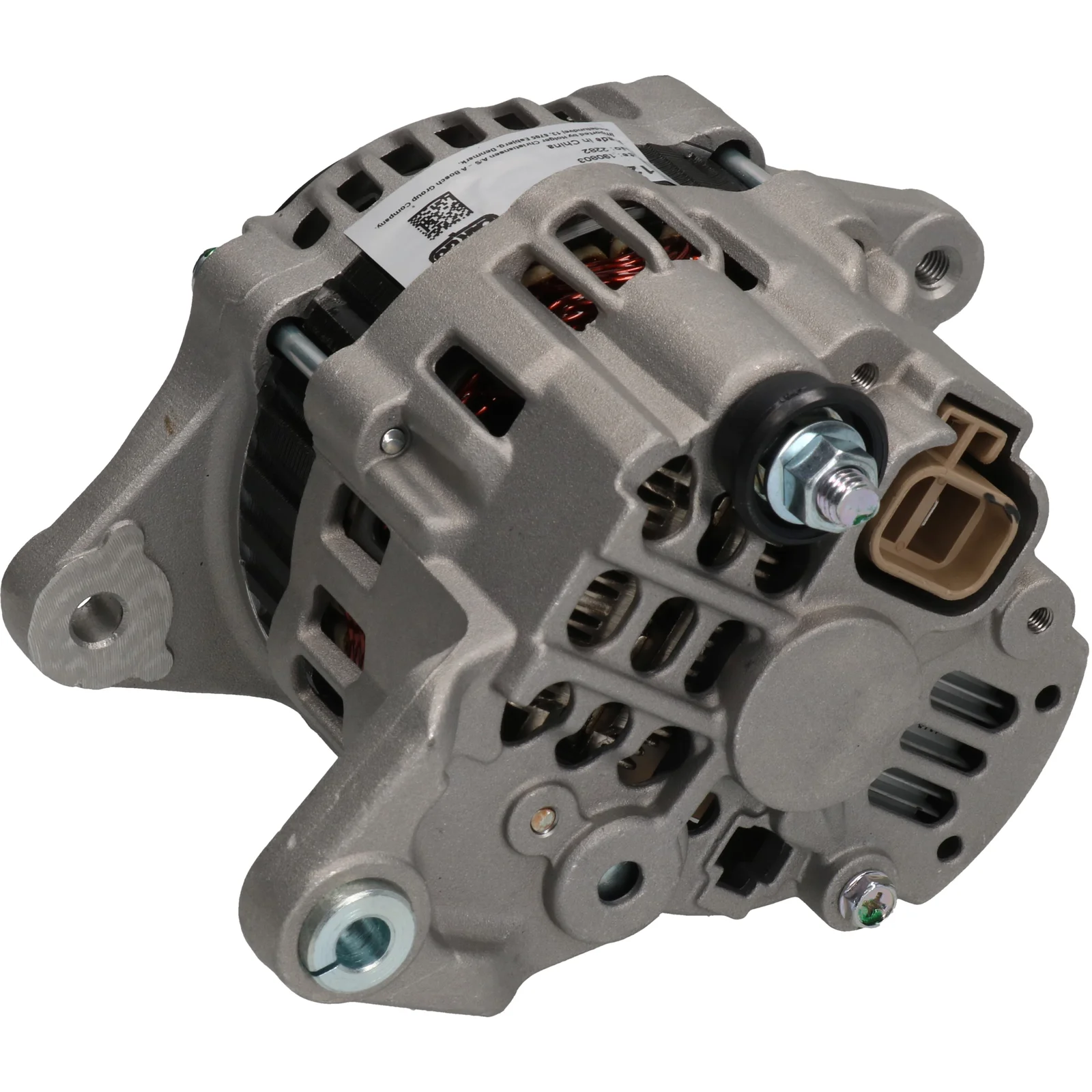

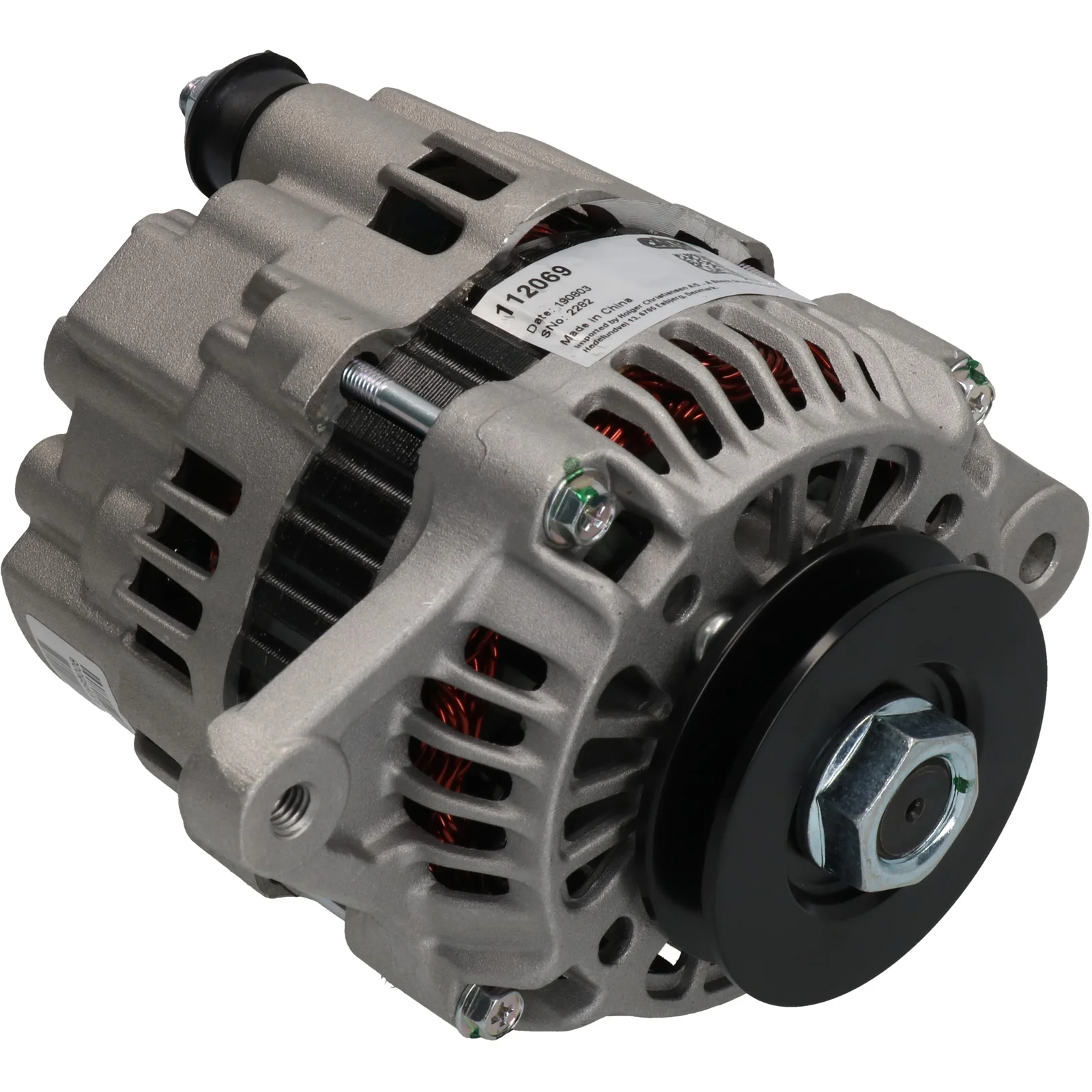

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112069

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 50, Rotasjon: CW, Monteringsbøstingsavstand: 81.60

Beskrivelse

Spenning: 14
Amp: 50
Drevskive: 42.00
Bredde/holderarm: 13.00
Monteringsbeslag avstand: 81.60
Beslagshull: 8.50
Belt. justeringsbeslag pos.: 60
Belt. justeringsbeslag hull 1: M8
Drevs diameter: 72.50
Grooves/drev: 1
Radius: 79.00
Radius 2: 78.00
B+: M8
Posisjon/B+ i min.: 45
D+: Størrelse: Plugg
Rotasjon: Medur ← CW
Plugg nr.: PL07
Total lengde mm: 162.00
Drevskive: P
Regulator type: IR
Prod. info: BN
Servicering: Nissan

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 81.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 8.50
Position/B+ in min. 45
Prod. info BN
Pulley P
Pulley dia. 72.50
Pulley dist. 42.00
Radius 79.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Voltage 14
Total length 162.00 mm
Width/holder arm 13.00
Amp 50

  • OEM
    A007T03771, A007T03771A, A007TA3371, A007TA3377, a7t03771, a7t03771a, a7ta3371, A7TA3377, A7TA3377A, F032112069, 91H2003270, 91H2008840, 23100-50k15, 23100-FF110, 23100-FU41A

  • Konkurrentreferens
    A5170, A5239, A5239(MITSUBISHI), ALT31073, CAL35186, DRA1471, DRA3887, LRA01578, 8el737631-001, 28-2715, 28-7718, 165.512.050, 527.110.502, 5738, 11051N, 11051R, 12153, 12153N, 12564N, 12566N, 12566R, 119624, 401413RI, 9212917, 20140107

  • NormaliseratArtNr
    a007t03771, a007t03771a, a007ta3371, a007ta3377, a5170, a5239, a5239mitsubishi, a7t03771, a7t03771a, a7ta3371, a7ta3377, a7ta3377a, alt31073, cal35186, dra1471, dra3887, f032112069, lra01578, 8el737631001, 91h2003270, 91h2008840, 5738, 11051n, 11051r, 12153, 12153n, 12564n, 12566n, 12566r, 23100ff110, 23100fu41a, 119624, 282715, 287718, 401413ri, 2310050k15, 9212917, 20140107, 165512050, 527110502

  • Passar modeller
    Caterpillar Model: 2C3000 Model series: 2C3000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: 2C3500 Model series: 2C3500 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: 2C4000 Model series: 2C4000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2C5000 Model series: 2C5000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2C5500 Model series: 2C5500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2C6000 Model series: 2C6000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2C6500 Model series: 2C6500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2CC4000 Model series: 2CC4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: 2P3000 Model series: 2P3000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: 2P3500 Model series: 2P3500 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: 2P4000 Model series: 2P4000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2P5000 Model series: 2P5000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2P5500 Model series: 2P5500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2P6000 Model series: 2P6000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2P6500 Model series: 2P6500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2P7000 Model series: 2P7000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: 2PC4000 Model series: 2PC4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: C3000, C3500 & CC4000 Model series: C3000, C3500 & CC4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: C4000, C5000, C5500, C6000 & C6500 Model series: C4000, C5000, C5500, C6000 & C6500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: GP15N Model series: GP15N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: GP18N Model series: GP18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: GP20CN Model series: GP20CN Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: GP20N Model series: GP20N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: GP25N Model series: GP25N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: GP25N Model series: GP25N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: GP28N Model series: GP28N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: GP30N Model series: GP30N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: GP33N Model series: GP33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: GP35N Model series: GP35N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Caterpillar Model: P3000, P3500 & P4000 Model series: P3000, P3500 & P4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Caterpillar Model: P5000, P5500, P6000, P6500 & P7000 Model series: P5000, P5500, P6000, P6500 & P7000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: AX 20 SER. CUSHION & PNEUMATIC Model series: AX 20 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: AX 50 SER. CUSHION & PNEUMATIC Model series: AX 50 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX 20 SER. CUSHION & PNEUMATIC Model series: BX 20 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX 20 SER. CUSHION & PNEUMATIC Model series: BX 20 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX 50 SER. CUSHION & PNEUMATIC Model series: BX 50 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX 50 SER. CUSHION & PNEUMATIC Model series: BX 50 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 CUSHION FG20ST-16 Model series: BX50 CUSHION FG20ST-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX50 CUSHION FG25SHT-16 Model series: BX50 CUSHION FG25SHT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 CUSHION FG25ST-16 Model series: BX50 CUSHION FG25ST-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX50 CUSHION FG30SHT-16 Model series: BX50 CUSHION FG30SHT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 CUSHION FG32SHT-16 Model series: BX50 CUSHION FG32SHT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 PNEUMATIC FG20HT-16 Model series: BX50 PNEUMATIC FG20HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 PNEUMATIC FG20T-16 Model series: BX50 PNEUMATIC FG20T-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX50 PNEUMATIC FG25HT-16 Model series: BX50 PNEUMATIC FG25HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 PNEUMATIC FG25T-16 Model series: BX50 PNEUMATIC FG25T-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Komatsu Model: BX50 PNEUMATIC FG30HT-16 Model series: BX50 PNEUMATIC FG30HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Komatsu Model: BX50 PNEUMATIC FG32HT-16 Model series: BX50 PNEUMATIC FG32HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Manitou Model: MI 15G / MI 18G Model series: MI 15G / MI 18G Model type: Rough Terrain Forklifts Brand of engine: K21(L) Approved: Yes
    Manitou Model: MI 20G / MI 25G / MI 30G / MI 35G Model series: MI 20G / MI 25G / MI 30G / MI 35G Model type: Rough Terrain Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG15N & FG18N Model series: FG15N & FG18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG15N Model series: FG15N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG18N Model series: FG18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG20CN Model series: FG20CN Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG20N Model series: FG20N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG20N-HO Model series: FG20N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FG25N Model series: FG25N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG25N-HO Model series: FG25N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FG28N Model series: FG28N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FG28N, FG30N & FG33N Model series: FG28N, FG30N & FG33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FG30N Model series: FG30N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG30N Model series: FG30N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FG33N Model series: FG33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FG35N Model series: FG35N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FG35N Model series: FG35N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FGC15N - FGC33N CUSHION Model series: FGC15N - FGC33N CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FGC15N Model series: FGC15N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FGC18N Model series: FGC18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FGC20CN Model series: FGC20CN Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FGC20N Model series: FGC20N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FGC20N-HO Model series: FGC20N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FGC25N Model series: FGC25N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Mitsubishi Model: FGC25N-HO Model series: FGC25N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FGC30N Model series: FGC30N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Mitsubishi Model: FGC33N Model series: FGC33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: AL30/AL35/AL50 Model series: AL30/AL35/AL50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: CL30/CL35/CLS40 Model series: CL30/CL35/CLS40 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: CL50/CL55 Model series: CL50/CL55 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: CL60/CL70/CL80 Model series: CL60/CL70/CL80 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: CLS60/CLS65 Model series: CLS60/CLS65 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: CLU40/CLU50/CLU Model series: CLU40/CLU50/CLU Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: DX-15 Model series: DX-15 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: DX-18 Model series: DX-18 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: DX-20 Model series: DX-20 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: DX-25 Model series: DX-25 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: DX-30 Model series: DX-30 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: DX-32 Model series: DX-32 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: H Model series: H15 From date: 01-01-1994 Approved: Yes
    Nissan Model: H Model series: H20 Brand of engine: H20 From date: 01-01-1994 Approved: Yes
    Nissan Model: H Model series: H25 Brand of engine: PJ01 From date: 01-01-1995 Approved: Yes
    Nissan Model: PL30/PL35 Model series: PL30/PL35 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PL40/PL50 Model series: PL40/PL50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PL55/PL60/PL70 Model series: PL55/PL60/PL70 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION 3000-8000 LBS. Model series: PLATINUM II CUSHION 3000-8000 LBS. Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION 3000-8000 LBS. Model series: PLATINUM II CUSHION 3000-8000 LBS. Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION CF30, CF35 & CFS40 Model series: PLATINUM II CUSHION CF30, CF35 & CFS40 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION CF40, CF50 & CF55 Model series: PLATINUM II CUSHION CF40, CF50 & CF55 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION CF80 & CF80 BOXCAR Model series: PLATINUM II CUSHION CF80 & CF80 BOXCAR Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION CFS60, CF60, CFS65 & CF70 Model series: PLATINUM II CUSHION CFS60, CF60, CFS65 & CF70 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II CUSHION CFU40 & CFU55 Model series: PLATINUM II CUSHION CFU40 & CFU55 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II PNEUMATIC 3000-7000 LBS. Model series: PLATINUM II PNEUMATIC 3000-7000 LBS. Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM II PNEUMATIC 3000-7000 LBS. Model series: PLATINUM II PNEUMATIC 3000-7000 LBS. Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II PNEUMATIC PF30, PF35, PFS40, PF40 & PF Model series: PLATINUM II PNEUMATIC PF30, PF35, PFS40, PF40 & PF Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM II PNEUMATIC PF55, PF60 & PF70 Model series: PLATINUM II PNEUMATIC PF55, PF60 & PF70 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Nissan Model: PLATINUM II PNEUMATIC PFU40 & PFU50 Model series: PLATINUM II PNEUMATIC PFU40 & PFU50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM NOMAD COMPACT PNEUM. 3000-5000 LBS. Model series: PLATINUM NOMAD COMPACT PNEUM. 3000-5000 LBS. Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLATINUM NOMAD COMPACT PNEUM. AF30, AF35 & AF50 Model series: PLATINUM NOMAD COMPACT PNEUM. AF30, AF35 & AF50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLS40 Model series: PLS40 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    Nissan Model: PLU40/PLU50 Model series: PLU40/PLU50 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    Still Model: CLX25 Model series: CLX25 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: CG15L,CG18L, CG20L & CS25L Model series: CG15L,CG18L, CG20L & CS25L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: CG20HL, CG25HL, CG28HL & CG30HL Model series: CG20HL, CG25HL, CG28HL & CG30HL Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG15-3/3H & FCG20-3/3H Model series: FCG15-3/3H & FCG20-3/3H Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FCG15-3/3H & FCG20-3/3H Model series: FCG15-3/3H & FCG20-3/3H Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG15-A1 CUSHION Model series: FCG15-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FCG18-A1 CUSHION Model series: FCG18-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FCG20-A1 CUSHION Model series: FCG20-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FCG25-3/3H & FCG30-3/3H Model series: FCG25-3/3H & FCG30-3/3H Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FCG25-3/3H & FCG30-3/3H Model series: FCG25-3/3H & FCG30-3/3H Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG25-A1 CUSHION Model series: FCG25-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FCG28-A1 CUSHION Model series: FCG28-A1 CUSHION Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG30-A1 CUSHION Model series: FCG30-A1 CUSHION Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG36-8 Model series: FCG36-8 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG36-8L Model series: FCG36-8L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FCG36-A1 CUSHION Model series: FCG36-A1 CUSHION Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FG15-A1 PNEUMATIC Model series: FG15-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FG18-A1 PNEUMATIC Model series: FG18-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FG20-A1 PNEUMATIC Model series: FG20-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FG20T7 & FG25T7 Model series: FG20T7 & FG25T7 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FG25-A1 PNEUMATIC Model series: FG25-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FG30T7 Model series: FG30T7 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FG35T2L & FHG36T3L Model series: FG35T2L & FHG36T3L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FHG15T2 & FHG18T2 Model series: FHG15T2 & FHG18T2 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FHG20-A1 PNEUMATIC Model series: FHG20-A1 PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FHG20T7 & FHG25T7 Model series: FHG20T7 & FHG25T7 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FHG25-A1 PNEUMATIC Model series: FHG25-A1 PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FHG30-A1 PNEUMATIC Model series: FHG30-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: FHG30T7 Model series: FHG30T7 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FHG35S-A1 PNEUMATIC Model series: FHG35S-A1 PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: FHG36T3 Model series: FHG36T3 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: G20L Model series: G20L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: G25L Model series: G25L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: G30L Model series: G30L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: HG15L & HG18L Model series: HG15L & HG18L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
    TCM Model: HG20L Model series: HG20L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: HG25L Model series: HG25L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    TCM Model: HG30L Model series: HG30L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
    1 / 30
  • Beskrivelse
    Spenning: 14
    Amp: 50
    Drevskive: 42.00
    Bredde/holderarm: 13.00
    Monteringsbeslag avstand: 81.60
    Beslagshull: 8.50
    Belt. justeringsbeslag pos.: 60
    Belt. justeringsbeslag hull 1: M8
    Drevs diameter: 72.50
    Grooves/drev: 1
    Radius: 79.00
    Radius 2: 78.00
    B+: M8
    Posisjon/B+ i min.: 45
    D+: Størrelse: Plugg
    Rotasjon: Medur ← CW
    Plugg nr.: PL07
    Total lengde mm: 162.00
    Drevskive: P
    Regulator type: IR
    Prod. info: BN
    Servicering: Nissan

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 81.60
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 8.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley P
    Pulley dia. 72.50
    Pulley dist. 42.00
    Radius 79.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 13.00
    Amp 50
  • Kjøretøymatching

    • OEM
      A007T03771, A007T03771A, A007TA3371, A007TA3377, a7t03771, a7t03771a, a7ta3371, A7TA3377, A7TA3377A, F032112069, 91H2003270, 91H2008840, 23100-50k15, 23100-FF110, 23100-FU41A

    • Konkurrentreferens
      A5170, A5239, A5239(MITSUBISHI), ALT31073, CAL35186, DRA1471, DRA3887, LRA01578, 8el737631-001, 28-2715, 28-7718, 165.512.050, 527.110.502, 5738, 11051N, 11051R, 12153, 12153N, 12564N, 12566N, 12566R, 119624, 401413RI, 9212917, 20140107

    • NormaliseratArtNr
      a007t03771, a007t03771a, a007ta3371, a007ta3377, a5170, a5239, a5239mitsubishi, a7t03771, a7t03771a, a7ta3371, a7ta3377, a7ta3377a, alt31073, cal35186, dra1471, dra3887, f032112069, lra01578, 8el737631001, 91h2003270, 91h2008840, 5738, 11051n, 11051r, 12153, 12153n, 12564n, 12566n, 12566r, 23100ff110, 23100fu41a, 119624, 282715, 287718, 401413ri, 2310050k15, 9212917, 20140107, 165512050, 527110502

    • Passar modeller
      Caterpillar Model: 2C3000 Model series: 2C3000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: 2C3500 Model series: 2C3500 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: 2C4000 Model series: 2C4000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2C5000 Model series: 2C5000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2C5500 Model series: 2C5500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2C6000 Model series: 2C6000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2C6500 Model series: 2C6500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2CC4000 Model series: 2CC4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: 2P3000 Model series: 2P3000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: 2P3500 Model series: 2P3500 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: 2P4000 Model series: 2P4000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2P5000 Model series: 2P5000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2P5500 Model series: 2P5500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2P6000 Model series: 2P6000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2P6500 Model series: 2P6500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2P7000 Model series: 2P7000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: 2PC4000 Model series: 2PC4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: C3000, C3500 & CC4000 Model series: C3000, C3500 & CC4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: C4000, C5000, C5500, C6000 & C6500 Model series: C4000, C5000, C5500, C6000 & C6500 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: GP15N Model series: GP15N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: GP18N Model series: GP18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: GP20CN Model series: GP20CN Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: GP20N Model series: GP20N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: GP25N Model series: GP25N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: GP25N Model series: GP25N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: GP28N Model series: GP28N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: GP30N Model series: GP30N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: GP33N Model series: GP33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: GP35N Model series: GP35N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Caterpillar Model: P3000, P3500 & P4000 Model series: P3000, P3500 & P4000 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Caterpillar Model: P5000, P5500, P6000, P6500 & P7000 Model series: P5000, P5500, P6000, P6500 & P7000 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: AX 20 SER. CUSHION & PNEUMATIC Model series: AX 20 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: AX 50 SER. CUSHION & PNEUMATIC Model series: AX 50 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX 20 SER. CUSHION & PNEUMATIC Model series: BX 20 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX 20 SER. CUSHION & PNEUMATIC Model series: BX 20 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX 50 SER. CUSHION & PNEUMATIC Model series: BX 50 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX 50 SER. CUSHION & PNEUMATIC Model series: BX 50 SER. CUSHION & PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 CUSHION FG20ST-16 Model series: BX50 CUSHION FG20ST-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX50 CUSHION FG25SHT-16 Model series: BX50 CUSHION FG25SHT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 CUSHION FG25ST-16 Model series: BX50 CUSHION FG25ST-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX50 CUSHION FG30SHT-16 Model series: BX50 CUSHION FG30SHT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 CUSHION FG32SHT-16 Model series: BX50 CUSHION FG32SHT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 PNEUMATIC FG20HT-16 Model series: BX50 PNEUMATIC FG20HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 PNEUMATIC FG20T-16 Model series: BX50 PNEUMATIC FG20T-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX50 PNEUMATIC FG25HT-16 Model series: BX50 PNEUMATIC FG25HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 PNEUMATIC FG25T-16 Model series: BX50 PNEUMATIC FG25T-16 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Komatsu Model: BX50 PNEUMATIC FG30HT-16 Model series: BX50 PNEUMATIC FG30HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Komatsu Model: BX50 PNEUMATIC FG32HT-16 Model series: BX50 PNEUMATIC FG32HT-16 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Manitou Model: MI 15G / MI 18G Model series: MI 15G / MI 18G Model type: Rough Terrain Forklifts Brand of engine: K21(L) Approved: Yes
      Manitou Model: MI 20G / MI 25G / MI 30G / MI 35G Model series: MI 20G / MI 25G / MI 30G / MI 35G Model type: Rough Terrain Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG15N & FG18N Model series: FG15N & FG18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG15N Model series: FG15N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG18N Model series: FG18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG20CN Model series: FG20CN Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG20N Model series: FG20N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG20N-HO Model series: FG20N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FG25N Model series: FG25N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG25N-HO Model series: FG25N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FG28N Model series: FG28N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FG28N, FG30N & FG33N Model series: FG28N, FG30N & FG33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FG30N Model series: FG30N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG30N Model series: FG30N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FG33N Model series: FG33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FG35N Model series: FG35N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FG35N Model series: FG35N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FGC15N - FGC33N CUSHION Model series: FGC15N - FGC33N CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FGC15N Model series: FGC15N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FGC18N Model series: FGC18N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FGC20CN Model series: FGC20CN Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FGC20N Model series: FGC20N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FGC20N-HO Model series: FGC20N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FGC25N Model series: FGC25N Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Mitsubishi Model: FGC25N-HO Model series: FGC25N-HO Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FGC30N Model series: FGC30N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Mitsubishi Model: FGC33N Model series: FGC33N Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: AL30/AL35/AL50 Model series: AL30/AL35/AL50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: CL30/CL35/CLS40 Model series: CL30/CL35/CLS40 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: CL50/CL55 Model series: CL50/CL55 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: CL60/CL70/CL80 Model series: CL60/CL70/CL80 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: CLS60/CLS65 Model series: CLS60/CLS65 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: CLU40/CLU50/CLU Model series: CLU40/CLU50/CLU Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: DX-15 Model series: DX-15 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: DX-18 Model series: DX-18 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: DX-20 Model series: DX-20 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: DX-25 Model series: DX-25 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: DX-30 Model series: DX-30 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: DX-32 Model series: DX-32 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: H Model series: H15 From date: 01-01-1994 Approved: Yes
      Nissan Model: H Model series: H20 Brand of engine: H20 From date: 01-01-1994 Approved: Yes
      Nissan Model: H Model series: H25 Brand of engine: PJ01 From date: 01-01-1995 Approved: Yes
      Nissan Model: PL30/PL35 Model series: PL30/PL35 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PL40/PL50 Model series: PL40/PL50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PL55/PL60/PL70 Model series: PL55/PL60/PL70 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION 3000-8000 LBS. Model series: PLATINUM II CUSHION 3000-8000 LBS. Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION 3000-8000 LBS. Model series: PLATINUM II CUSHION 3000-8000 LBS. Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION CF30, CF35 & CFS40 Model series: PLATINUM II CUSHION CF30, CF35 & CFS40 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION CF40, CF50 & CF55 Model series: PLATINUM II CUSHION CF40, CF50 & CF55 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION CF80 & CF80 BOXCAR Model series: PLATINUM II CUSHION CF80 & CF80 BOXCAR Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION CFS60, CF60, CFS65 & CF70 Model series: PLATINUM II CUSHION CFS60, CF60, CFS65 & CF70 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II CUSHION CFU40 & CFU55 Model series: PLATINUM II CUSHION CFU40 & CFU55 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II PNEUMATIC 3000-7000 LBS. Model series: PLATINUM II PNEUMATIC 3000-7000 LBS. Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM II PNEUMATIC 3000-7000 LBS. Model series: PLATINUM II PNEUMATIC 3000-7000 LBS. Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II PNEUMATIC PF30, PF35, PFS40, PF40 & PF Model series: PLATINUM II PNEUMATIC PF30, PF35, PFS40, PF40 & PF Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM II PNEUMATIC PF55, PF60 & PF70 Model series: PLATINUM II PNEUMATIC PF55, PF60 & PF70 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Nissan Model: PLATINUM II PNEUMATIC PFU40 & PFU50 Model series: PLATINUM II PNEUMATIC PFU40 & PFU50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM NOMAD COMPACT PNEUM. 3000-5000 LBS. Model series: PLATINUM NOMAD COMPACT PNEUM. 3000-5000 LBS. Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLATINUM NOMAD COMPACT PNEUM. AF30, AF35 & AF50 Model series: PLATINUM NOMAD COMPACT PNEUM. AF30, AF35 & AF50 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLS40 Model series: PLS40 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      Nissan Model: PLU40/PLU50 Model series: PLU40/PLU50 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      Still Model: CLX25 Model series: CLX25 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: CG15L,CG18L, CG20L & CS25L Model series: CG15L,CG18L, CG20L & CS25L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: CG20HL, CG25HL, CG28HL & CG30HL Model series: CG20HL, CG25HL, CG28HL & CG30HL Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG15-3/3H & FCG20-3/3H Model series: FCG15-3/3H & FCG20-3/3H Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FCG15-3/3H & FCG20-3/3H Model series: FCG15-3/3H & FCG20-3/3H Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG15-A1 CUSHION Model series: FCG15-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FCG18-A1 CUSHION Model series: FCG18-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FCG20-A1 CUSHION Model series: FCG20-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FCG25-3/3H & FCG30-3/3H Model series: FCG25-3/3H & FCG30-3/3H Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FCG25-3/3H & FCG30-3/3H Model series: FCG25-3/3H & FCG30-3/3H Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG25-A1 CUSHION Model series: FCG25-A1 CUSHION Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FCG28-A1 CUSHION Model series: FCG28-A1 CUSHION Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG30-A1 CUSHION Model series: FCG30-A1 CUSHION Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG36-8 Model series: FCG36-8 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG36-8L Model series: FCG36-8L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FCG36-A1 CUSHION Model series: FCG36-A1 CUSHION Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FG15-A1 PNEUMATIC Model series: FG15-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FG18-A1 PNEUMATIC Model series: FG18-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FG20-A1 PNEUMATIC Model series: FG20-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FG20T7 & FG25T7 Model series: FG20T7 & FG25T7 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FG25-A1 PNEUMATIC Model series: FG25-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FG30T7 Model series: FG30T7 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FG35T2L & FHG36T3L Model series: FG35T2L & FHG36T3L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FHG15T2 & FHG18T2 Model series: FHG15T2 & FHG18T2 Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FHG20-A1 PNEUMATIC Model series: FHG20-A1 PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FHG20T7 & FHG25T7 Model series: FHG20T7 & FHG25T7 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FHG25-A1 PNEUMATIC Model series: FHG25-A1 PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FHG30-A1 PNEUMATIC Model series: FHG30-A1 PNEUMATIC Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: FHG30T7 Model series: FHG30T7 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FHG35S-A1 PNEUMATIC Model series: FHG35S-A1 PNEUMATIC Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: FHG36T3 Model series: FHG36T3 Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: G20L Model series: G20L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: G25L Model series: G25L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: G30L Model series: G30L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: HG15L & HG18L Model series: HG15L & HG18L Model type: Forklifts Brand of engine: K21(L) Approved: Yes
      TCM Model: HG20L Model series: HG20L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: HG25L Model series: HG25L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      TCM Model: HG30L Model series: HG30L Model type: Forklifts Brand of engine: K25(L) Approved: Yes
      1 / 30

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
