Varenr.: F032112093

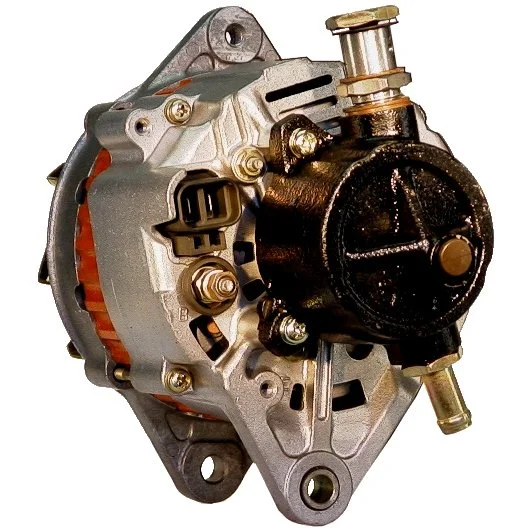

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Monteringsbrakett avstand: 80.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

HC-Cargo Dynamo For Yourex produktordre F032112093

Spenning: 14
Amp: 70
Drevskive avstand: 41.50
Bredde/holderarm: 13.00
Festebrakett avstand: 80.00
Brakettåpning: 10.50
Bånd. justeringsbrakettåpningsposisjon: 60
Bånd. justeringsbrakettåpning 1: M8
Drevskive diameter: 84.00
Groover/drevskive: 2
Radius: 89.50
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 45
Rotasjon: med urviseren
Stikkontakt nr.: PL07
Total lengde mm: 250.00
Drevskive: DP
Regulator type: IR
Kjølevifte pumpe: Ja
Produktinfo: BN
Service: Nissan

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley DP
Pulley dia. 84.00
Pulley dist. 41.50
Radius 89.50
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 250.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    F032110700, F032111316, F032112093, ja678ir, LR170-407, lr170-407, LR170-407B, LR170-407E, lr170-407e, lr170-407s, LR170-407T, lr170-407t, LR170-408, lr170-408, LR170-408B, LR170-408C, lr170-408c, lr170-408s, LR170-408T, lr170-408t, LR170-412, lr170-412, lr170-412s, lr170-412t, lr170-413, 11-0700, 23100-02N14, 23100-02n14, 23100-02n15, 23100-02N18, 23100-02n18, 23100-02N19, 23100-02n19, 23100-02n22, 23100-02n23, 111316

  • Konkurrentreferens
    A2014, ada-973, ALT-V012, ALT32061, ALTV012, ALTV036, ALTV115, ALTV116, BAO3068, CAL20150, dra3216, DRA3216N, F042305037, F042A05037, LEA0694, lra00556, LRA01350, lrb00341, QA1561, 8EL012429-021, 8el726393-001, 28-1732, 28-3933, 28-51.143, 227.112.702, 227.140.702, 5363, 22394N, 22394R, 40678RI, 118954, 210020, 210020A, 437876, 12060242, 12060277, 0986046421, 0986046431

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a2014, ada973, alt32061, altv012, altv036, altv115, altv116, bao3068, cal20150, dra3216, dra3216n, f032110700, f032111316, f032112093, f042305037, f042a05037, ja678ir, lea0694, lr170407, lr170407b, lr170407e, lr170407s, lr170407t, lr170408, lr170408b, lr170408c, lr170408s, lr170408t, lr170412, lr170412s, lr170412t, lr170413, lra00556, lra01350, lrb00341, qa1561, 8el012429021, 8el726393001, 5363, 22394n, 22394r, 40678ri, 110700, 111316, 118954, 210020, 210020a, 281732, 283933, 437876, 2310002n14, 2310002n15, 2310002n18, 2310002n19, 2310002n22, 2310002n23, 2851143, 12060242, 12060277, 227112702, 227140702, 0986046421, 0986046431

  • Passar modeller
    Nissan Model: King Van Model series: King Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 From date: 01-11-1986 To date: 01-03-1989 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: E23 Body: Bus From date: 01-04-1985 To date: 01-11-1988 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD 25 Year: 03.86-08.91
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 03.96-02.98
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 08.87-02.98
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 09.85-08.88
    Nissan Series: Terrano I (WD21) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD 27 T Year: 02.89-02.93
    Nissan Series: URVAN Buss (E23) Model: 2.3 D (E23B) Engine volume: 2.3 Engine type: SD23 Year: 04.85-11.88
    Nissan Series: URVAN Buss (E24) Model: 2.5 D Engine volume: 2.5 Engine type: TD25 Year: 05.89-10.96
    Nissan Series: URVAN Skåp (E24) Model: 2.5 D Engine volume: 2.5 Engine type: TD25 Year: 12.88-05.97
    Nissan Series: URVAN Skåp Model: 2.3 D Engine volume: 2.3 Engine type: TD23 Year: 01.88-05.97
