Varenr.: F032112191

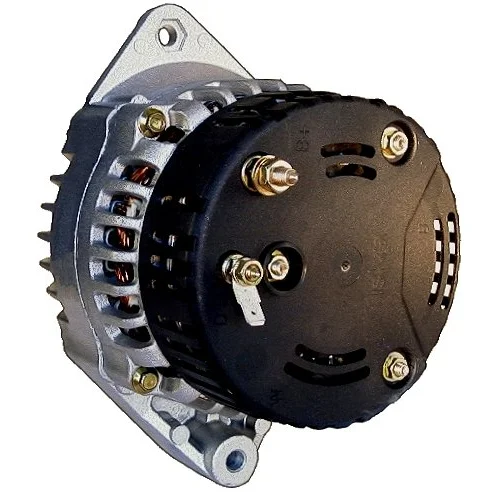

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 80, Rotasjon: medur, Reimskivens diameter: 73,70

Beskrivelse

Spenningsnivå: 14
Amp: 80
Drevkugg avstand: 81,40
Bredde/løfterarm: 56,00
Brettåpningshull: 8,00
Belt. justeringsbrakethull pos.: 2
Belt. justeringsbrakethull 1: 8,00
Drevdiameter: 73,70
Riller/drev: 1
Radius: 85,00
Radius 2: 86,50
B+: M6
Posisjon/B+ i min.: 50
D+ størrelse: M5-6,30
Rotasjon: med urviseren
Total lengde mm: 183,50
Drev: P
Regulator type: IR
Produsentinformasjon: BN
Service: Lada

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 2
Bracket hole 8.00
Position/B+ in min. 50
Prod. info BN
Pulley P
Pulley dia. 73.70
Pulley dist. 81.40
Radius 85.00
D+ Size M5-6.30
Radius 2 86.50
Regulator type IR
Rotation CW
Servicing Lada
Grooves/pulley 1
Voltage 14
Total length 183.50 mm
Width/holder arm 56.00
Amp 80

  • OEM
    aak5105, F032112191, 11.201.498, 1472ir, 2121-43701010, 9412.3701, 21214-3701010

  • Konkurrentreferens
    A9156, A9156(LETRIKA), ALT-H082, BAO3039, CAL21104, dra3454, F042A0H082, ia0498, LRA01599, MG534, QA3112, 8EL011712-081, 8el737684-001, 28-2751, 523.102.802, 855.501.080, 5780, 11107R, 119588, 210994, 210994A, 301472RI, 437819, 12090072, 32201498, 0986083500, 944390900100

  • NormaliseratArtNr
    a9156, a9156letrika, aak5105, alth082, bao3039, cal21104, dra3454, f032112191, f042a0h082, ia0498, lra01599, mg534, qa3112, 8el011712081, 8el737684001, 1472ir, 5780, 11107r, 119588, 210994, 210994a, 282751, 301472ri, 437819, 11201498, 12090072, 32201498, 94123701, 523102802, 855501080, 0986083500, 212143701010, 944390900100

  • Passar modeller
    Lada Model: 110 Model series: 110 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 From date: 01-10-2000 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Lada Model: 111 Model series: 111 Size of motor: 1.5 Brand of engine: VAZ-2111 Body: Estate From date: 01-10-2000 To date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Lada Model: 111 Model series: 111 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Estate From date: 01-10-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: 112 Model series: 112 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Hatchback From date: 01-10-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: Niva Model series: Niva Model type: 1700 Type of engine: i Size of motor: 1.7 Brand of engine: BA321214 Type description: 2121 From date: 01-06-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Lada Model: Niva Model series: Niva Model type: 4x4 Size of motor: 1.7 Brand of engine: BA3 21214 Type description: 2121 From date: 01-05-2004 Fuel: Gasoline Approved: Yes
    Lada Model: Niva Model series: Niva Model type: 4x4 Type of engine: i Size of motor: 1.7 Brand of engine: BA3 21214 Type description: 2121 From date: 01-10-2000 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Lada Model: Niva Model series: Niva Model type: LPG Size of motor: 1.7 Brand of engine: BA3 21214 Type description: 2123 Body: Hatchback From date: 01-09-2002 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 14
    Amp: 80
    Drevkugg avstand: 81,40
    Bredde/løfterarm: 56,00
    Brettåpningshull: 8,00
    Belt. justeringsbrakethull pos.: 2
    Belt. justeringsbrakethull 1: 8,00
    Drevdiameter: 73,70
    Riller/drev: 1
    Radius: 85,00
    Radius 2: 86,50
    B+: M6
    Posisjon/B+ i min.: 50
    D+ størrelse: M5-6,30
    Rotasjon: med urviseren
    Total lengde mm: 183,50
    Drev: P
    Regulator type: IR
    Produsentinformasjon: BN
    Service: Lada

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 2
    Bracket hole 8.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley P
    Pulley dia. 73.70
    Pulley dist. 81.40
    Radius 85.00
    D+ Size M5-6.30
    Radius 2 86.50
    Regulator type IR
    Rotation CW
    Servicing Lada
    Grooves/pulley 1
    Voltage 14
    Total length 183.50 mm
    Width/holder arm 56.00
    Amp 80
  • Kjøretøymatching

    • OEM
      aak5105, F032112191, 11.201.498, 1472ir, 2121-43701010, 9412.3701, 21214-3701010

    • Konkurrentreferens
      A9156, A9156(LETRIKA), ALT-H082, BAO3039, CAL21104, dra3454, F042A0H082, ia0498, LRA01599, MG534, QA3112, 8EL011712-081, 8el737684-001, 28-2751, 523.102.802, 855.501.080, 5780, 11107R, 119588, 210994, 210994A, 301472RI, 437819, 12090072, 32201498, 0986083500, 944390900100

    • NormaliseratArtNr
      a9156, a9156letrika, aak5105, alth082, bao3039, cal21104, dra3454, f032112191, f042a0h082, ia0498, lra01599, mg534, qa3112, 8el011712081, 8el737684001, 1472ir, 5780, 11107r, 119588, 210994, 210994a, 282751, 301472ri, 437819, 11201498, 12090072, 32201498, 94123701, 523102802, 855501080, 0986083500, 212143701010, 944390900100

    • Passar modeller
      Lada Model: 110 Model series: 110 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 From date: 01-10-2000 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Lada Model: 111 Model series: 111 Size of motor: 1.5 Brand of engine: VAZ-2111 Body: Estate From date: 01-10-2000 To date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Lada Model: 111 Model series: 111 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Estate From date: 01-10-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Lada Model: 112 Model series: 112 Type of engine: 16V Size of motor: 1.5 Brand of engine: VAZ-2112 Body: Hatchback From date: 01-10-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Lada Model: Niva Model series: Niva Model type: 1700 Type of engine: i Size of motor: 1.7 Brand of engine: BA321214 Type description: 2121 From date: 01-06-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Lada Model: Niva Model series: Niva Model type: 4x4 Size of motor: 1.7 Brand of engine: BA3 21214 Type description: 2121 From date: 01-05-2004 Fuel: Gasoline Approved: Yes
      Lada Model: Niva Model series: Niva Model type: 4x4 Type of engine: i Size of motor: 1.7 Brand of engine: BA3 21214 Type description: 2121 From date: 01-10-2000 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Lada Model: Niva Model series: Niva Model type: LPG Size of motor: 1.7 Brand of engine: BA3 21214 Type description: 2123 Body: Hatchback From date: 01-09-2002 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
