Varenr.: F032112769

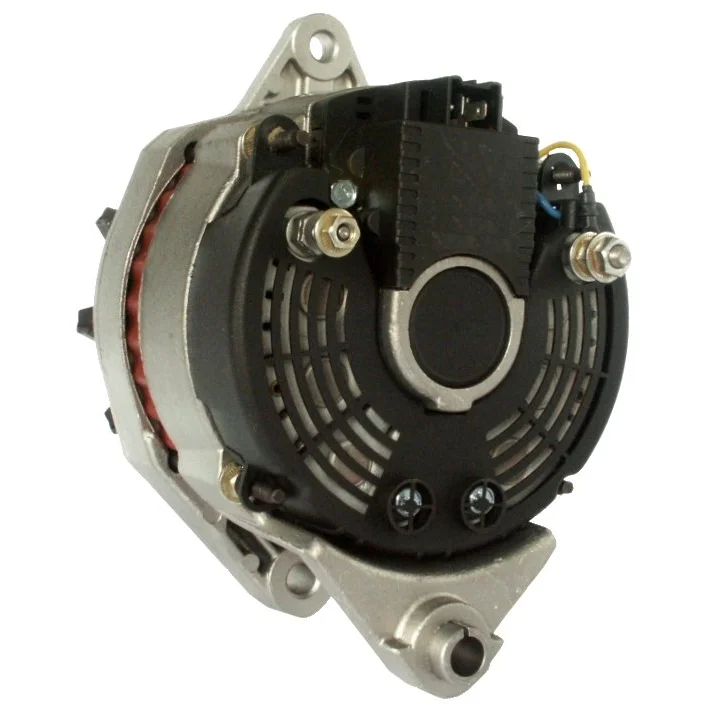

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 60, Rotasjon: CW, Monteringsbrakett avstand.: 70.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spennings­spenning: 14
Amp: 60
Drevskive dist.: 46.50
Bredde/holder arm: 26.80
Monteringsfeste dist.: 70.00
Festehull: 10.50
Båndjust. fester hull pos.: 60
Båndjust. feste hull 1: 8.60
Drevskive dia.: 59.60
Grooves/drevskive: 6
Radius: 85.00
Radius 2: 83.00
B+: M6
Posisjon/B+ i min.: 10
D+ Størrelse: Plugg
Rotasjon: medur
Pluggnr.: PL27
Total lengde mm: 166.00
Drevskive: SP
Regulator type: IR
Prod. info: BN
Service: Renault

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 70.00
Belt. adj. bracket hole 1 8.60
Belt. adj. brackethole pos. 60
Plug no. PL27
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 59.60
Pulley dist. 46.50
Radius 85.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 6
Voltage 14
Total length 166.00 mm
Width/holder arm 26.80
Amp 60

  • OEM
    a13n161, a13n206, a13n209, F032112769, 635ir, 2541313, 2541328, 7700852395, 7701499443

  • Konkurrentreferens
    A3008, ALT-7013, BAO3144, CAL15114, dra3107, dra3129, F042A0B018, FRA722, lra00932, NA408, PBNA0565, PBNA0581, QA1968, va344, va349, 8EL011360-501, 8EL011710-981, 8el725919-001, 28-1704, 28-1708, 32-38.851, 230.125.602, 230.125.702, 2624, 4345, 20932R, 21816R, 22336R, 30635RI, 55869, 56252, 200148, 200190, 200309, 210072, 210072A, 210258, 210258A, 433149, 436255, 746030, 746172, 746830, 746972, 747075, 12038850, 12038860, 20500738, 20500974, 32038851, 0986038851, 0986038861

  • NormaliseratArtNr
    a13n161, a13n206, a13n209, a3008, alt7013, bao3144, cal15114, dra3107, dra3129, f032112769, f042a0b018, fra722, lra00932, na408, pbna0565, pbna0581, qa1968, va344, va349, 8el011360501, 8el011710981, 8el725919001, 635ir, 2624, 4345, 20932r, 21816r, 22336r, 30635ri, 55869, 56252, 200148, 200190, 200309, 210072, 210072a, 210258, 210258a, 281704, 281708, 433149, 436255, 746030, 746172, 746830, 746972, 747075, 2541313, 2541328, 3238851, 12038850, 12038860, 20500738, 20500974, 32038851, 230125602, 230125702, 0986038851, 0986038861, 7700852395, 7701499443

  • Passar modeller
    Renault Model: Clio Model series: Clio Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q730 Type description: B,C,S576,57S Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q732 Type description: B,C,S576,57S Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q640 Type description: F40R Body: Van From date: 01-09-1994 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q646 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q682 Type description: F40R Body: Van From date: 01-09-1994 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q722 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q724 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q774 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q776 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spennings­spenning: 14
    Amp: 60
    Drevskive dist.: 46.50
    Bredde/holder arm: 26.80
    Monteringsfeste dist.: 70.00
    Festehull: 10.50
    Båndjust. fester hull pos.: 60
    Båndjust. feste hull 1: 8.60
    Drevskive dia.: 59.60
    Grooves/drevskive: 6
    Radius: 85.00
    Radius 2: 83.00
    B+: M6
    Posisjon/B+ i min.: 10
    D+ Størrelse: Plugg
    Rotasjon: medur
    Pluggnr.: PL27
    Total lengde mm: 166.00
    Drevskive: SP
    Regulator type: IR
    Prod. info: BN
    Service: Renault

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 70.00
    Belt. adj. bracket hole 1 8.60
    Belt. adj. brackethole pos. 60
    Plug no. PL27
    Bracket hole 10.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP
    Pulley dia. 59.60
    Pulley dist. 46.50
    Radius 85.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Renault
    Grooves/pulley 6
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 26.80
    Amp 60
  • Kjøretøymatching

    • OEM
      a13n161, a13n206, a13n209, F032112769, 635ir, 2541313, 2541328, 7700852395, 7701499443

    • Konkurrentreferens
      A3008, ALT-7013, BAO3144, CAL15114, dra3107, dra3129, F042A0B018, FRA722, lra00932, NA408, PBNA0565, PBNA0581, QA1968, va344, va349, 8EL011360-501, 8EL011710-981, 8el725919-001, 28-1704, 28-1708, 32-38.851, 230.125.602, 230.125.702, 2624, 4345, 20932R, 21816R, 22336R, 30635RI, 55869, 56252, 200148, 200190, 200309, 210072, 210072A, 210258, 210258A, 433149, 436255, 746030, 746172, 746830, 746972, 747075, 12038850, 12038860, 20500738, 20500974, 32038851, 0986038851, 0986038861

    • NormaliseratArtNr
      a13n161, a13n206, a13n209, a3008, alt7013, bao3144, cal15114, dra3107, dra3129, f032112769, f042a0b018, fra722, lra00932, na408, pbna0565, pbna0581, qa1968, va344, va349, 8el011360501, 8el011710981, 8el725919001, 635ir, 2624, 4345, 20932r, 21816r, 22336r, 30635ri, 55869, 56252, 200148, 200190, 200309, 210072, 210072a, 210258, 210258a, 281704, 281708, 433149, 436255, 746030, 746172, 746830, 746972, 747075, 2541313, 2541328, 3238851, 12038850, 12038860, 20500738, 20500974, 32038851, 230125602, 230125702, 0986038851, 0986038861, 7700852395, 7701499443

    • Passar modeller
      Renault Model: Clio Model series: Clio Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q730 Type description: B,C,S576,57S Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q732 Type description: B,C,S576,57S Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q640 Type description: F40R Body: Van From date: 01-09-1994 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q646 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q682 Type description: F40R Body: Van From date: 01-09-1994 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q722 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q724 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q774 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Renault Model: Rapid Model series: Rapid Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q776 Type description: F40_ Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Diesel Approved: Yes
