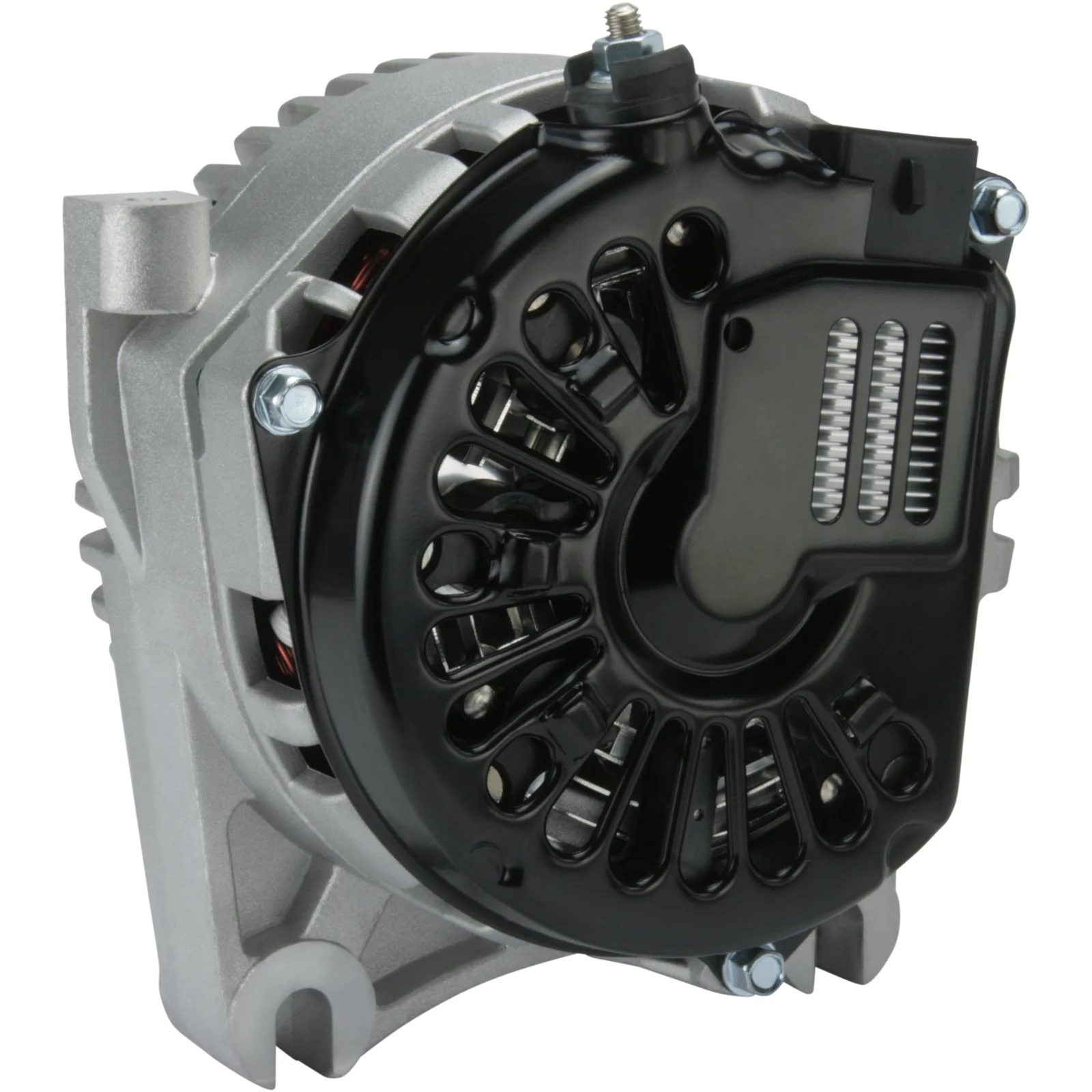

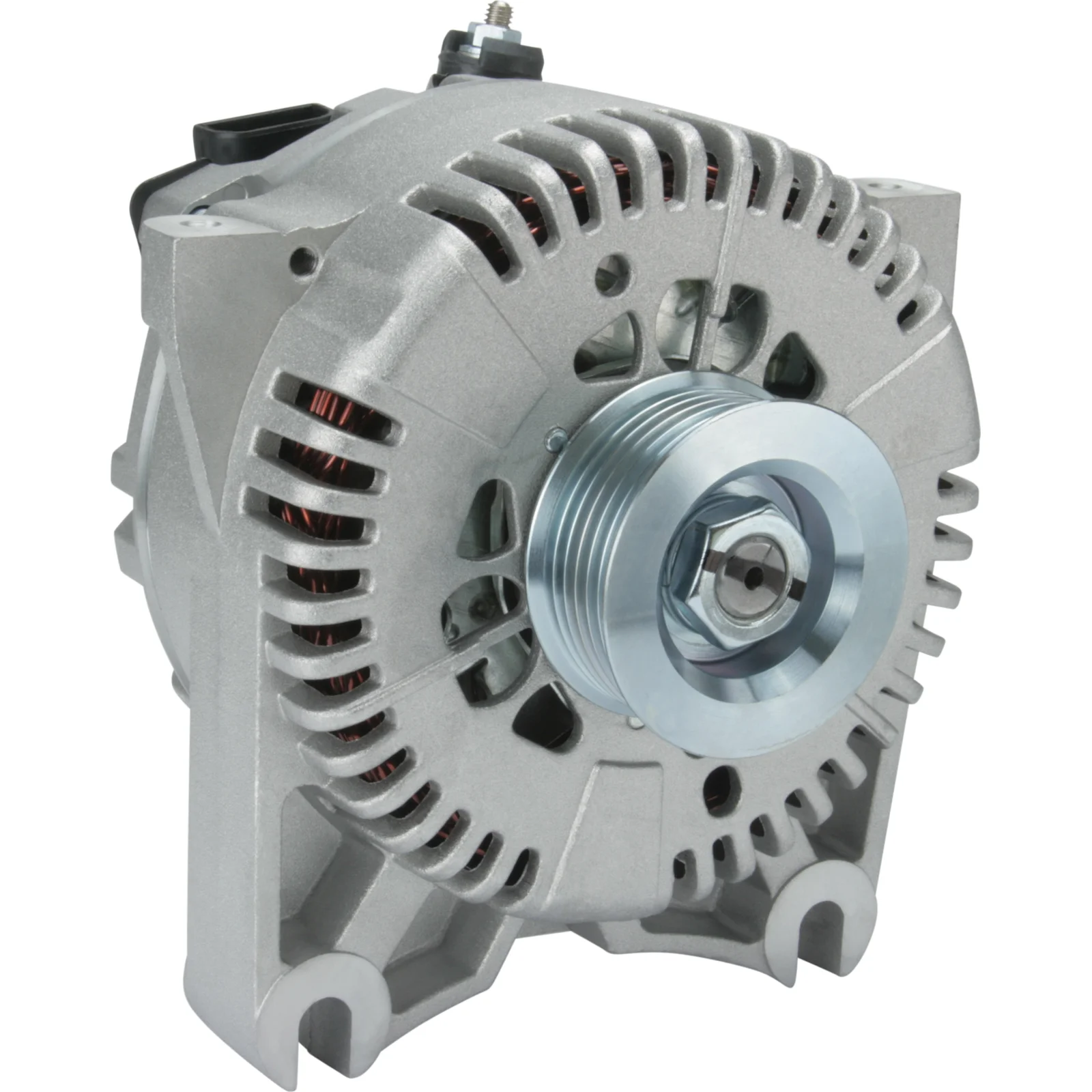

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112942

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 130, Rotasjon: CW, Drev diameter: 59,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 130
Drevkugg dist.: 49.50
Bredde/holderarm: 30.60
Bøsninghull: 10.20
Bånd. just. bøsninghull pos.: 20
Bånd. just. bøsninghull 1: 10.00
Drev dia.: 59.00
Grooves/drevkugg: 6
Radius: 106.00
Radius 2: 100.00
B+: M6
Posisjon/B+ i min.: 3
D+ Størrelse: Plugg
Rotasjon: Medur (CW)
Plugg nr.: PL120
Total lengde mm: 132.00
Drevkugg: SP
Regulator type: IR
Prod. info: BN
Service: Lincoln
Merkninger: Utskifting: 4G-serien

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 20
Plug no. PL120
Bracket hole 10.20
Position/B+ in min. 3
Prod. info BN
Pulley SP
Pulley dia. 59.00
Pulley dist. 49.50
Radius 106.00
D+ Size Plug
Radius 2 100.00
Regulator type IR
Remarks Replacing: 4G series
Rotation CW
Servicing Lincoln
Grooves/pulley 6
Voltage 14
Total length 132.00 mm
Width/holder arm 30.60
Amp 130

  • OEM
    F032112942, F5OU10300FA, F5OU10300FB, F5OU10300FC, F5OY10346A, F6OU10300AA, F6OU10300AB, F6OY10346AA, f8oz10346ca, GL384, GL406, GL434, GL434RM, xw7u10300aa, XW7Z10346AA

  • Konkurrentreferens
    A9337S, AFD0052, AG-00400R1, AL7541X, ALT-1902, DA04334-12, F042304073, F042A04073, 1-1904-10fd, 1-1904-11FD, 1-1904-12fd, 20-238-10, 20-238-11, 29-1996, 90-02-5075, 7681, 7773, 7773N-6G1, 7773N-6G2, 7773R-6G1, 7773R-6G2, 23703

  • NormaliseratArtNr
    a9337s, afd0052, ag00400r1, al7541x, alt1902, da0433412, f032112942, f042304073, f042a04073, f5ou10300fa, f5ou10300fb, f5ou10300fc, f5oy10346a, f6ou10300aa, f6ou10300ab, f6oy10346aa, f8oz10346ca, gl384, gl406, gl434, gl434rm, xw7u10300aa, xw7z10346aa, 7681, 7773, 7773n6g1, 7773n6g2, 7773r6g1, 7773r6g2, 23703, 291996, 1190410fd, 1190411fd, 1190412fd, 2023810, 2023811, 90025075

  • Passar modeller
    Ford Model: Crown Model series: Crown Victoria Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Crown Model series: Crown Victoria Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2002 Fuel: Natural gas Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.6 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Lincoln Model: Aviator Model series: Aviator Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Lincoln Model: Aviator Model series: Aviator Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Lincoln Model: Aviator Model series: Aviator Size of motor: 4.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Lincoln Model: Continental Model series: Continental Model type: Anniversary Size of motor: 4.6 From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Lincoln Model: Continental Model series: Continental Model type: Spinmaker edition Size of motor: 4.6 From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Lincoln Model: Continental Model series: Continental Size of motor: 4.6 From date: 01-01-1995 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Lincoln Model: Continental Model series: Continental Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Lincoln Model: Continental Model series: Continental Size of motor: 4.6 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Lincoln Model: Town Car Model series: Town Car Model type: Cartier Size of motor: 4.6 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Lincoln Model: Town Car Model series: Town Car Model type: Executive Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Lincoln Model: Town Car Model series: Town Car Model type: Signature Size of motor: 4.6 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Lincoln Model: Town Car Model series: Town Car Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Mercury Model: Grand Marquis Model series: Grand Marquis Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.6 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
