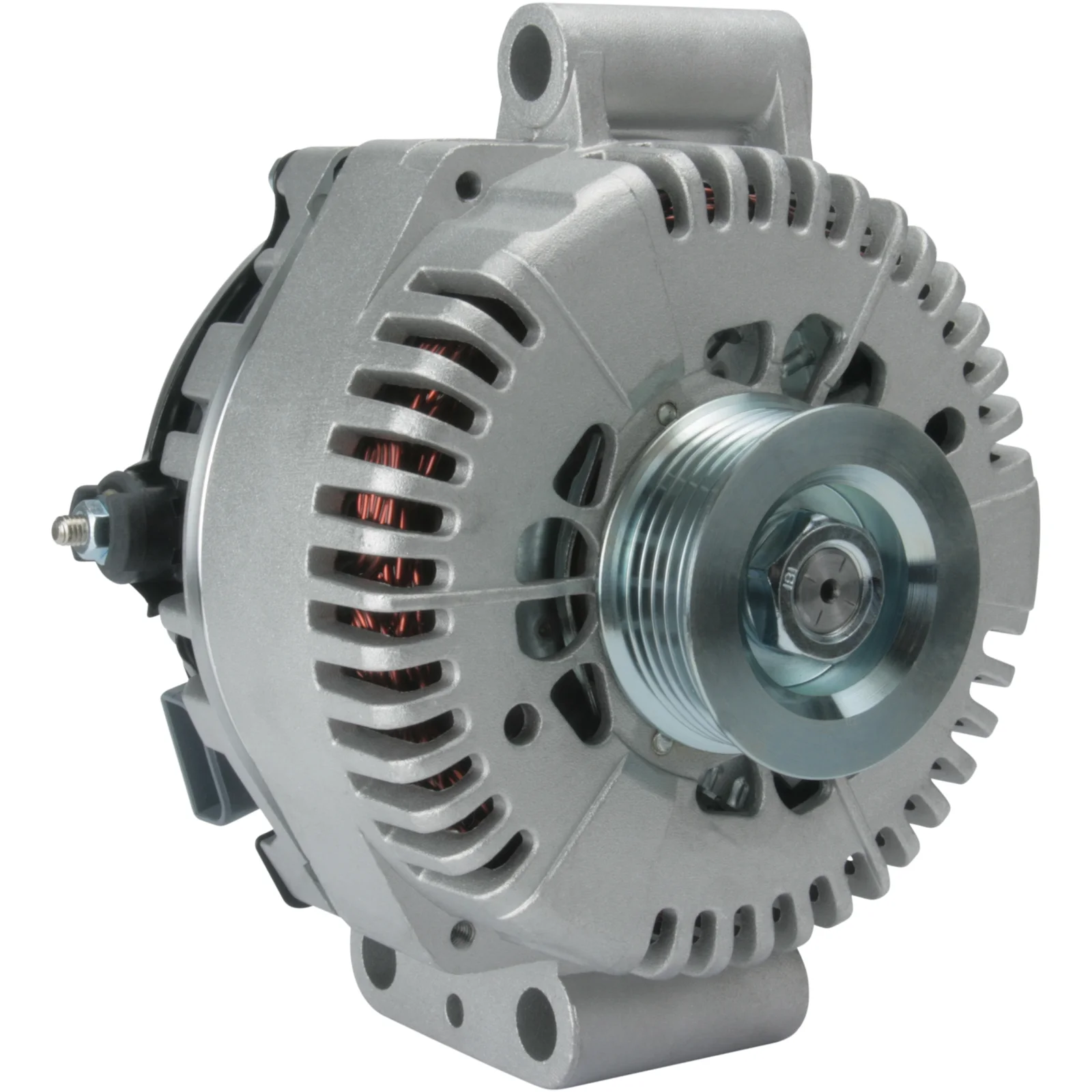

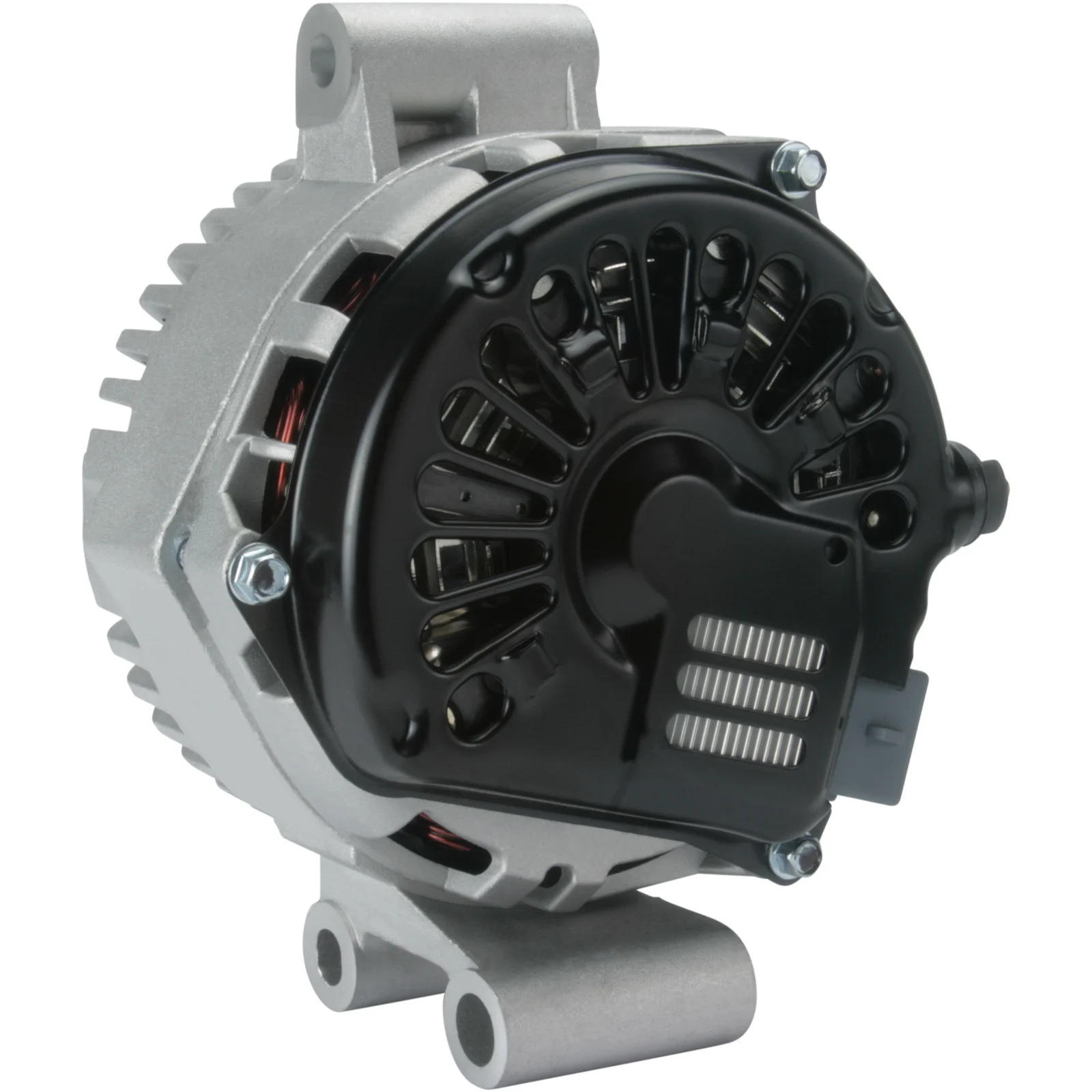

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112946

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Strøm: 130, Revolusjon: CW, Monteringsbrakett avstand: 56.00

Beskrivelse

Spenning: 14
Amp: 130
Drevskive avstand: 39,50
Bredde/holderarm: 55,50
Festebrakett avstand: 56,00
Brakettåpningshull: 13,30
Brakettåpningshull 2: 10,50
Belt. justering brakettåpningsposisjon: 60
Belt. justering brakettåpningshull 1: 10,20
Drevskive diameter: 59,00
Knotter/drevskive: 6
B+: M6
Posisjon/B+ i min.: 15
D+ Størrelse: Plugg
Rotasjon: BK
Plugg nr.: PL120
Total lengde mm: 132,00
Drevskive: SP
Regulator type: IR
Prod. info: BN
Service: Ford
Merknader: Erstatter: 4G-serien

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 60
Plug no. PL120
Bracket hole 13.30
Bracket hole 2 10.50
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 59.00
Pulley dist. 39.50
D+ Size Plug
Regulator type IR
Remarks Replacing: 4G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 132.00 mm
Width/holder arm 55.50
Amp 130

  • OEM
    F032112946, F77U10300AB, F77U10300AD, F77Z10346AB, GL363, gl423, GL423RM, xl2u10300aa, XL2Z10346AA, 1l2210300ab, 1l2u10300aa, 1l2u10300ab

  • Konkurrentreferens
    A9355S, AFD0045, AG-00404R, AL7543X, ALT-1905, F042304076, F042A04076, 1-2024-20fd, 1-2024-21FD, 1-2024-22-FD, 1-2024-22FD, 29-2169, 90-02-5086, 7668, 7787, 7787N-6G1, 7787N-6G2, 7787R-6G1, 7787R-6G2, 23650, 12090330

  • NormaliseratArtNr
    a9355s, afd0045, ag00404r, al7543x, alt1905, f032112946, f042304076, f042a04076, f77u10300ab, f77u10300ad, f77z10346ab, gl363, gl423, gl423rm, xl2u10300aa, xl2z10346aa, 1l2210300ab, 1l2u10300aa, 1l2u10300ab, 7668, 7787, 7787n6g1, 7787n6g2, 7787r6g1, 7787r6g2, 23650, 292169, 1202420fd, 1202421fd, 1202422fd, 12090330, 90025086

  • Passar modeller
    Ford Model: Explorer Model series: Explorer Model type: 4x4 Type of engine: V6 Size of motor: 4.0 Brand of engine: 99XS Type description: U2 From date: 01-10-1996 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Size of motor: 4.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Trac Size of motor: 4.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Trac Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2003 Fuel: Flex Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 5.0 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 5.0 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-1998 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Flex Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 5.0 From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 5.0 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
