HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112954

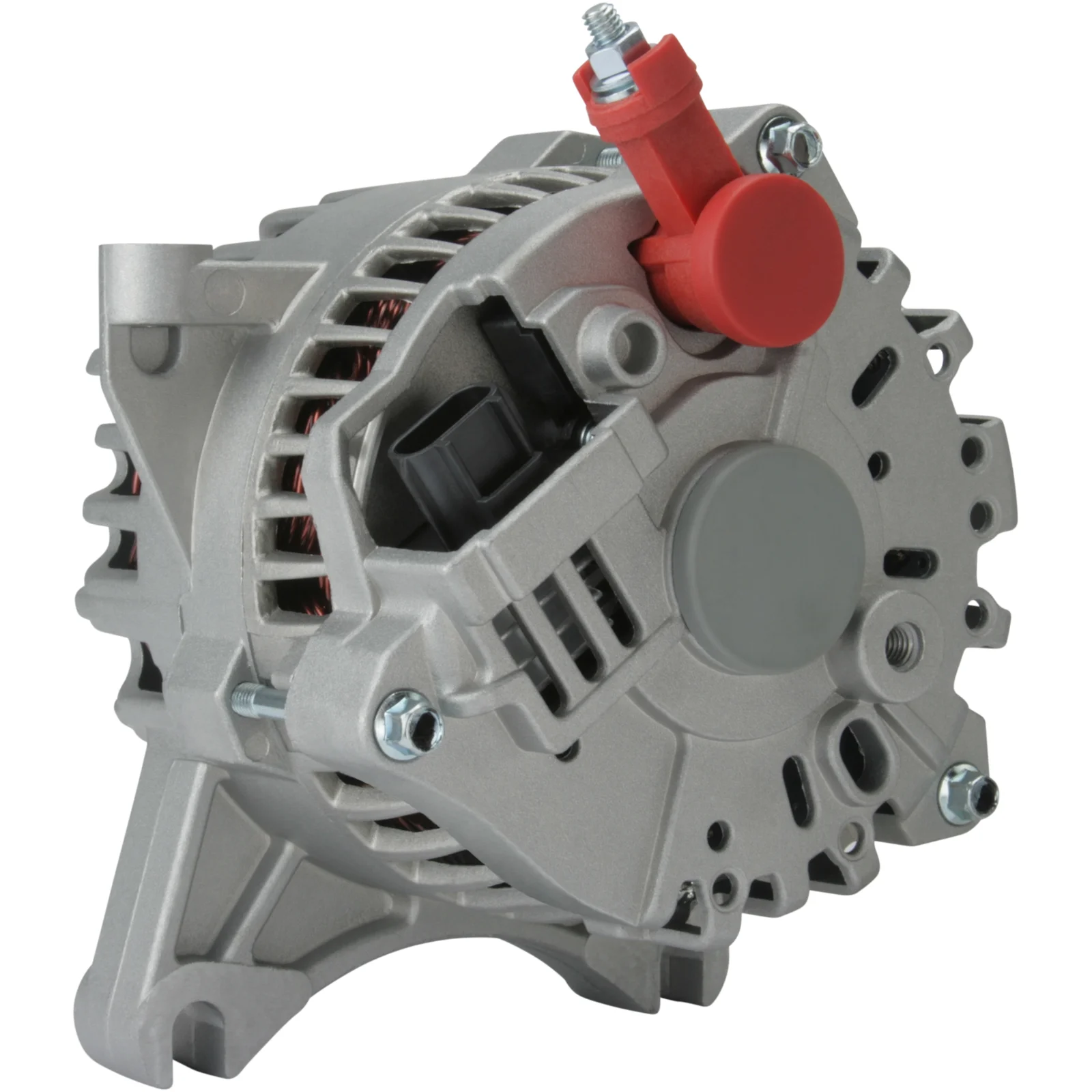

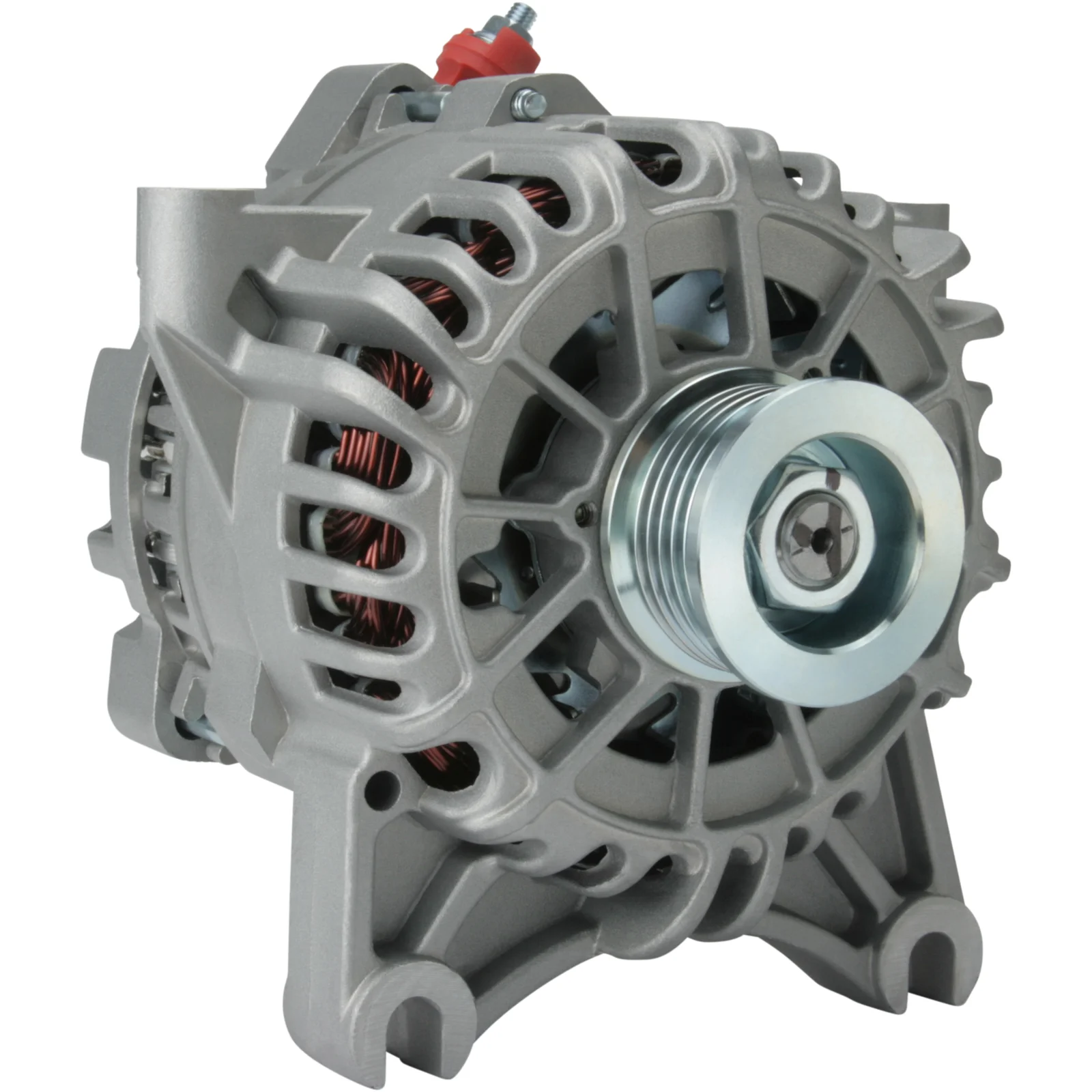

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 105, Rotasjon: CW, Drev skive diameter: 48,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 105
Drevskive avstand: 50.00
Bredde/bærerarm: 25.50
Støttehull: 9.80
Belt. justeringsboks pos.: 20
Belt. justeringsboks hull 1: 9.80
Drevskivens diameter: 48.50
Ribber/drevskive: 6
Radius: 98.00
Radius 2: 105.50
B+: M6
Posisjon/B+ i min.: 2
D+: Størrelse: Plugg
Rotasjon: medurvis
Plugg nr.: PL117
Total lengde mm: 165.00
Drevskive: SP
Regul. type: IR
Prod. info: BN
Service: Ford
Merknader: Bytte ut: 6G-serie

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 9.80
Belt. adj. brackethole pos. 20
Plug no. PL117
Bracket hole 9.80
Position/B+ in min. 2
Prod. info BN
Pulley SP
Pulley dia. 48.50
Pulley dist. 50.00
Radius 98.00
D+ Size Plug
Radius 2 105.50
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 25.50
Amp 105

  • OEM
    F032112954, gl424, GL424RM, XR3U10300AA, XR3U10300AB, XR3U10300AC, XR3Z10346AA

  • Konkurrentreferens
    AFD0059, AG-00461R, ALT-1606, 1-2264-31fd, 7728, 8252, 8252N, 8252R, 113434

  • NormaliseratArtNr
    afd0059, ag00461r, alt1606, f032112954, gl424, gl424rm, xr3u10300aa, xr3u10300ab, xr3u10300ac, xr3z10346aa, 7728, 8252, 8252n, 8252r, 113434, 1226431fd

  • Passar modeller
    Ford Model: Mustang Model series: Mustang Model type: Bullitt Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: Cobra Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: Cobra Type of engine: Super Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: Mach 1 Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 105
    Drevskive avstand: 50.00
    Bredde/bærerarm: 25.50
    Støttehull: 9.80
    Belt. justeringsboks pos.: 20
    Belt. justeringsboks hull 1: 9.80
    Drevskivens diameter: 48.50
    Ribber/drevskive: 6
    Radius: 98.00
    Radius 2: 105.50
    B+: M6
    Posisjon/B+ i min.: 2
    D+: Størrelse: Plugg
    Rotasjon: medurvis
    Plugg nr.: PL117
    Total lengde mm: 165.00
    Drevskive: SP
    Regul. type: IR
    Prod. info: BN
    Service: Ford
    Merknader: Bytte ut: 6G-serie

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 9.80
    Belt. adj. brackethole pos. 20
    Plug no. PL117
    Bracket hole 9.80
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP
    Pulley dia. 48.50
    Pulley dist. 50.00
    Radius 98.00
    D+ Size Plug
    Radius 2 105.50
    Regulator type IR
    Remarks Replacing: 6G series
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 25.50
    Amp 105
  • Kjøretøymatching

    • OEM
      F032112954, gl424, GL424RM, XR3U10300AA, XR3U10300AB, XR3U10300AC, XR3Z10346AA

    • Konkurrentreferens
      AFD0059, AG-00461R, ALT-1606, 1-2264-31fd, 7728, 8252, 8252N, 8252R, 113434

    • NormaliseratArtNr
      afd0059, ag00461r, alt1606, f032112954, gl424, gl424rm, xr3u10300aa, xr3u10300ab, xr3u10300ac, xr3z10346aa, 7728, 8252, 8252n, 8252r, 113434, 1226431fd

    • Passar modeller
      Ford Model: Mustang Model series: Mustang Model type: Bullitt Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: Cobra Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: Cobra Type of engine: Super Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: Mach 1 Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
