HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112959

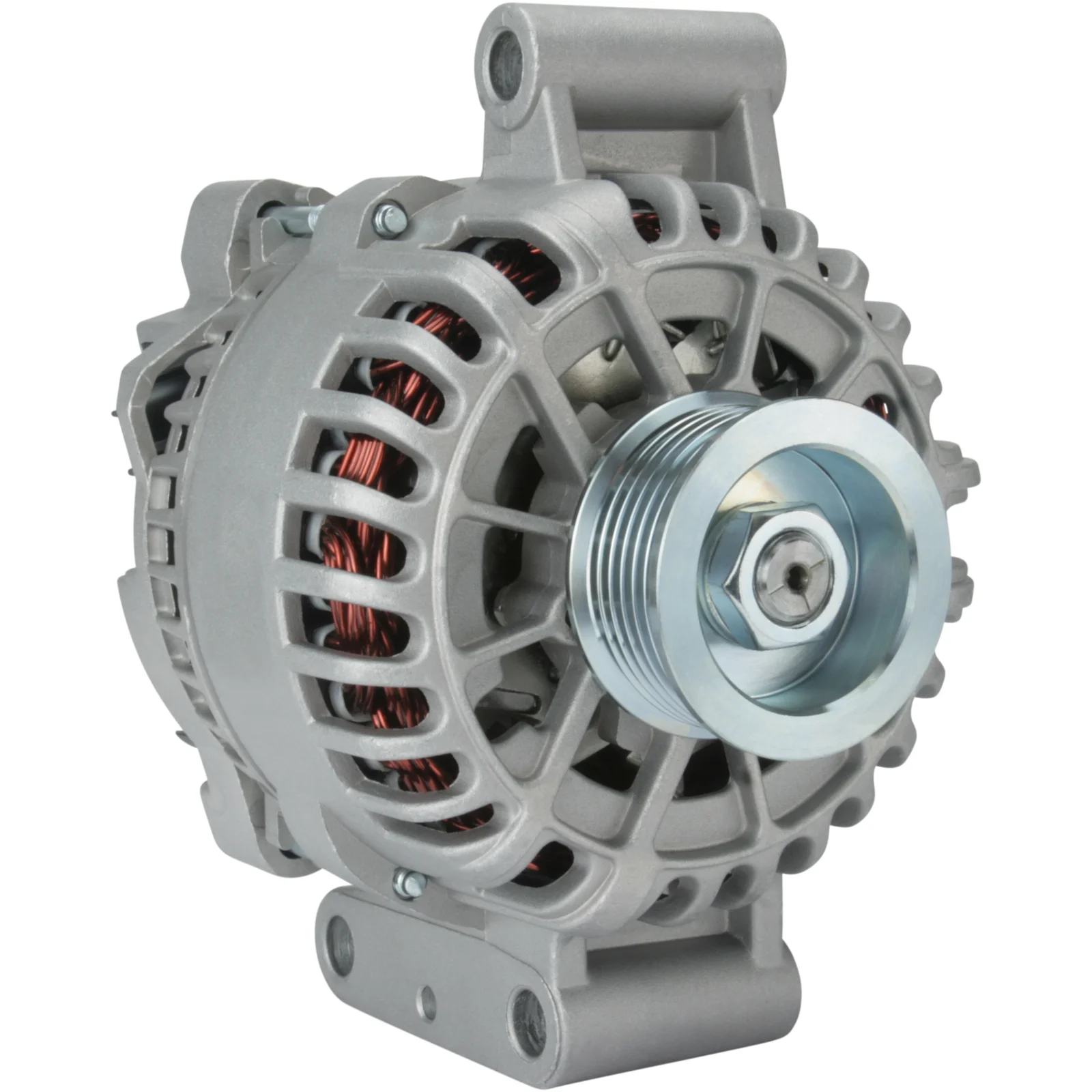

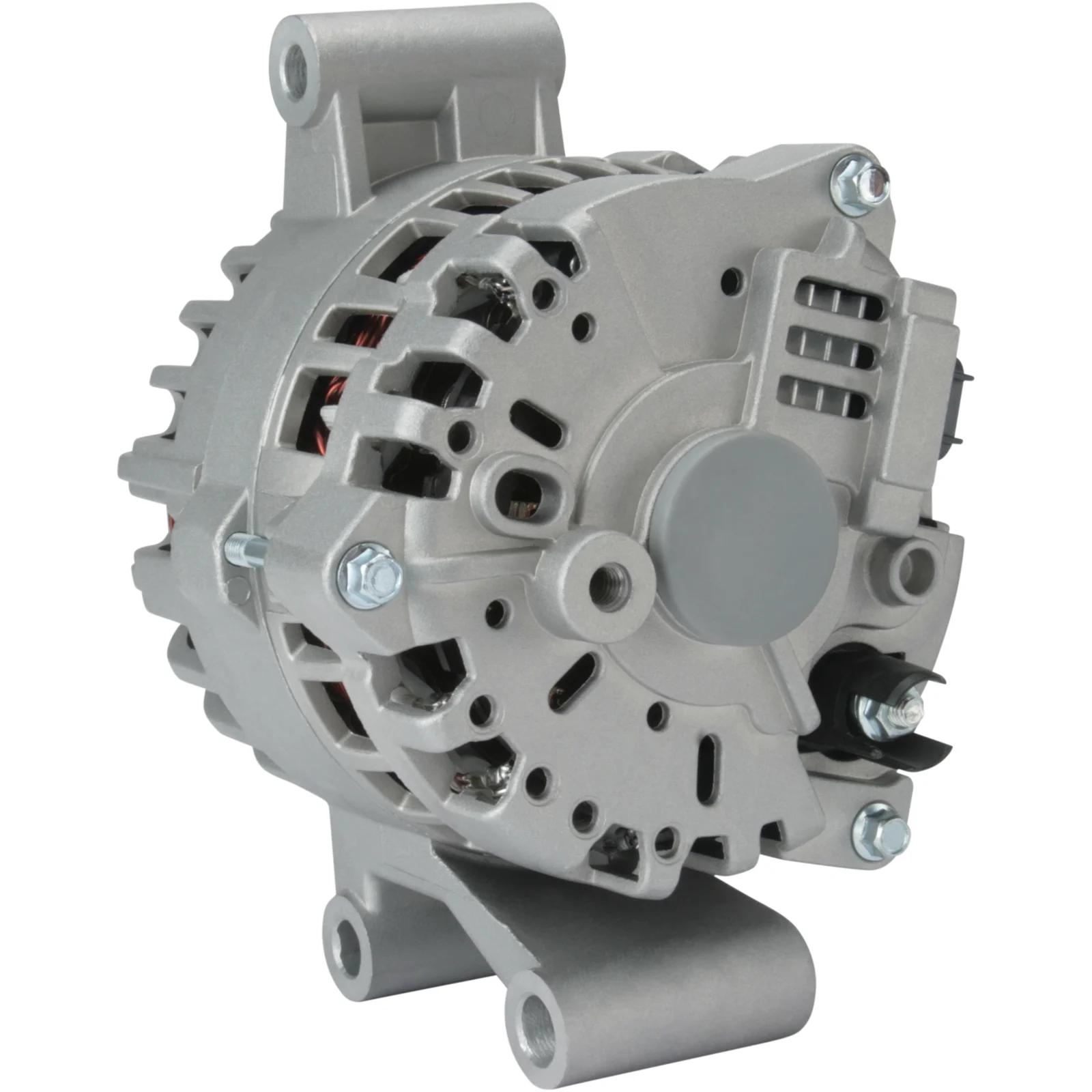

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Ro.asjon: CW, Monteringsbøssing avstand: 75,00

Beskrivelse

Spenning: 14
Amp: 110
Drevskive avstand: 40.00
Bredde/bærestang: 55.00
Festebrakett avstand: 75.00
Brakettshull: 13.20
Belt. just. brakettshull pos.: 60
Belt. just. brakettshull 1: 12.70
Drevskive dia.: 56.60
Groover/drevskive: 6
B+: M6
Posisjon/B+ i min.: 20
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL57
Total lengde mm: 162.50
Drev: SP
Regulator-type: IR
Prod. info: BN
Vedlikehold: Ford
Merknader: Bytte ut: 6G serien

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 12.70
Belt. adj. brackethole pos. 60
Plug no. PL57
Bracket hole 13.20
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 56.60
Pulley dist. 40.00
D+ Size Plug
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 162.50 mm
Width/holder arm 55.00
Amp 110

  • OEM
    F032112959, gl455, GL455RM, 98AB10300FC, 98AZ10346FA

  • Konkurrentreferens
    A9359S, afd0061, ALT-1608, F042304007, F042A04007, 1-2350-11FD, 1-2350-11FD-2, 8261, 8447N

  • NormaliseratArtNr
    a9359s, afd0061, alt1608, f032112959, f042304007, f042a04007, gl455, gl455rm, 98ab10300fc, 98az10346fa, 8261, 8447n, 1235011fd, 1235011fd2

  • Passar modeller
    Ford Model: Focus Model series: Focus Model type: LE Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 110
    Drevskive avstand: 40.00
    Bredde/bærestang: 55.00
    Festebrakett avstand: 75.00
    Brakettshull: 13.20
    Belt. just. brakettshull pos.: 60
    Belt. just. brakettshull 1: 12.70
    Drevskive dia.: 56.60
    Groover/drevskive: 6
    B+: M6
    Posisjon/B+ i min.: 20
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL57
    Total lengde mm: 162.50
    Drev: SP
    Regulator-type: IR
    Prod. info: BN
    Vedlikehold: Ford
    Merknader: Bytte ut: 6G serien

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 12.70
    Belt. adj. brackethole pos. 60
    Plug no. PL57
    Bracket hole 13.20
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP
    Pulley dia. 56.60
    Pulley dist. 40.00
    D+ Size Plug
    Regulator type IR
    Remarks Replacing: 6G series
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 162.50 mm
    Width/holder arm 55.00
    Amp 110
  • Kjøretøymatching

    • OEM
      F032112959, gl455, GL455RM, 98AB10300FC, 98AZ10346FA

    • Konkurrentreferens
      A9359S, afd0061, ALT-1608, F042304007, F042A04007, 1-2350-11FD, 1-2350-11FD-2, 8261, 8447N

    • NormaliseratArtNr
      a9359s, afd0061, alt1608, f032112959, f042304007, f042a04007, gl455, gl455rm, 98ab10300fc, 98az10346fa, 8261, 8447n, 1235011fd, 1235011fd2

    • Passar modeller
      Ford Model: Focus Model series: Focus Model type: LE Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      1 / 2
