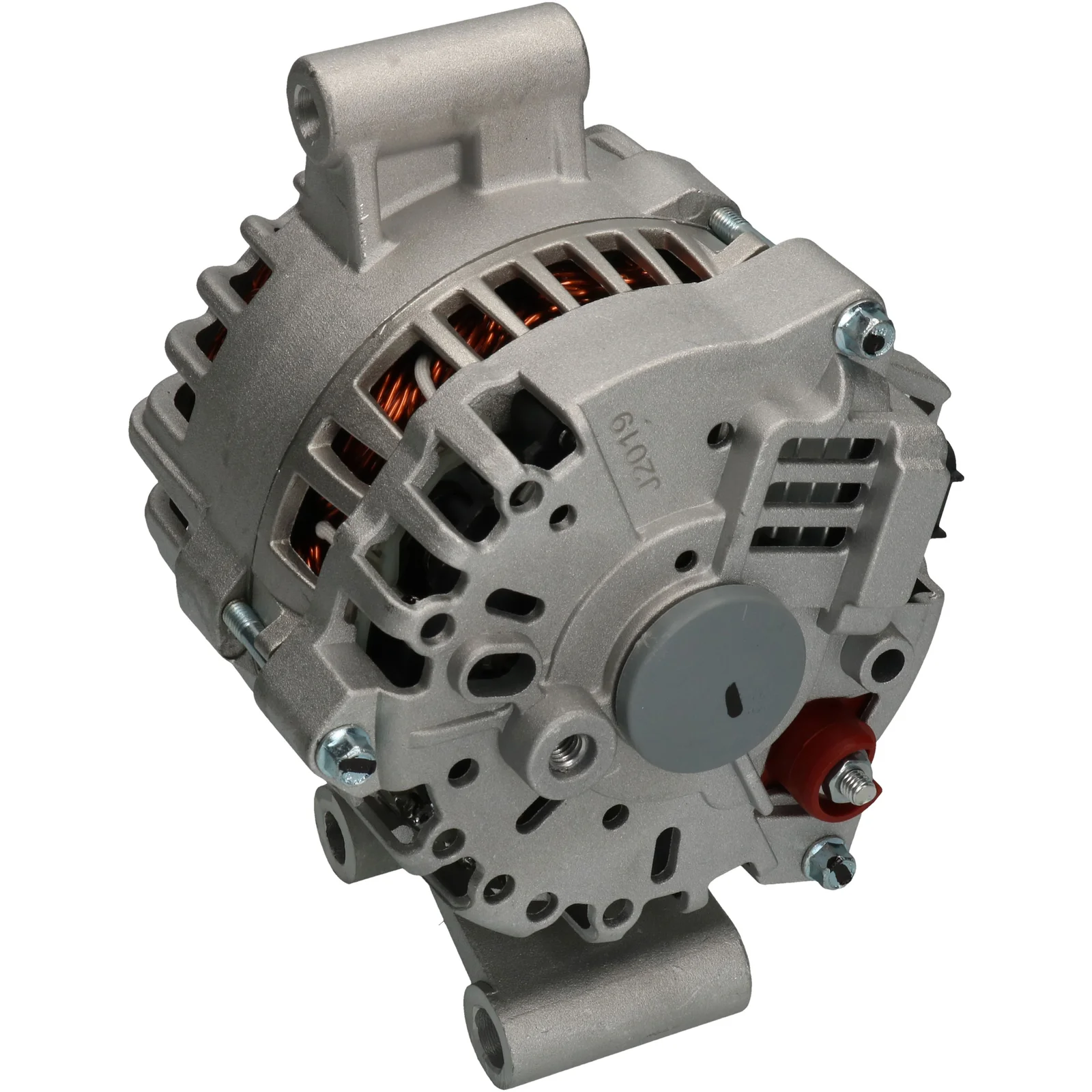

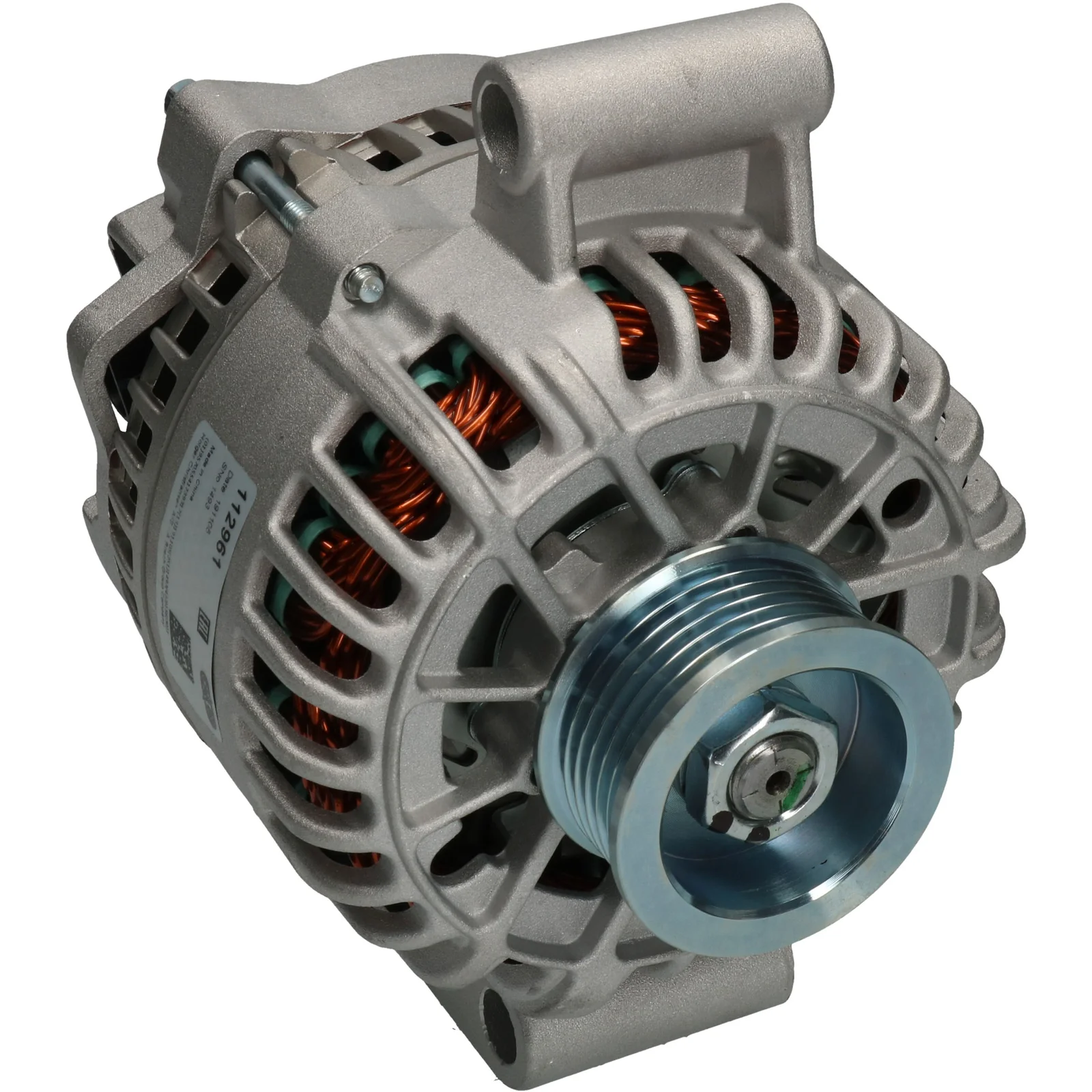

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112961

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 74,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 110
Drevets diameter: 40.50
Bredde/holderarm: 55.20
Festebrakett avstand: 74.00
Fosingshull i brakett: 10.50
Fosingshull i brakett 2: 12.40
Belt. justering av brakkettposisjon: 60
Belt. justering av brakett hull 1: 10.20
Drevets diameter: 56.50
Spor/drev: 6
B+: M6
Posisjon/B+ i min.: 22
D+: Størrelse: Plugg
Rotasjon: med klokken
Plugg nr.: PL116
Total lengde mm: 163.00
Drev: SP
Regulator type: IR
Prod. info: BN
Servicering: Ford
Merknader: Erstatter: 6G-serie

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 60
Plug no. PL116
Bracket hole 10.50
Bracket hole 2 12.40
Position/B+ in min. 22
Prod. info BN
Pulley SP
Pulley dia. 56.50
Pulley dist. 40.50
D+ Size Plug
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 163.00 mm
Width/holder arm 55.20
Amp 110

  • OEM
    aj03-18-300a, AJ03-18-300B, F032112961, gl463, xs7110300fe, 1L8U10300CD, 1L8U10300CE, 1L8U10300DD, 1L8U10300DE, 1L8UDE, 1L8Z10346CB, 5L8U10300AA, 1127506

  • Konkurrentreferens
    A9353S, AFD0073, ALT-1607, CAL14120, DRA0557, F042304006, F042A04006, 1-2414-11fd, 1-2414-11FD-2, 28-5553, 8259, 8259N, 8259R, 23726, 553383RI, 12090228

  • NormaliseratArtNr
    a9353s, afd0073, aj0318300a, aj0318300b, alt1607, cal14120, dra0557, f032112961, f042304006, f042a04006, gl463, xs7110300fe, 1l8u10300cd, 1l8u10300ce, 1l8u10300dd, 1l8u10300de, 1l8ude, 1l8z10346cb, 5l8u10300aa, 8259, 8259n, 8259r, 23726, 285553, 553383ri, 1127506, 1241411fd, 1241411fd2, 12090228

  • Passar modeller
    Ford Model: Escape Model series: Escape Size of motor: 3.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 3.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 3.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Maverick Model series: Maverick Type of engine: V6 24V Size of motor: 3.0 Brand of engine: AJ From date: 01-03-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 3.0 From date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: ES Size of motor: 3.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: ES Size of motor: 3.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: ES Size of motor: 3.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: LX Size of motor: 3.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: LX Size of motor: 3.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: LX Size of motor: 3.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Size of motor: 3.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
