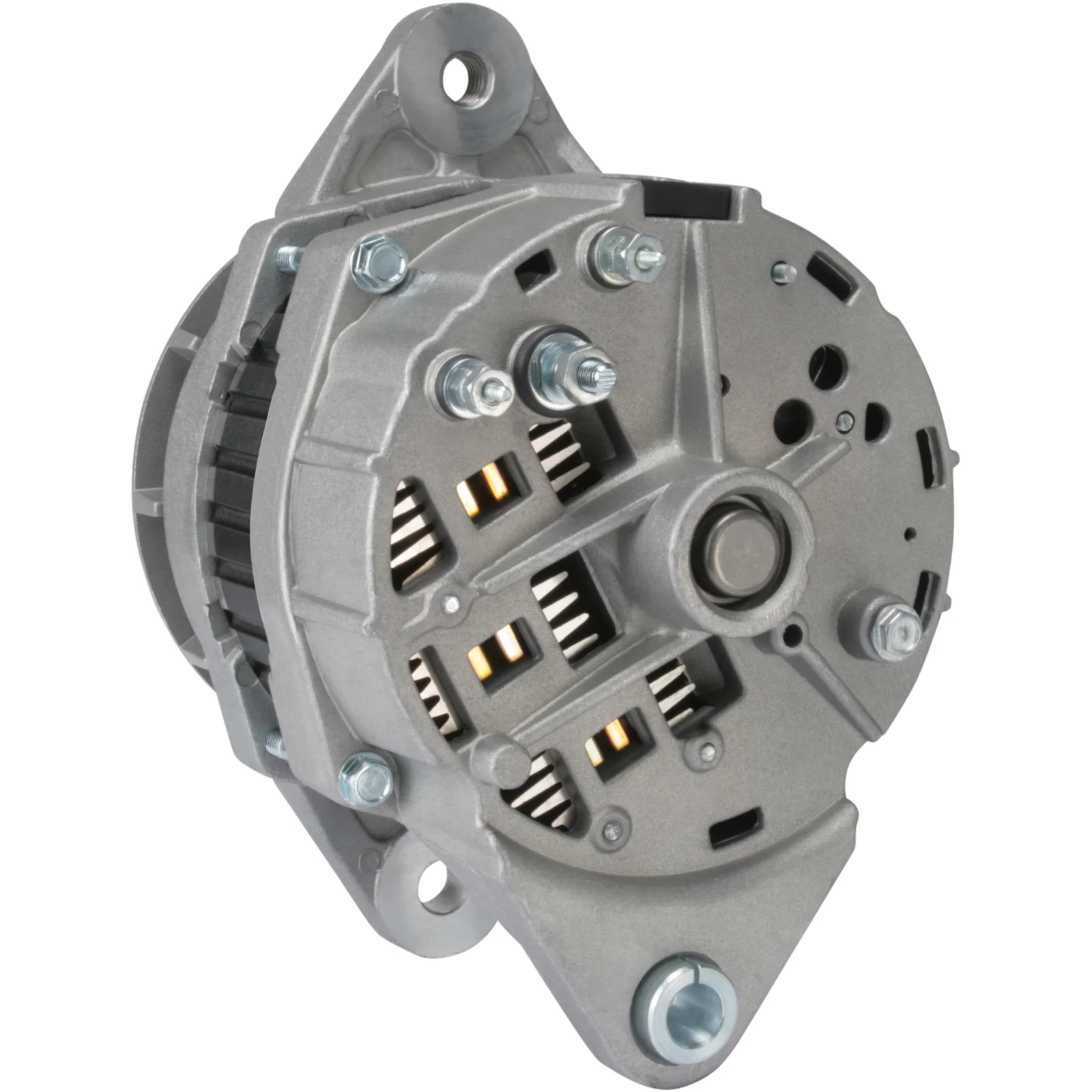

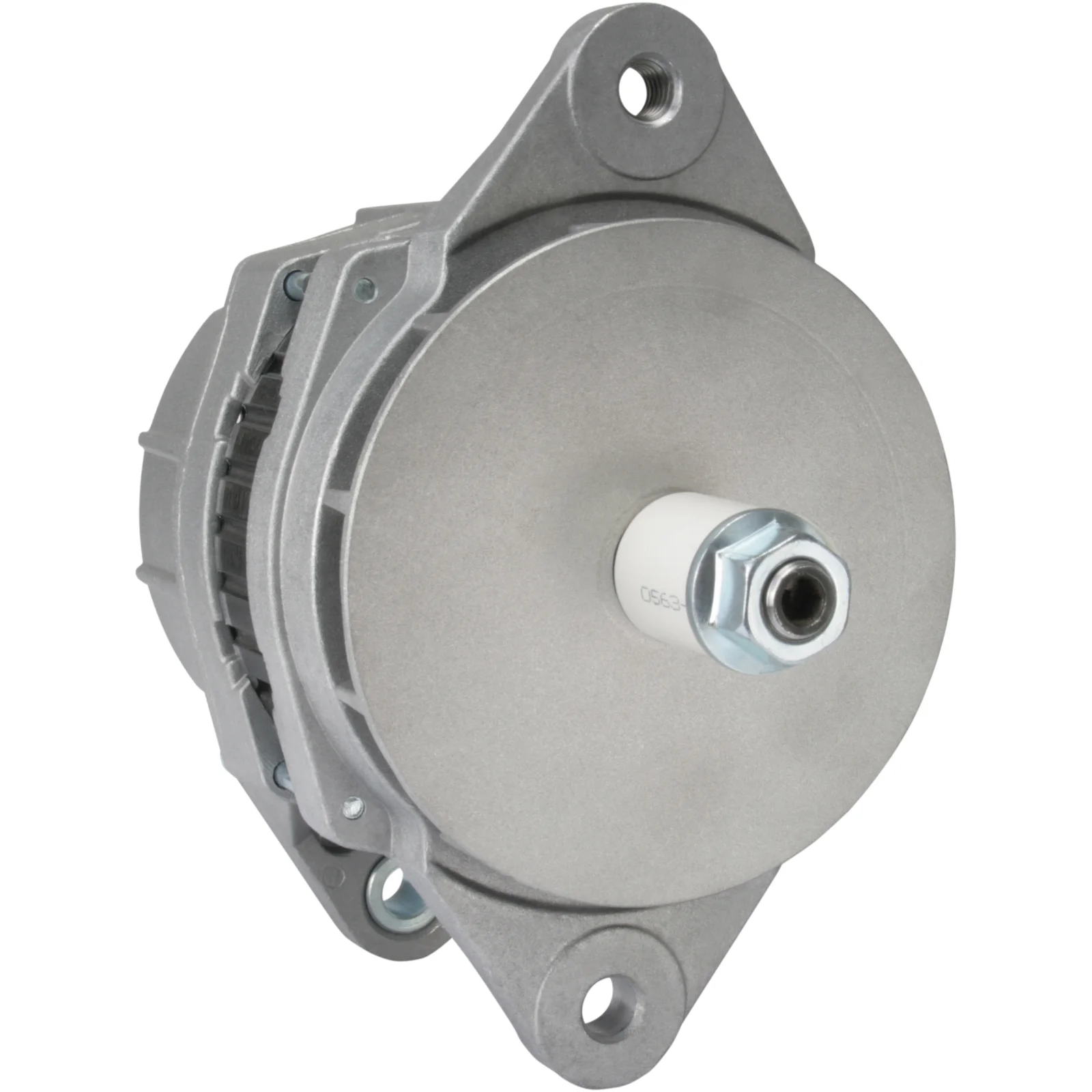

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112993

HC-Cargo Dynamo

Teknisk info:

Spennings: 14, Amp: 130, Rotasjon: CW/CCW, Monteringsbrakett avstand: 101.50

Beskrivelse

Spenning: 14
Ampere: 130
Kontakt: W
Bredde/holderarm: 14,20
Festebraketten avstand: 101,50
Brakethulling: 13,00
Belt. justering brakethulling pos.: 60
Belt. justering brakethulling 1: 1/2" UNC
Radius: 98,00
Radius 2: 98,00
B+: 1/4" UNF
Posisjon/B+ i min.: 50
Rotasjon: med- /motursretning
W-kontakttype: 10-24 UNC
Total lengde mm: 217,00
Bøssing: uten
Prod. info: BN
Service: Volvo
Informasjon: Aksling: 7/8" = 22,255 mm
Merk: Bytte: 21SI. Negativ jordforbindelse. Enstrømsystem. B+: 1/4".

Filer

Spesifikasjon

B+ 1/4" UNF
Mount. bracket dist. 101.50
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 98.00
Radius 2 98.00
Remarks Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".
Rotation CW/CCW
Servicing Volvo
Terminal W
Info Shaft: 7/8" = 22.255 mm
Voltage 14
W plug type 10-24 UNC
Total length 217.00 mm
Width/holder arm 14.20
Amp 130

  • OEM
    F032112993, F3HT10300AA, F3HT10300BA, F3HT10300CA, F3HT10300HB, F3HZ10346H, F4HT10300DA, F4HT10300EA, F4HT10300FA, F4HT10300KA, F4PU10346BA, F5HZ10346A, F8ZU10300AA, gl332, gl358, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166

  • Konkurrentreferens
    a-1358, adr0011, ALT-1706, F042304024, F042A04024, 1-1918-00DR, 1-1918-00DR-1, 20-1111, 20-232-10-1, 20-232-10-2, 20-232-11-1, 20-232-11-2, 29-1867, 90-01-4058, 90-01-4093, 645.019.115, 7501, 7564, 7670N, 7771N-0G, 7771R-0G, 7976R, 8027N, 726874

  • NormaliseratArtNr
    a1358, adr0011, alt1706, f032112993, f042304024, f042a04024, f3ht10300aa, f3ht10300ba, f3ht10300ca, f3ht10300hb, f3hz10346h, f4ht10300da, f4ht10300ea, f4ht10300fa, f4ht10300ka, f4pu10346ba, f5hz10346a, f8zu10300aa, gl332, gl358, 7501, 7564, 7670n, 7771n0g, 7771r0g, 7976r, 8027n, 201111, 291867, 726874, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1191800dr, 1191800dr1, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166, 20232101, 20232102, 20232111, 20232112, 90014058, 90014093, 645019115

  • Passar modeller
    Cummins Model: K Series Model series: Engine Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 5.8 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1967 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 130
    Kontakt: W
    Bredde/holderarm: 14,20
    Festebraketten avstand: 101,50
    Brakethulling: 13,00
    Belt. justering brakethulling pos.: 60
    Belt. justering brakethulling 1: 1/2" UNC
    Radius: 98,00
    Radius 2: 98,00
    B+: 1/4" UNF
    Posisjon/B+ i min.: 50
    Rotasjon: med- /motursretning
    W-kontakttype: 10-24 UNC
    Total lengde mm: 217,00
    Bøssing: uten
    Prod. info: BN
    Service: Volvo
    Informasjon: Aksling: 7/8" = 22,255 mm
    Merk: Bytte: 21SI. Negativ jordforbindelse. Enstrømsystem. B+: 1/4".

    Filer

  • Spesifikasjon
    B+ 1/4" UNF
    Mount. bracket dist. 101.50
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley w/o
    Radius 98.00
    Radius 2 98.00
    Remarks Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".
    Rotation CW/CCW
    Servicing Volvo
    Terminal W
    Info Shaft: 7/8" = 22.255 mm
    Voltage 14
    W plug type 10-24 UNC
    Total length 217.00 mm
    Width/holder arm 14.20
    Amp 130
  • Kjøretøymatching

    • OEM
      F032112993, F3HT10300AA, F3HT10300BA, F3HT10300CA, F3HT10300HB, F3HZ10346H, F4HT10300DA, F4HT10300EA, F4HT10300FA, F4HT10300KA, F4PU10346BA, F5HZ10346A, F8ZU10300AA, gl332, gl358, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166

    • Konkurrentreferens
      a-1358, adr0011, ALT-1706, F042304024, F042A04024, 1-1918-00DR, 1-1918-00DR-1, 20-1111, 20-232-10-1, 20-232-10-2, 20-232-11-1, 20-232-11-2, 29-1867, 90-01-4058, 90-01-4093, 645.019.115, 7501, 7564, 7670N, 7771N-0G, 7771R-0G, 7976R, 8027N, 726874

    • NormaliseratArtNr
      a1358, adr0011, alt1706, f032112993, f042304024, f042a04024, f3ht10300aa, f3ht10300ba, f3ht10300ca, f3ht10300hb, f3hz10346h, f4ht10300da, f4ht10300ea, f4ht10300fa, f4ht10300ka, f4pu10346ba, f5hz10346a, f8zu10300aa, gl332, gl358, 7501, 7564, 7670n, 7771n0g, 7771r0g, 7976r, 8027n, 201111, 291867, 726874, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1191800dr, 1191800dr1, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166, 20232101, 20232102, 20232111, 20232112, 90014058, 90014093, 645019115

    • Passar modeller
      Cummins Model: K Series Model series: Engine Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 5.8 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1967 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
