Varenr.: F032112996

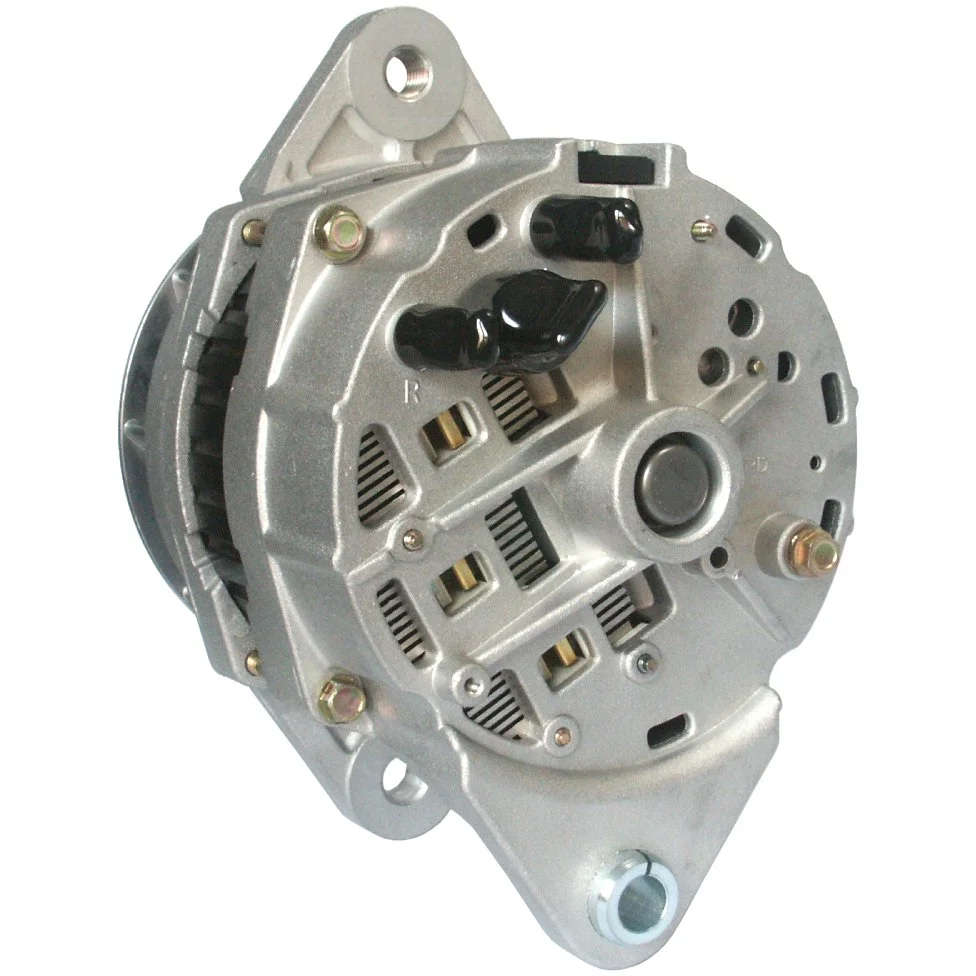

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 115, Monteringsbeslag avstand: 101.00, Radius: 99.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 115
Bredde / holderarm: 14,50
Monteringsbrakett avstand: 101,00
Brakettbolle: 13,00
Belt. justerbrakettposisjon: 60
Belt. justerbrakettbolt 1: 1/2" UNC
Radius: 99,00
Radius 2: 99,00
B+: 1/4" UNF
Posisjon / B+ i min.: 53
D+ Størrelse: Isolert plugg
Plugg nr.: PL43
Total lengde mm: 217,50
Drivreim: uten
Regulator-type: IR
Prod. info: BN
Service: Volvo
Merkning: Skifter ut: 21SI. Negativ jordingsforbindelse. B+: 1/4".

Filer

Spesifikasjon

B+ 1/4" UNF
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Plug no. PL43
Bracket hole 13.00
Position/B+ in min. 53
Prod. info BN
Pulley w/o
Radius 99.00
D+ Size Plug
Radius 2 99.00
Regulator type IR
Remarks Replacing: 21SI. Negative grounding. B+: 1/4".
Servicing Volvo
Voltage 14
Total length 217.50 mm
Width/holder arm 14.50
Amp 115

  • OEM
    F032112996, 321-687, 125849A1R, 1117891, 1117898, 1117923, 1117941, 1117943, 1117961, 9705428, 10459037, 10459038, 10459040, 10459041, 10459059, 10459111, 10459135, 10459155, 10459159, 10459175, 10459178, 10459210, 10459367, 10459498, 10459510, 10459547, 10497083, 19010104, 19010116, 19010145, 19010147, 19010150, 19010170, 19010187, 19010188, 19010191, 19010196, 19010207

  • Konkurrentreferens
    a-1342, adr0045, ALT22006, CAL11104, drz0191, 1-1918-02DR, 1-1918-03DR, 1-1918-04DR, 1-2295-00DR, 1-2296-00DR, 1-2300-00dr, 1-2300-00DR-1, 1-2333-00dr, 1-2333-00DR-1, 20-1109, 20-149, 20-149-1, 90-01-4074, 635.020.150, 7326, 7681, 7681N, 7681R, 7685N, 8027R, 8029, 726815

  • NormaliseratArtNr
    a1342, adr0045, alt22006, cal11104, drz0191, f032112996, 7326, 7681, 7681n, 7681r, 7685n, 8027r, 8029, 20149, 125849a1r, 201109, 201491, 321687, 726815, 1117891, 1117898, 1117923, 1117941, 1117943, 1117961, 1191802dr, 1191803dr, 1191804dr, 1229500dr, 1229600dr, 1230000dr, 1230000dr1, 1233300dr, 1233300dr1, 9705428, 10459037, 10459038, 10459040, 10459041, 10459059, 10459111, 10459135, 10459155, 10459159, 10459175, 10459178, 10459210, 10459367, 10459498, 10459510, 10459547, 10497083, 19010104, 19010116, 19010145, 19010147, 19010150, 19010170, 19010187, 19010188, 19010191, 19010196, 19010207, 90014074, 635020150

  • Passar modeller
    Caterpillar Model: Farm Model series: Farm 35 Approved: Yes
    Caterpillar Model: Farm Model series: Farm 45 Approved: Yes
    Caterpillar Model: Farm Model series: Farm 55 Approved: Yes
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
    Ford Model: 8000 Series Model series: 8670 Approved: Yes
    Ford Model: 8000 Series Model series: 8770 Approved: Yes
    Ford Model: 8000 Series Model series: 8870 Approved: Yes
    Ford Model: 8000 Series Model series: 8970 Approved: Yes
    Ford Model: 9000 Series Model series: 9280 Approved: Yes
    Ford Model: 9000 Series Model series: 9480 Approved: Yes
    Ford Model: 9000 Series Model series: 9680 Approved: Yes
    Ford Model: 9000 Series Model series: 9880 Approved: Yes
    John Deere Model: 500 Model series: 540 Approved: Yes
    John Deere Model: 500 Model series: 544 Approved: Yes
    John Deere Model: 500 Model series: 548 Approved: Yes
    John Deere Model: 600 Model series: 640 Approved: Yes
    John Deere Model: 600 Model series: 648 Approved: Yes
    John Deere Model: 700 Model series: 740 Approved: Yes
    John Deere Model: 700 Model series: 748 Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    New Holland Model: 9000 Series Model series: 9282 Approved: Yes
    New Holland Model: 9000 Series Model series: 9482 Approved: Yes
    New Holland Model: 9000 Series Model series: 9682 Approved: Yes
    New Holland Model: 9000 Series Model series: 9882 Approved: Yes
    1 / 5
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 115
    Bredde / holderarm: 14,50
    Monteringsbrakett avstand: 101,00
    Brakettbolle: 13,00
    Belt. justerbrakettposisjon: 60
    Belt. justerbrakettbolt 1: 1/2" UNC
    Radius: 99,00
    Radius 2: 99,00
    B+: 1/4" UNF
    Posisjon / B+ i min.: 53
    D+ Størrelse: Isolert plugg
    Plugg nr.: PL43
    Total lengde mm: 217,50
    Drivreim: uten
    Regulator-type: IR
    Prod. info: BN
    Service: Volvo
    Merkning: Skifter ut: 21SI. Negativ jordingsforbindelse. B+: 1/4".

    Filer

  • Spesifikasjon
    B+ 1/4" UNF
    Mount. bracket dist. 101.00
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Plug no. PL43
    Bracket hole 13.00
    Position/B+ in min. 53
    Prod. info BN
    Pulley w/o
    Radius 99.00
    D+ Size Plug
    Radius 2 99.00
    Regulator type IR
    Remarks Replacing: 21SI. Negative grounding. B+: 1/4".
    Servicing Volvo
    Voltage 14
    Total length 217.50 mm
    Width/holder arm 14.50
    Amp 115
  • Kjøretøymatching

    • OEM
      F032112996, 321-687, 125849A1R, 1117891, 1117898, 1117923, 1117941, 1117943, 1117961, 9705428, 10459037, 10459038, 10459040, 10459041, 10459059, 10459111, 10459135, 10459155, 10459159, 10459175, 10459178, 10459210, 10459367, 10459498, 10459510, 10459547, 10497083, 19010104, 19010116, 19010145, 19010147, 19010150, 19010170, 19010187, 19010188, 19010191, 19010196, 19010207

    • Konkurrentreferens
      a-1342, adr0045, ALT22006, CAL11104, drz0191, 1-1918-02DR, 1-1918-03DR, 1-1918-04DR, 1-2295-00DR, 1-2296-00DR, 1-2300-00dr, 1-2300-00DR-1, 1-2333-00dr, 1-2333-00DR-1, 20-1109, 20-149, 20-149-1, 90-01-4074, 635.020.150, 7326, 7681, 7681N, 7681R, 7685N, 8027R, 8029, 726815

    • NormaliseratArtNr
      a1342, adr0045, alt22006, cal11104, drz0191, f032112996, 7326, 7681, 7681n, 7681r, 7685n, 8027r, 8029, 20149, 125849a1r, 201109, 201491, 321687, 726815, 1117891, 1117898, 1117923, 1117941, 1117943, 1117961, 1191802dr, 1191803dr, 1191804dr, 1229500dr, 1229600dr, 1230000dr, 1230000dr1, 1233300dr, 1233300dr1, 9705428, 10459037, 10459038, 10459040, 10459041, 10459059, 10459111, 10459135, 10459155, 10459159, 10459175, 10459178, 10459210, 10459367, 10459498, 10459510, 10459547, 10497083, 19010104, 19010116, 19010145, 19010147, 19010150, 19010170, 19010187, 19010188, 19010191, 19010196, 19010207, 90014074, 635020150

    • Passar modeller
      Caterpillar Model: Farm Model series: Farm 35 Approved: Yes
      Caterpillar Model: Farm Model series: Farm 45 Approved: Yes
      Caterpillar Model: Farm Model series: Farm 55 Approved: Yes
      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
      Ford Model: 8000 Series Model series: 8670 Approved: Yes
      Ford Model: 8000 Series Model series: 8770 Approved: Yes
      Ford Model: 8000 Series Model series: 8870 Approved: Yes
      Ford Model: 8000 Series Model series: 8970 Approved: Yes
      Ford Model: 9000 Series Model series: 9280 Approved: Yes
      Ford Model: 9000 Series Model series: 9480 Approved: Yes
      Ford Model: 9000 Series Model series: 9680 Approved: Yes
      Ford Model: 9000 Series Model series: 9880 Approved: Yes
      John Deere Model: 500 Model series: 540 Approved: Yes
      John Deere Model: 500 Model series: 544 Approved: Yes
      John Deere Model: 500 Model series: 548 Approved: Yes
      John Deere Model: 600 Model series: 640 Approved: Yes
      John Deere Model: 600 Model series: 648 Approved: Yes
      John Deere Model: 700 Model series: 740 Approved: Yes
      John Deere Model: 700 Model series: 748 Approved: Yes
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      New Holland Model: 9000 Series Model series: 9282 Approved: Yes
      New Holland Model: 9000 Series Model series: 9482 Approved: Yes
      New Holland Model: 9000 Series Model series: 9682 Approved: Yes
      New Holland Model: 9000 Series Model series: 9882 Approved: Yes
