Varenr.: F032113187

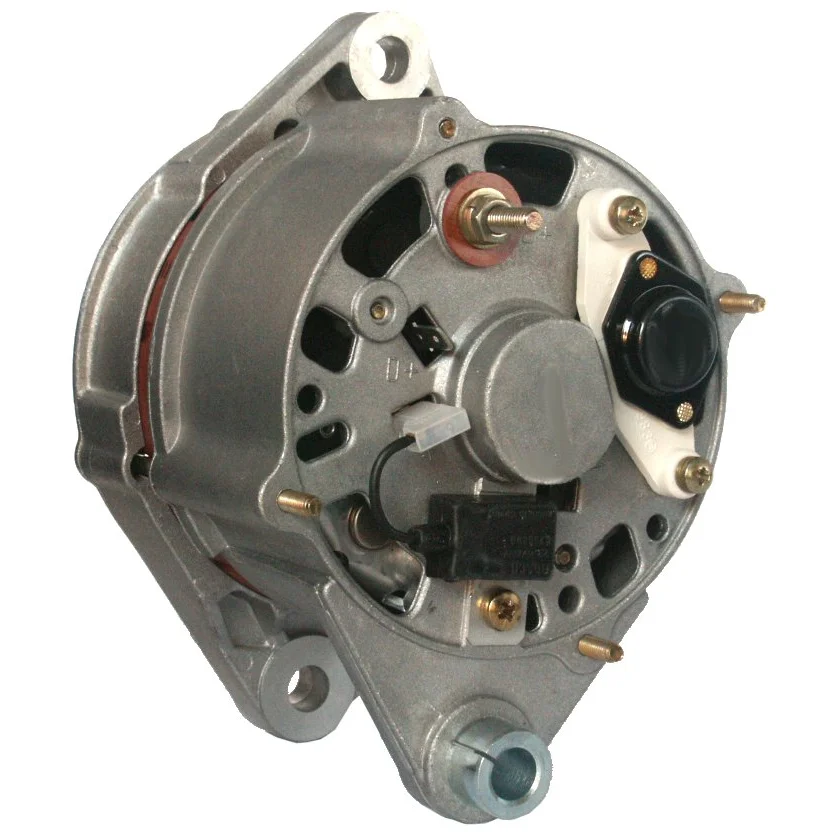

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 85, Monteringsbrakett dist.: 70,00, Radius: 85,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 85
Bredde/holderarm: 17,00
Monteringsbrakett avstand: 70,00
Brakettøye: 12,00
Belt. justering brakettøyes pos.: 60
Belt. justering brakettøye 1: 11,00
Radius: 85,00
Radius 2: 81,00
B+: M6
Posisjon/B+ i min.: 57
D+ Størrelse: 6,30
Total lengde mm: 168,00
Drev: uten
Regulator type: IR
Servising: Fiat
Info: Uten W-Terminal

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 70.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 60
Bracket hole 12.00
Position/B+ in min. 57
Pulley w/o
Radius 85.00
D+ Size 6.30
Radius 2 81.00
Regulator type IR
Servicing Fiat
Info Without W terminal
Voltage 14
Total length 168.00 mm
Width/holder arm 17.00
Amp 85

  • OEM
    F032113187, 29439590, 038522073A, 38522073A, 60513576, 0120484009

  • Konkurrentreferens
    A0212, ALT12000, CAL10277, LRA01345, 28-1721, 218.102.852, 56260, 12090291

  • NormaliseratArtNr
    a0212, alt12000, cal10277, f032113187, lra01345, 56260, 281721, 12090291, 29439590, 038522073a, 38522073a, 60513576, 0120484009, 218102852

  • Passar modeller
    Citroen Model: C25 Model series: C25 Type of engine: TD Size of motor: 1.9 Brand of engine: M705 Body: Bus From date: 01-04-1992 To date: 01-02-1994 Fuel: Diesel Approved: Yes
    Ferrari Model: 200 Series Model series: 208 Type of engine: Turbo Size of motor: 2.0 Brand of engine: F106D.. Body: Coupe From date: 01-06-1982 To date: 01-10-1989 Fuel: Gasoline Approved: Yes
    Ferrari Model: 40 Series Model series: F 40 Size of motor: 3.0 Brand of engine: F120A Body: Coupe From date: 01-02-1988 To date: 01-06-1992 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Model type: 2000 CHT Size of motor: 2.0 Brand of engine: 154A1.000 Type description: 154AC Body: Hatchback From date: 01-12-1985 To date: 01-02-1989 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Model type: 2000 Type of engine: i.e. Size of motor: 2.0 Brand of engine: 154C3.000 Body: Hatchback From date: 01-03-1987 To date: 01-09-1992 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Model type: 2000 Type of engine: i.e. Size of motor: 2.0 Brand of engine: 154C3.046 Body: Hatchback From date: 01-10-1987 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Model type: 2000 Type of engine: i.e. Size of motor: 2.0 Brand of engine: 834B.000 Body: Hatchback From date: 01-03-1987 To date: 01-09-1992 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Model type: 2000 Type of engine: i.e. Size of motor: 2.0 Brand of engine: 834B.048 Body: Hatchback From date: 01-03-1986 To date: 01-09-1990 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Model type: 2000 Type of engine: i.e. Size of motor: 2.0 Brand of engine: 834B.146 Body: Hatchback From date: 01-10-1987 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Size of motor: 1.6 Brand of engine: 154A.048 Body: Hatchback From date: 01-12-1985 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Fiat Model: Croma Model series: Croma Type of engine: TD Size of motor: 1.9 Brand of engine: 154C6.000 Body: Hatchback From date: 01-08-1987 To date: 01-10-1992 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama Type of engine: TD Size of motor: 1.9 Brand of engine: 280A1.000 Type description: 280 Body: Bus From date: 01-03-1989 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama Type of engine: TD Size of motor: 1.9 Brand of engine: 280A1.000 Type description: 290 Body: Bus From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 1.9 Brand of engine: 280A1.000 Body: Platform / Chassis From date: 01-03-1989 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 1.9 Brand of engine: 280A1.000 Type description: 280 Body: Van From date: 01-03-1989 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 1.9 Brand of engine: 280A1.000 Type description: 290 Body: Van From date: 01-03-1989 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Marengo Model series: Marengo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 160A7.000 Body: Estate From date: 01-02-1990 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: Diesel Size of motor: 1.9 Brand of engine: 160A7.000 Type description: 159AG From date: 01-07-1991 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: i.e. Size of motor: 1.8 Brand of engine: 159A4.000 Type description: 159AN Body: Estate From date: 01-03-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160A6.000 Type description: 159AI,BI,A1,AU,CU Body: Estate From date: 01-07-1991 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160A6.000 Type description: 159AU,CU From date: 01-05-1990 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160A7.000 Type description: 159AG Body: Estate From date: 01-07-1991 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160B6.046 Type description: 159AQ Body: Estate From date: 01-03-1992 To date: 01-06-1993 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160B6.046 Type description: 159AQ From date: 01-07-1992 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160D1.000 Type description: 159AI,BI,A1,AU,CU Body: Estate From date: 01-07-1991 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    Fiat Model: Tempra Model series: Tempra Type of engine: TD Size of motor: 1.9 Brand of engine: 160D1.000 Type description: 159AU,CU From date: 01-05-1990 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: i.e. 16V Size of motor: 1.8 Brand of engine: 160A5.000 Type description: 160 Body: Hatchback From date: 01-11-1989 To date: 01-06-1992 Fuel: Gasoline Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: i.e. Size of motor: 1.6 Brand of engine: 149C2.046 Type description: 160 Body: Hatchback From date: 01-02-1988 To date: 01-05-1991 Fuel: Gasoline Approved: Yes
    Lancia Model: Prisma Model series: Prisma Type of engine: Diesel Size of motor: 1.9 Brand of engine: 831D.000 From date: 01-01-1983 To date: 01-02-1992 Fuel: Diesel Approved: Yes
    Lancia Model: Prisma Model series: Prisma Type of engine: TD Size of motor: 1.9 Brand of engine: 831D1.000 From date: 01-05-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
