HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113285

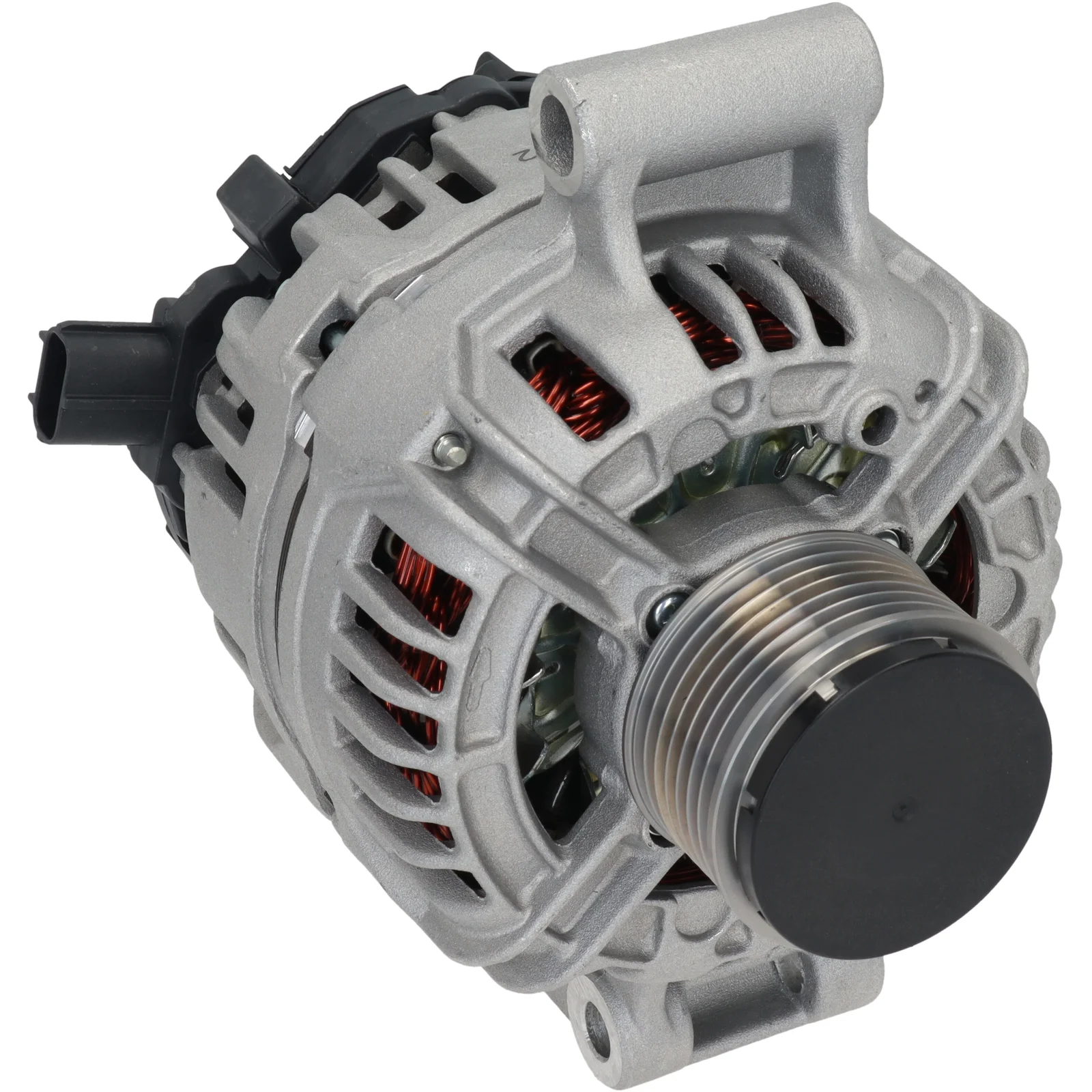

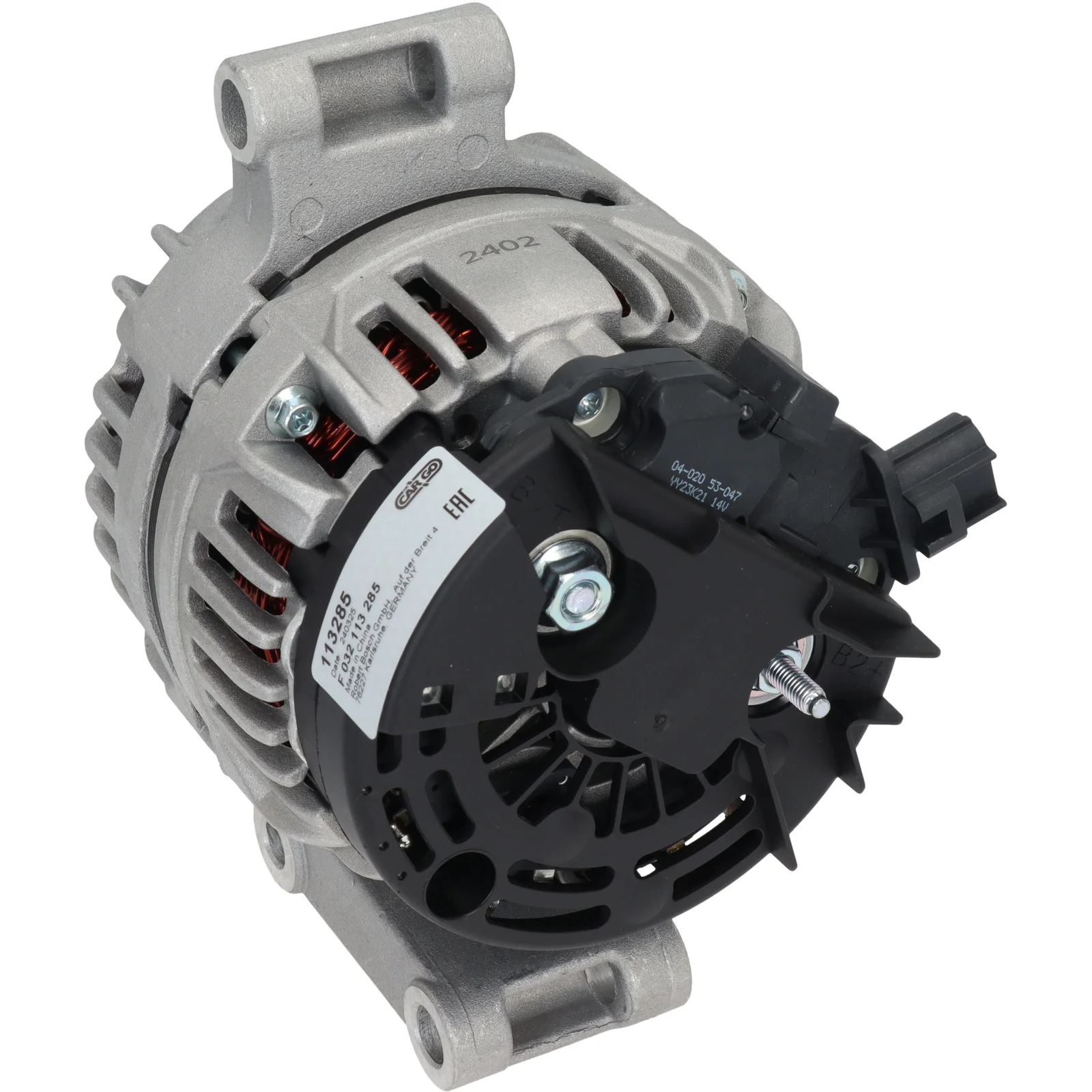

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 75, Rotasjon: CW, Festebrakett avstand: 74.50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 75
Drevskive dist.: 38,60
Bredde/festearm: 55,20
Feste beslaget dist.: 74,50
Beslagsåpe: 12,70
Beslagsåpe 2: 12,70
Bæltejustering fettposisjon: 60
Bæltejustering beslaget hull 1: 12,00/12,50
Drevskive diameter: 59,00
Riller/drevskive: 7
Radius: 90,00
Radius 2: 90,00
B+: M6
Posisjon/B+ i min.: 17
D+: Støpselet storleik: Plug
Rotasjon: CW
Støpselets nr.: PL81
Total lengde mm: 218,50
Drevskive: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Ford
>Merknader: med enkel drevskive: HC-CARGO 113544.

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 74.50
Belt. adj. bracket hole 1 12.00/12.50
Belt. adj. brackethole pos. 60
Plug no. PL81
Bracket hole 12.70
Bracket hole 2 12.70
Position/B+ in min. 17
Prod. info BN
Pulley SP/FW
Pulley dia. 59.00
Pulley dist. 38.60
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Remarks w/ single pulley: HC-CARGO 113544.
Rotation CW
Servicing Ford
Grooves/pulley 7
Voltage 14
Total length 218.50 mm
Width/holder arm 55.20
Amp 75

  • OEM
    B120416351, F032113285, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, YC1U10300BB, yc1u10300da, yc1u10300db, YC1U10300DC, YC1U10300DE, 2C3U10300BB, 1639ir, 1516508R, 4069776, 4098414, 4332279, 0124315019, 0124315027, 0124315100

  • Konkurrentreferens
    A0043, A0043(P), A0043PR, A0043SR, A9021(P), A9021(P2), A9273SR, ALT-1815V, ALT20008, BAO3269, BAO3304, CAL10228, DRB2650, DRB2650N, F032UA0055, F042304065, F042304066, F042304067, F042A04066, LRA03076, LRB00443, 8EL011710-591, 28-3814, 28-3875, 28-3884, 28-5688, 219.150.1002, 219.150.752, 219.307.752, 4047, 8316N, 8316R, 21890R, 21891N-7G, 21891N-7GL, 119870, 200297, 210278, 210278A, 301639RI, 437690, 746193, 746993, 9042650, 12042650, 0986042650

  • NormaliseratArtNr
    a0043, a0043p, a0043pr, a0043sr, a9021p, a9021p2, a9273sr, alt1815v, alt20008, b120416351, bao3269, bao3304, cal10228, drb2650, drb2650n, f032113285, f032ua0055, f042304065, f042304066, f042304067, f042a04066, lra03076, lrb00443, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, yc1u10300bb, yc1u10300da, yc1u10300db, yc1u10300dc, yc1u10300de, 2c3u10300bb, 8el011710591, 1639ir, 4047, 8316n, 8316r, 21890r, 21891n7g, 21891n7gl, 119870, 200297, 210278, 210278a, 283814, 283875, 283884, 285688, 301639ri, 437690, 746193, 746993, 1516508r, 4069776, 4098414, 4332279, 9042650, 12042650, 0124315019, 0124315027, 0124315100, 219150752, 219307752, 0986042650, 2191501002

  • Passar modeller
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Type description: FD_Y,FB_Y,FS_,FZ_,F_BY,F_CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,F_CY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FA Type description: FA_Y Body: Van From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,FC_Y Body: Bus From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FA Type description: FM_Y,FN_Y Body: Platform / Chassis From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Bus From date: 01-07-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Platform / Chassis From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Van From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: FXFA Type description: FA_Y Body: Van From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: FXFA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,FC_Y Body: Bus From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: FXFA Type description: FM_Y,FN_Y Body: Platform / Chassis From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Spenning: 14
    Amp: 75
    Drevskive dist.: 38,60
    Bredde/festearm: 55,20
    Feste beslaget dist.: 74,50
    Beslagsåpe: 12,70
    Beslagsåpe 2: 12,70
    Bæltejustering fettposisjon: 60
    Bæltejustering beslaget hull 1: 12,00/12,50
    Drevskive diameter: 59,00
    Riller/drevskive: 7
    Radius: 90,00
    Radius 2: 90,00
    B+: M6
    Posisjon/B+ i min.: 17
    D+: Støpselet storleik: Plug
    Rotasjon: CW
    Støpselets nr.: PL81
    Total lengde mm: 218,50
    Drevskive: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford
    >Merknader: med enkel drevskive: HC-CARGO 113544.

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 74.50
    Belt. adj. bracket hole 1 12.00/12.50
    Belt. adj. brackethole pos. 60
    Plug no. PL81
    Bracket hole 12.70
    Bracket hole 2 12.70
    Position/B+ in min. 17
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.00
    Pulley dist. 38.60
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Remarks w/ single pulley: HC-CARGO 113544.
    Rotation CW
    Servicing Ford
    Grooves/pulley 7
    Voltage 14
    Total length 218.50 mm
    Width/holder arm 55.20
    Amp 75
  • Kjøretøymatching

    • OEM
      B120416351, F032113285, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, YC1U10300BB, yc1u10300da, yc1u10300db, YC1U10300DC, YC1U10300DE, 2C3U10300BB, 1639ir, 1516508R, 4069776, 4098414, 4332279, 0124315019, 0124315027, 0124315100

    • Konkurrentreferens
      A0043, A0043(P), A0043PR, A0043SR, A9021(P), A9021(P2), A9273SR, ALT-1815V, ALT20008, BAO3269, BAO3304, CAL10228, DRB2650, DRB2650N, F032UA0055, F042304065, F042304066, F042304067, F042A04066, LRA03076, LRB00443, 8EL011710-591, 28-3814, 28-3875, 28-3884, 28-5688, 219.150.1002, 219.150.752, 219.307.752, 4047, 8316N, 8316R, 21890R, 21891N-7G, 21891N-7GL, 119870, 200297, 210278, 210278A, 301639RI, 437690, 746193, 746993, 9042650, 12042650, 0986042650

    • NormaliseratArtNr
      a0043, a0043p, a0043pr, a0043sr, a9021p, a9021p2, a9273sr, alt1815v, alt20008, b120416351, bao3269, bao3304, cal10228, drb2650, drb2650n, f032113285, f032ua0055, f042304065, f042304066, f042304067, f042a04066, lra03076, lrb00443, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, yc1u10300bb, yc1u10300da, yc1u10300db, yc1u10300dc, yc1u10300de, 2c3u10300bb, 8el011710591, 1639ir, 4047, 8316n, 8316r, 21890r, 21891n7g, 21891n7gl, 119870, 200297, 210278, 210278a, 283814, 283875, 283884, 285688, 301639ri, 437690, 746193, 746993, 1516508r, 4069776, 4098414, 4332279, 9042650, 12042650, 0124315019, 0124315027, 0124315100, 219150752, 219307752, 0986042650, 2191501002

    • Passar modeller
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D2FE Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: D4FA Type description: FD_Y,FB_Y,FS_,FZ_,F_BY,F_CY,AY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Platform / Chassis From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Body: Van From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: Diesel Di Size of motor: 2.4 Brand of engine: F4FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,F_CY Body: Bus From date: 01-01-2000 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FA Type description: FA_Y Body: Van From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,FC_Y Body: Bus From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FA Type description: FM_Y,FN_Y Body: Platform / Chassis From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Bus From date: 01-07-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Platform / Chassis From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: DOFA Body: Van From date: 01-07-2001 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: FXFA Type description: FA_Y Body: Van From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: FXFA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,FC_Y Body: Bus From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDE Size of motor: 2.4 Brand of engine: FXFA Type description: FM_Y,FN_Y Body: Platform / Chassis From date: 01-03-2004 To date: 01-05-2006 Fuel: Diesel Approved: Yes
      1 / 5
