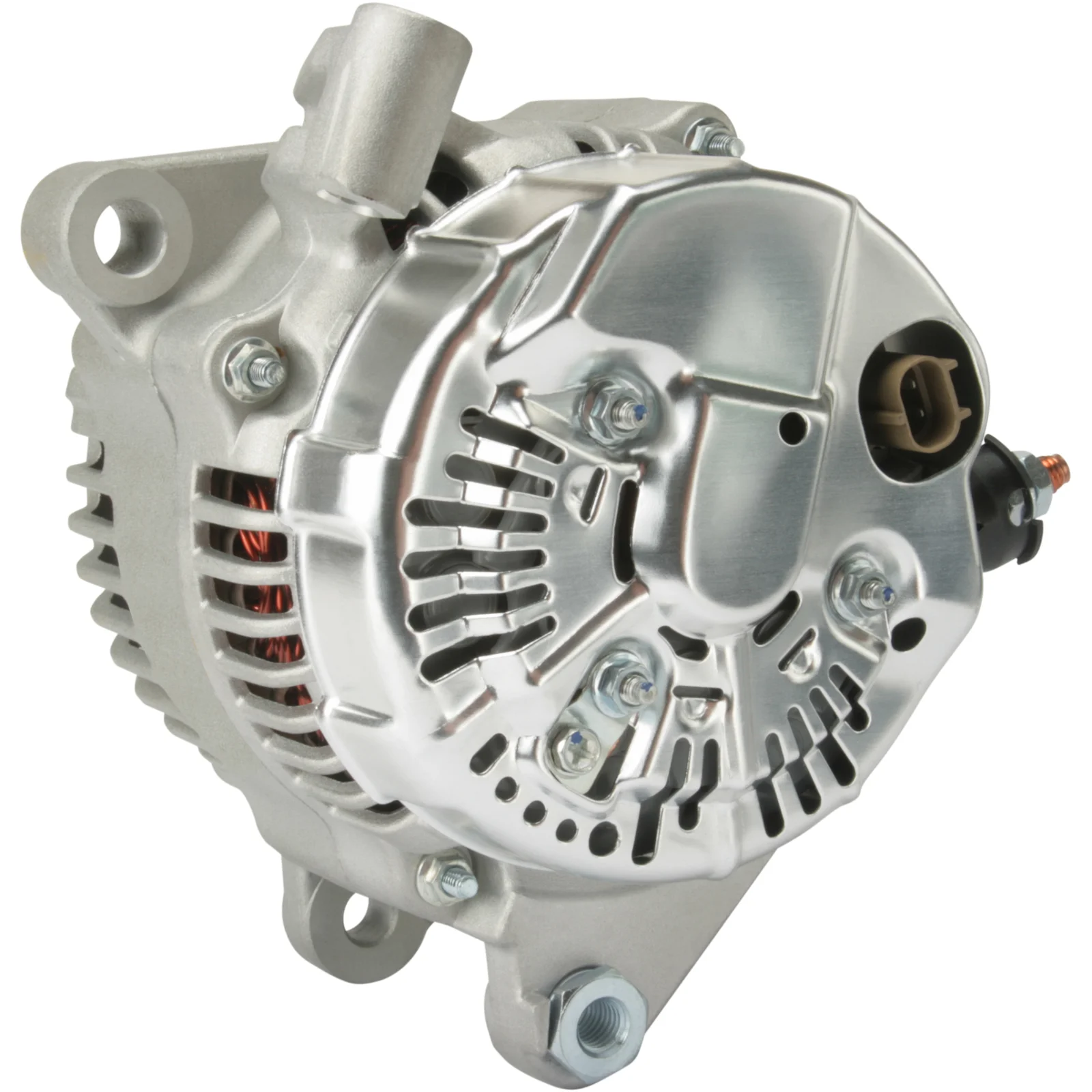

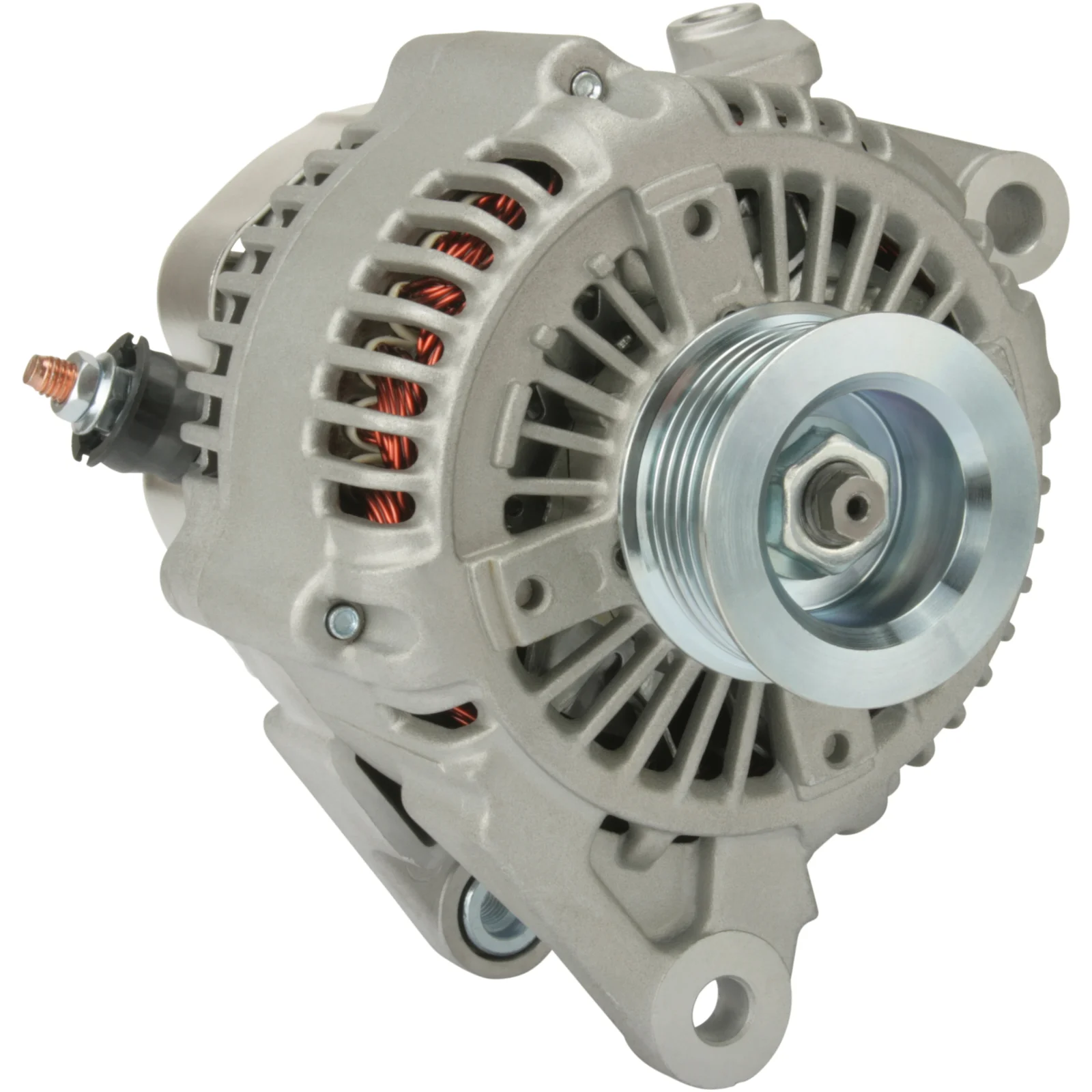

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113607

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 136, Rotasjon: CW, Monteringsbeslag avstand: 68.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 136
Drevskive avstand: 27.00
Bredde/lagerarm: 12.00
Festebrakett avstand: 68.00
Brakett hull: 11.00
Båndjusterbar brakett hull pos.: 10
Båndjusterbar brakett hull 1: 13.00
Drevdia.: 57.00
Groper/drevskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 13
Rotasjon: med urviseren
Plugg nr.: PL135
Total lengde mm: 168.00
Drevskive: SP
Regulator: uten
Prod. info: BN
Service: Jeep

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 68.00
Belt. adj. bracket hole 1 13.00
Belt. adj. brackethole pos. 10
Plug no. PL135
Bracket hole 11.00
Position/B+ in min. 13
Prod. info BN
Pulley SP
Pulley dia. 57.00
Pulley dist. 27.00
Radius 90.00
Radius 2 90.00
Regulator w/o
Rotation CW
Servicing Jeep
Grooves/pulley 6
Voltage 14
Total length 168.00 mm
Width/holder arm 12.00
Amp 136

  • OEM
    F032113607, 1986A00865, 4980, 6004ML0000, 121000-4410, 121000-4440, 121000-4540, 421000-0100, 05015066AA, 5170746aa, 56029700aa, 56029700AB, 56041120, 56041120AB, 56041120AC, 56041693aa, 56041693ab, 56041693ac, 0124525002

  • Konkurrentreferens
    A0182, A6326, A6326S, al6541x, and0202, CAL40275, DRA0351, LRA01153, 1-2497-01ND, 27-4651, 534.025.1322, 835.516.132, 12333, 13873, 13873N, 13873R, 13912, 13912N, 13916, 111377, 554015RI, 554075RI, 12090513, 0986046647

  • NormaliseratArtNr
    a0182, a6326, a6326s, al6541x, and0202, cal40275, dra0351, f032113607, lra01153, 1986a00865, 4980, 6004ml0000, 12333, 13873, 13873n, 13873r, 13912, 13912n, 13916, 111377, 274651, 554015ri, 554075ri, 1249701nd, 05015066aa, 5170746aa, 12090513, 56029700aa, 56029700ab, 56041120, 56041120ab, 56041120ac, 56041693aa, 56041693ab, 56041693ac, 0124525002, 835516132, 0986046647, 1210004410, 1210004440, 1210004540, 4210000100, 5340251322

  • Passar modeller
    Dodge Model: Dakota Crew Cab Pickup Model series: Dakota Crew Cab Pickup Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Dakota Crew Cab Pickup Model series: Dakota Crew Cab Pickup Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 3.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 3.7 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 4.7 From date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 4.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 4.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 4.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 4.7 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Standard Cab Pickup Model series: Dakota Standard Cab Pickup Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Type description: DN Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Type description: HB Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: Flexfuel Size of motor: 4.7 Brand of engine: EVA Type description: HB Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Dodge Model: Durango Model series: Durango Size of motor: 4.7 Brand of engine: EVA Type description: DN Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Size of motor: 4.7 Brand of engine: EVA Body: Pickup Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 3.7 Brand of engine: EKG Type description: KJ From date: 01-10-2001 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 3.7 Brand of engine: EKG Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2001 To date: 01-01-2008 Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: KJ From date: 01-08-2003 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Laredo Size of motor: 4.7 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Laredo Size of motor: 4.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Laredo Size of motor: 4.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Laredo Size of motor: 4.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 4.7 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 4.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 4.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 4.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Overland Size of motor: 4.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Overland Size of motor: 4.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Overland Size of motor: 4.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Special Edition Size of motor: 4.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Size of motor: 4.7 From date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Limited Size of motor: 3.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Limited Size of motor: 3.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Limited Size of motor: 3.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Limited Size of motor: 3.7 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Renegade Size of motor: 3.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Renegade Size of motor: 3.7 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Renegade Size of motor: 3.7 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Sport Size of motor: 3.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Sport Size of motor: 3.7 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Sport Size of motor: 3.7 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
