Varenr.: F032113632

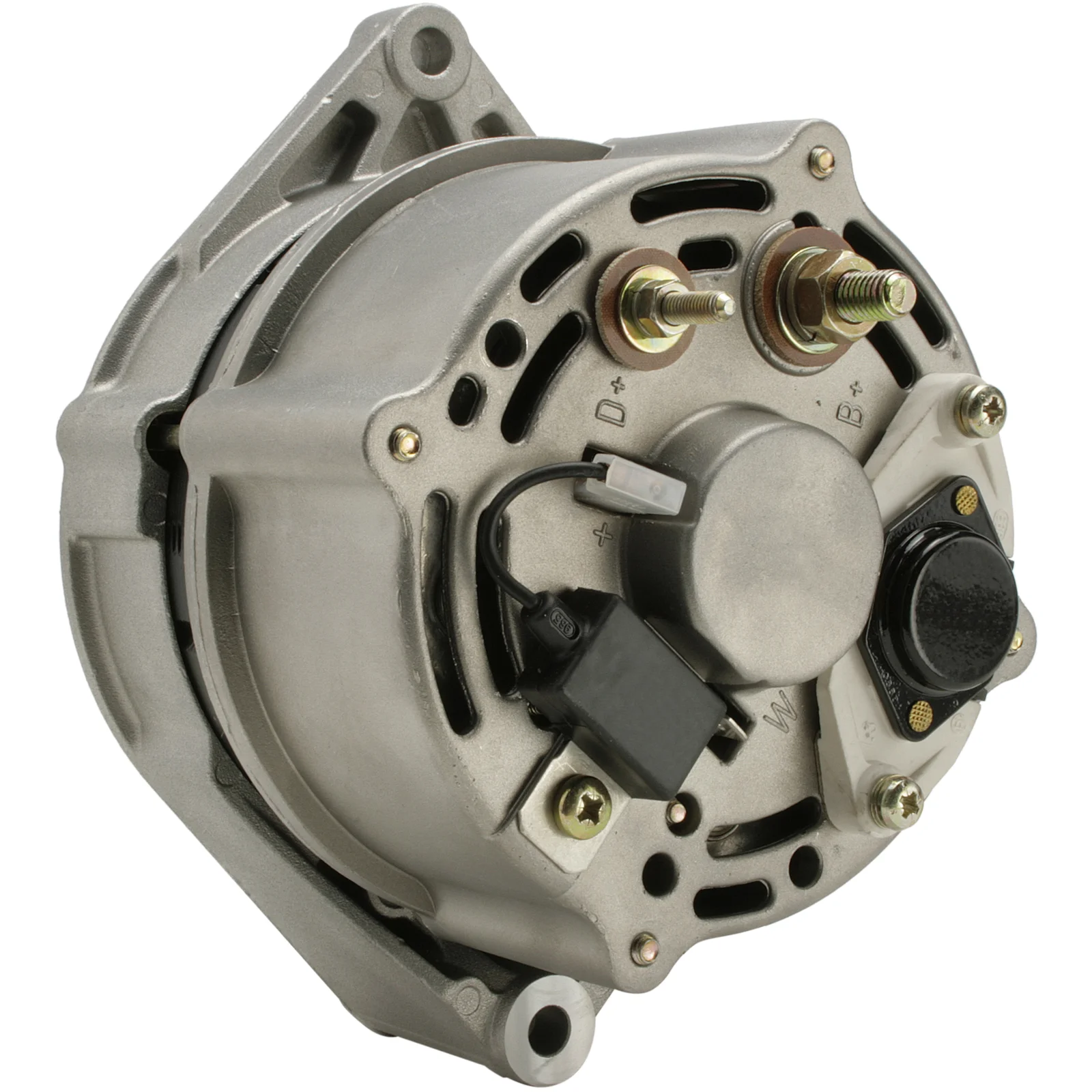

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 85, Rotasjon: CW, Radius: 86.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 14
Ampere: 85
Terminal: W
Bredde/holderarm: 56.00
Hjørne for bøssing: 8.30
Båndjustering. bøsings posisjon: 60
Båndjustering. bøsings hull 1: 8.00
Radius: 86.00
Radius 2: 86.00
B+: M8
Posisjon/B+ i min.: 58
D+ størrelse: M5
Rotasjon: med urviseren
W plugg type: 6.30
Total lengde mm: 170.00
Hjultrommel: uten
Regulator type: IR
Produktinfo: BN/OE
Service: John Deere plenutstyr med kjøleanlegg

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 60
Bracket hole 8.30
Position/B+ in min. 58
Prod. info BN/OE
Pulley w/o
Radius 86.00
D+ Size M5
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing John Deere lawn equipment w/ cooling eng
Terminal W
Voltage 14
W plug type 6.30
Total length 170.00 mm
Width/holder arm 56.00
Amp 85

  • OEM
    aak3329, AAK4829, AAK5197, AL57438, al60033, AL81437, az31316, C000900010140, F032113632, TY6779, 11.201.934, 11.201.989, 11.204.391, 847ir, 9513071, 9513170, 9515102, 9515361, 012060040, 0120060040, 0120484002, 0120484003, 0120484016, 0120484020, 0120488217, 0120489156, 0120489317, 0986036800, 0986037450

  • Konkurrentreferens
    A0780S, ABO0113, BAO3119, CAL10237, CAL48110, dra3445, dra6800, DRA6800N, dra7450, ia0592, IA0989, IA1518, LRA02688, lrb00293, lrb00294, MG251, MG277, 8EL015643-301, 8EL015643-351, 8el731708-001, 8el732698-001, 8el732699-001, 28-1771, 28-1866, 28-2544, 28-2952, 99-36.800, 99-37.450, 200.116.702, 586.102.852, 586.110.852, 2088, 2421, 5002, 5264, 5299, 12151, 30847RI, 30915RI, 111651, 118632, 209249, 209249A, 301027RI, 9936800, 12036800, 0986036803

  • NormaliseratArtNr
    a0780s, aak3329, aak4829, aak5197, abo0113, al57438, al60033, al81437, az31316, bao3119, c000900010140, cal10237, cal48110, dra3445, dra6800, dra6800n, dra7450, f032113632, ia0592, ia0989, ia1518, lra02688, lrb00293, lrb00294, mg251, mg277, ty6779, 8el015643301, 8el015643351, 8el731708001, 8el732698001, 8el732699001, 847ir, 2088, 2421, 5002, 5264, 5299, 12151, 30847ri, 30915ri, 111651, 118632, 209249, 209249a, 281771, 281866, 282544, 282952, 301027ri, 9513071, 9513170, 9515102, 9515361, 9936800, 9937450, 11201934, 11201989, 11204391, 12036800, 012060040, 0120060040, 0120484002, 0120484003, 0120484016, 0120484020, 0120488217, 0120489156, 0120489317, 200116702, 586102852, 586110852, 0986036800, 0986036803, 0986037450

  • Passar modeller
    John Deere Model: 1000 Series Model series: 1065 Size of motor: 5.9 From date: 01-11-1981 To date: 01-11-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Model series: 1068 Size of motor: 5.9 From date: 01-10-1981 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Model series: 1072 Size of motor: 5.9 From date: 01-10-1981 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Model series: 1075 Size of motor: 5.9 From date: 01-10-1981 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Size of motor: 7.6 From date: 01-02-1982 To date: 01-02-1997 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6100 Size of motor: 4.5 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6200 Size of motor: 3.9 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Lada Model: 110 Model series: 110 Type of engine: i Size of motor: 2.0 Brand of engine: C20XE From date: 01-08-1996 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 85
    Terminal: W
    Bredde/holderarm: 56.00
    Hjørne for bøssing: 8.30
    Båndjustering. bøsings posisjon: 60
    Båndjustering. bøsings hull 1: 8.00
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Posisjon/B+ i min.: 58
    D+ størrelse: M5
    Rotasjon: med urviseren
    W plugg type: 6.30
    Total lengde mm: 170.00
    Hjultrommel: uten
    Regulator type: IR
    Produktinfo: BN/OE
    Service: John Deere plenutstyr med kjøleanlegg

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 60
    Bracket hole 8.30
    Position/B+ in min. 58
    Prod. info BN/OE
    Pulley w/o
    Radius 86.00
    D+ Size M5
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing John Deere lawn equipment w/ cooling eng
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 170.00 mm
    Width/holder arm 56.00
    Amp 85
  • Kjøretøymatching

    • OEM
      aak3329, AAK4829, AAK5197, AL57438, al60033, AL81437, az31316, C000900010140, F032113632, TY6779, 11.201.934, 11.201.989, 11.204.391, 847ir, 9513071, 9513170, 9515102, 9515361, 012060040, 0120060040, 0120484002, 0120484003, 0120484016, 0120484020, 0120488217, 0120489156, 0120489317, 0986036800, 0986037450

    • Konkurrentreferens
      A0780S, ABO0113, BAO3119, CAL10237, CAL48110, dra3445, dra6800, DRA6800N, dra7450, ia0592, IA0989, IA1518, LRA02688, lrb00293, lrb00294, MG251, MG277, 8EL015643-301, 8EL015643-351, 8el731708-001, 8el732698-001, 8el732699-001, 28-1771, 28-1866, 28-2544, 28-2952, 99-36.800, 99-37.450, 200.116.702, 586.102.852, 586.110.852, 2088, 2421, 5002, 5264, 5299, 12151, 30847RI, 30915RI, 111651, 118632, 209249, 209249A, 301027RI, 9936800, 12036800, 0986036803

    • NormaliseratArtNr
      a0780s, aak3329, aak4829, aak5197, abo0113, al57438, al60033, al81437, az31316, bao3119, c000900010140, cal10237, cal48110, dra3445, dra6800, dra6800n, dra7450, f032113632, ia0592, ia0989, ia1518, lra02688, lrb00293, lrb00294, mg251, mg277, ty6779, 8el015643301, 8el015643351, 8el731708001, 8el732698001, 8el732699001, 847ir, 2088, 2421, 5002, 5264, 5299, 12151, 30847ri, 30915ri, 111651, 118632, 209249, 209249a, 281771, 281866, 282544, 282952, 301027ri, 9513071, 9513170, 9515102, 9515361, 9936800, 9937450, 11201934, 11201989, 11204391, 12036800, 012060040, 0120060040, 0120484002, 0120484003, 0120484016, 0120484020, 0120488217, 0120489156, 0120489317, 200116702, 586102852, 586110852, 0986036800, 0986036803, 0986037450

    • Passar modeller
      John Deere Model: 1000 Series Model series: 1065 Size of motor: 5.9 From date: 01-11-1981 To date: 01-11-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 1000 Series Model series: 1068 Size of motor: 5.9 From date: 01-10-1981 To date: 01-10-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 1000 Series Model series: 1072 Size of motor: 5.9 From date: 01-10-1981 To date: 01-10-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 1000 Series Model series: 1075 Size of motor: 5.9 From date: 01-10-1981 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      John Deere Model: 1000 Series Size of motor: 7.6 From date: 01-02-1982 To date: 01-02-1997 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6100 Size of motor: 4.5 From date: 01-01-1992 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6200 Size of motor: 3.9 From date: 01-01-1992 Fuel: Diesel Approved: Yes
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Lada Model: 110 Model series: 110 Type of engine: i Size of motor: 2.0 Brand of engine: C20XE From date: 01-08-1996 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      1 / 2
