Varenr.: F032113777

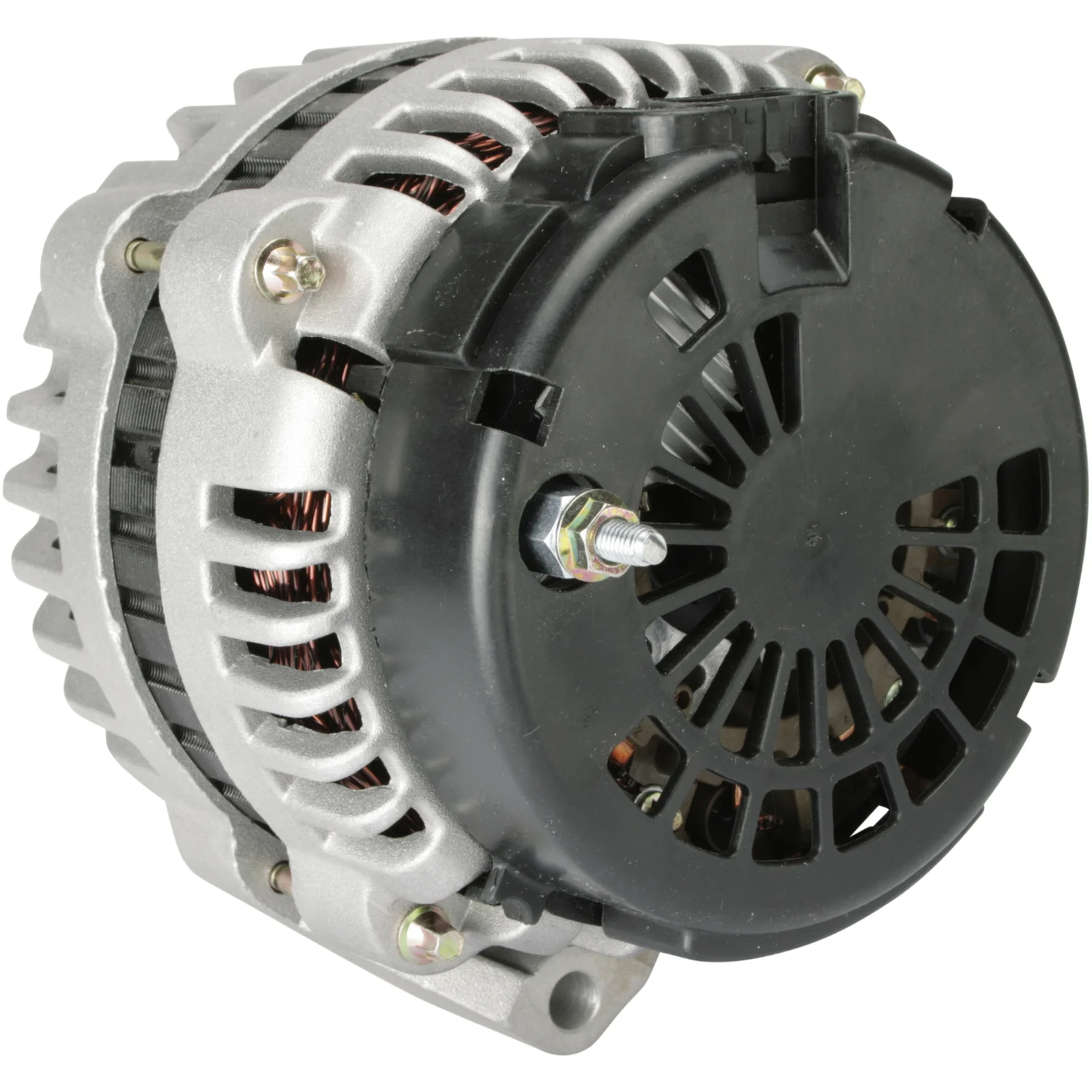

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 145, Rotasjon: CW, Reimhjul diameter: 56,50

Beskrivelse

Spenningsspenning: 14
Amp.: 145
Drevskive dist.: 72.50
Bredde/holderarm: 51.00
Luftmassemätare hull: 10.30
Belt. just. bøsingshull pos.: 13
Belt. just. bøsingshull 1: 10.20
Drevskive dia.: 56.50
Riller/drevskive: 6
Radius: 89.00
Radius 2: 89.00
B+: M6
Posisjon/B+ i min.: 5
Svingning: medurs
Plugg nr.: PL187
Total lengde mm: 178.50
Drevskive: SP
Spenningsregulator type: IR
Prod. info: BN

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 13
Plug no. PL187
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 56.50
Pulley dist. 72.50
Radius 89.00
Radius 2 89.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 178.50 mm
Width/holder arm 51.00
Amp 145
  • OEM

    F032113777, 1986A01738, 10464476, 15226003, 15754097, 15754097M
  • Konkurrentreferens

    a-1645, adr290, ALT-1511, F042200012, F042300181, F042A00181, 1-2419-21DR, 28-7852, 90-01-4415, 0986UR0746, 8292, 8292N, 8292N-253A, 8292N-DR220A, 8292R, 8292R-253A, 8292R-DR220A, 908292
  • NormaliseratArtNr

    a1645, adr290, alt1511, f032113777, f042200012, f042300181, f042a00181, 0986ur0746, 1986a01738, 8292, 8292n, 8292n253a, 8292ndr220a, 8292r, 8292r253a, 8292rdr220a, 287852, 908292, 1241921dr, 10464476, 15226003, 15754097, 15754097m, 90014415
  • Passar modeller

    Cadillac Model: Escalade Model series: Escalade Model type: AWD Size of motor: 5.3 Brand of engine: LM7 Body: SUV From date: 01-09-2003 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Cadillac Model: Escalade Model series: Escalade Size of motor: 5.3 Brand of engine: LM7 Body: SUV From date: 01-09-2003 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Chevrolet Model: Express 1500 Standard Passenger Van Model series: Express 1500 Standard Passenger Van Size of motor: 4.3 Brand of engine: LU3 Body: Bus Fuel: Petrol Approved: Yes
    Chevrolet Model: Express 2500 Standard Cargo Van Model series: Express 2500 Standard Cargo Van Size of motor: 4.3 Brand of engine: LU3 Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Silverado 1500 Crew Cab Pickup Model series: Silverado 1500 Crew Cab Pickup Model type: 4WD Size of motor: 4.3 Brand of engine: LU3 Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: Silverado 1500 Crew Cab Pickup Model series: Silverado 1500 Crew Cab Pickup Size of motor: 4.3 Brand of engine: LU3 Body: Pickup Fuel: Petrol Approved: Yes
    Hummer Model: Hummer Model series: Hummer H3 Size of motor: 3.5 Brand of engine: L52 From date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
