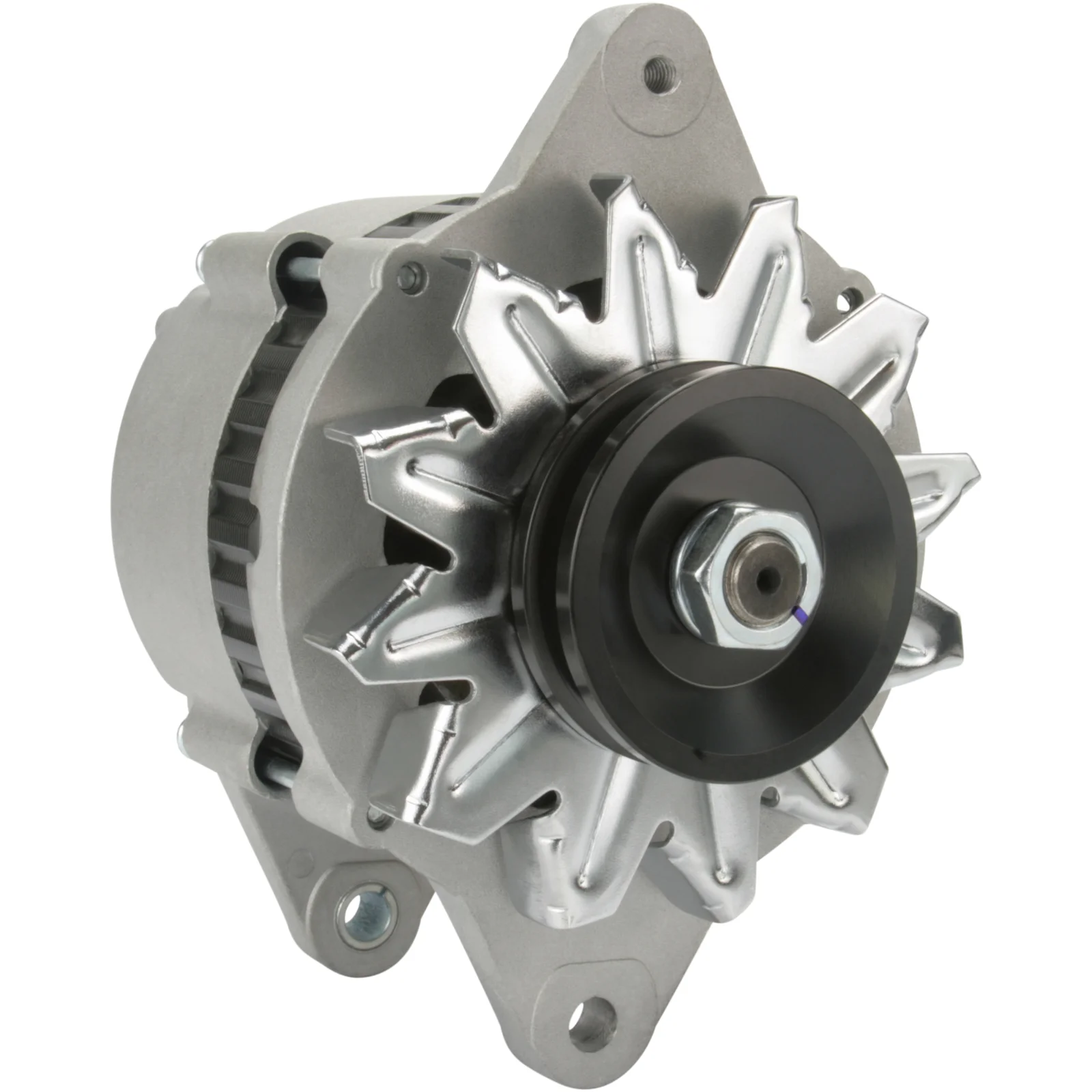

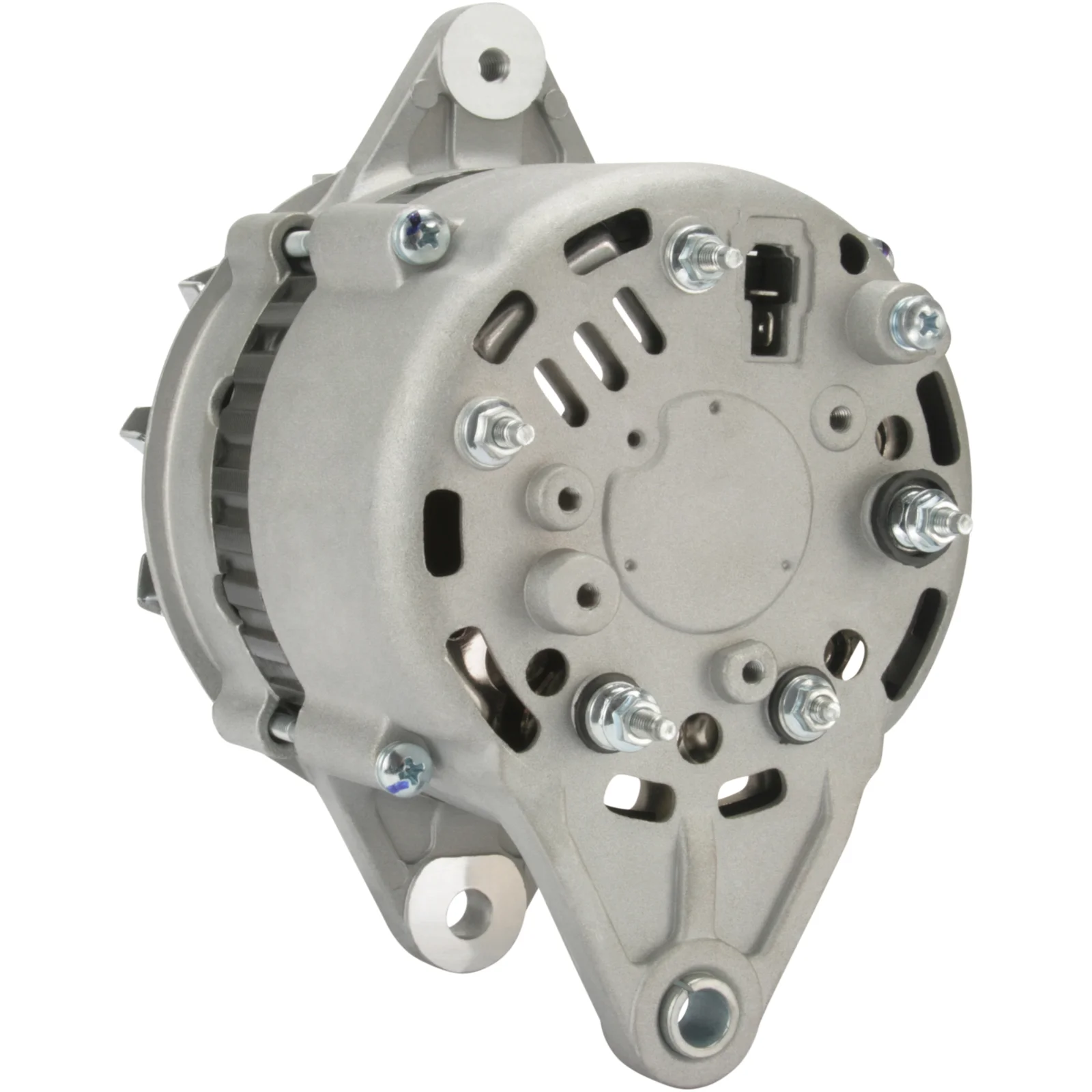

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113793

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp.: 55, Rotasjon: CW, Monteringsbrakett avstand: 80.00

Beskrivelse

Yanmar Marin Dynamo 12V-55A 12V - 55A, 1V, (R, L), isolert Passer Yanmar Marin 4JMTE, 4JH2E Motorer For Yourex produktordre 90-678-5520

Spenning: 14
Amper: 55
Isolert retur: Ja
Bøssing avdr. : 42.00
Bredde/holderarm: 13.00
Festebrakett avstand: 80.00
Brakettshull: 10.00
Båndjusteringsbrakett hullposisjon: 60
Båndjusteringsbrakett hull 1: M8
Bøssing diameter: 72.00
Idler/ramme: 1
Radius: 90.00
Radius 2: 85.00
B+: M5
Posisjon/B+ i min.: 8
D+: størrelse: Plastpenn
Rotasjon: med urviseren
Spenningsterminal nr.: PL09
Total lengde mm: 184.00
Bøssing: P
Regulatortype: IR
Prod. info: BN
Service: Yanmar

Filer

Spesifikasjon

B+ M5
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.00
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 72.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Yanmar
Grooves/pulley 1
Insulated return Yes
Voltage 14
Total length 184.00 mm
Width/holder arm 13.00
Amp 55

  • OEM
    F032113793, ja986ir, LR155-20, lr155-20, LR155-20B, lr155-20b, LR155-29, lr155-29, 129772-77200

  • Konkurrentreferens
    a-8864, A2126S, ahi0068, CAL20161, lra00348, LRA01248, va225, 8el737061-001, 28-0917, 28-1565, 90-25-1061, 90-25-1092, 135.017.055, 582.105.552, 985.003.055, 5476, 12107N, 12275N, 119756, 553903RI

  • Bilmärken
    Yanmar Marine

  • NormaliseratArtNr
    a2126s, a8864, ahi0068, cal20161, f032113793, ja986ir, lr15520, lr15520b, lr15529, lra00348, lra01248, va225, 8el737061001, 5476, 12107n, 12275n, 119756, 280917, 281565, 553903ri, 90251061, 90251092, 135017055, 582105552, 985003055, 12977277200

  • Passar modeller
    Yanmar Model: 2GM Model series: 2GM Approved: Yes
    Yanmar Model: 3GM Model series: 3GM Approved: Yes
    Yanmar Model: 4JH Model series: 4JH Approved: Yes
    Yanmar Model: 4LH Model series: 4LH Approved: Yes
    Yanmar Series: Marin Model: 4JH2-DTE / 4JH2-HTE
    Yanmar Series: Marin Model: 4JH2-E / 4JH2-TE
    Yanmar Series: Marin Model: 4JH2-UTE(B)
