HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113899

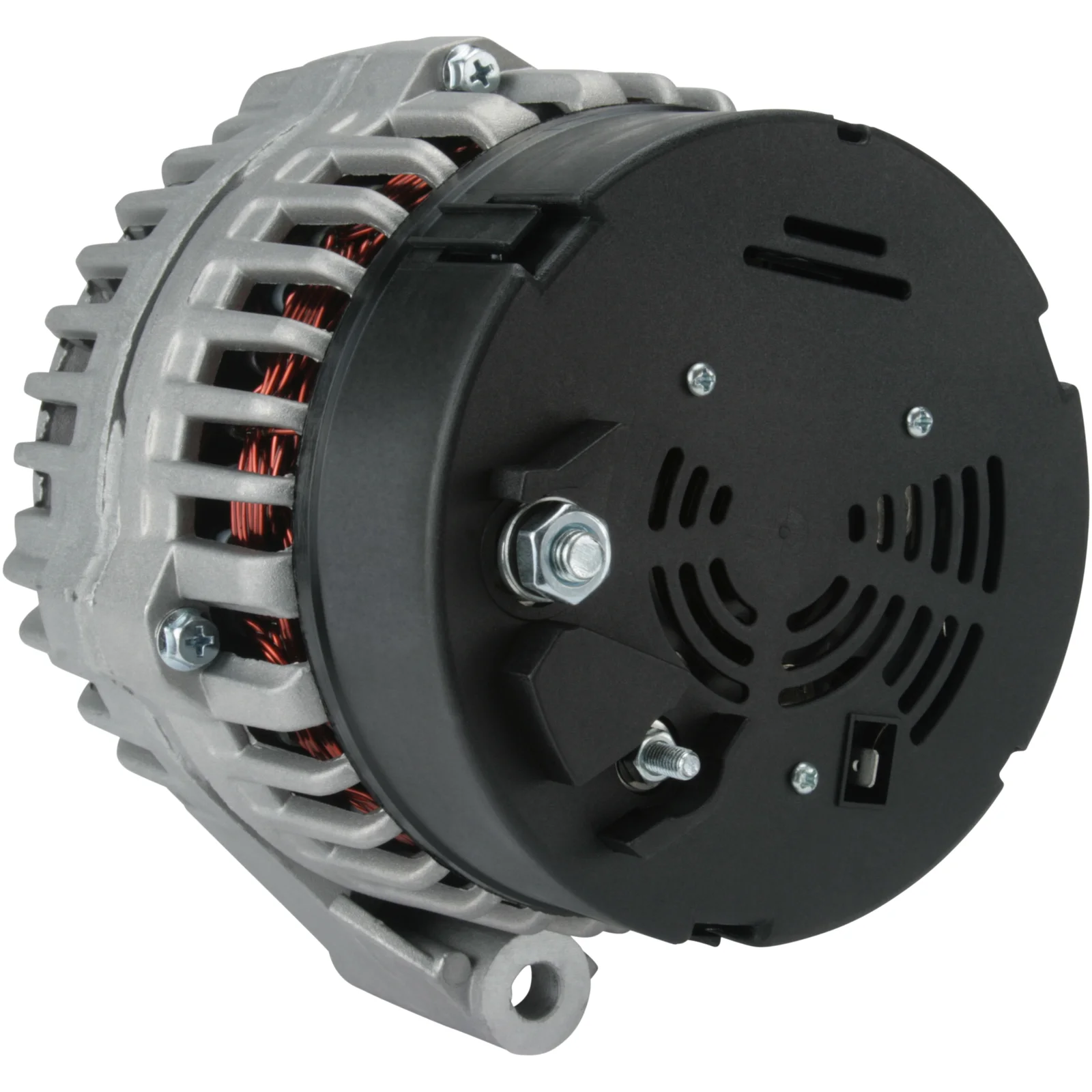

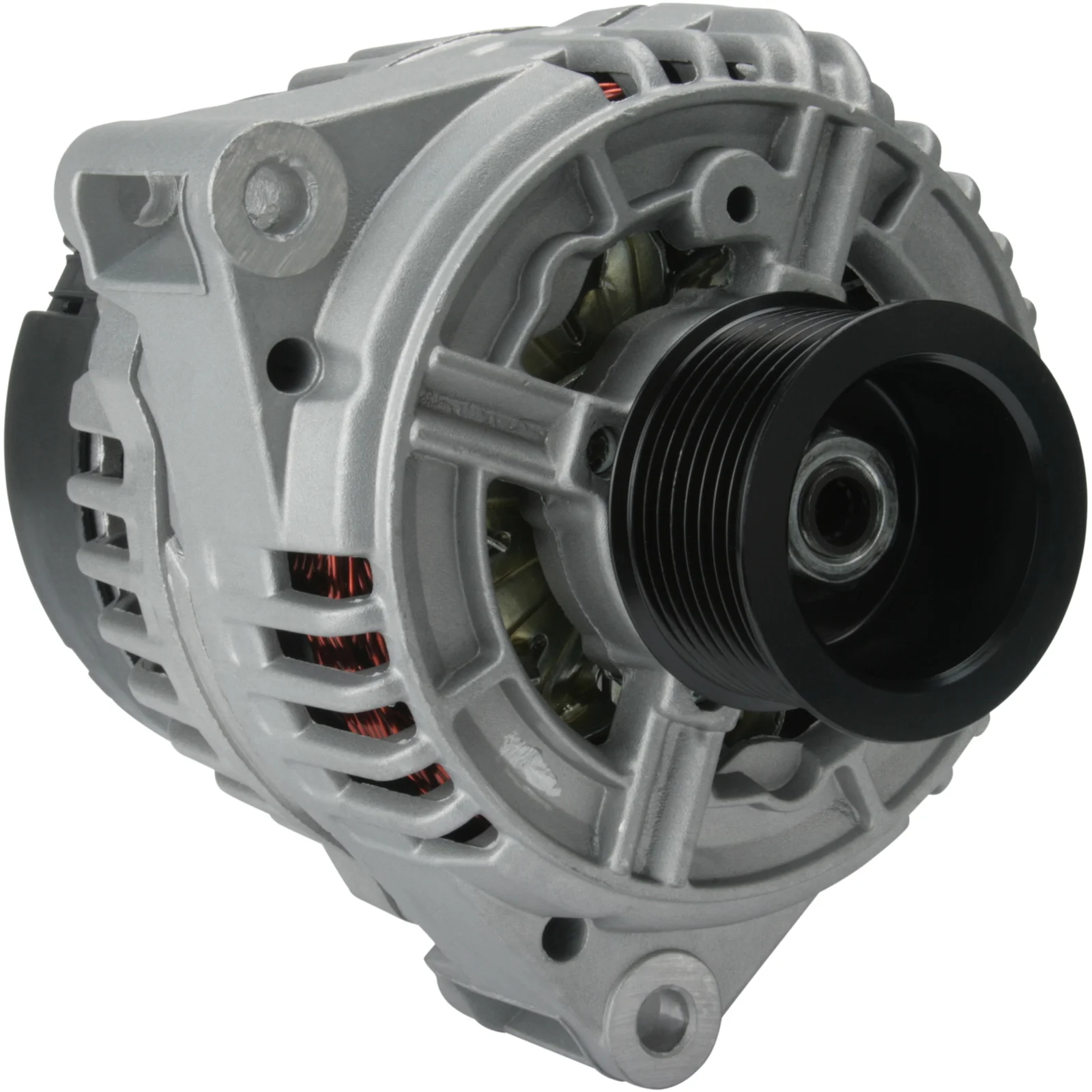

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: mot klokka, Drev diameter: 62.00

Beskrivelse

Spenningsnivå: 14
Amp: 150
Terminal: W
Drevavstand: 86,50
Bredde/holderarm: 56,00
Brakethull: 10,20
Båndjust. brakethull pos.: 10
Båndjust. brakethull 1: 10,20
Drevskive diameter: 62,00
Riller/drevskive: 8
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 8
D+ Størrelse: M5
Rotasjon: mot klokka
W pluggtype: 6,30
Total lengde mm: 200,50
Drevskive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 10
Bracket hole 10.20
Position/B+ in min. 8
Prod. info BN
Pulley SP
Pulley dia. 62.00
Pulley dist. 86.50
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CCW
Grooves/pulley 8
Terminal W
Voltage 14
W plug type 6.30
Total length 200.50 mm
Width/holder arm 56.00
Amp 150

  • OEM
    F032113899, RE185213, re218703, 1984ir, 1986A00939, 1986A01169, 501825, 0123515502, 0124615029, 0124615077

  • Konkurrentreferens
    A0356, CAL21156, DRA0797, IA1412, LRA03480, MG36, 8EL738212-601, 28-6590, 635.515.150, 635.528.150, 12880N, 112364, 12090468, 12090530, 0986082993

  • NormaliseratArtNr
    a0356, cal21156, dra0797, f032113899, ia1412, lra03480, mg36, re185213, re218703, 8el738212601, 1984ir, 1986a00939, 1986a01169, 12880n, 112364, 286590, 501825, 12090468, 12090530, 0123515502, 0124615029, 0124615077, 635515150, 635528150, 0986082993

  • Passar modeller
    John Deere Model: 8000 Series Model series: 8120 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 8000 Series Model series: 8220 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 8000 Series Model series: 8320 Approved: Yes
    John Deere Model: 8000 Series Model series: 8420 Approved: Yes
    John Deere Model: 8000 Series Model series: 8520 Approved: Yes
  • Beskrivelse
    Spenningsnivå: 14
    Amp: 150
    Terminal: W
    Drevavstand: 86,50
    Bredde/holderarm: 56,00
    Brakethull: 10,20
    Båndjust. brakethull pos.: 10
    Båndjust. brakethull 1: 10,20
    Drevskive diameter: 62,00
    Riller/drevskive: 8
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 8
    D+ Størrelse: M5
    Rotasjon: mot klokka
    W pluggtype: 6,30
    Total lengde mm: 200,50
    Drevskive: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 10
    Bracket hole 10.20
    Position/B+ in min. 8
    Prod. info BN
    Pulley SP
    Pulley dia. 62.00
    Pulley dist. 86.50
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator type IR
    Rotation CCW
    Grooves/pulley 8
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 200.50 mm
    Width/holder arm 56.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F032113899, RE185213, re218703, 1984ir, 1986A00939, 1986A01169, 501825, 0123515502, 0124615029, 0124615077

    • Konkurrentreferens
      A0356, CAL21156, DRA0797, IA1412, LRA03480, MG36, 8EL738212-601, 28-6590, 635.515.150, 635.528.150, 12880N, 112364, 12090468, 12090530, 0986082993

    • NormaliseratArtNr
      a0356, cal21156, dra0797, f032113899, ia1412, lra03480, mg36, re185213, re218703, 8el738212601, 1984ir, 1986a00939, 1986a01169, 12880n, 112364, 286590, 501825, 12090468, 12090530, 0123515502, 0124615029, 0124615077, 635515150, 635528150, 0986082993

    • Passar modeller
      John Deere Model: 8000 Series Model series: 8120 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 8000 Series Model series: 8220 Size of motor: 7.6 Brand of engine: 6076 HRW35 From date: 01-08-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 8000 Series Model series: 8320 Approved: Yes
      John Deere Model: 8000 Series Model series: 8420 Approved: Yes
      John Deere Model: 8000 Series Model series: 8520 Approved: Yes
