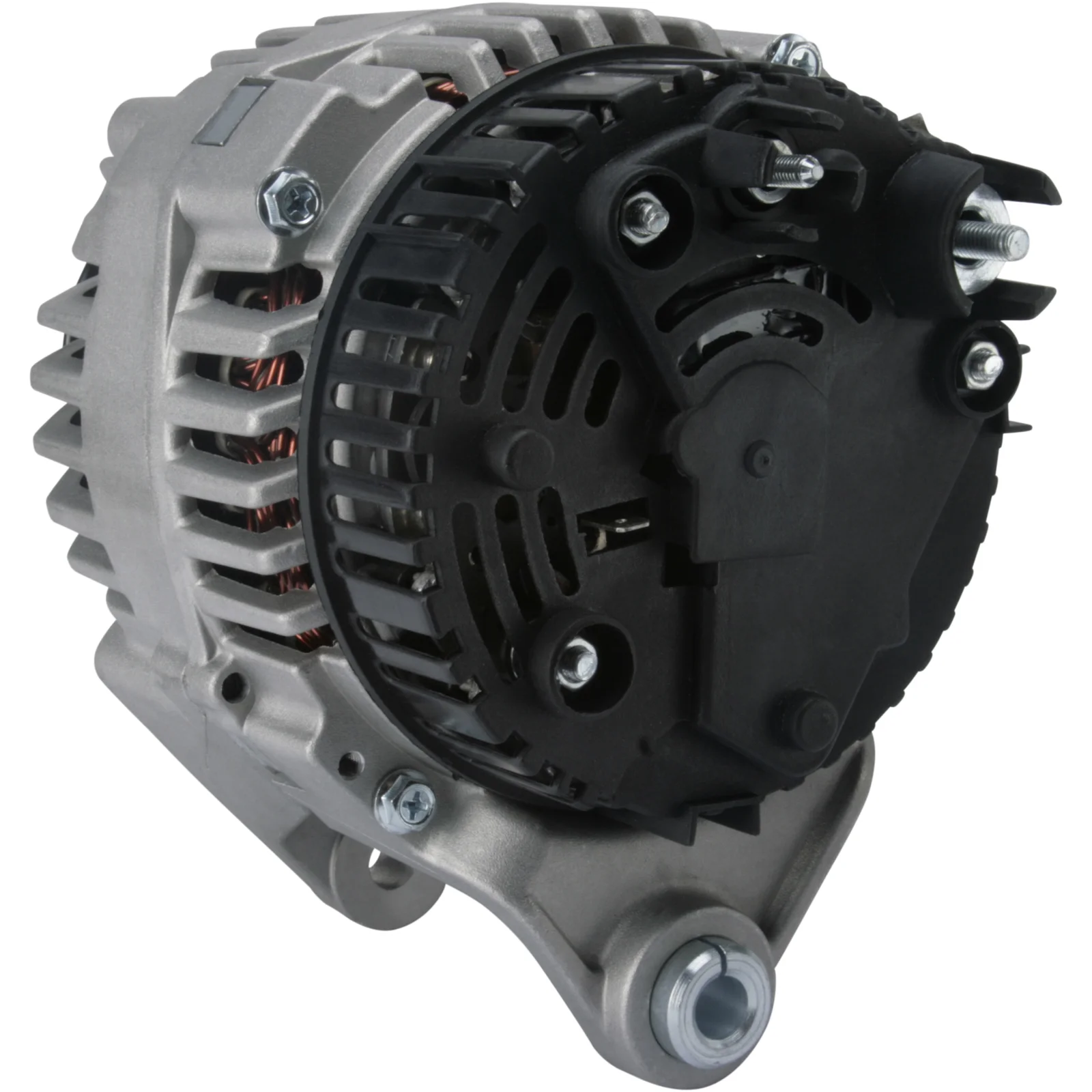

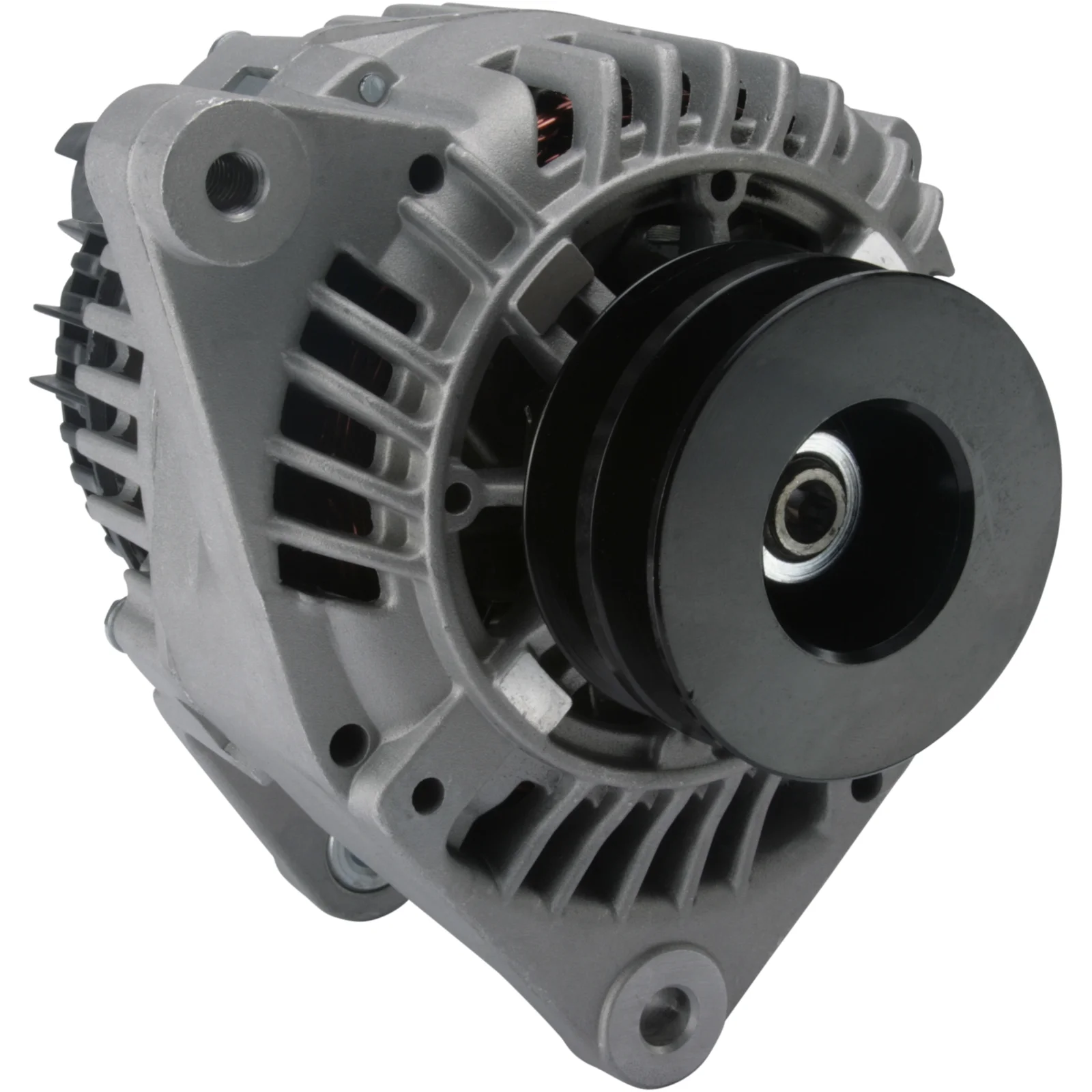

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113961

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Roter: med urviseren, Monteringsbøssing avstand: 83.00

Beskrivelse

Spenning: 14
Amp.: 120
Terminal: W
Drevskive avstand: 29.00
Bredde/holderarm: 14.30
Festebrakett avstand: 83.00
Brakettåpning: 10.30
Båndjusteringsbrakettåpning pos.: 50
Båndjusteringsbrakettåpning 1: M10
Drevs diameter: 76.20
Groper/drev: 2
Radius: 95.00
Radius 2: 92.00
B+: M6
Posisjon/B+ i min.: 10
D+ størrelse: M5
Rotasjon: med urviseren
W-kontakttype: M5
Total lengde mm: 188.00
Drev: DP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 83.00
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 50
Bracket hole 10.30
Position/B+ in min. 10
Prod. info BN
Pulley DP
Pulley dia. 76.20
Pulley dist. 29.00
Radius 95.00
D+ Size M5
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Terminal W
Voltage 14
W plug type M5
Total length 188.00 mm
Width/holder arm 14.30
Amp 120

  • OEM
    a13vi243, F032113961, 2542300, 2542300A, 3780634M1

  • Konkurrentreferens
    A3110, A9056, A9056(LETRIKA), CAL15305, DRA0263, lea0736, LRA02192, 12421N, 553338RI, 12090293

  • NormaliseratArtNr
    a13vi243, a3110, a9056, a9056letrika, cal15305, dra0263, f032113961, lea0736, lra02192, 12421n, 553338ri, 2542300, 2542300a, 3780634m1, 12090293

  • Passar modeller
    Massey Ferguson Model: MF 6000 Model series: 6110 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6120 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6130 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6140 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6150 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6160 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6170 Brand of engine: 6.365 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6180 Brand of engine: 6.365 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6190 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6235 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6245 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6255 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6260 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6270 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6280 From date: 01-01-1999 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: 6290 From date: 01-01-1999 Approved: Yes
    Massey Ferguson Model: MF 6000 Model series: Various Models Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8110 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8120 Brand of engine: 6.365 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8130 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8140 Brand of engine: 6.403 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8150 Brand of engine: 6.403 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8160 Brand of engine: 6.451 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8170 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8180 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8210 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8220 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8240 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8240 From date: 01-01-1999 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8250 From date: 01-01-1999 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8250 From date: 01-01-1999 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8260 Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8260 From date: 01-01-1999 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8270 From date: 01-01-1999 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8280 From date: 01-01-1999 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8560 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8570 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 8000 Model series: 8590 Fuel: Diesel Approved: Yes
