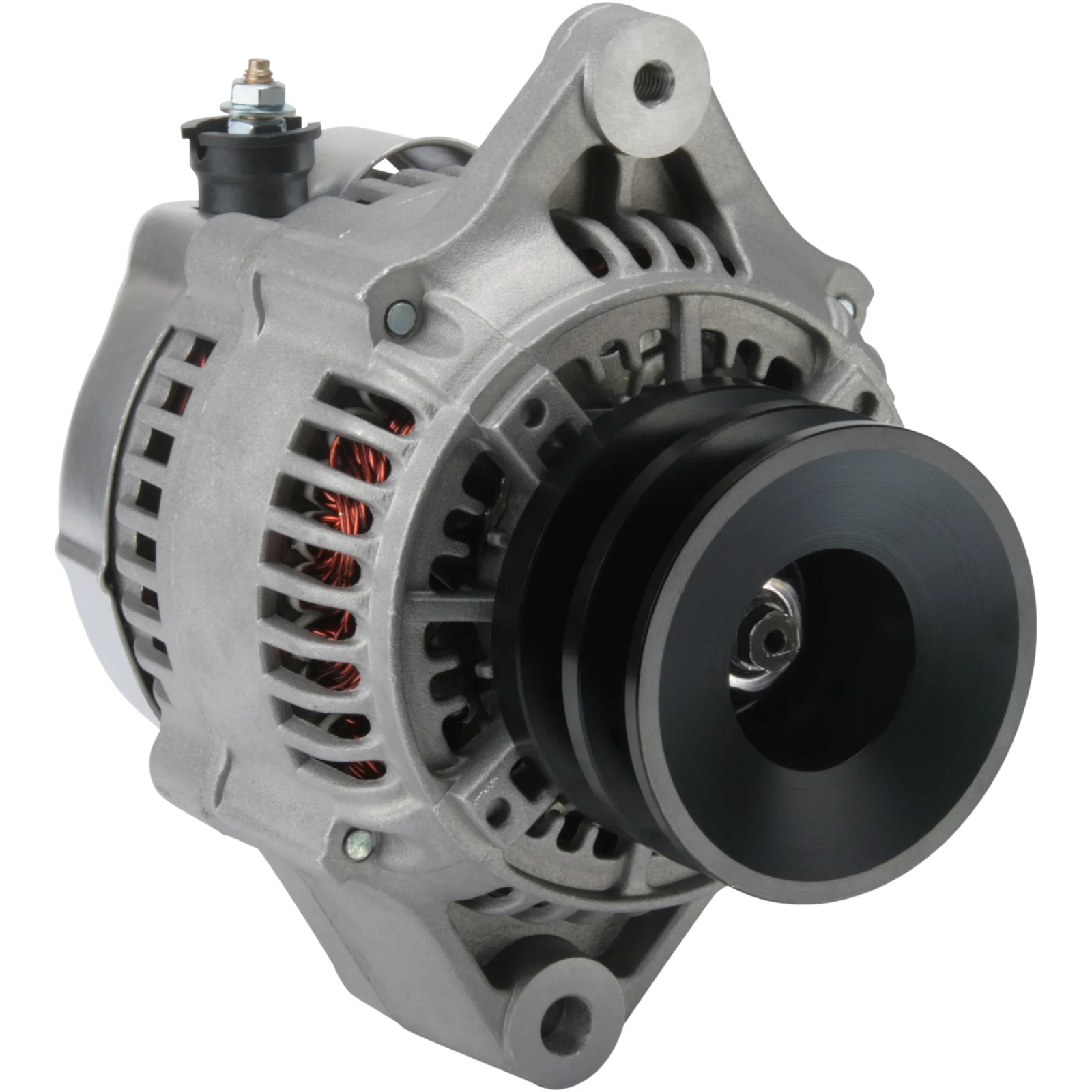

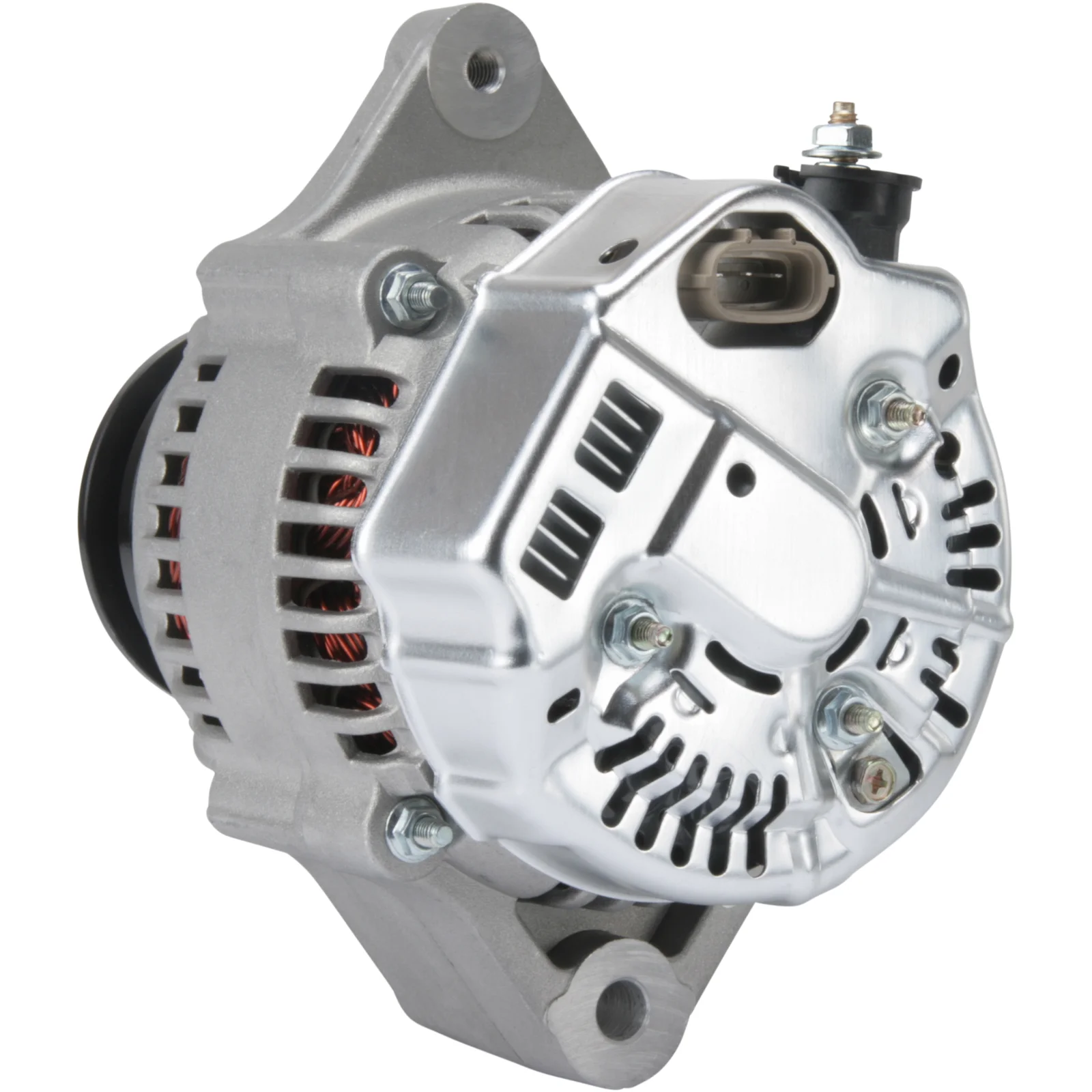

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114188

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 90, Rotasjon: CW, Bøssing diameter: 78,30

Beskrivelse

Spenningsspenning: 14
Amp: 90
Drev: 97.00
Bredde/holderarm: 58.00
Hjørnebrakett hull: 10.30
Båndjustering brakett hull pos.: 60
Båndjustering brakett hull 1: M8
Drev diameter: 78.30
Grooves/drev: 2
Radius: 78.50
Radius 2: 84.00
B+: M6
Posisjon/B+ i min.: 3
D+: Støpselet
Rotasjon: CW
Støpselet nr.: PL128
Total lengde mm: 177.00
Drev: DP
Regulator type: IR
Produsentinfo: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.30
Position/B+ in min. 3
Prod. info BN
Pulley DP
Pulley dia. 78.30
Pulley dist. 97.00
Radius 78.50
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Voltage 14
Total length 177.00 mm
Width/holder arm 58.00
Amp 90

  • OEM
    F032114188, 105-2813, 105-2814, 101211-9010, 101211-9020

  • Konkurrentreferens
    A6679(DENSO), A6695S, CAL40141, CAL40588, DAN2033, 28-7666, 2450, 12192, 12192N, 12192R

  • NormaliseratArtNr
    a6679denso, a6695s, cal40141, cal40588, dan2033, f032114188, 2450, 12192, 12192n, 12192r, 287666, 1052813, 1052814, 1012119010, 1012119020

  • Passar modeller
    Caterpillar Model: 312D2 GC Model series: 312D2 GC Model type: Excavators Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 313D2 LGP Model series: 313D2 LGP Model type: Excavators Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 414E ILET3 Model series: 414E ILET3 Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 416D Model series: 416D Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 416E Model series: 416E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 420E & 420E IT Model series: 420E & 420E IT Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 422E Model series: 422E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 428E Model series: 428E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 430E & 430E IT Model series: 430E & 430E IT Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 432E Model series: 432E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 434E Model series: 434E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 442E Model series: 442E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: 444E Model series: 444E Model type: Tractor/Loader/Backhoes Brand of engine: 3054C Approved: Yes
    Caterpillar Model: AP-650B Model series: AP-650B Model type: Pavers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: AP-800C Model series: AP-800C Model type: Pavers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: AP300 Model series: AP300 Model type: Pavers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: CB-434D & CB-434D XW Model series: CB-434D & CB-434D XW Model type: Rollers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: CP-323C Model series: CP-323C Model type: Rollers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: CS-323C & CP-323C Model series: CS-323C & CP-323C Model type: Rollers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: CS-323C Model series: CS-323C Model type: Rollers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: CS-423E Model series: CS-423E Model type: Rollers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: CS423E ASPHALT Model series: CS423E ASPHALT Model type: Rollers Brand of engine: 3054C Approved: Yes
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
    Manitou Model: K-D HAWK SERIES Model series: K-D HAWK SERIES Model type: Rough Terrain Forklifts Brand of engine: 3054C Approved: Yes
    Manitou Model: M SERIES Model series: M SERIES Model type: Rough Terrain Forklifts Brand of engine: 3054C Approved: Yes
