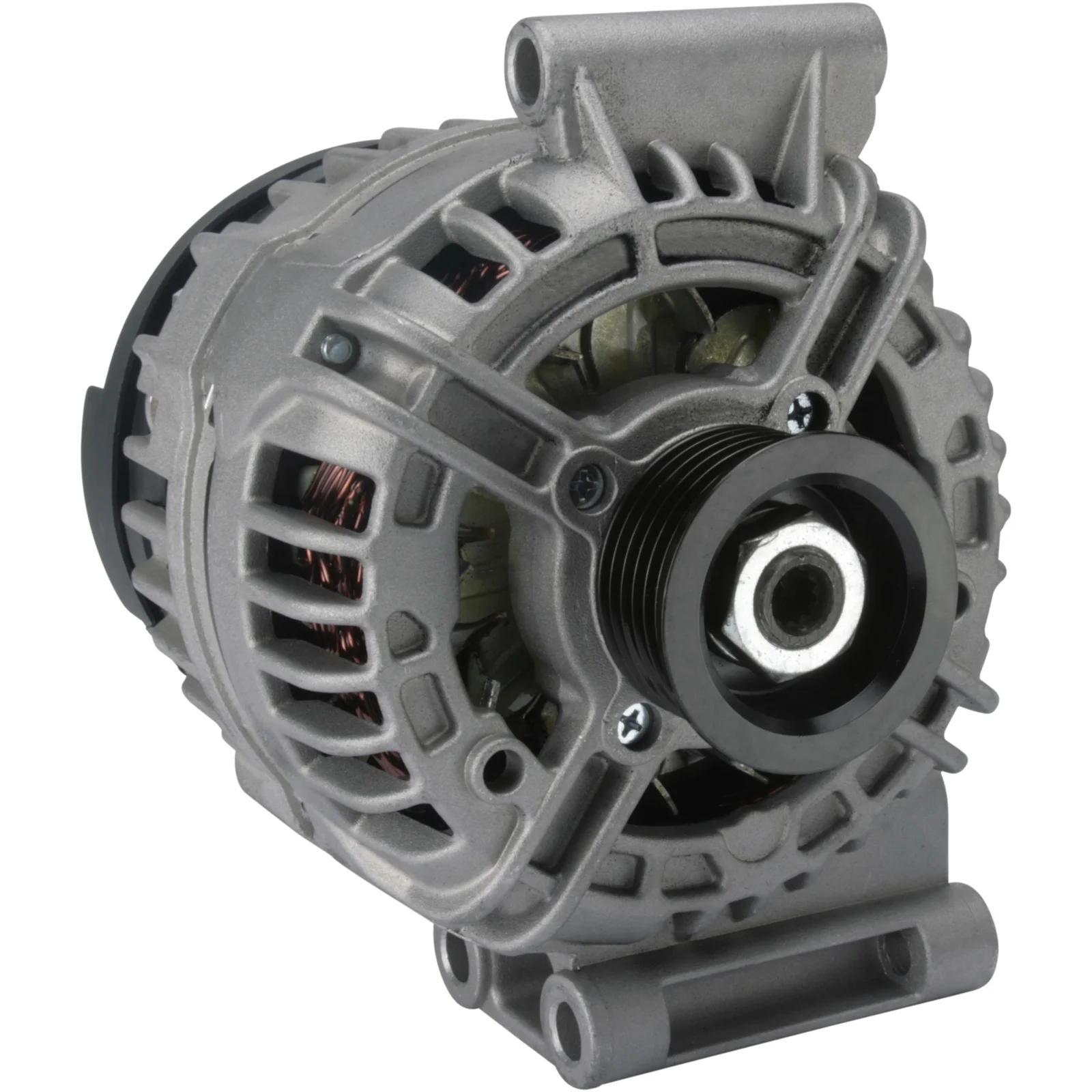

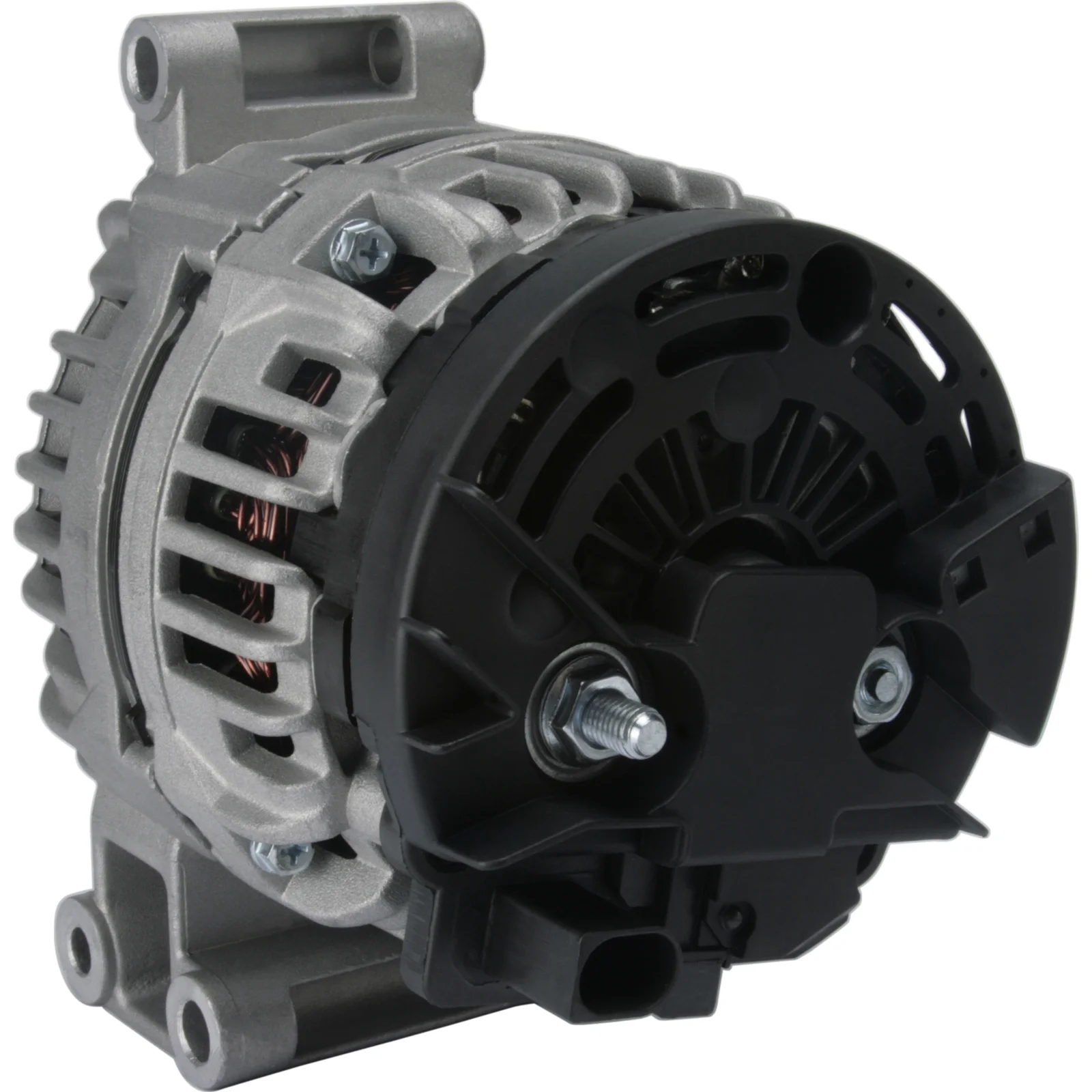

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114200

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 100, Rotasjon: CW, Reimhjul diameter: 47.00

Beskrivelse

Spenningsspenning: 14
Ampere: 100
Drevskive dist.: 18.50
Bredde/holderarm: 81.00
Krookhull: 10.00
Bånd. justering krokhull 1: 10.00
Drevskivens dia.: 47.00
Grooves/drevskive: 6
B+: M8
Posisjon/B+ i min.: 40
D+ Størrelse: Plugg
Rotasjon: med klokken
Plugg nr.: PL103
Total lengde mm: 169.00
Drevskive: SP

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 10.00
Plug no. PL103
Bracket hole 10.00
Position/B+ in min. 40
Pulley SP
Pulley dia. 47.00
Pulley dist. 18.50
D+ Size Plug
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 169.00 mm
Width/holder arm 81.00
Amp 100

  • OEM
    F032114200, 1867ir, 7523897, 0124325108, 12317523897

  • Konkurrentreferens
    A0159, A0159PR, ALT-H202, CAL10251, DRB7220, F042A0H202, 8EL012428-411, 28-5554, 215.152.1002, 11332R, 11333N, 111796, 210887, 210887A, 301867RI, 440917, 443263, 443304, 444221, 12047220, 0986047220, 0986047227

  • NormaliseratArtNr
    a0159, a0159pr, alth202, cal10251, drb7220, f032114200, f042a0h202, 8el012428411, 1867ir, 11332r, 11333n, 111796, 210887, 210887a, 285554, 301867ri, 440917, 443263, 443304, 444221, 7523897, 12047220, 0124325108, 0986047220, 0986047227, 2151521002, 12317523897

  • Passar modeller
    Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-04-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: One Type of engine: i Size of motor: 1.4 Brand of engine: B14A Type description: R50, R53 Body: Hatchback From date: 01-04-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 100
    Drevskive dist.: 18.50
    Bredde/holderarm: 81.00
    Krookhull: 10.00
    Bånd. justering krokhull 1: 10.00
    Drevskivens dia.: 47.00
    Grooves/drevskive: 6
    B+: M8
    Posisjon/B+ i min.: 40
    D+ Størrelse: Plugg
    Rotasjon: med klokken
    Plugg nr.: PL103
    Total lengde mm: 169.00
    Drevskive: SP

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 10.00
    Plug no. PL103
    Bracket hole 10.00
    Position/B+ in min. 40
    Pulley SP
    Pulley dia. 47.00
    Pulley dist. 18.50
    D+ Size Plug
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 169.00 mm
    Width/holder arm 81.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032114200, 1867ir, 7523897, 0124325108, 12317523897

    • Konkurrentreferens
      A0159, A0159PR, ALT-H202, CAL10251, DRB7220, F042A0H202, 8EL012428-411, 28-5554, 215.152.1002, 11332R, 11333N, 111796, 210887, 210887A, 301867RI, 440917, 443263, 443304, 444221, 12047220, 0986047220, 0986047227

    • NormaliseratArtNr
      a0159, a0159pr, alth202, cal10251, drb7220, f032114200, f042a0h202, 8el012428411, 1867ir, 11332r, 11333n, 111796, 210887, 210887a, 285554, 301867ri, 440917, 443263, 443304, 444221, 7523897, 12047220, 0124325108, 0986047220, 0986047227, 2151521002, 12317523897

    • Passar modeller
      Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-04-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: One Type of engine: i Size of motor: 1.4 Brand of engine: B14A Type description: R50, R53 Body: Hatchback From date: 01-04-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
