Varenr.: F032114209

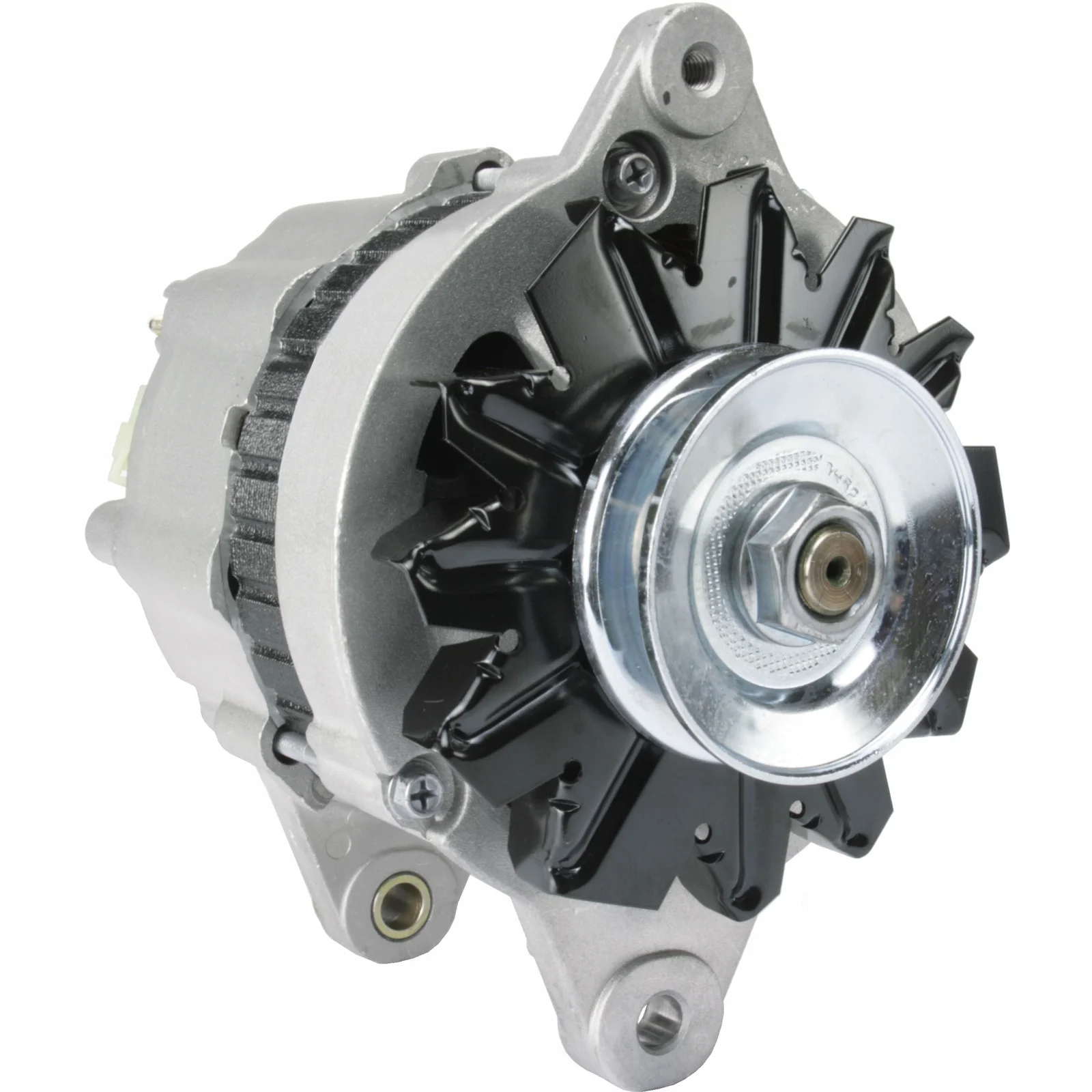

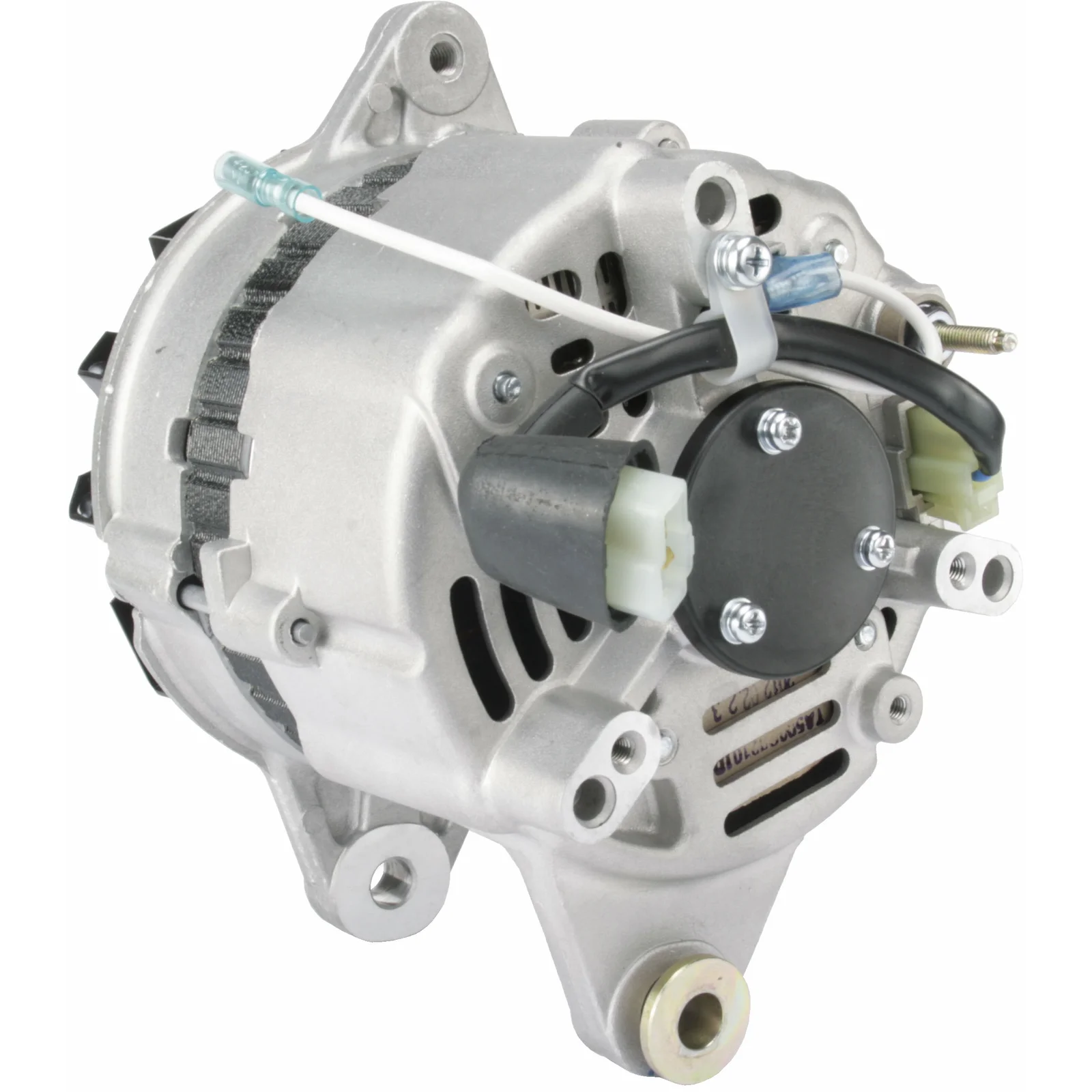

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 60, Rotasjon: CW, Monteringsbrakett avstand: 80,70

Beskrivelse

Spenning: 14
Ampere: 60
Terminal: W
Drevavstand: 42.00
Bredde/holdarm: 13.20
Monteringsbeslag avstand: 80.70
Beslagshull: 10.50
Båndjusteringsbeslag hull posisjon: 60
Båndjusteringsbeslag hull 1: M8
Drev dia.: 74.00
Riller/drev: 1
Radius: 86.00
Radius 2: 90.00
B+: M5
Posisjon/B+ i min.: 10
D+ Størrelse: Plugg
Rotasjon: Medurs
Plugg nr.: PL10
W plugg type: Plugg
Total lengde mm: 167.50
Drev: P
Regulator type: IR
Prod. info: BN

Spesifikasjon

B+ M5
Mount. bracket dist. 80.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 42.00
Radius 86.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal W
Voltage 14
W plug type Plug
Total length 167.50 mm
Width/holder arm 13.20
Amp 60
  • OEM

    F032114209, lr160-743, 129900-77211
  • Konkurrentreferens

    CAL20179, 985.505.060, 553136RI
  • NormaliseratArtNr

    cal20179, f032114209, lr160743, 553136ri, 985505060, 12990077211
  • Passar modeller

    Komatsu Model: 4DE94E Model series: 4DE94E Brand of engine: 4TNE94 Approved: Yes
    Yanmar Model: 4DE94E Model series: 4DE94E Brand of engine: 4TNE94 Approved: Yes
    Yanmar Model: Engine Model series: Various Models Brand of engine: 4TNE94 Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 60
    Terminal: W
    Drevavstand: 42.00
    Bredde/holdarm: 13.20
    Monteringsbeslag avstand: 80.70
    Beslagshull: 10.50
    Båndjusteringsbeslag hull posisjon: 60
    Båndjusteringsbeslag hull 1: M8
    Drev dia.: 74.00
    Riller/drev: 1
    Radius: 86.00
    Radius 2: 90.00
    B+: M5
    Posisjon/B+ i min.: 10
    D+ Størrelse: Plugg
    Rotasjon: Medurs
    Plugg nr.: PL10
    W plugg type: Plugg
    Total lengde mm: 167.50
    Drev: P
    Regulator type: IR
    Prod. info: BN
  • Spesifikasjon
    B+ M5
    Mount. bracket dist. 80.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 42.00
    Radius 86.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal W
    Voltage 14
    W plug type Plug
    Total length 167.50 mm
    Width/holder arm 13.20
    Amp 60
  • Kjøretøymatching
    • OEM

      F032114209, lr160-743, 129900-77211
    • Konkurrentreferens

      CAL20179, 985.505.060, 553136RI
    • NormaliseratArtNr

      cal20179, f032114209, lr160743, 553136ri, 985505060, 12990077211
    • Passar modeller

      Komatsu Model: 4DE94E Model series: 4DE94E Brand of engine: 4TNE94 Approved: Yes
      Yanmar Model: 4DE94E Model series: 4DE94E Brand of engine: 4TNE94 Approved: Yes
      Yanmar Model: Engine Model series: Various Models Brand of engine: 4TNE94 Approved: Yes
