HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114362

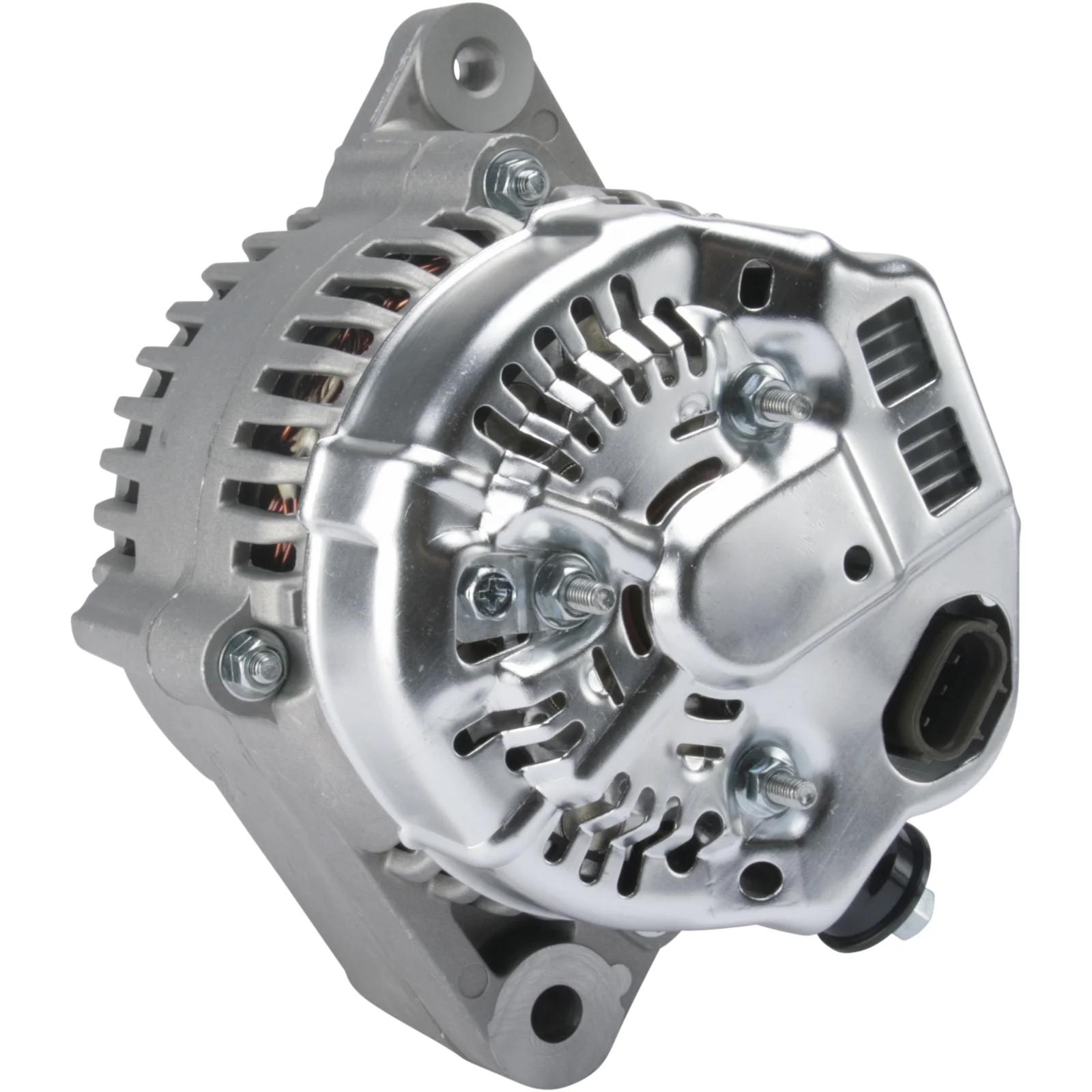

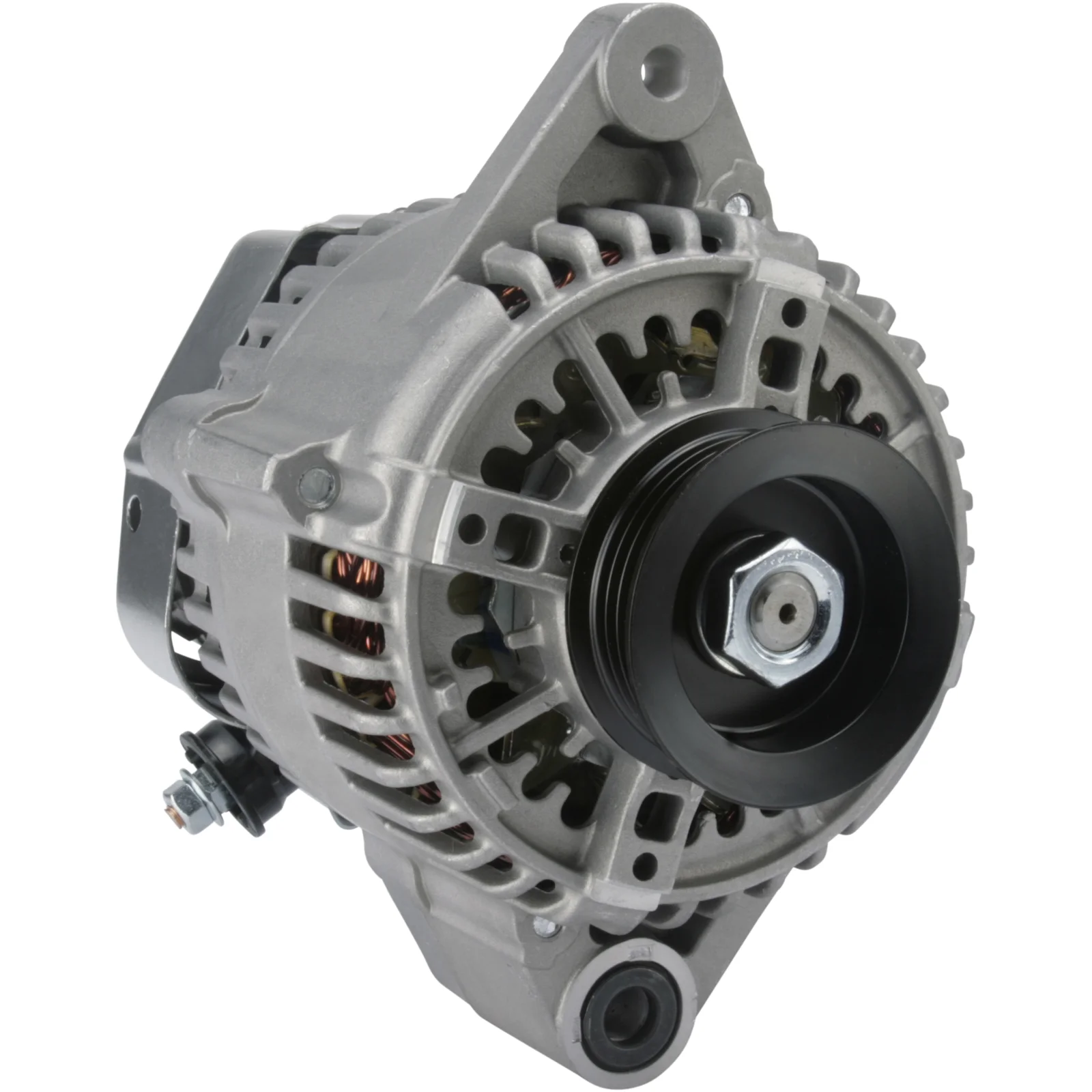

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Strøm: 80, Rotasjon: CW, Trommeldiameter: 54,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 14
Ampere: 80
Drevskive avstand: 90,50
Bredde/holderarm: 58,00
Brackethull: 10,50
Belt. justering brackethullys pos.: 60
Belt. justering bracket hull 1: 8,50
Drevskivens diameter: 54,50
Grooves/drevskive: 4
Radius: 80,00
Radius 2: 84,00
B+: M6
Posisjon/B+ i min.: 25
D+ størrelse: Plugge
Rotasjon: CW
Pluggnr.: PL42
Total lengde mm: 161,00
Drevskive: SP
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 54.50
Pulley dist. 90.50
Radius 80.00
D+ Size Plug
Radius 2 84.00
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 161.00 mm
Width/holder arm 58.00
Amp 80

  • OEM
    F032114362, 27060-62160, 27060-62190, 101211-0950, 101211-0951, 101211-0952, 101211-4130, 101211-4131, 101211-4132, 101211-9590, 102211-5040, 102211-5041, 102211-5042

  • Konkurrentreferens
    A6112, A6115, A6668S, ALT-5115, ALT30339, F042302092, F042A02092, 195.599.080, 13671R, 13794N, 13794R, 553777RI

  • NormaliseratArtNr
    a6112, a6115, a6668s, alt30339, alt5115, f032114362, f042302092, f042a02092, 13671r, 13794n, 13794r, 553777ri, 195599080, 1012110950, 1012110951, 1012110952, 1012114130, 1012114131, 1012114132, 1012119590, 1022115040, 1022115041, 1022115042, 2706062160, 2706062190

  • Passar modeller
    Toyota Model: 4 Runner Model series: 4 Runner Model type: 4WD Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N18_ Body: SUV From date: 01-11-1995 To date: 01-11-2002 Fuel: Petrol Approved: Yes
    Toyota Model: 4 Runner Model series: 4 Runner Size of motor: 3.4 Brand of engine: 5VZ-FE From date: 01-11-1995 To date: 01-11-2002 Fuel: Gasoline Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N_ Body: Pick Up From date: 01-08-1997 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N1_ Body: Pickup From date: 01-08-1997 To date: 01-03-2000 Fuel: Petrol Approved: Yes
    Toyota Model: Hilux Model series: Hilux Size of motor: 3.4 Type description: _N_ Body: Pick Up From date: 01-08-2001 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser 90 Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _J9_ Body: Closed Off-Road Vehicle From date: 01-03-1996 To date: 01-08-2002 Fuel: Petrol Approved: Yes
    Toyota Model: Tacoma Model series: Tacoma Pickup Model type: 4WD Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N1_ Body: Pickup From date: 01-01-1995 To date: 01-08-2004 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 80
    Drevskive avstand: 90,50
    Bredde/holderarm: 58,00
    Brackethull: 10,50
    Belt. justering brackethullys pos.: 60
    Belt. justering bracket hull 1: 8,50
    Drevskivens diameter: 54,50
    Grooves/drevskive: 4
    Radius: 80,00
    Radius 2: 84,00
    B+: M6
    Posisjon/B+ i min.: 25
    D+ størrelse: Plugge
    Rotasjon: CW
    Pluggnr.: PL42
    Total lengde mm: 161,00
    Drevskive: SP
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 25
    Prod. info BN
    Pulley SP
    Pulley dia. 54.50
    Pulley dist. 90.50
    Radius 80.00
    D+ Size Plug
    Radius 2 84.00
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 161.00 mm
    Width/holder arm 58.00
    Amp 80
  • Kjøretøymatching

    • OEM
      F032114362, 27060-62160, 27060-62190, 101211-0950, 101211-0951, 101211-0952, 101211-4130, 101211-4131, 101211-4132, 101211-9590, 102211-5040, 102211-5041, 102211-5042

    • Konkurrentreferens
      A6112, A6115, A6668S, ALT-5115, ALT30339, F042302092, F042A02092, 195.599.080, 13671R, 13794N, 13794R, 553777RI

    • NormaliseratArtNr
      a6112, a6115, a6668s, alt30339, alt5115, f032114362, f042302092, f042a02092, 13671r, 13794n, 13794r, 553777ri, 195599080, 1012110950, 1012110951, 1012110952, 1012114130, 1012114131, 1012114132, 1012119590, 1022115040, 1022115041, 1022115042, 2706062160, 2706062190

    • Passar modeller
      Toyota Model: 4 Runner Model series: 4 Runner Model type: 4WD Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N18_ Body: SUV From date: 01-11-1995 To date: 01-11-2002 Fuel: Petrol Approved: Yes
      Toyota Model: 4 Runner Model series: 4 Runner Size of motor: 3.4 Brand of engine: 5VZ-FE From date: 01-11-1995 To date: 01-11-2002 Fuel: Gasoline Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N_ Body: Pick Up From date: 01-08-1997 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N1_ Body: Pickup From date: 01-08-1997 To date: 01-03-2000 Fuel: Petrol Approved: Yes
      Toyota Model: Hilux Model series: Hilux Size of motor: 3.4 Type description: _N_ Body: Pick Up From date: 01-08-2001 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser 90 Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _J9_ Body: Closed Off-Road Vehicle From date: 01-03-1996 To date: 01-08-2002 Fuel: Petrol Approved: Yes
      Toyota Model: Tacoma Model series: Tacoma Pickup Model type: 4WD Size of motor: 3.4 Brand of engine: 5VZ-FE Type description: _N1_ Body: Pickup From date: 01-01-1995 To date: 01-08-2004 Fuel: Petrol Approved: Yes
      1 / 2
