HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114409

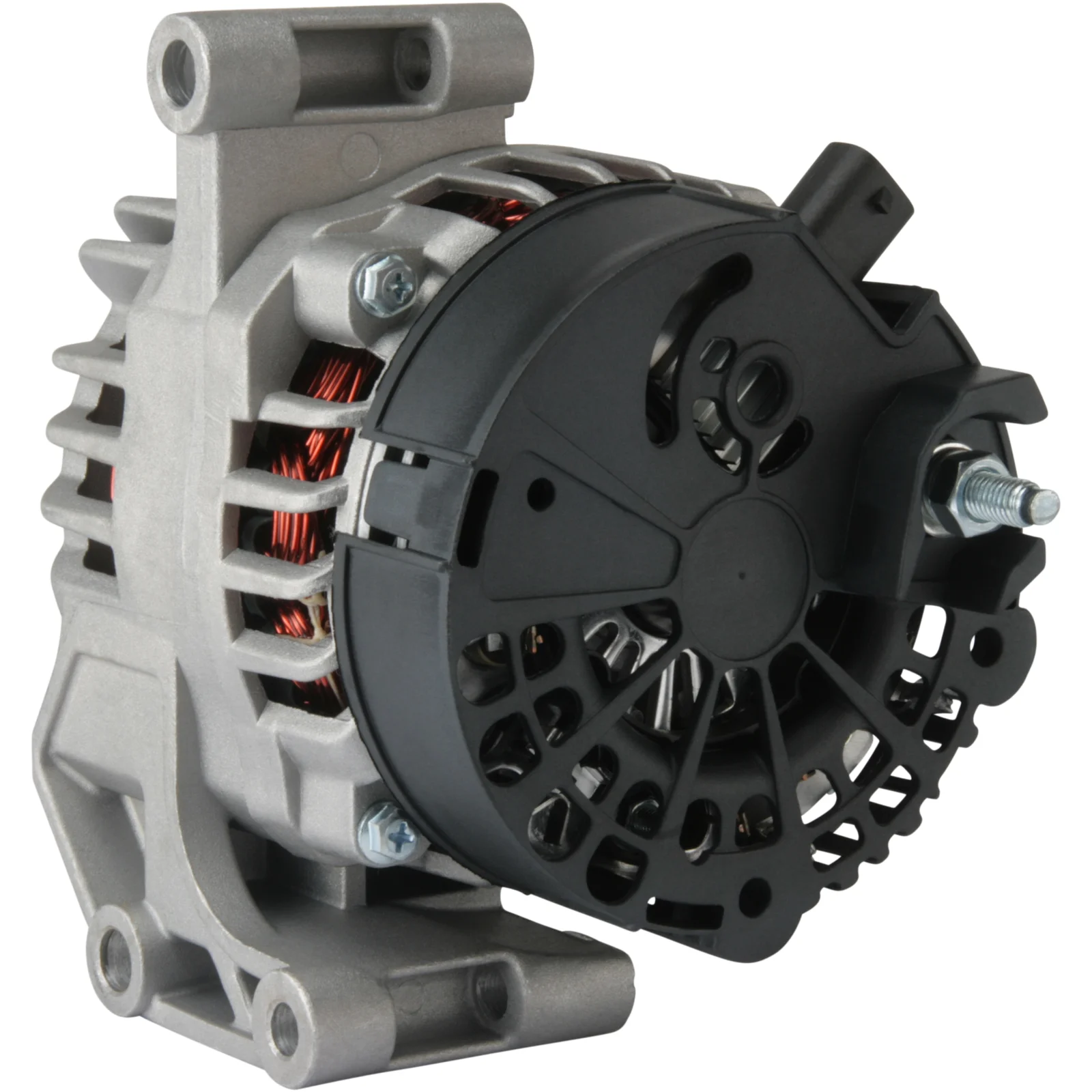

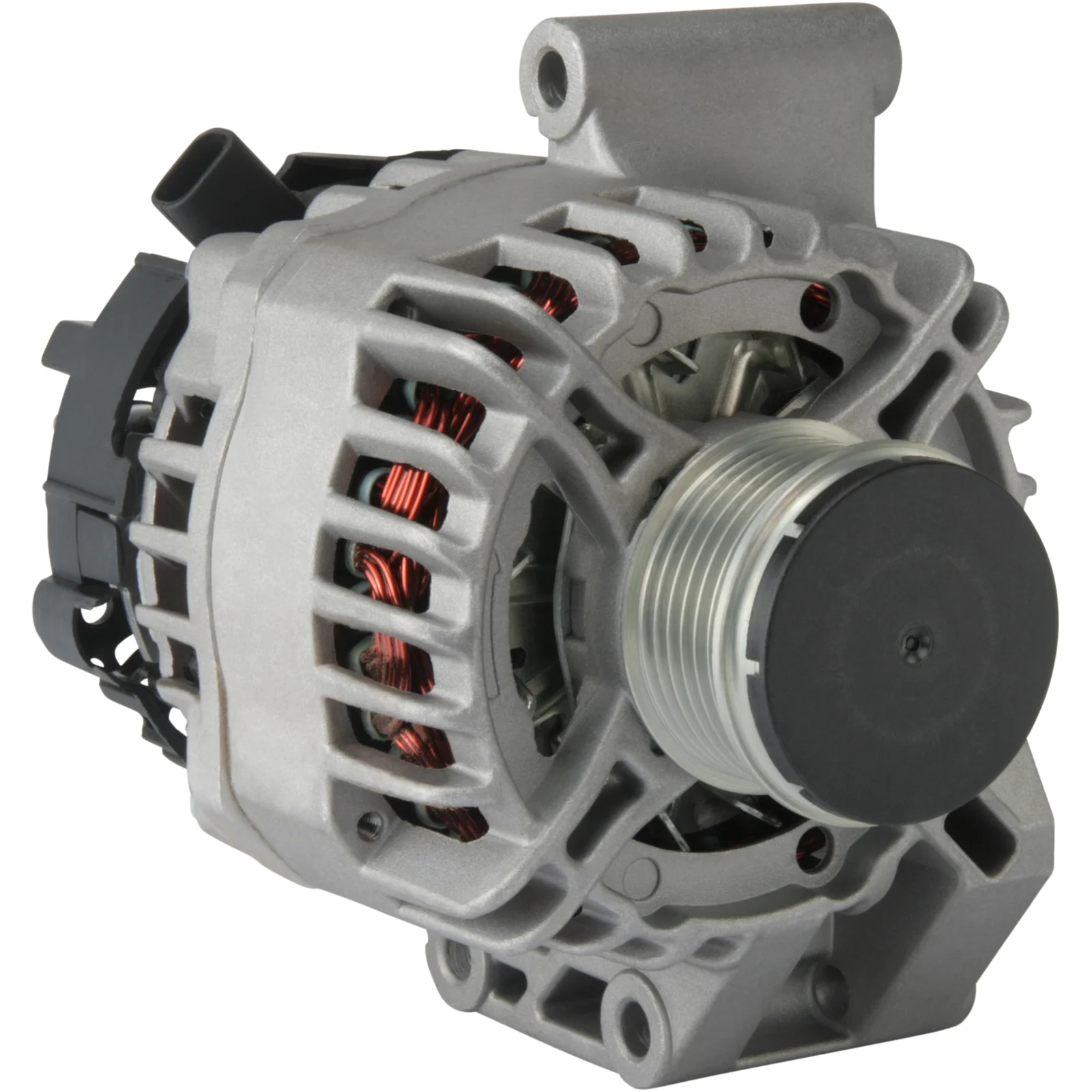

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 100, Rotasjon: CW, Monteringsbeslag avstand: 55.00

Beskrivelse

Spenningsspenning: 14
Ampere: 100
Drevkugg dist.: 41.00
Bredde/holderarm: 64.00
Festeanordningsbrakett dist.: 55.00
Brakett hull: 9.00/10.50
Brakett hull 2: 9.00/10.50
Båndjustering brakettshull pos.: 60
Båndjustering brakettshull 1: 9.00/10.50
Drevkugg dia.: 54.00
Grove/drevkugg: 6
B+: M8
Posisjon/B+ i min.: 10
D+ Størrelse: Plugg
Rotasjon: medur
Plugg nr.: PL75
Total lengde mm: 193.00
Drevkugg: SP/FW
Regulator type: IR
Service: Opel

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 9.00/10.50
Belt. adj. brackethole pos. 60
Plug no. PL75
Bracket hole 9.00/10.50
Bracket hole 2 9.00/10.50
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 41.00
D+ Size Plug
Regulator type IR
Rotation CW
Servicing Opel
Grooves/pulley 6
Voltage 14
Total length 193.00 mm
Width/holder arm 64.00
Amp 100

  • OEM
    F032114409, ms1012100961, 1956ir, 1986A01297, 101210-0960, 101210-0961, 6204258, 6204283, 13222935, 13256932, 63377424

  • Konkurrentreferens
    A4070, A4070(P), A6255(DENSO), A6255PR, ALT-H215, CAL30177, DAN584, DENDAN584, DRA0091, DRA0091X, F042A0H215, 28-5677, 228.179.1052, 4745, 24064R, 112835, 200186, 210687, 210687A, 301956RI, 440768, 443072, 12090185, 32118960, 063377424, 0986084190, 063377424010

  • NormaliseratArtNr
    a4070, a4070p, a6255denso, a6255pr, alth215, cal30177, dan584, dendan584, dra0091, dra0091x, f032114409, f042a0h215, ms1012100961, 1956ir, 1986a01297, 4745, 24064r, 112835, 200186, 210687, 210687a, 285677, 301956ri, 440768, 443072, 6204258, 6204283, 12090185, 13222935, 13256932, 32118960, 063377424, 63377424, 0986084190, 1012100960, 1012100961, 2281791052, 063377424010

  • Passar modeller
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: Van From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTR Body: Van From date: 01-11-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Body: Van From date: 01-11-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Type description: F08, F68 Body: Hatchback From date: 01-06-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-07-2006 To date: 01-06-2011 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-07-2006 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Hatchback From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Van From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: MPV From date: 01-06-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTE Body: MPV From date: 01-06-2010 To date: 01-11-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTE Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTR Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTE Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-08-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Hatchback From date: 01-08-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTJ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan MK IV Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Type description: D Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Model type: Ecoflex Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTE Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTC Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 100
    Drevkugg dist.: 41.00
    Bredde/holderarm: 64.00
    Festeanordningsbrakett dist.: 55.00
    Brakett hull: 9.00/10.50
    Brakett hull 2: 9.00/10.50
    Båndjustering brakettshull pos.: 60
    Båndjustering brakettshull 1: 9.00/10.50
    Drevkugg dia.: 54.00
    Grove/drevkugg: 6
    B+: M8
    Posisjon/B+ i min.: 10
    D+ Størrelse: Plugg
    Rotasjon: medur
    Plugg nr.: PL75
    Total lengde mm: 193.00
    Drevkugg: SP/FW
    Regulator type: IR
    Service: Opel

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 9.00/10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL75
    Bracket hole 9.00/10.50
    Bracket hole 2 9.00/10.50
    Position/B+ in min. 10
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 41.00
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Servicing Opel
    Grooves/pulley 6
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 64.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032114409, ms1012100961, 1956ir, 1986A01297, 101210-0960, 101210-0961, 6204258, 6204283, 13222935, 13256932, 63377424

    • Konkurrentreferens
      A4070, A4070(P), A6255(DENSO), A6255PR, ALT-H215, CAL30177, DAN584, DENDAN584, DRA0091, DRA0091X, F042A0H215, 28-5677, 228.179.1052, 4745, 24064R, 112835, 200186, 210687, 210687A, 301956RI, 440768, 443072, 12090185, 32118960, 063377424, 0986084190, 063377424010

    • NormaliseratArtNr
      a4070, a4070p, a6255denso, a6255pr, alth215, cal30177, dan584, dendan584, dra0091, dra0091x, f032114409, f042a0h215, ms1012100961, 1956ir, 1986a01297, 4745, 24064r, 112835, 200186, 210687, 210687a, 285677, 301956ri, 440768, 443072, 6204258, 6204283, 12090185, 13222935, 13256932, 32118960, 063377424, 63377424, 0986084190, 1012100960, 1012100961, 2281791052, 063377424010

    • Passar modeller
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: Van From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTR Body: Van From date: 01-11-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Body: Van From date: 01-11-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Type description: F08, F68 Body: Hatchback From date: 01-06-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-07-2006 To date: 01-06-2011 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-07-2006 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Hatchback From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Van From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva B Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: MPV From date: 01-06-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva B Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTE Body: MPV From date: 01-06-2010 To date: 01-11-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTE Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTR Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTE Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-08-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Hatchback From date: 01-08-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTJ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsavan Model series: Corsavan MK IV Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Type description: D Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva MK II Model type: Ecoflex Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTE Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTC Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
