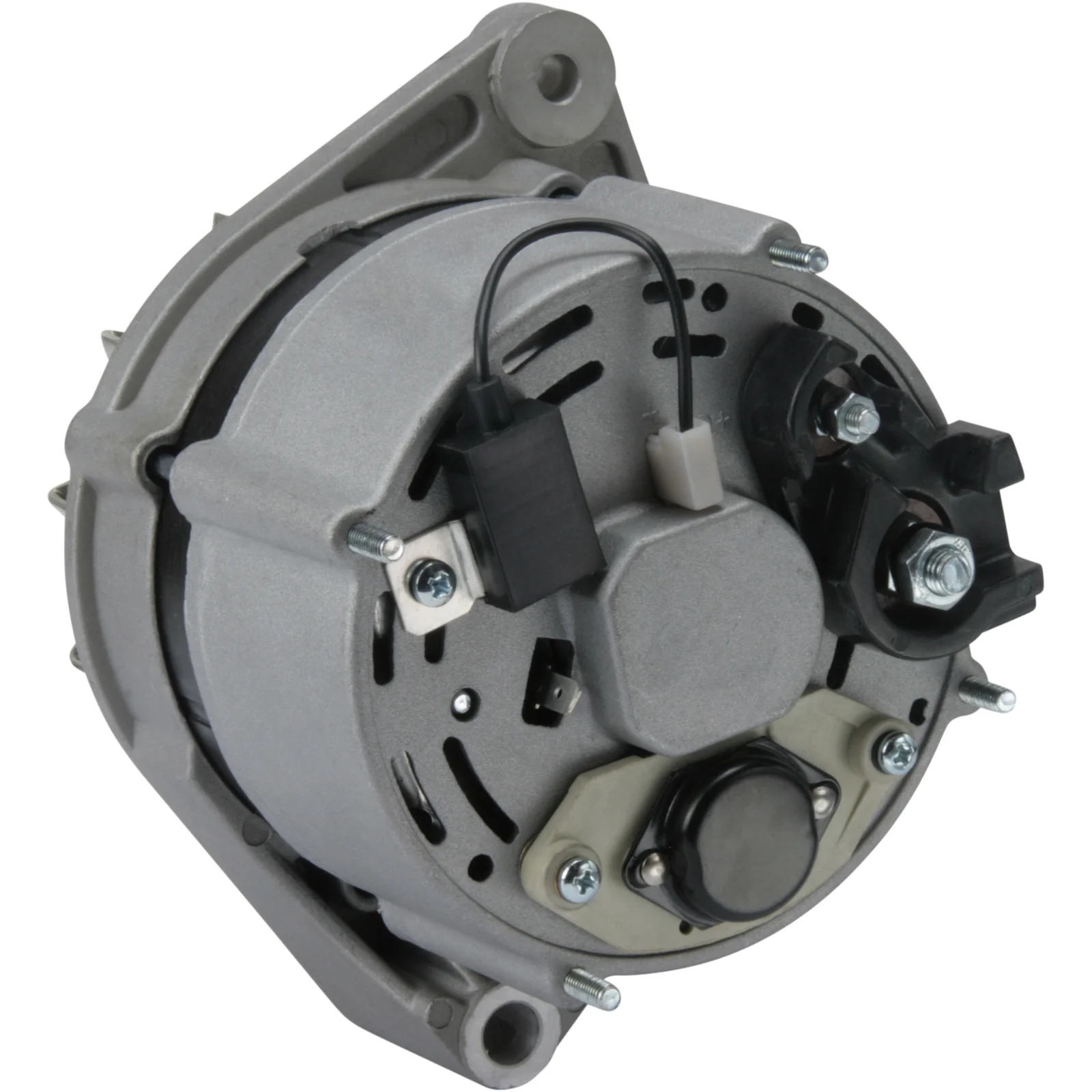

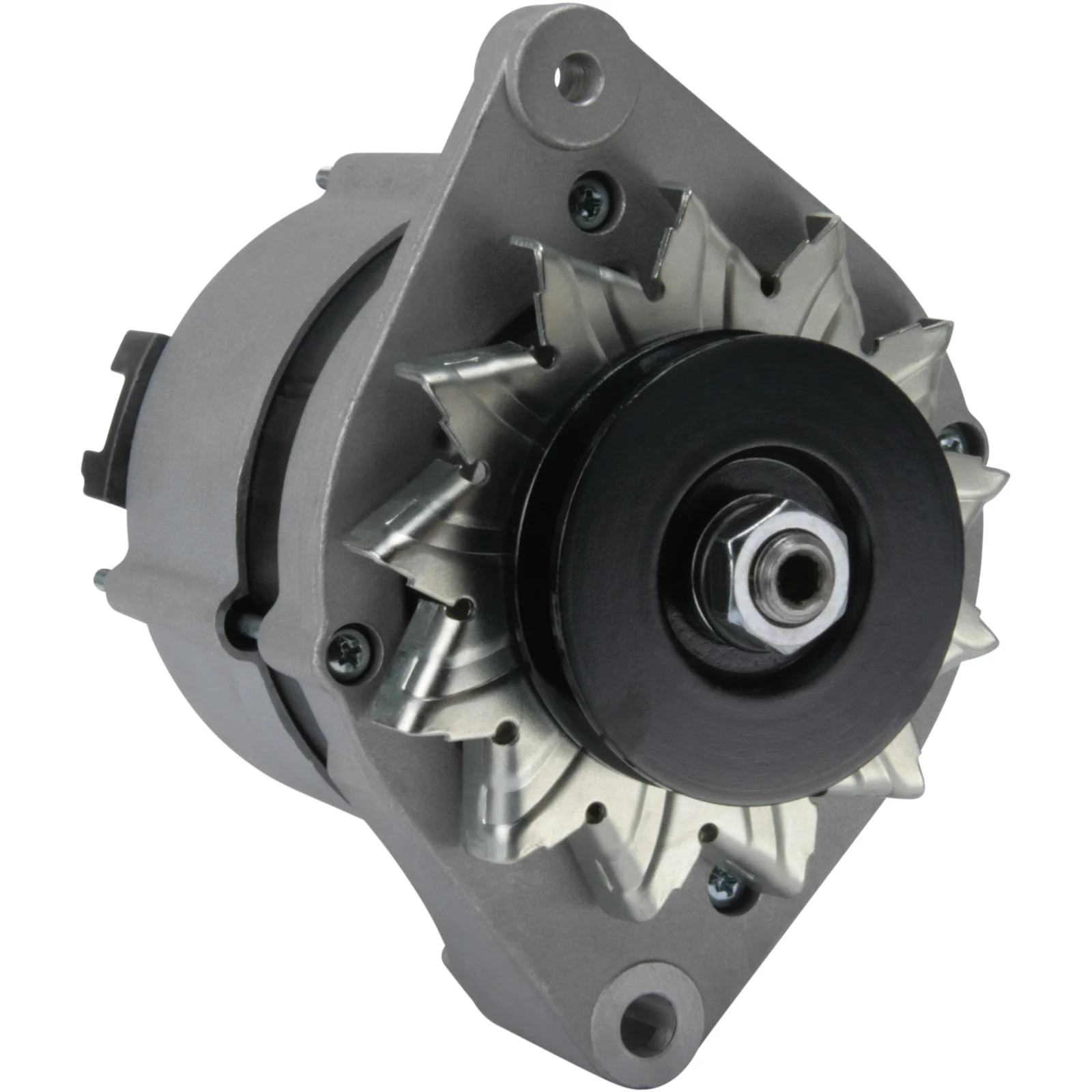

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114465

HC-Cargo Dynamo

Teknisk info:

Spenningsnivå: 14, Amp: 70, Rotasjon: CW, Bøssing diameter: 82,00

Beskrivelse

Dynamo 12V-90A passer til Volvo BM 12V - 90A, enkel kobling 12,5mm, D-82mm Reimhjul = UD 82mm, Rem. 12,5mm. Alternativ 90-604-7055 Reimhjulet skiller seg ut og 90-605-7723 som er 100A, isolert retur. Original Iskra/Mahle alternativ 12V-70A = 90-604-0856. For Yourex produkt bestilling 90-604-7056

Spenning: 14
Ampere: 70
Kull-sats: 76,00
Bredde/beskyttelsesarm: 51,00
Festebrakett hull: 11,50
Belt. juster. brakker hull posisjon: 57
Belt. juster. brakkethull 1: 8,50
Reimhjul diameter: 82,00
Groper/reimhjul: 1
Radius: 86,00
Radius 2: 85,00
B+: M8
Posisjon/B+ i min.: 15
D+ størrelse: M5
Rotasjon: DFW
V-kontakttype: 6,30
Terminaltype: L-W
Reimhjul: P
Vifte: EF
Regulator type: IR
Anmerkninger: Støvbeskyttet

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 57
Bracket hole 11.50
Position/B+ in min. 15
Pulley P
Pulley dia. 82.00
Pulley dist. 76.00
Radius 86.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Remarks Dustproof
Rotation CW
Fan EF
Grooves/pulley 1
Terminal type L-W
Voltage 14
W plug type 6.30
Width/holder arm 51.00
Amp 70

  • OEM
    A13N 66, AAK 3305, AAK 3339, AAK3305, AAK3339, F032114465, 11.201.856, 11.201.945, 0856, 11201 856, 11201 945

  • Konkurrentreferens
    A9197, IA0856, LEA1136, MG230, 815.027.070, 553886RI

  • Bilmärken
    Volvo BM / Construction Equipment

  • NormaliseratArtNr
    a13n66, a9197, aak3305, aak3339, f032114465, ia0856, lea1136, mg230, 0856, 553886ri, 11201856, 11201945, 815027070

  • Passar modeller
    Volvo BM / Construction Equipment Series: Traktor Model: BM 2200, 2204 Engine volume: 3.8 Engine type: D 39 T (A4-236)
    Volvo BM / Construction Equipment Series: Traktor Model: BM 2250, 2254 Engine volume: 3.8 Engine type: D 39 T (A4-236)
    Volvo BM / Construction Equipment Series: Traktor Model: BM 320 D Buster (Alternativ) Engine volume: 2.5 Engine type: 913 (3A-152)
    Volvo BM / Construction Equipment Series: Traktor Model: BM 350 Boxer (Alternativ) Engine volume: 3.8 Engine type: BM 1113
    Volvo BM / Construction Equipment Series: Traktor Model: BM 430
    Volvo BM / Construction Equipment Series: Traktor Model: T 400 Buster, T 430
    Volvo BM / Construction Equipment Series: Traktor Model: T 500 Engine volume: 3.8 Engine type: D 39 T (4-236)
    Volvo BM / Construction Equipment Series: Traktor Model: T 600 (Alternativ) Engine volume: 3.8 Engine type: 1113 A
    Volvo BM Model: Various Tractors Model series: Various Tractors Approved: Yes
