HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114492

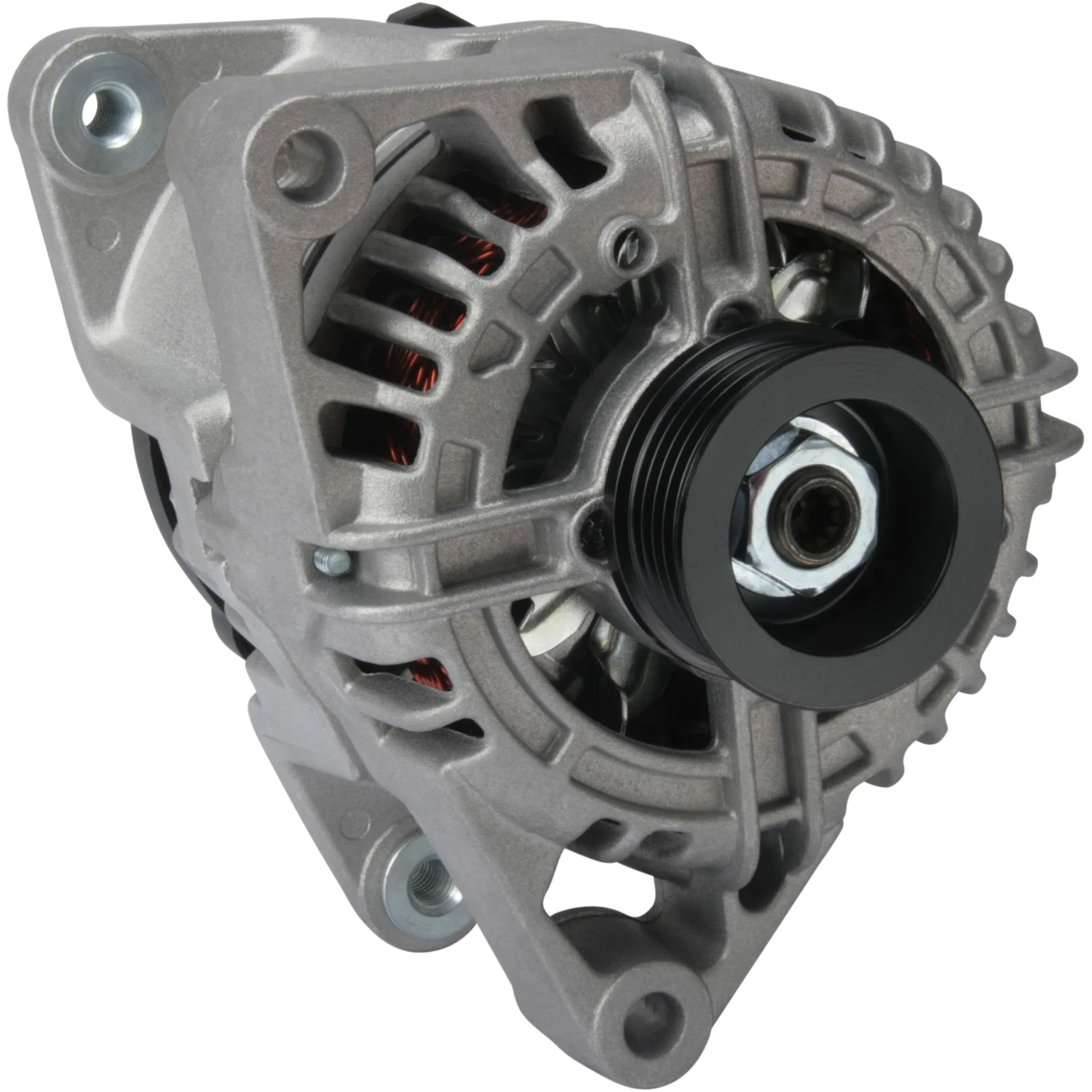

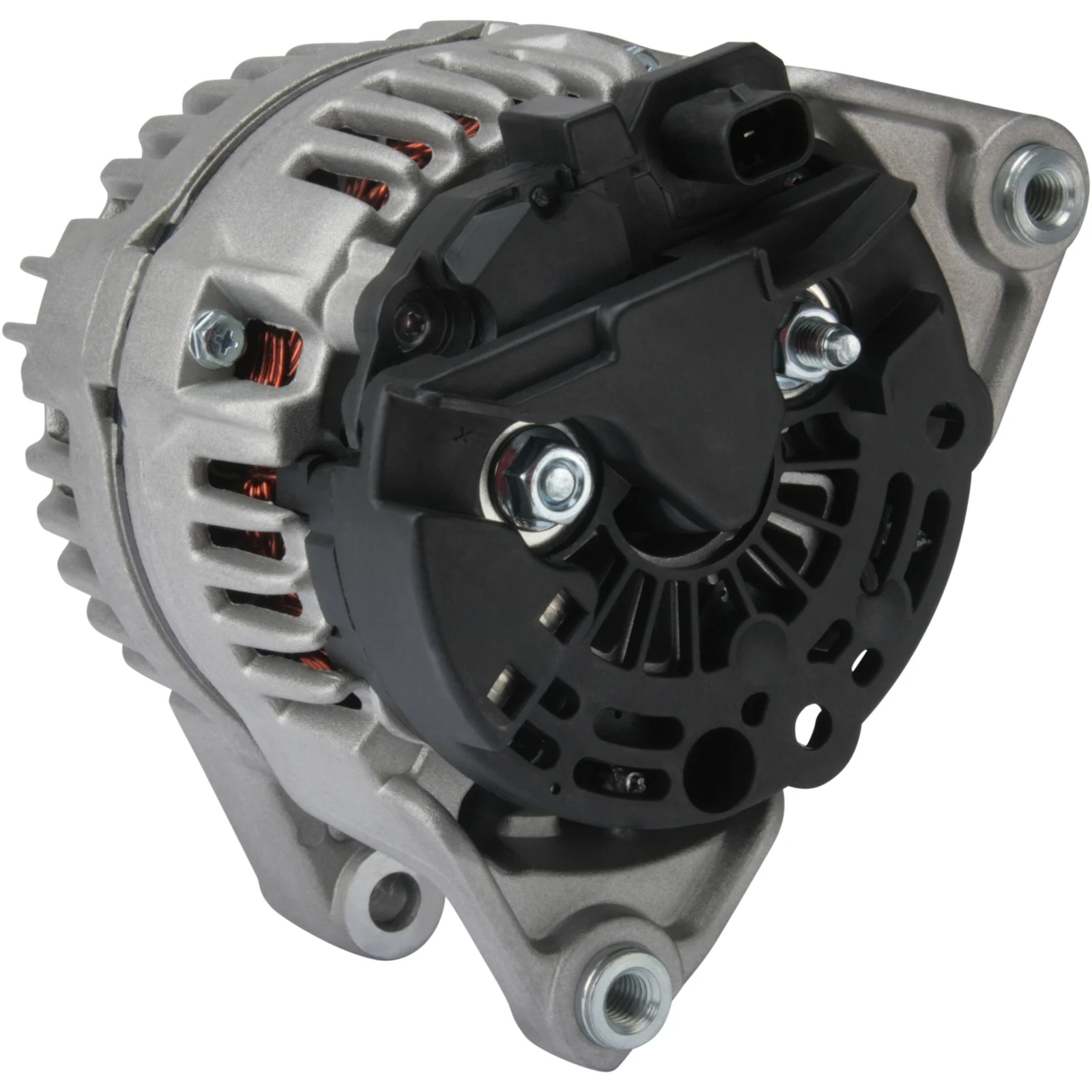

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: HØYRE, Monteringsfeste avstand: 57,00

Beskrivelse

HC-Cargo Dynamo 14V - 100A, 5 gir

Spenning: 14
Amp: 100
Drevkugg. dist.: 54.00
Bredde/holderarm: 33.50
Festeanordning braket dist.: 57.00
Brakethull: 10.50
Belt. justere braketthull pos.: 50
Belt. justere braketthull 1: 10.50
Drevkugg.dia.: 54.00
Gjenger/drevkugg: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 7
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL75
Drevkugg: SP
Regulators. type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 57.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 50
Plug no. PL75
Bracket hole 10.50
Position/B+ in min. 7
Prod. info BN
Pulley SP
Pulley dia. 54.00
Pulley dist. 54.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Width/holder arm 33.50
Amp 100

  • OEM
    C101972810, F032114492, 0124 325 171, 1940IR, 1940ir, 1986A00729, 1986A01141, 114492, 6204265, 13222930, 93190138, 0124325171

  • Konkurrentreferens
    A0414, A0414PR, A6377(DENSO), A6377S, CAL10364, DAN1340, DRA0037, 8EL012426-681, 28-5572, 23961N, 23961R, 112892, 210834, 210834A, 301940RI, 443102, 12049020, 32049020, 0986049020

  • Bilmärken
    Opel

  • NormaliseratArtNr
    a0414, a0414pr, a6377denso, a6377s, c101972810, cal10364, dan1340, dra0037, f032114492, 8el012426681, 1940ir, 1986a00729, 1986a01141, 23961n, 23961r, 112892, 114492, 210834, 210834a, 285572, 301940ri, 443102, 6204265, 12049020, 13222930, 32049020, 93190138, 0124325171, 0986049020

  • Passar modeller
    Opel Model: Astra Model series: Astra A+ Size of motor: 1.4 Brand of engine: Z14XEP Type description: A04 From date: 01-02-2007 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra Classic Size of motor: 1.4 Brand of engine: Z14XEP Body: Estate From date: 01-01-2009 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Opel Model: Astra Model series: Astra Family Size of motor: 1.4 Brand of engine: Z14XEP Type description: L48 Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: EcoTec Size of motor: 1.4 Brand of engine: Z14XEP Type description: L70 Body: Box From date: 01-12-2004 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: LPG Size of motor: 1.4 Brand of engine: Z14XEP Body: Hatchback From date: 01-08-2009 To date: 01-10-2010 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.2 Brand of engine: Z12XEP Body: Hatchback From date: 01-08-2005 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: LPG Size of motor: 1.2 Brand of engine: A12XER Body: Hatchback From date: 01-06-2011 To date: 01-08-2014 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: LPG Size of motor: 1.2 Brand of engine: Z12XEP Body: Hatchback From date: 01-09-2009 To date: 01-12-2011 Fuel: Electric/Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: LPG Size of motor: 1.4 Brand of engine: Z14XEP Body: Hatchback From date: 01-08-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: S07 Size of motor: 1.4 Brand of engine: A14XEL Type description: L08.., L68.. Body: Hatchback From date: 01-09-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Size of motor: 1.2 Brand of engine: A12XEL Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Size of motor: 1.2 Brand of engine: A12XER Body: Van From date: 01-06-2010 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Size of motor: 1.2 Brand of engine: A12XER Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Series: ASTRA H FAMILY Carav Model: 1.4 Engine volume: 1.4 Engine type: Z 14 XEP Year: 01.09-
    Opel Series: ASTRA H FAMILY Halvk Model: 1.4 Engine volume: 1.4 Engine type: Z 14 XEP Year: 01.09-
    Opel Series: Astra H Model: 1.2 Engine volume: 1.2 Engine type: Z 12 XEP Year: 08.05-10.10
    Opel Series: Astra H Model: 1.4 LPG Engine volume: 1.4 Engine type: Z 14 XEP Year: 08.09-10.10
    Opel Series: ASTRA H Sedan (A04) Model: 1.4 (L69) Engine volume: 1.4 Engine type: Z 14 XEP Year: 02.07-06.10
    Opel Series: ASTRA H Skåp / kombi Model: 1.4 EcoTec (L70) Engine volume: 1.4 Engine type: Z 14 XEP Year: 12.04-12.12
    Opel Series: Corsa D Model: 1.2 Engine volume: 1.2 Engine type: A 12 XEL Year: 12.09-08.14
    Opel Series: Corsa D Model: 1.2 Engine volume: 1.2 Engine type: A 12 XER Year: 12.09-08.14
    Opel Series: Corsa D Model: 1.2 LPG Engine volume: 1.2 Engine type: A 12 XER Year: 06.11-08.14
    Opel Series: Corsa D Model: 1.4 Engine volume: 1.4 Engine type: A 14 XEL Year: 09.09-08.14
    Opel Series: Corsa D Model: 1.4 Engine volume: 1.4 Engine type: A 14 XER Year: 12.09-08.14
    Opel Series: CORSA D Model: 1.4 LPG Engine volume: 1.4 Engine type: Z 14 XEP Year: 08.06-12.11
    Opel Series: CORSA D Skåp/halvkom Model: 1.2 Engine volume: 1.2 Engine type: A 12 XER Year: 06.10-08.14
    Vauxhall Model: Corsa Model series: Corsa Mk III Model type: LPG Type of engine: BiFuel Size of motor: 1.2 Brand of engine: A12XER Type description: D Body: Hatchback From date: 01-08-2011 To date: 01-08-2014 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Model type: LPG Type of engine: BiFuel Size of motor: 1.2 Brand of engine: Z12XEP Type description: D Body: Hatchback From date: 01-09-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: Z14XEP Type description: D Body: Hatchback From date: 01-07-2006 To date: 01-08-2014 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Size of motor: 1.2 Brand of engine: A12XEL Type description: D Body: Hatchback From date: 01-06-2010 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Corsa Model series: CORSA Mk III Type of engine: 16V Size of motor: 1.2 Brand of engine: A12XER Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-01-2010 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: 16V Size of motor: 1.2 Brand of engine: A12XEL Body: Van From date: 01-01-2010 Fuel: Gasoline Approved: Yes
