HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114510

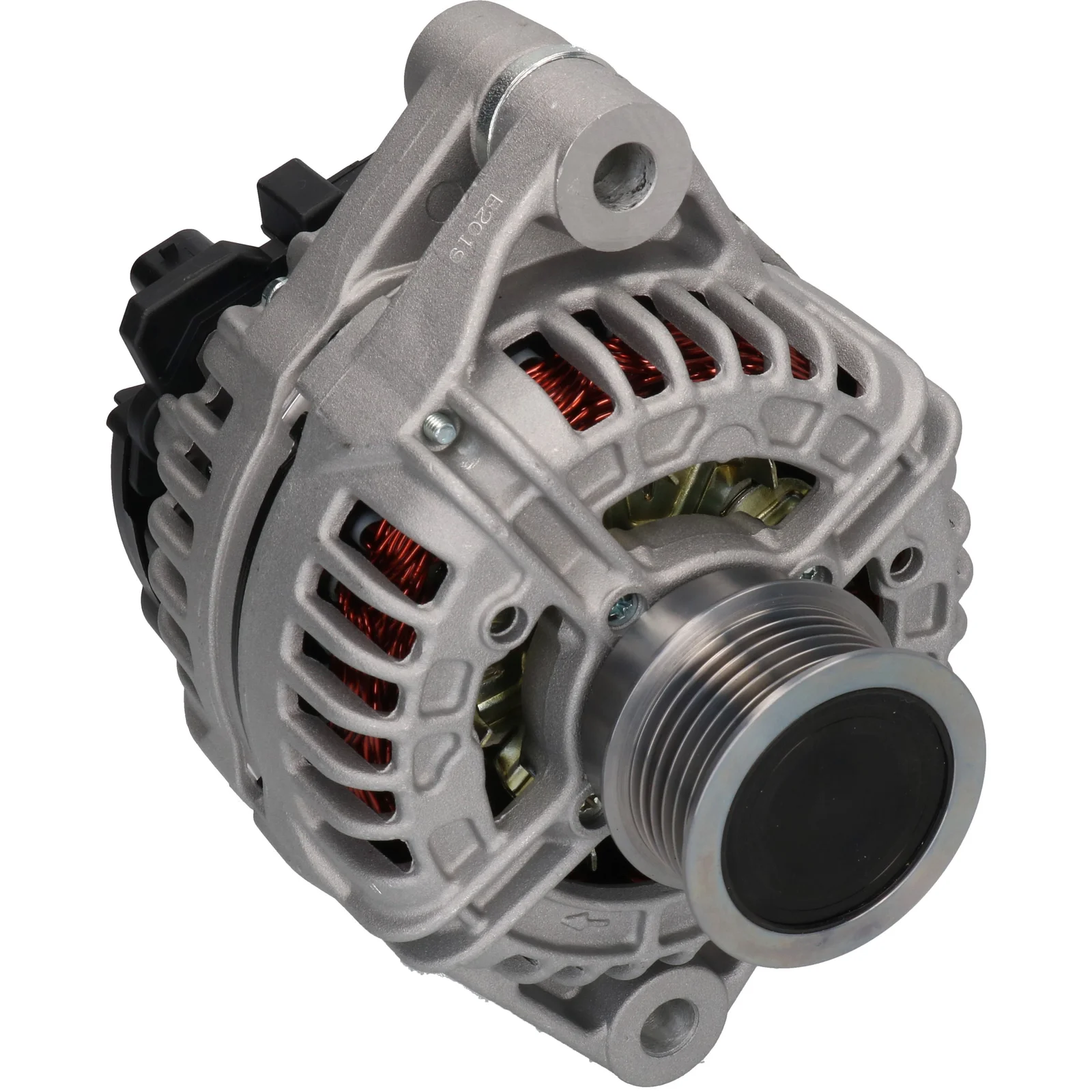

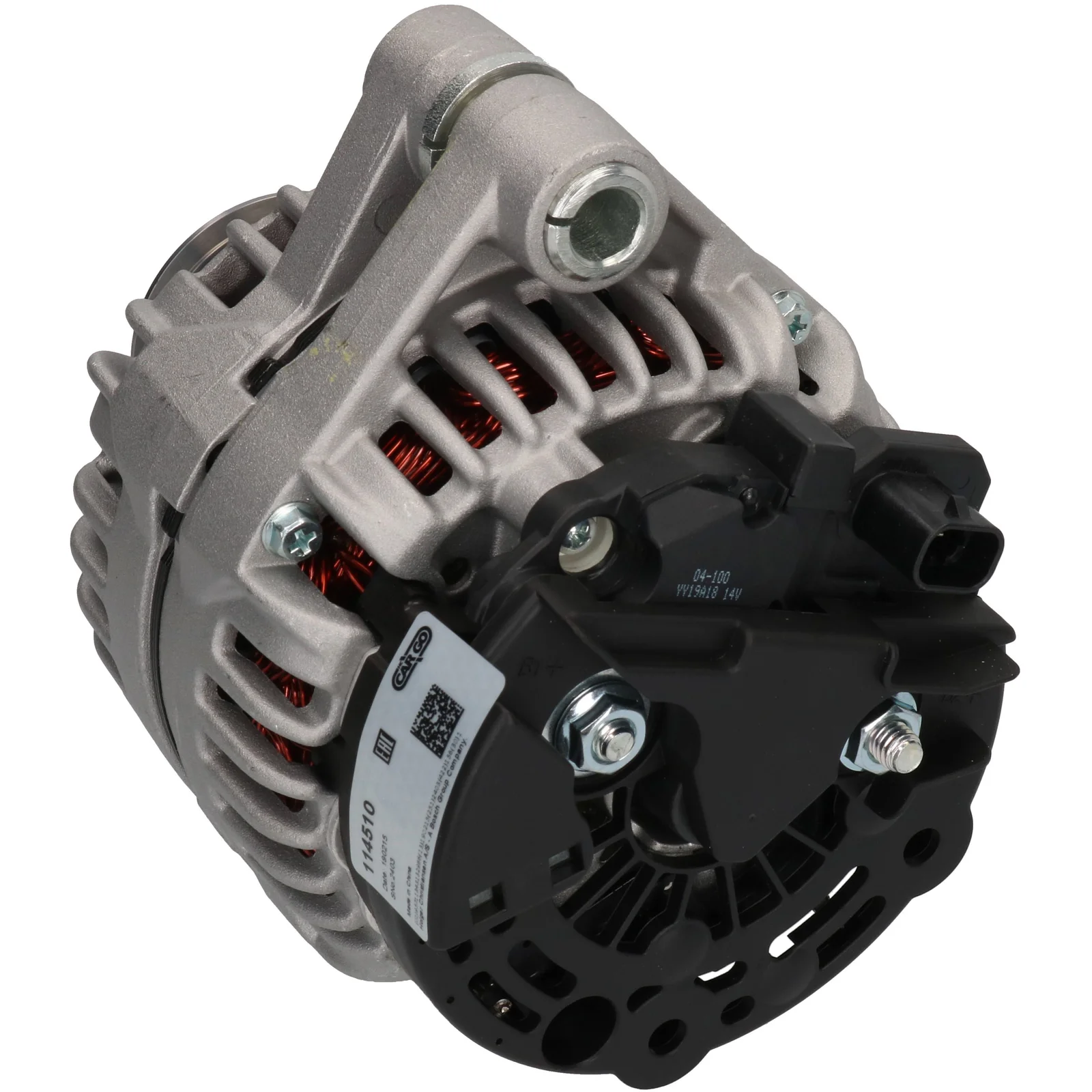

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Remskive diameter: 54.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 120
Drevskive dist.: 113.00
Bredde/holder arm: 61.00
Hjørne for brakett: 12.50
Belt. justering av brakettposisjon: 60
Belt. justering av brakett hull 1: 12.50
Drevskive dia.: 54.00
Groove/drevskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: medurs
Støpsele nr.: PL75
Drevskive: SP/FW
Spenningsregulator type: IR

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 12.50
Belt. adj. brackethole pos. 60
Plug no. PL75
Bracket hole 12.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 113.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 61.00
Amp 120

  • OEM
    F032114510, 1986A00830, 1986A01109, 2045ir, 1202115, 6204278, 13229991, 13308507, 93191921, 0124425058, 0124425096

  • Konkurrentreferens
    A0691S, CAL10334, DRA0437, 8EL011712-371, 8EL738212-491, 28-5737, 228.175.1202, 4744, 23816R, 23817N, 113132, 440726, 443068, 553269RI, 12090284, 32080370, 32377490, 0986080370

  • NormaliseratArtNr
    a0691s, cal10334, dra0437, f032114510, 8el011712371, 8el738212491, 1986a00830, 1986a01109, 2045ir, 4744, 23816r, 23817n, 113132, 285737, 440726, 443068, 553269ri, 1202115, 6204278, 12090284, 13229991, 13308507, 32080370, 32377490, 93191921, 0124425058, 0124425096, 0986080370, 2281751202

  • Passar modeller
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.9 Brand of engine: Z19DTH Body: Van From date: 01-09-2004 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.9 Brand of engine: Z19DTL Type description: L70 Body: Box From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Model type: M75 Type of engine: Diesel Size of motor: 1.9 Brand of engine: Z19DT Type description: A05 Body: Box From date: 01-07-2005 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira B Model type: M75 Type of engine: Diesel Size of motor: 1.9 Brand of engine: Z19DTH Type description: A05 Body: Box From date: 01-07-2005 To date: 01-04-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTI Size of motor: 1.9 Brand of engine: Z19DTJ Type description: H A04 Body: Estate From date: 01-08-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes Manufacture type: Estate
  • Beskrivelse
    Spenning: 14
    Amp: 120
    Drevskive dist.: 113.00
    Bredde/holder arm: 61.00
    Hjørne for brakett: 12.50
    Belt. justering av brakettposisjon: 60
    Belt. justering av brakett hull 1: 12.50
    Drevskive dia.: 54.00
    Groove/drevskive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 45
    Rotasjon: medurs
    Støpsele nr.: PL75
    Drevskive: SP/FW
    Spenningsregulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 12.50
    Belt. adj. brackethole pos. 60
    Plug no. PL75
    Bracket hole 12.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 113.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 61.00
    Amp 120
  • Kjøretøymatching

    • OEM
      F032114510, 1986A00830, 1986A01109, 2045ir, 1202115, 6204278, 13229991, 13308507, 93191921, 0124425058, 0124425096

    • Konkurrentreferens
      A0691S, CAL10334, DRA0437, 8EL011712-371, 8EL738212-491, 28-5737, 228.175.1202, 4744, 23816R, 23817N, 113132, 440726, 443068, 553269RI, 12090284, 32080370, 32377490, 0986080370

    • NormaliseratArtNr
      a0691s, cal10334, dra0437, f032114510, 8el011712371, 8el738212491, 1986a00830, 1986a01109, 2045ir, 4744, 23816r, 23817n, 113132, 285737, 440726, 443068, 553269ri, 1202115, 6204278, 12090284, 13229991, 13308507, 32080370, 32377490, 93191921, 0124425058, 0124425096, 0986080370, 2281751202

    • Passar modeller
      Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.9 Brand of engine: Z19DTH Body: Van From date: 01-09-2004 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra H Type of engine: CDTi Size of motor: 1.9 Brand of engine: Z19DTL Type description: L70 Body: Box From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira B Model type: M75 Type of engine: Diesel Size of motor: 1.9 Brand of engine: Z19DT Type description: A05 Body: Box From date: 01-07-2005 To date: 01-04-2015 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira B Model type: M75 Type of engine: Diesel Size of motor: 1.9 Brand of engine: Z19DTH Type description: A05 Body: Box From date: 01-07-2005 To date: 01-04-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTI Size of motor: 1.9 Brand of engine: Z19DTJ Type description: H A04 Body: Estate From date: 01-08-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes Manufacture type: Estate
