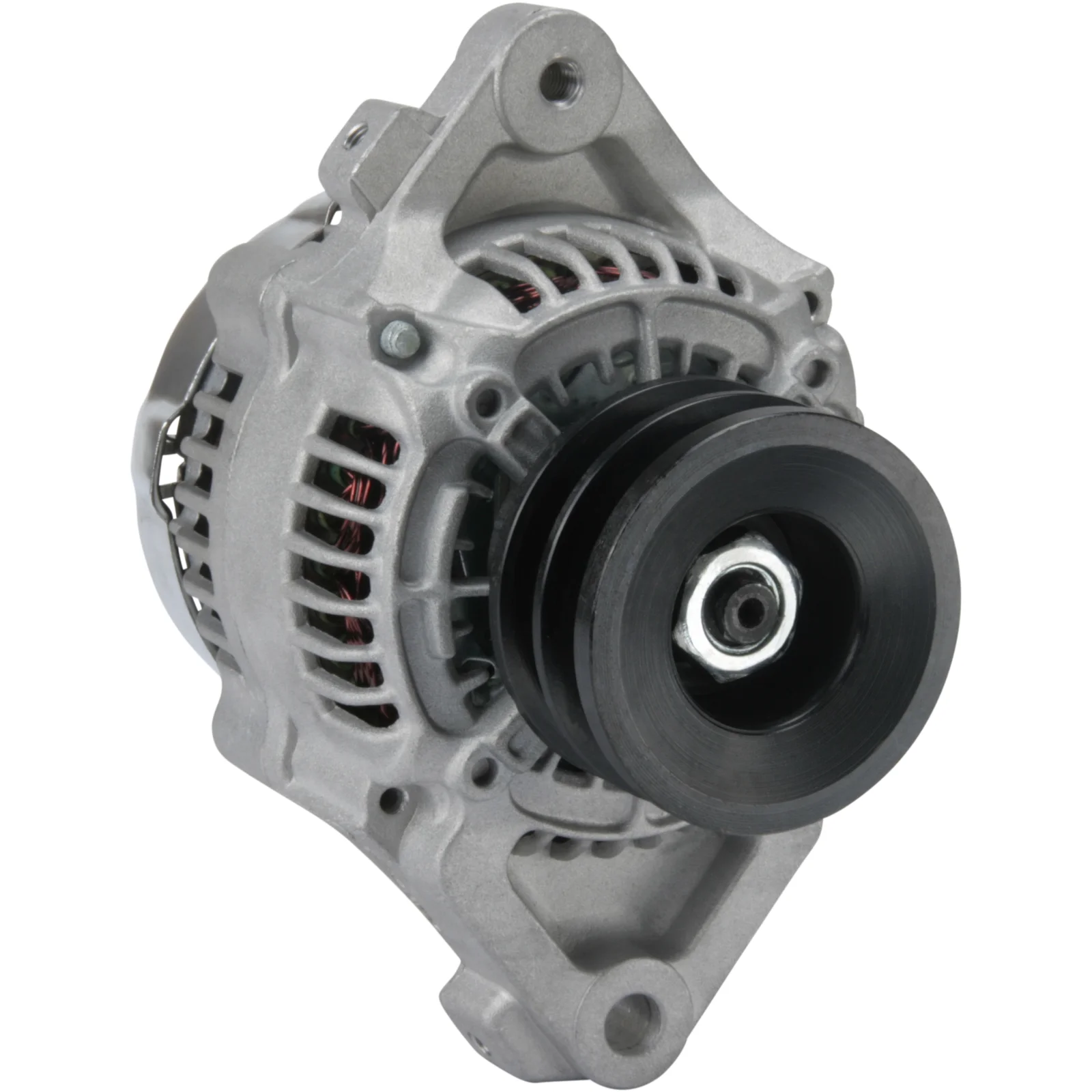

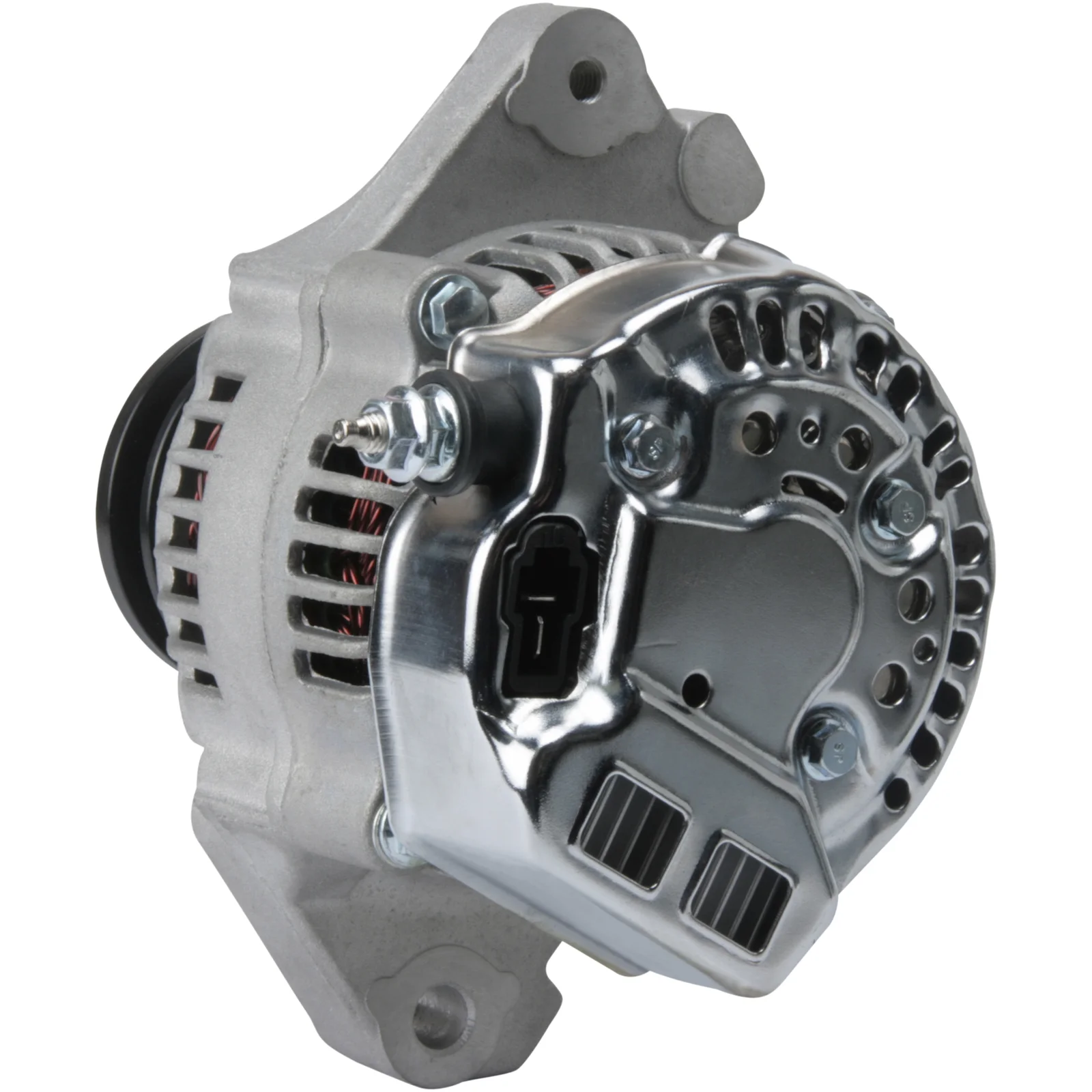

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114515

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Ampere: 45, Rotasjon: CW, Driven diameter: 67,00

Beskrivelse

Spenning: 14
Amp: 45
Drevkugg. dist.: 42,50
Bredde/bøssingarm: 24,00
Bøssinghull: 10,30
Belt. justering. bøssingshull pos.: 57
Belt. justering. bøssingshull 1: M8
Drev. dia.: 67,00
Groover/drev: 2
Radius: 77,50
Radius 2: 76,00
B+: M6
Posisjon/B+ i min.: 50
D+ Størrelse: Plugg
Rotasjon: medur
Plugg nummer: PL10
Total lengde mm: 154,00
Drev: DP
Regulator type: IR
Service: Kubota

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Plug no. PL10
Bracket hole 10.30
Position/B+ in min. 50
Pulley DP
Pulley dia. 67.00
Pulley dist. 42.50
Radius 77.50
D+ Size Plug
Radius 2 76.00
Regulator type IR
Rotation CW
Servicing Kubota
Grooves/pulley 2
Voltage 14
Total length 154.00 mm
Width/holder arm 24.00
Amp 45

  • OEM
    F032114515, 16541-64011, 100211-6780

  • Konkurrentreferens
    A6363, 115.532.040, 12204, 12204N

  • NormaliseratArtNr
    a6363, f032114515, 12204, 12204n, 115532040, 1002116780, 1654164011

  • Passar modeller
    Kubota Model: M Model series: M7580DT Brand of engine: V4302 From date: 01-01-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Kubota Model: M Model series: M8580DT Brand of engine: V4702A From date: 01-01-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Kubota Model: Tractors Model series: Various models Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 45
    Drevkugg. dist.: 42,50
    Bredde/bøssingarm: 24,00
    Bøssinghull: 10,30
    Belt. justering. bøssingshull pos.: 57
    Belt. justering. bøssingshull 1: M8
    Drev. dia.: 67,00
    Groover/drev: 2
    Radius: 77,50
    Radius 2: 76,00
    B+: M6
    Posisjon/B+ i min.: 50
    D+ Størrelse: Plugg
    Rotasjon: medur
    Plugg nummer: PL10
    Total lengde mm: 154,00
    Drev: DP
    Regulator type: IR
    Service: Kubota

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 57
    Plug no. PL10
    Bracket hole 10.30
    Position/B+ in min. 50
    Pulley DP
    Pulley dia. 67.00
    Pulley dist. 42.50
    Radius 77.50
    D+ Size Plug
    Radius 2 76.00
    Regulator type IR
    Rotation CW
    Servicing Kubota
    Grooves/pulley 2
    Voltage 14
    Total length 154.00 mm
    Width/holder arm 24.00
    Amp 45
  • Kjøretøymatching

    • OEM
      F032114515, 16541-64011, 100211-6780

    • Konkurrentreferens
      A6363, 115.532.040, 12204, 12204N

    • NormaliseratArtNr
      a6363, f032114515, 12204, 12204n, 115532040, 1002116780, 1654164011

    • Passar modeller
      Kubota Model: M Model series: M7580DT Brand of engine: V4302 From date: 01-01-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Kubota Model: M Model series: M8580DT Brand of engine: V4702A From date: 01-01-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Kubota Model: Tractors Model series: Various models Approved: Yes
