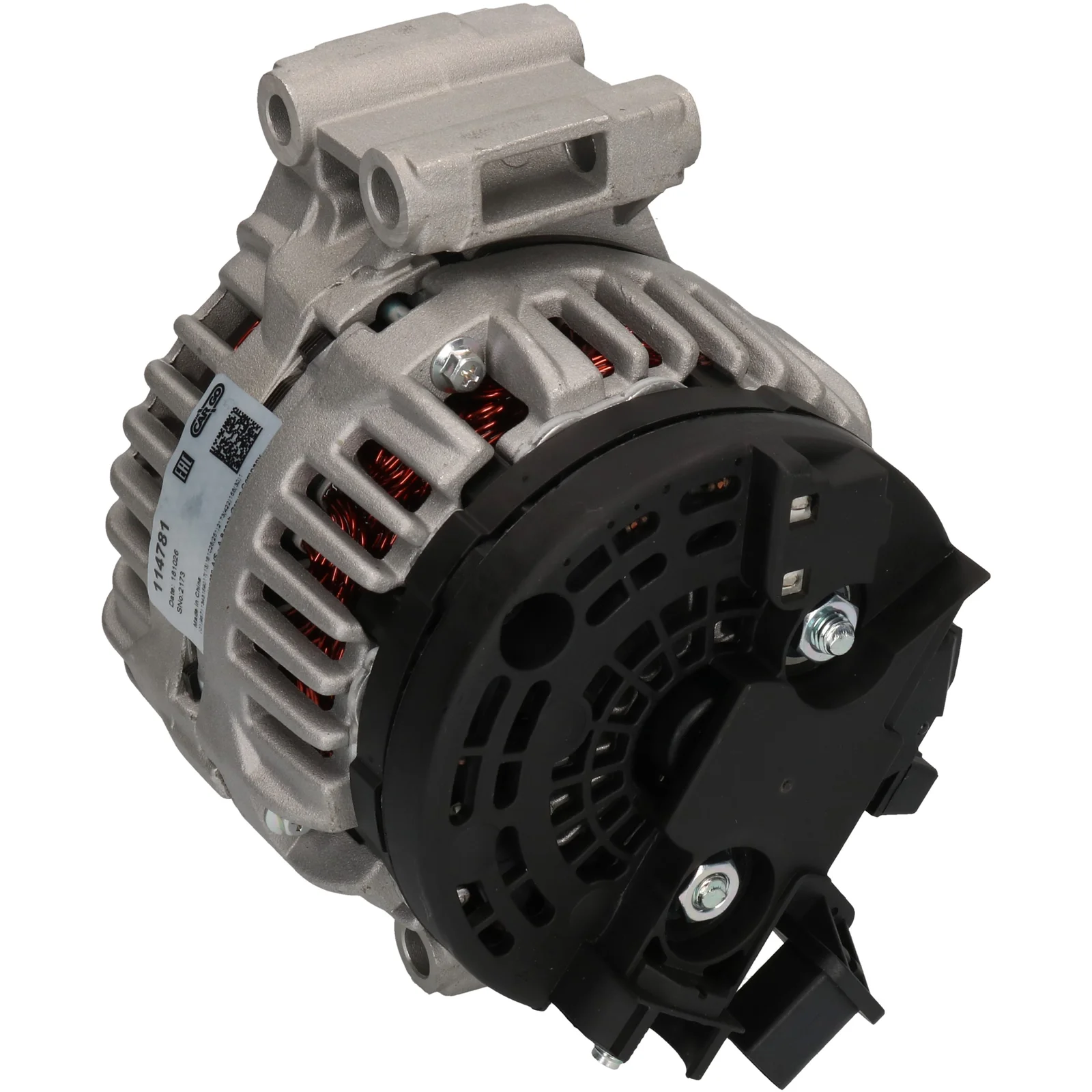

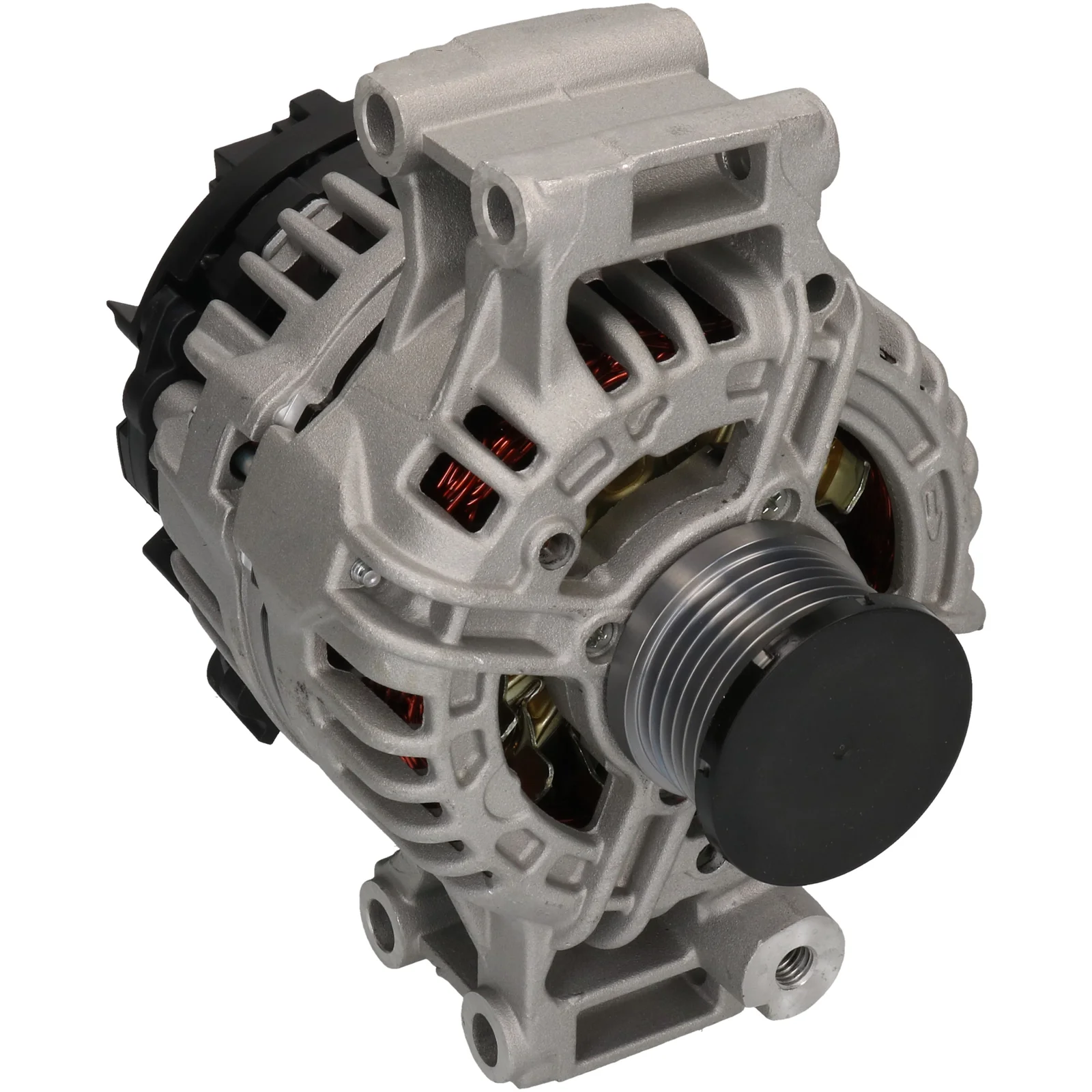

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114781

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 41,00

Beskrivelse

HC-Cargo Dynamo 12V - 110A, 6g

Spenningsnivå: 14
Ampere: 110
Pulley avstand: 30.50
Bredde/holder arm: 63.00
Monteringsbeslag avstand: 41.00
Beslagshull: 10.00
Beslagshull 2: 9.00
Båndjustering beslaghull pos.: 60
Båndjustering beslagshull 1: 10.00
Båndjustering beslagshull 2: 9.00
Drev diameter: 49.00
Groove/Drev: 6
Radius: 87.00
Radius 2: 87.00
B+: M8
Posisjon/B+ i min.: 35
Rotasjon: CW
Plug nummer: PL86
Total lengde mm: 192.00
Terminaltype: COM
Kommunikasjon: BSS
Drev: SP/FW
Regulator type: IR
Prod. info: BN
Anmerkninger: Denne Alternatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 41.00
Belt. adj. bracket hole 1 10.00
Belt. adj. bracket hole 2 9.00
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 10.00
Bracket hole 2 9.00
Position/B+ in min. 35
Prod. info BN
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 30.50
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 192.00 mm
Width/holder arm 63.00
Amp 110

  • OEM
    F032114781, SG11B010, 0124 325 087, 0124 325 116, 1231 7521488, 1231 7521489, 1231 7532964, 1231 7532968, 1231 7533268, 1231 7533272, 1773IR, 1773ir, 114781, 2542749, 2542749A, 2542749B, 2542749C, 7521382, 7521383, 7521488, 7521489, 7532968, 0124325087, 0124325116, 12317521382, 12317521383, 12317521488, 12317521489, 12317532964, 12317532968, 12317533268, 12317533272

  • Konkurrentreferens
    A0220, A3159, CAL10171, DRB6130, DRB6270X, 8EL012426-371, 28-4729, 215.908.110, 4771, 23251N, 23251R, 111556, 210985, 210985A, 301773RI, 443171, 444262, 9046130, 12046130, 32046130, 0986046130, 0986046133

  • Bilmärken
    BMW

  • NormaliseratArtNr
    a0220, a3159, cal10171, drb6130, drb6270x, f032114781, sg11b010, 8el012426371, 1773ir, 4771, 23251n, 23251r, 111556, 114781, 210985, 210985a, 284729, 301773ri, 443171, 444262, 2542749, 2542749a, 2542749b, 2542749c, 7521382, 7521383, 7521488, 7521489, 7532968, 9046130, 12046130, 32046130, 0124325087, 0124325116, 215908110, 0986046130, 0986046133, 12317521382, 12317521383, 12317521488, 12317521489, 12317532964, 12317532968, 12317533268, 12317533272

  • Passar modeller
    BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N43B16A Type description: E87 From date: 01-09-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N45B16A Type description: E87 From date: 01-09-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 i Model type: 118 i Size of motor: 2.0 Brand of engine: N46B20B Type description: E81 Body: Hatchback From date: 01-09-2006 To date: 01-02-2008 Fuel: Petrol Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E81, E87 Body: Hatchback From date: 01-03-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E82 Body: Coupe From date: 01-09-2009 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N45B16 Type description: E90 From date: 01-09-2005 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N45B16TU2 Type description: E90 From date: 01-09-2005 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20 Type description: E90 From date: 01-09-2005 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20 Type description: E91 Body: Estate From date: 01-01-2006 To date: 01-08-2007 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E90 From date: 01-09-2005 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 i Model type: 320 i Size of motor: 2.0 Brand of engine: N46B20B Type description: E92 Body: Coupe From date: 01-01-2010 To date: 01-06-2013 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 2.0 Brand of engine: N43B20A Type description: E90 From date: 01-02-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 2.0 Brand of engine: N43B20A Type description: E92 Body: Coupe From date: 01-06-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20 Type description: E90 Body: Estate From date: 01-09-2005 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E90 From date: 01-02-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20B Type description: E92 Body: Coupe From date: 01-06-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    BMW Series: 1 (E81) Model: 116 i Engine volume: 1.6 Engine type: N45 B16 A Year: 09.07-12.11
    BMW Series: 1 (E81) Model: 118 i Engine volume: 2.0 Engine type: N46 B20 B Year: 09.06-02.08
    BMW Series: 1 (E81) Model: 120 i Engine volume: 2.0 Engine type: N46 B20 B, N46 B20 C Year: 03.07-12.11
    BMW Series: 1 Coupé (E82) Model: 120 i Engine volume: 2.0 Engine type: Samtliga Year: 09.09-10.13
    BMW Series: 3 (E90) Model: 316 i Engine volume: 1.6 Engine type: N45 B16 A/N45 B16 AC Year: 09.05-10.11
    BMW Series: 3 (E90) Model: 318 i Engine volume: 2.0 Engine type: N46 B20 B Year: 09.05-08.07
    BMW Series: 3 (E90) Model: 320 i Engine volume: 2.0 Engine type: Samtliga Year: 02.07-12.11
    BMW Series: 3 Coupé (E92) Model: 320 i Engine volume: 2.0 Engine type: N46 B20 B Year: 06.07-12.13
    BMW Series: 3 Touring (E91) Model: 318 i Engine volume: 2.0 Engine type: N46 B20 B Year: 01.06-08.07
    BMW Series: 3 Touring (E91) Model: 320 i Engine volume: 2.0 Engine type: N46 B20 B/N46 B20 C Year: 09.05-06.12
