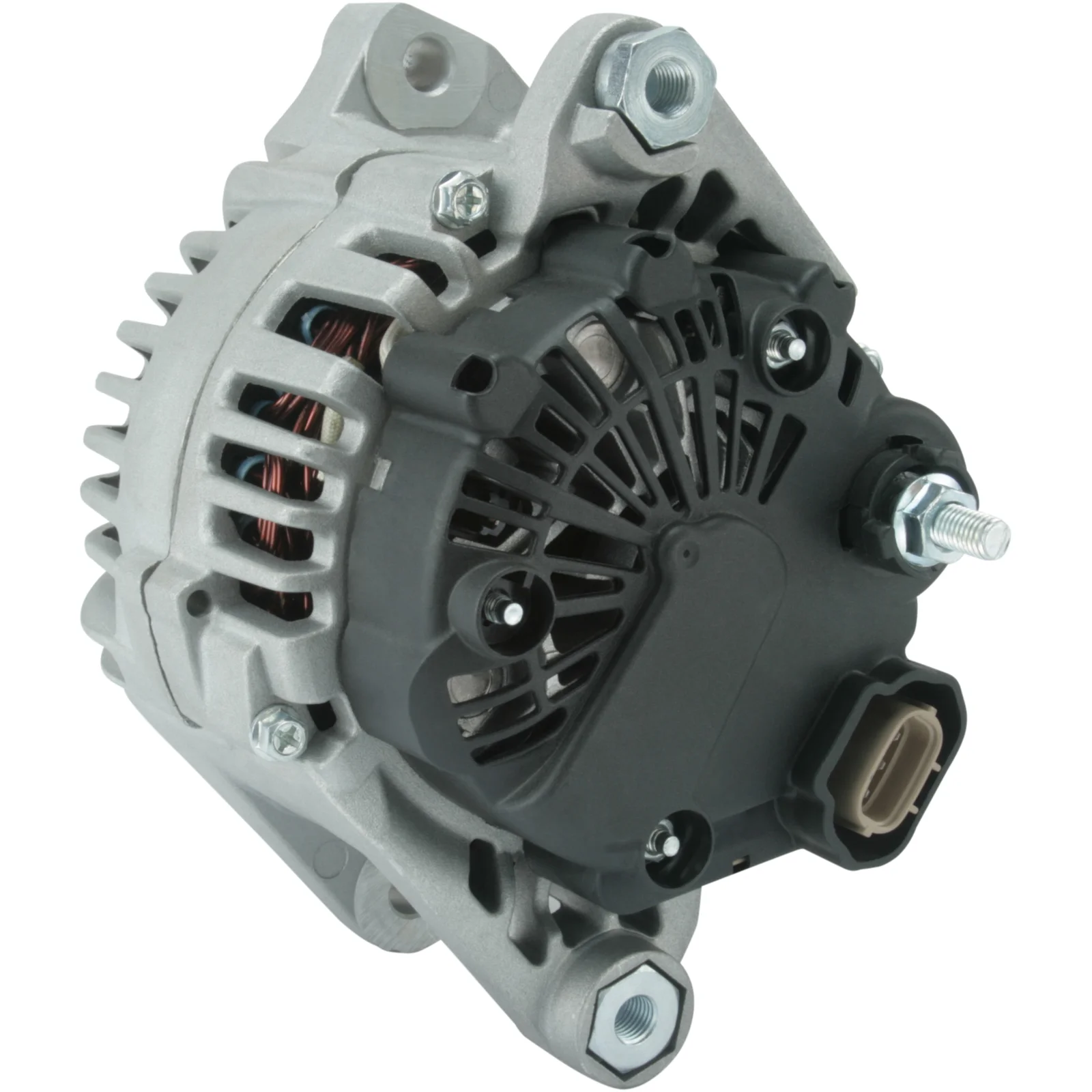

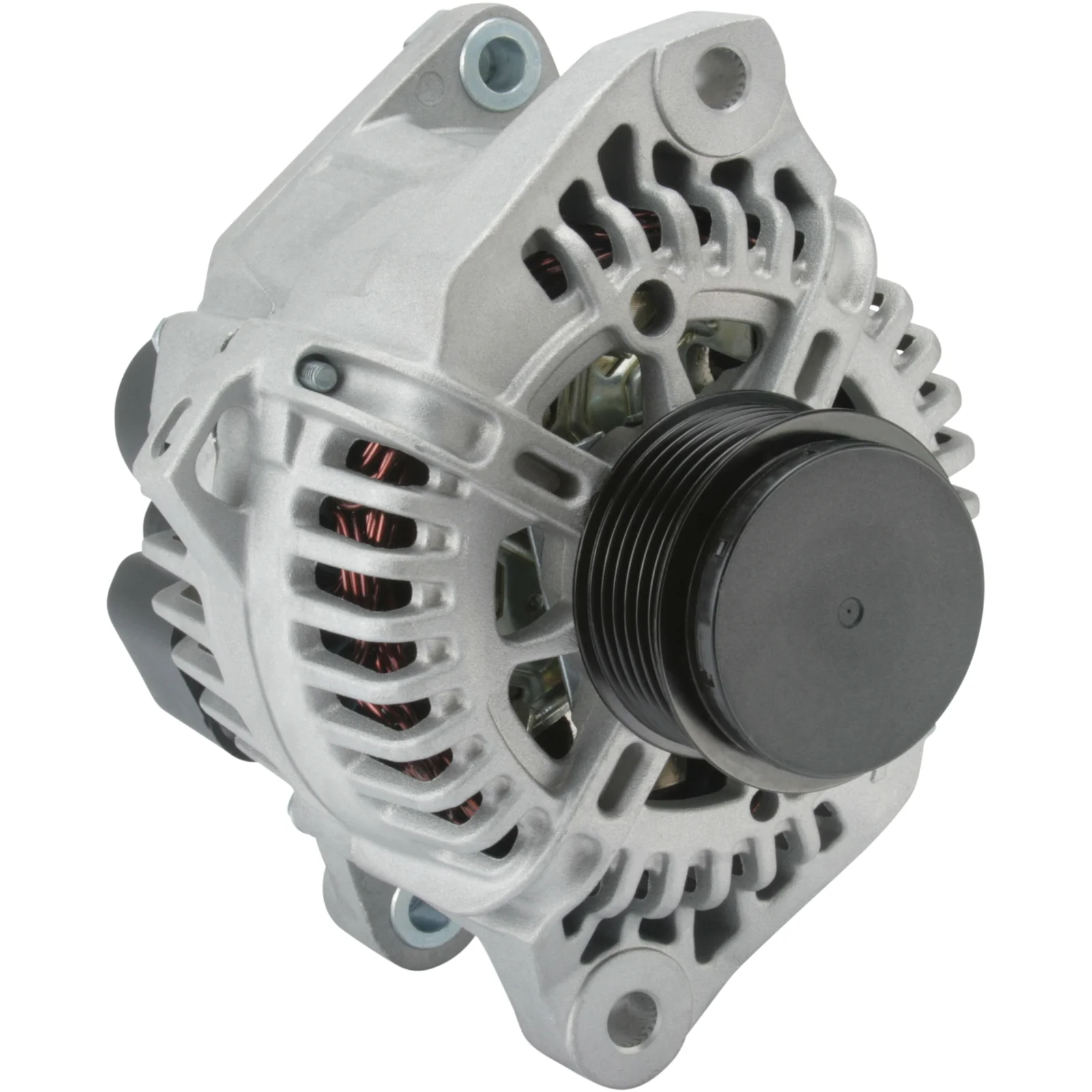

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114827

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Monteringsbeslag avstand: 55,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 14
Amp: 120
Drevskive dist.: 43,00
Bredde/holderarm: 20,00
Festebrakett dist.: 55,50
Brakettåpning: 10,50
Belt. justering brakkeposisjon: 60
Belt. justering brakettåpning 1: 10,50
Drev diameter: 60,00
Riller/drev: 6
radius: 86,00
Radius 2: 84,00
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: Plugger
Rotasjon: CW
Pluggnr.: PL133
Total lengde mm: 193,00
Drev: SP/FW
Regulator type: IR
Produktinfo: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 55.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 60
Plug no. PL133
Bracket hole 10.50
Position/B+ in min. 15
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 43.00
Radius 86.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 193.00 mm
Width/holder arm 20.00
Amp 120

  • OEM
    F032114827, tg11c076, 1986A01824, 2122ir, 02131-9130, 02131-9131, 02131-9132, 37300-25201, 37300-25301, 37300-25310, 37300-2g100, 37300-2G501, 2655544

  • Konkurrentreferens
    A3195, A3195(VALEO), CAL32132, CAL32148, DRA0453, F042206024, J5110533, 28-5848, 155.581.110, 226.199.1102, 0986CR6248, 0986UR6248, 11189N, 11189R, 11202, 11202N, 11202R, 113398, 440374, 553661RI, 12060975

  • NormaliseratArtNr
    a3195, a3195valeo, cal32132, cal32148, dra0453, f032114827, f042206024, j5110533, tg11c076, 0986cr6248, 0986ur6248, 1986a01824, 2122ir, 11189n, 11189r, 11202, 11202n, 11202r, 113398, 285848, 373002g100, 373002g501, 440374, 553661ri, 2655544, 12060975, 021319130, 021319131, 021319132, 155581110, 2261991102, 3730025201, 3730025301, 3730025310

  • Passar modeller
    Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: LM, EL, ELH Body: SUV From date: 01-09-2012 To date: 01-12-2013 Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: LM, EL, ELH From date: 01-07-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: CVVT 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Model type: GLS Type of engine: VVTi Size of motor: 2.0 Brand of engine: G4KA Type description: NF From date: 01-05-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Model type: GLS Type of engine: VVTi Size of motor: 2.0 Brand of engine: G4KD Type description: NF From date: 01-01-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Model type: GLSI Size of motor: 2.0 Brand of engine: G4KD Type description: NF From date: 01-07-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Model type: LPG Size of motor: 2.0 Brand of engine: L4KA, G4KA Type description: NF Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF Body: Saloon From date: 01-01-2005 To date: 01-12-2008 Fuel: Petrol Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF Body: Saloon From date: 01-11-2007 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF From date: 01-01-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KE Type description: NF From date: 01-06-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Kia Model: Carens Model series: Carens Type of engine: CWT Size of motor: 2.0 Brand of engine: G4KA Body: MPV From date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Kia Model: Carens Model series: Carensi MPV Model type: LPI Size of motor: 2.0 Brand of engine: G4KA Type description: UN Body: MPV From date: 01-01-2009 To date: 01-03-2013 Fuel: Petrol/Liquified Pet Approved: Yes
    Kia Model: Carens Model series: Carensi MPV Model type: LPI Size of motor: 2.0 Brand of engine: G4KA Type description: UN Body: MPV From date: 01-09-2006 To date: 01-12-2008 Fuel: Petrol/Liquified Pet Approved: Yes
    Kia Model: Cerato Koupi Model series: Cerato Koup Model type: MPi Size of motor: 2.0 Type description: YD Body: Coupe From date: 01-12-2013 Fuel: Petrol Approved: Yes
    Kia Model: Cerato Model series: Cerato Model type: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: TD Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Kia Model: Cerato Model series: Cerato Saloon Size of motor: 2.0 Brand of engine: G4KD Type description: TD Body: Saloon From date: 01-07-2010 Fuel: Petrol Approved: Yes
    Kia Model: Cerato Model series: Cerato Size of motor: 2.0 Brand of engine: G4KD Type description: TD Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Kia Model: Cerato Model series: Cerato Size of motor: 2.0 Brand of engine: G4KD Type description: TD From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Kia Model: Forte Model series: Forte Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: TD From date: 01-07-2009 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Kia Model: Magentis Model series: Magentis Size of motor: 2.0 Brand of engine: G4KA Type description: MG From date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Kia Model: Optima Model series: Optima Model type: CVVT Size of motor: 2.4 Brand of engine: G4KE Type description: FSGDS6B Body: Saloon From date: 01-01-2012 Fuel: Petrol Approved: Yes
    Kia Model: Optima Model series: Optima Model type: LPI Size of motor: 2.0 Brand of engine: G4KD Type description: FSGDS6B Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
    Kia Model: Optima Model series: Optima Size of motor: 2.4 Brand of engine: G4KC Type description: FSGDS6B Body: Saloon From date: 01-06-2010 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    1 / 6
  • Beskrivelse
    Spenningskilde: 14
    Amp: 120
    Drevskive dist.: 43,00
    Bredde/holderarm: 20,00
    Festebrakett dist.: 55,50
    Brakettåpning: 10,50
    Belt. justering brakkeposisjon: 60
    Belt. justering brakettåpning 1: 10,50
    Drev diameter: 60,00
    Riller/drev: 6
    radius: 86,00
    Radius 2: 84,00
    B+: M8
    Posisjon/B+ i min.: 15
    D+ Størrelse: Plugger
    Rotasjon: CW
    Pluggnr.: PL133
    Total lengde mm: 193,00
    Drev: SP/FW
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 55.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL133
    Bracket hole 10.50
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 43.00
    Radius 86.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 20.00
    Amp 120
  • Kjøretøymatching

    • OEM
      F032114827, tg11c076, 1986A01824, 2122ir, 02131-9130, 02131-9131, 02131-9132, 37300-25201, 37300-25301, 37300-25310, 37300-2g100, 37300-2G501, 2655544

    • Konkurrentreferens
      A3195, A3195(VALEO), CAL32132, CAL32148, DRA0453, F042206024, J5110533, 28-5848, 155.581.110, 226.199.1102, 0986CR6248, 0986UR6248, 11189N, 11189R, 11202, 11202N, 11202R, 113398, 440374, 553661RI, 12060975

    • NormaliseratArtNr
      a3195, a3195valeo, cal32132, cal32148, dra0453, f032114827, f042206024, j5110533, tg11c076, 0986cr6248, 0986ur6248, 1986a01824, 2122ir, 11189n, 11189r, 11202, 11202n, 11202r, 113398, 285848, 373002g100, 373002g501, 440374, 553661ri, 2655544, 12060975, 021319130, 021319131, 021319132, 155581110, 2261991102, 3730025201, 3730025301, 3730025310

    • Passar modeller
      Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: LM, EL, ELH Body: SUV From date: 01-09-2012 To date: 01-12-2013 Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: LM, EL, ELH From date: 01-07-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: CVVT 4WD Size of motor: 2.4 Brand of engine: G4KE Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Size of motor: 2.0 Brand of engine: G4KD Type description: LM, EL, ELH Body: SUV Fuel: Petrol Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Model type: GLS Type of engine: VVTi Size of motor: 2.0 Brand of engine: G4KA Type description: NF From date: 01-05-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Model type: GLS Type of engine: VVTi Size of motor: 2.0 Brand of engine: G4KD Type description: NF From date: 01-01-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Model type: GLSI Size of motor: 2.0 Brand of engine: G4KD Type description: NF From date: 01-07-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Model type: LPG Size of motor: 2.0 Brand of engine: L4KA, G4KA Type description: NF Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF Body: Saloon From date: 01-01-2005 To date: 01-12-2008 Fuel: Petrol Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF Body: Saloon From date: 01-11-2007 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF From date: 01-01-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KE Type description: NF From date: 01-06-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Kia Model: Carens Model series: Carens Type of engine: CWT Size of motor: 2.0 Brand of engine: G4KA Body: MPV From date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Kia Model: Carens Model series: Carensi MPV Model type: LPI Size of motor: 2.0 Brand of engine: G4KA Type description: UN Body: MPV From date: 01-01-2009 To date: 01-03-2013 Fuel: Petrol/Liquified Pet Approved: Yes
      Kia Model: Carens Model series: Carensi MPV Model type: LPI Size of motor: 2.0 Brand of engine: G4KA Type description: UN Body: MPV From date: 01-09-2006 To date: 01-12-2008 Fuel: Petrol/Liquified Pet Approved: Yes
      Kia Model: Cerato Koupi Model series: Cerato Koup Model type: MPi Size of motor: 2.0 Type description: YD Body: Coupe From date: 01-12-2013 Fuel: Petrol Approved: Yes
      Kia Model: Cerato Model series: Cerato Model type: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: TD Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Kia Model: Cerato Model series: Cerato Saloon Size of motor: 2.0 Brand of engine: G4KD Type description: TD Body: Saloon From date: 01-07-2010 Fuel: Petrol Approved: Yes
      Kia Model: Cerato Model series: Cerato Size of motor: 2.0 Brand of engine: G4KD Type description: TD Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Kia Model: Cerato Model series: Cerato Size of motor: 2.0 Brand of engine: G4KD Type description: TD From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Kia Model: Forte Model series: Forte Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4KD Type description: TD From date: 01-07-2009 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Kia Model: Magentis Model series: Magentis Size of motor: 2.0 Brand of engine: G4KA Type description: MG From date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Kia Model: Optima Model series: Optima Model type: CVVT Size of motor: 2.4 Brand of engine: G4KE Type description: FSGDS6B Body: Saloon From date: 01-01-2012 Fuel: Petrol Approved: Yes
      Kia Model: Optima Model series: Optima Model type: LPI Size of motor: 2.0 Brand of engine: G4KD Type description: FSGDS6B Body: Saloon Fuel: Petrol/Liquified Pet Approved: Yes
      Kia Model: Optima Model series: Optima Size of motor: 2.4 Brand of engine: G4KC Type description: FSGDS6B Body: Saloon From date: 01-06-2010 To date: 01-12-2015 Fuel: Petrol Approved: Yes
      1 / 6
