HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114866

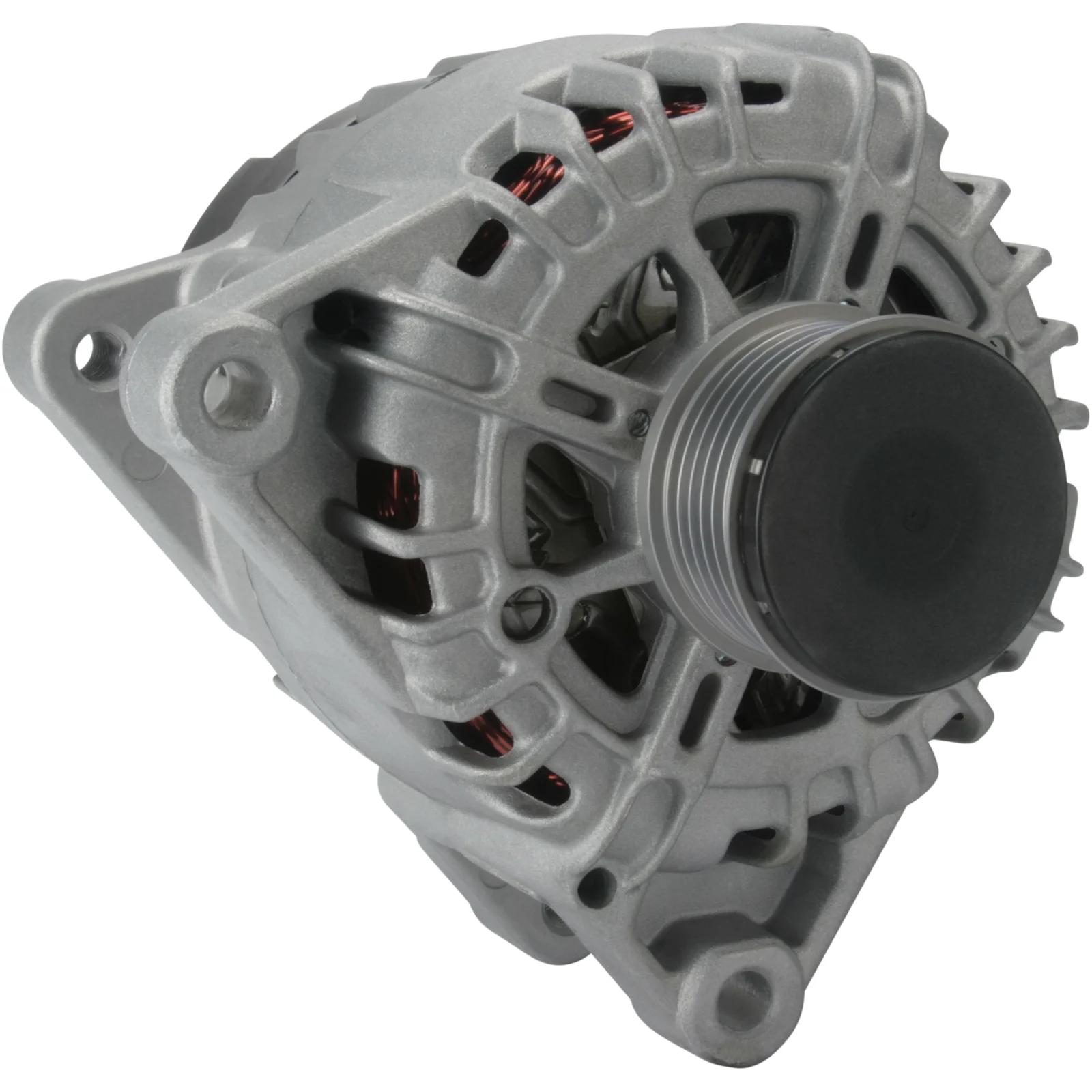

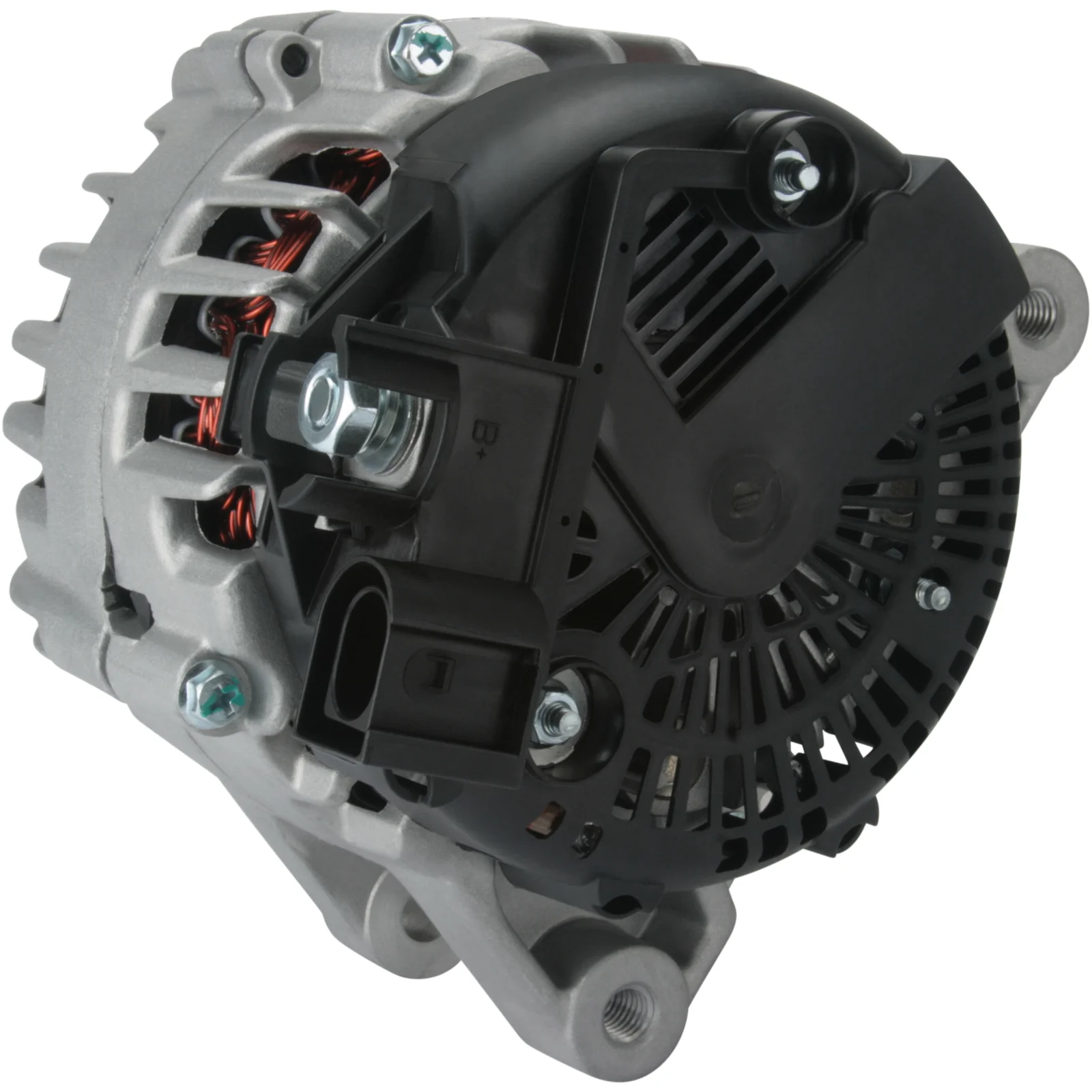

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Monteringsbracket avstand: 45.70

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp.: 120
Kule dist.: 42,00
Bredde/beslag arm: 21,00
Mono. montering bracketsdist.: 45,70
Bracket hull: 10,00
Belt. juster brakt.Hull pos.: 47
Belt. juster bracket hull 1: 10,50
Kule dia.: 54,00
Groover/kule: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 5
Rotasjon: medur
Plugg nr.: PL137
Total lengde mm: 186,00
Terminaltype: COM
Kommunikasjon: LIN
Kule: SP/FW
Regulator type: IR
Prod. info: BN
Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 45.70
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL137
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 186.00 mm
Width/holder arm 21.00
Amp 120

  • OEM
    F032114866, tg12c038, y405-18-300, 8V2110300AB, 1986A01847, 2091ir, 1506299, 2543427, 2543427A

  • Konkurrentreferens
    A3359S, CAL15343, DRA0226, 28-5664, 595.561.120, 24052N, 112771, 210436, 210436A, 439632, 553278RI, 12090247, 0986083290

  • NormaliseratArtNr
    a3359s, cal15343, dra0226, f032114866, tg12c038, y40518300, 8v2110300ab, 1986a01847, 2091ir, 24052n, 112771, 210436, 210436a, 285664, 439632, 553278ri, 1506299, 2543427, 2543427a, 12090247, 595561120, 0986083290

  • Passar modeller
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: KVJA Body: Hatchback From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: KVJA Body: Van From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJC Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJC Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJD Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJE Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJE Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJB Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: UBJA Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZ Type of engine: CD Size of motor: 1.6 Brand of engine: Y406 Body: Hatchback From date: 01-10-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZ Type of engine: CD Size of motor: 1.6 Brand of engine: Y646 Body: Hatchback From date: 01-10-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
