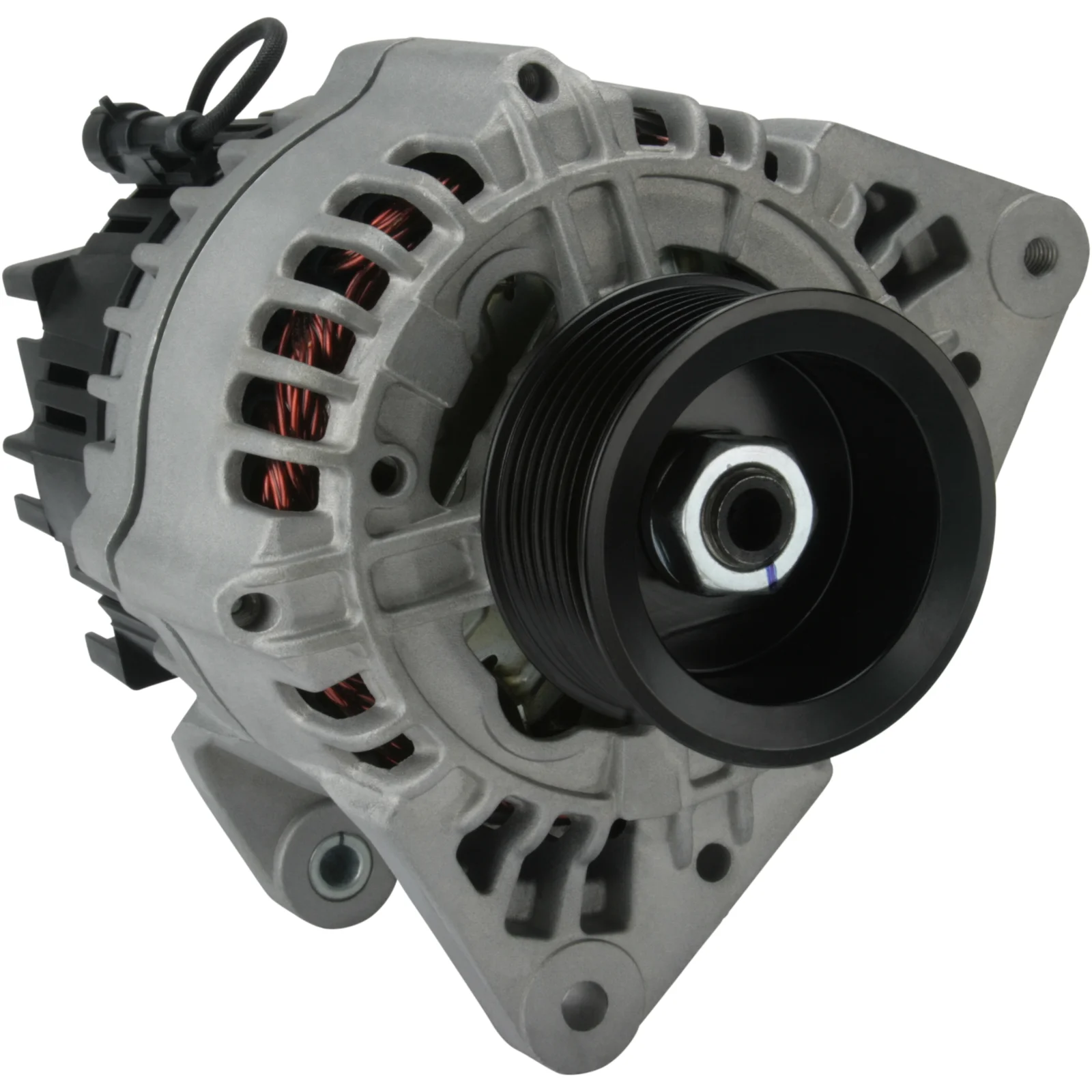

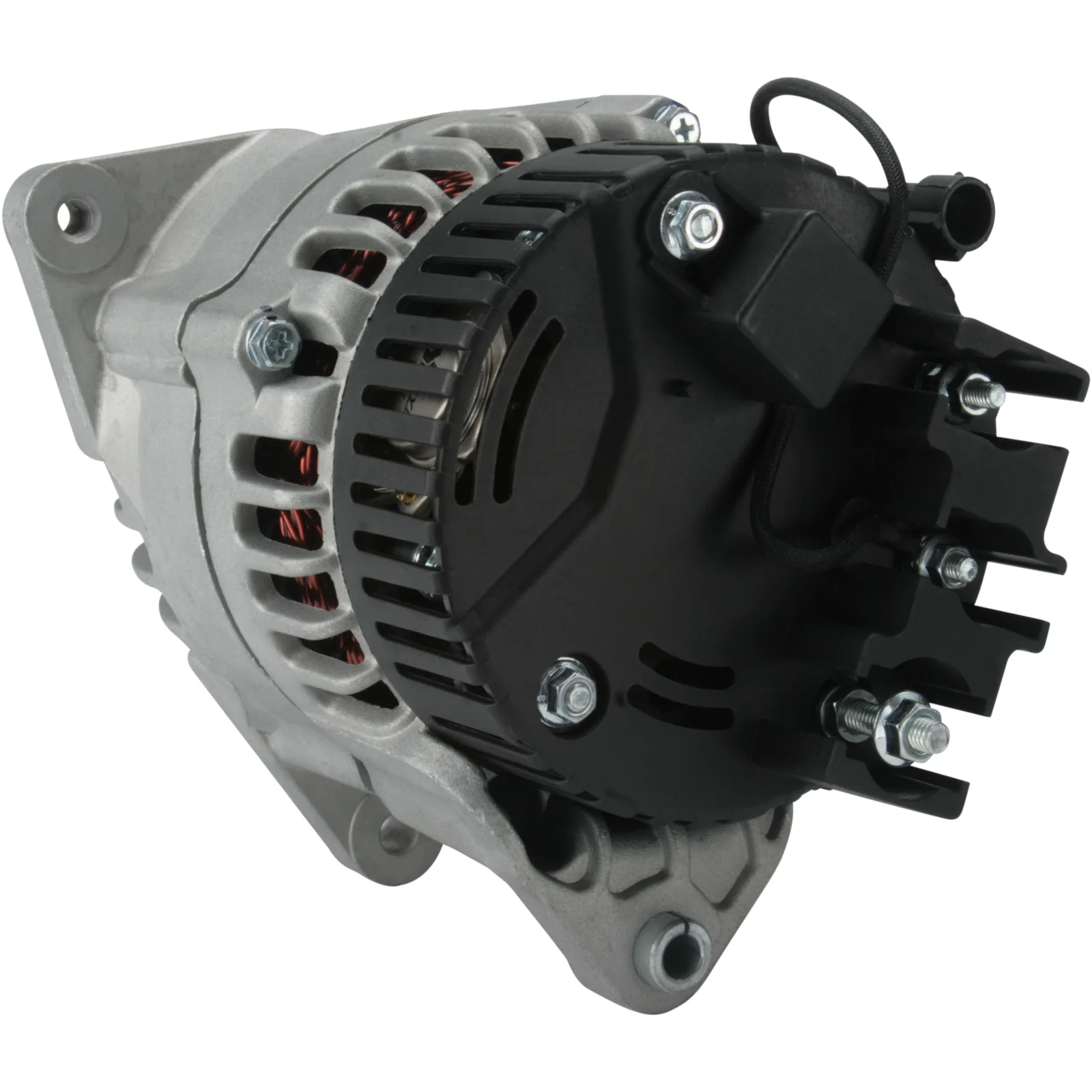

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114896

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Festebrakett avstand: 83,60

Beskrivelse

Spenningskilde: 14
Ampere: 120
Terminal: W
Drevavstand: 32.00
Bredde/holderarm: 14.00
Monteringsbeslag avstand: 83.60
Beslagshull: 8.00
Båndjusteringsbeslag hullposisjon: 10
Båndjusteringsbeslag hull 1: M8
Drevskive dia.: 67.00
Riller/drevskive: 8
Radius: 85.00
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 25
D+ Størrelse: M5
Rotasjon: med urviseren
Stikkontakt nr.: PL70
W-stikkontakt type: M5
Total lengde mm: 203.00
Drevskive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 83.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 10
Plug no. PL70
Bracket hole 8.00
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 67.00
Pulley dist. 32.00
Radius 85.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 8
Terminal W
Voltage 14
W plug type M5
Total length 203.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    AAK5591, AAK5745, AAK5760, F032114896, 11.203.493, 11.203.729, 11.203.823, 5840260, 47744887, 87361085, 87652089, 87755553

  • Konkurrentreferens
    A9223, CAL21150, CAL30248, IA1225, MG443, 28-6897, 519.140.1202, 705.515.120, 12792N, 202005, 444435

  • NormaliseratArtNr
    a9223, aak5591, aak5745, aak5760, cal21150, cal30248, f032114896, ia1225, mg443, 12792n, 202005, 286897, 444435, 5840260, 11203493, 11203729, 11203823, 47744887, 87361085, 87652089, 87755553, 705515120, 5191401202

  • Passar modeller
    Case Model: MXM Series Approved: Yes
    New Holland Model: TM Model series: 120 Size of motor: 7.5 Body: Tractor From date: 01-01-2002 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    New Holland Model: TM Model series: 130 Size of motor: 7.5 Body: Tractor From date: 01-01-2002 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    New Holland Model: TM Model series: 140 Size of motor: 7.5 Body: Tractor From date: 01-12-2002 Fuel: Diesel Approved: Yes
    New Holland Model: TM Model series: 175 Size of motor: 7.5 Body: Tractor From date: 01-01-2003 Fuel: Diesel Approved: Yes
    New Holland Model: TM Model series: 190 Size of motor: 7.5 Body: Tractor From date: 01-01-2004 Fuel: Diesel Approved: Yes
