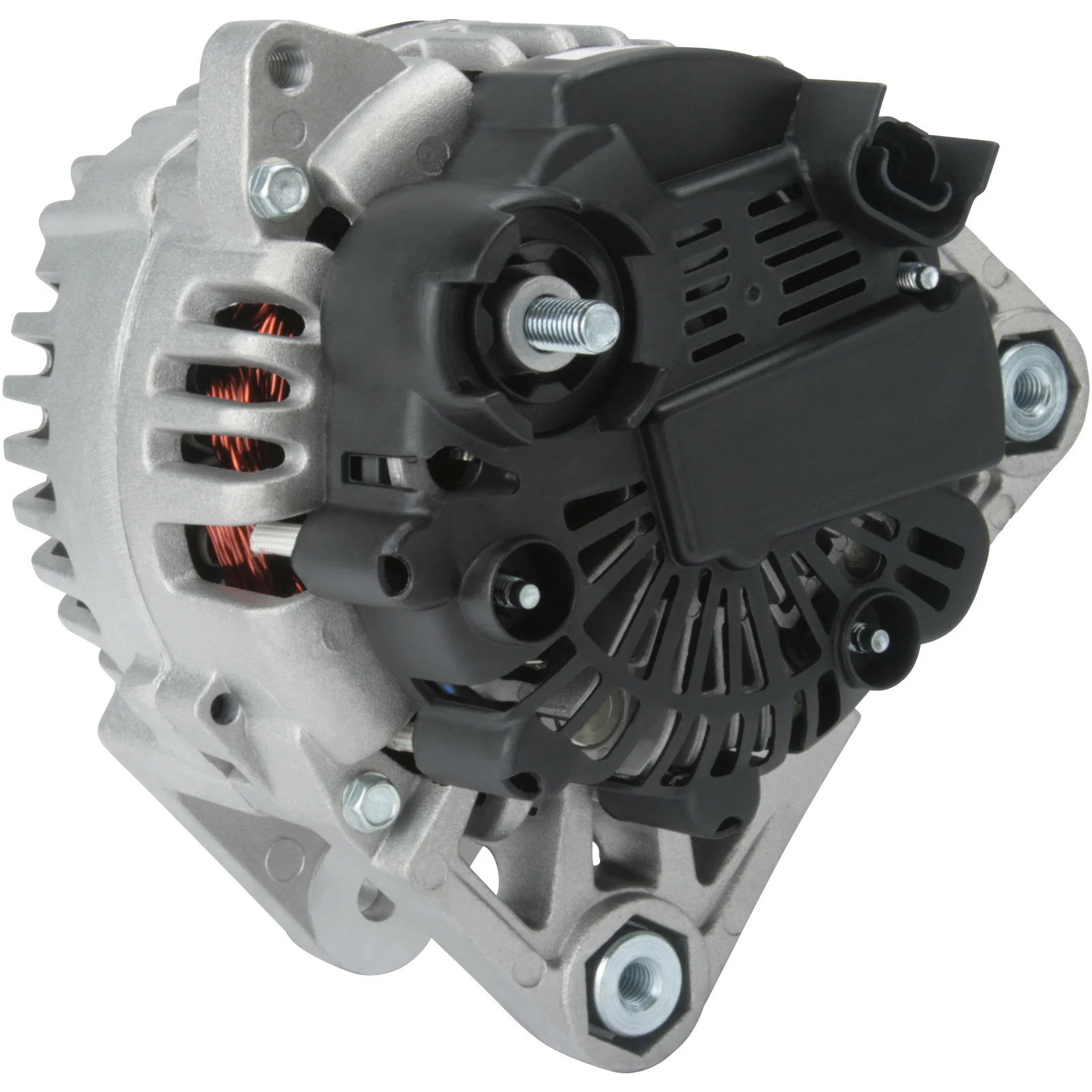

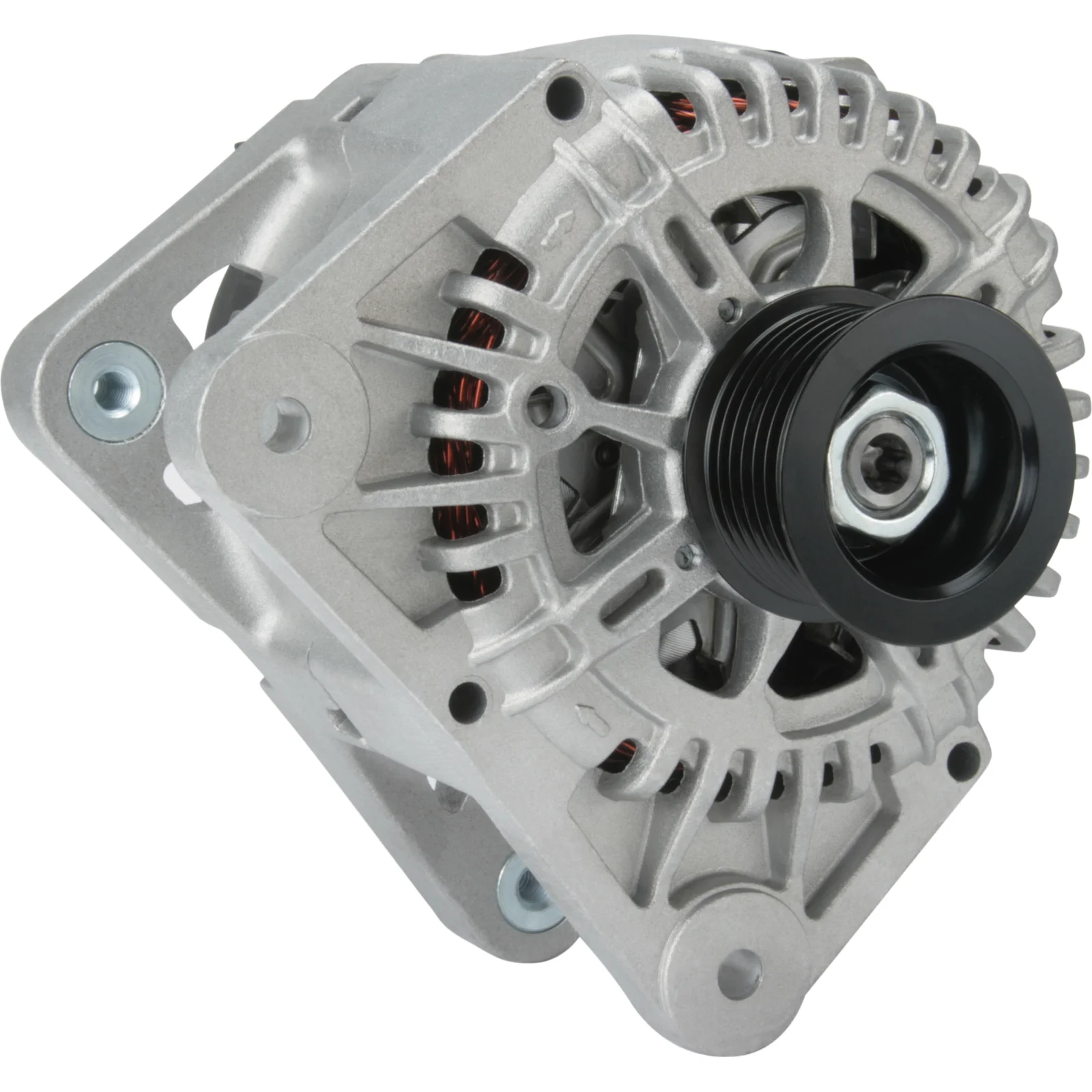

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115310

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand: 60,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 110
Drevskive avstand: 32,50
Bredde/holderarm: 13,80
Festebrakett avstand: 60,50
Brakettøre: 8,50
Belt. justeringsbrakettøreposisjon: 45
Belt. justeringsbrakettøre 1: 8,50
Drevskivediameter: 49,00
Gleipner/drevskive: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 50
Rotasjon: med klokken
Kontaktetall: PL72
Total lengde mm: 184,00
Drevskive: SP
Regul. type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 32.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 184.00 mm
Width/holder arm 13.80
Amp 110

  • OEM
    F032115310, tg11c010, TG11C022, TG11C049, TG11C061, 1768ir, 2542663, 2542818, 2542818D, 2543342, 2543342A, 2543552, 2543552a, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618

  • Konkurrentreferens
    A3068, A3068PR, CAL15135, DRA4286, F042205217, 8EL011710-761, 28-4852, 4688, 23350R, 200087, 210472, 210472A, 437439, 439479, 746097, 746897, 9212989, 12090169, 32437439, 0986080330

  • NormaliseratArtNr
    a3068, a3068pr, cal15135, dra4286, f032115310, f042205217, tg11c010, tg11c022, tg11c049, tg11c061, 8el011710761, 1768ir, 4688, 23350r, 200087, 210472, 210472a, 284852, 437439, 439479, 746097, 746897, 2542663, 2542818, 2542818d, 2543342, 2543342a, 2543552, 2543552a, 9212989, 12090169, 32437439, 0986080330, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618

  • Passar modeller
    Renault Model: Megane Model series: Megane Saloon Size of motor: 2.0 Brand of engine: F4R770 Type description: LM0/1_ Body: Saloon From date: 01-04-2006 To date: 01-11-2010 Fuel: Petrol Approved: Yes
    Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R770 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-09-2003 To date: 01-12-2009 Fuel: Petrol Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R770 Type description: BM0_, CM0_ Body: Hatchback From date: 01-11-2002 To date: 01-02-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q800 Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q800 From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q803 Type description: LM0/1_ From date: 01-05-2005 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q804 Type description: EM0/1 Body: Convertible From date: 01-05-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q804 Type description: EM0/1_ Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q816 Type description: EM0/1 Body: Convertible From date: 01-05-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q816 Type description: EM0/1_ Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q816 Type description: LM0/1_ From date: 01-05-2005 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-05-2005 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: EM0/1 Body: Convertible From date: 01-05-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: EM0/1_ Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: LM0/1_ From date: 01-05-2005 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCI Size of motor: 1.9 Brand of engine: F9QE804 Type description: KM_ Body: Box Body / Estate From date: 01-02-2006 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Size of motor: 2.0 Brand of engine: F4R770 Type description: JM0/1_ Body: MPV From date: 01-02-2008 To date: 01-04-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: iDE 16V Size of motor: 2.0 Brand of engine: F4R747 Type description: JA Body: MPV From date: 01-09-1999 To date: 01-08-2003 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Ampere: 110
    Drevskive avstand: 32,50
    Bredde/holderarm: 13,80
    Festebrakett avstand: 60,50
    Brakettøre: 8,50
    Belt. justeringsbrakettøreposisjon: 45
    Belt. justeringsbrakettøre 1: 8,50
    Drevskivediameter: 49,00
    Gleipner/drevskive: 7
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 50
    Rotasjon: med klokken
    Kontaktetall: PL72
    Total lengde mm: 184,00
    Drevskive: SP
    Regul. type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL72
    Bracket hole 8.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 32.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 13.80
    Amp 110
  • Kjøretøymatching

    • OEM
      F032115310, tg11c010, TG11C022, TG11C049, TG11C061, 1768ir, 2542663, 2542818, 2542818D, 2543342, 2543342A, 2543552, 2543552a, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618

    • Konkurrentreferens
      A3068, A3068PR, CAL15135, DRA4286, F042205217, 8EL011710-761, 28-4852, 4688, 23350R, 200087, 210472, 210472A, 437439, 439479, 746097, 746897, 9212989, 12090169, 32437439, 0986080330

    • NormaliseratArtNr
      a3068, a3068pr, cal15135, dra4286, f032115310, f042205217, tg11c010, tg11c022, tg11c049, tg11c061, 8el011710761, 1768ir, 4688, 23350r, 200087, 210472, 210472a, 284852, 437439, 439479, 746097, 746897, 2542663, 2542818, 2542818d, 2543342, 2543342a, 2543552, 2543552a, 9212989, 12090169, 32437439, 0986080330, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618

    • Passar modeller
      Renault Model: Megane Model series: Megane Saloon Size of motor: 2.0 Brand of engine: F4R770 Type description: LM0/1_ Body: Saloon From date: 01-04-2006 To date: 01-11-2010 Fuel: Petrol Approved: Yes
      Renault Model: Megane Model series: Megane Size of motor: 2.0 Brand of engine: F4R770 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-09-2003 To date: 01-12-2009 Fuel: Petrol Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R770 Type description: BM0_, CM0_ Body: Hatchback From date: 01-11-2002 To date: 01-02-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q800 Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q800 From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q803 Type description: LM0/1_ From date: 01-05-2005 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q804 Type description: EM0/1 Body: Convertible From date: 01-05-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q804 Type description: EM0/1_ Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q816 Type description: EM0/1 Body: Convertible From date: 01-05-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q816 Type description: EM0/1_ Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q816 Type description: LM0/1_ From date: 01-05-2005 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-05-2005 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: EM0/1 Body: Convertible From date: 01-05-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: EM0/1_ Body: Convertible From date: 01-09-2003 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q818 Type description: LM0/1_ From date: 01-05-2005 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCI Size of motor: 1.9 Brand of engine: F9QE804 Type description: KM_ Body: Box Body / Estate From date: 01-02-2006 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Size of motor: 2.0 Brand of engine: F4R770 Type description: JM0/1_ Body: MPV From date: 01-02-2008 To date: 01-04-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: iDE 16V Size of motor: 2.0 Brand of engine: F4R747 Type description: JA Body: MPV From date: 01-09-1999 To date: 01-08-2003 Fuel: Gasoline Approved: Yes
