HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115317

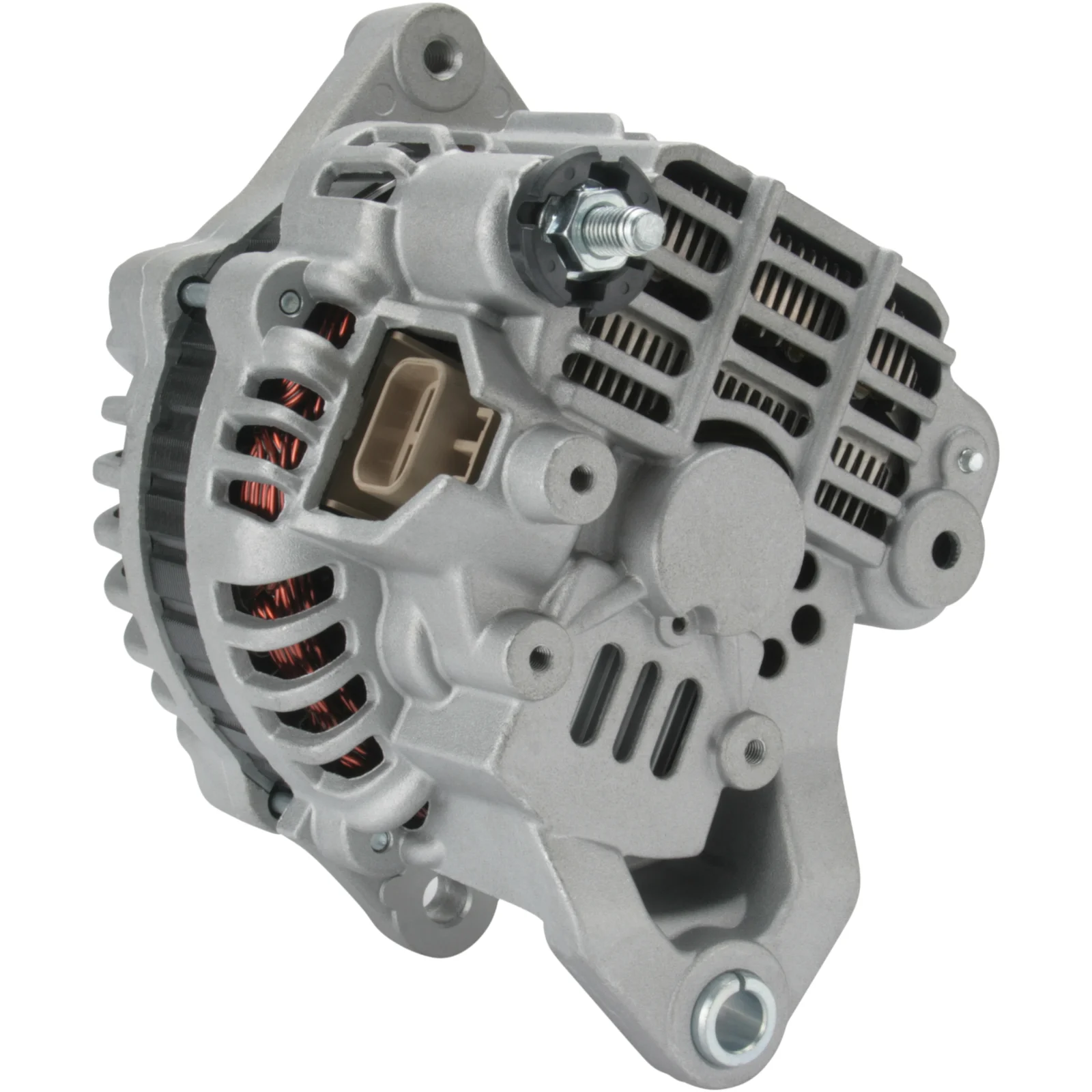

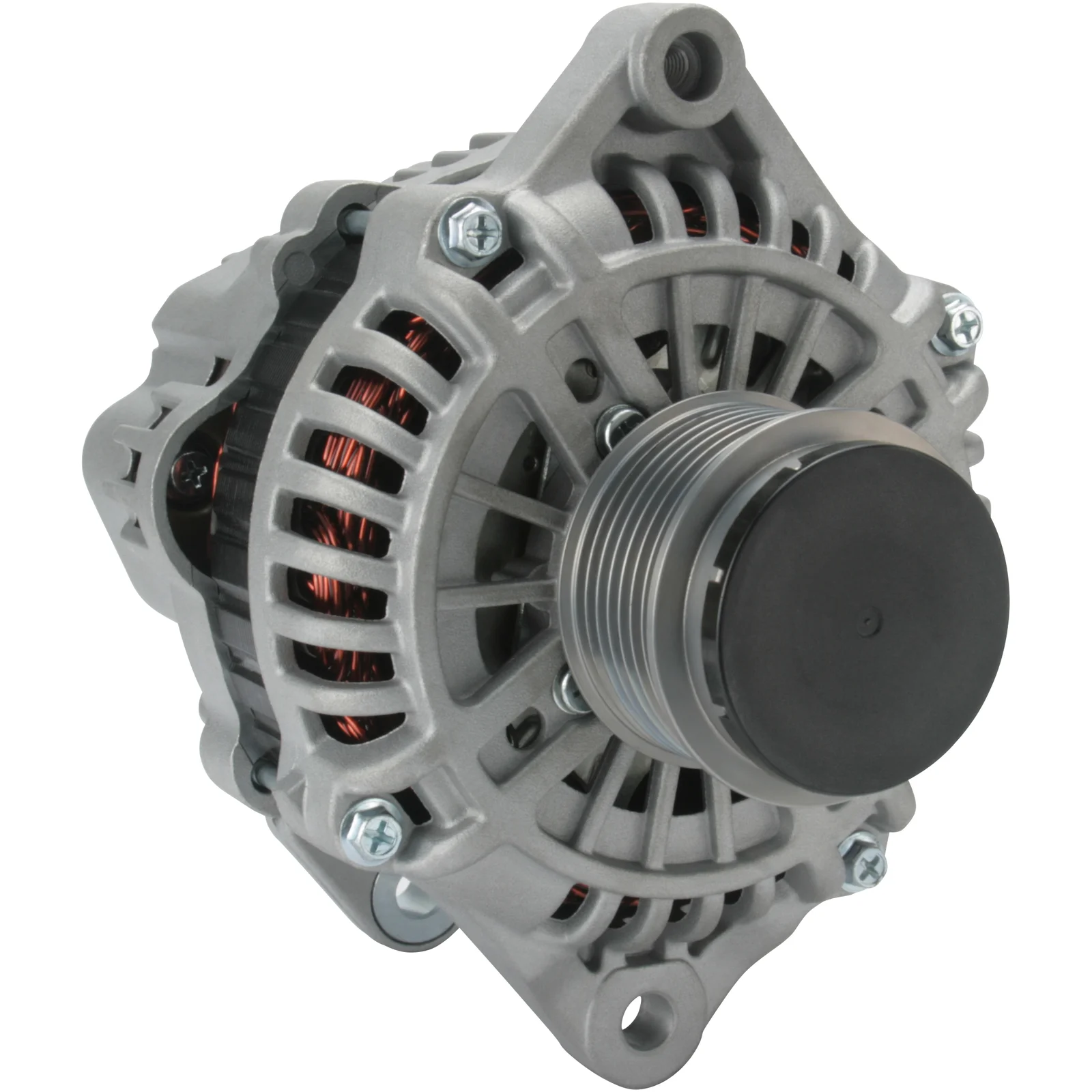

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Montering. brakett avstand: 81,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 120
Drevskive avstand: 38.50
Bredde/holderarm: 13.00
Monteringsbrakettavstand: 81.00
Braketthull: 10.50
Båndjusteringsbrakett hullposisjon: 60
Båndjusteringsbrakett hull 1: M8
Drevskive diameter: 60.00
Groover/drevskive: 7
Radius: 85.00
Radius 2: 85.00
Rotasjon: meduret klokken: CW
Stikkontaktnummer: PL07
Total lengde mm: 190.00
Drevskive: SP/FW
Regulator type: IR
Produsentinfo: BN

Filer

Spesifikasjon

Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 38.50
Radius 85.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 190.00 mm
Width/holder arm 13.00
Amp 120

  • OEM
    A002TG0281, A2TG0281, F032115317, 2081ir, 23100-dc000, 5001865233, 5010553879

  • Konkurrentreferens
    A5269, CAL35172, DRA0082, LRA02856, 28-4972, 230.310.1202, 575.517.120, 23856N, 113032, 444248, 553326RI

  • NormaliseratArtNr
    a002tg0281, a2tg0281, a5269, cal35172, dra0082, f032115317, lra02856, 2081ir, 23100dc000, 23856n, 113032, 284972, 444248, 553326ri, 575517120, 2303101202, 5001865233, 5010553879

  • Passar modeller
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Platform / Chassis From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Van From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED, UD Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: HD, FD Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 120.35 Size of motor: 3.0 Brand of engine: ZD3A600 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: ZD3A604 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED,UD,HD Body: Platform / Chassis From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: FD Body: Van From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
