HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115320

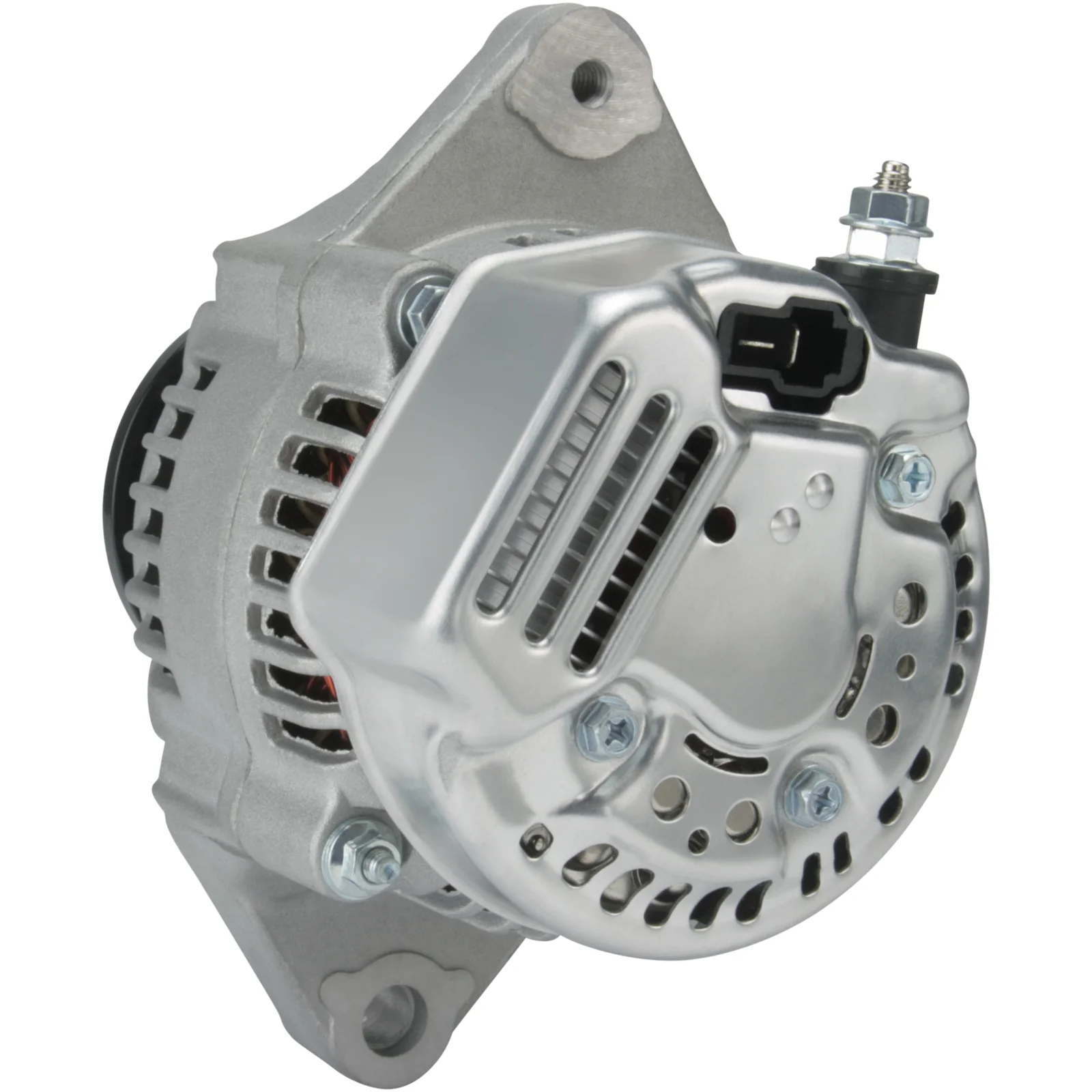

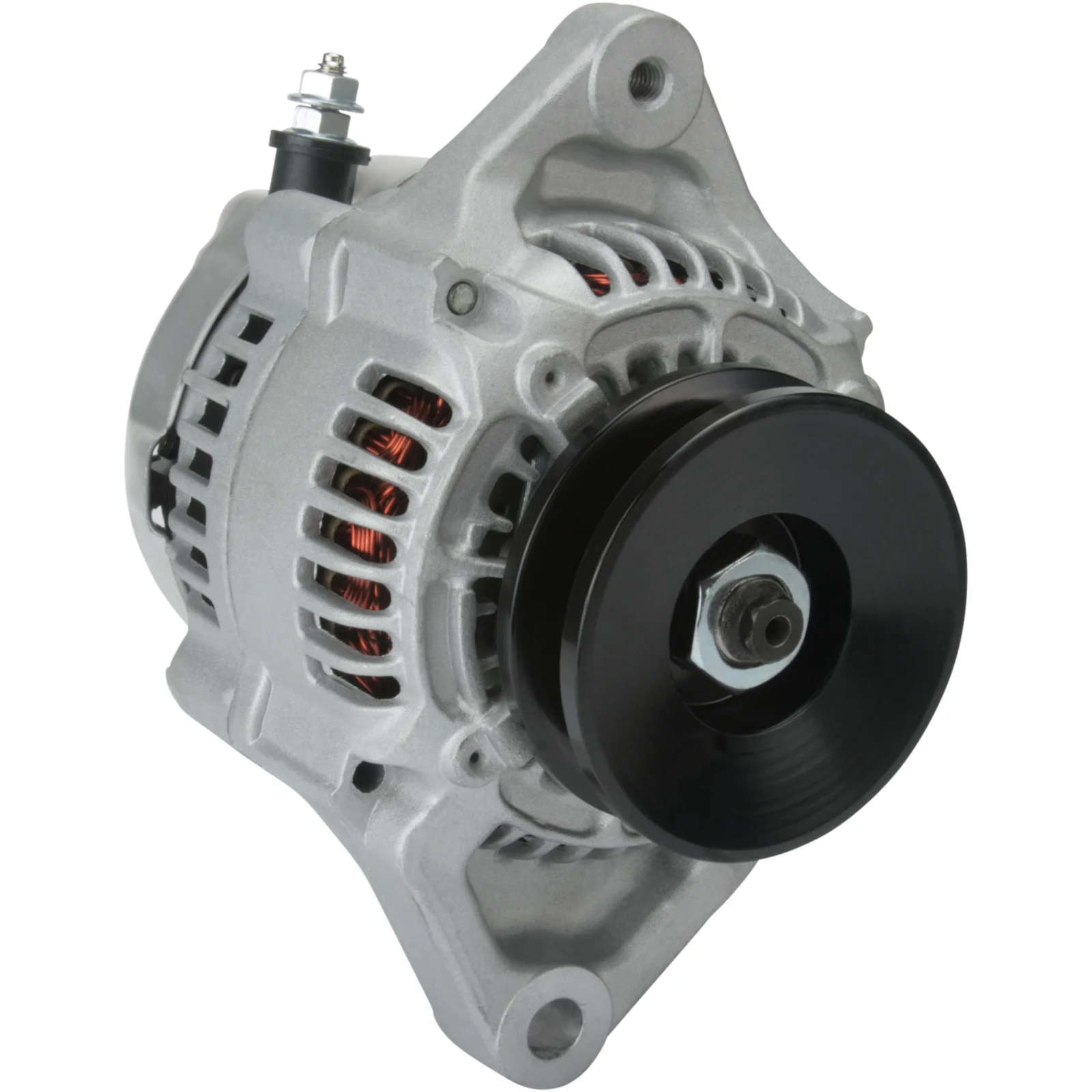

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 45, Rotasjon: CW, Drivreimdiameter: 75,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenn: 14
Amp: 45
Drevkugg dist.: 43.00
Bredde/festerarm: 20.70
Klammehull: 10.00
Belt. justering av klemmeseksjon pos.: 60
Belt. justering av klemmeseksjon hull 1: M8
Drevkugg diameter: 75.50
Grofjer/ Drevkugg: 1
Radius: 75.00
Radius 2: 77.00
B+: M6
Posisjon/B+ i min.: 5
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL10
Total lengde mm: 141.00
Drevkugg: P
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley P
Pulley dia. 75.50
Pulley dist. 43.00
Radius 75.00
D+ Size Plug
Radius 2 77.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 141.00 mm
Width/holder arm 20.70
Amp 45

  • OEM
    F032115320, 101211-2590, 101211-2591, 101211-2840, 129961-77200, 1599869

  • Konkurrentreferens
    CAL40587, 635.526.055, 11559, 11559N, 11691N, 554415RI

  • NormaliseratArtNr
    cal40587, f032115320, 11559, 11559n, 11691n, 554415ri, 1599869, 635526055, 1012112590, 1012112591, 1012112840, 12996177200

  • Passar modeller
    Hyster Model: H1.6FT Model series: H1.6FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H1.6FT/H1.8 FT/H2.0FTS Model series: H1.6FT/H1.8 FT/H2.0FTS Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0FT Model series: H2.0FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0FT/H2.5FT Model series: H2.0FT/H2.5FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0FTS Model series: H2.0FTS Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0XT / H2.5XT / H3.0XT Model series: H2.0XT / H2.5XT / H3.0XT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.5FT Model series: H2.5FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H3.0FT Model series: H3.0FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H30FT, H35FT & H40FTS Model series: H30FT, H35FT & H40FTS Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H40FT Model series: H40FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H40FT, H50FT, H60FT & H70FT Model series: H40FT, H50FT, H60FT & H70FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H50CT Model series: H50CT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H50FT Model series: H50FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H60FT Model series: H60FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H70FT Model series: H70FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyundai Model: 25D-9E Model series: 25D-9E Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyundai Model: 30D-9E Model series: 30D-9E Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyundai Model: 33D-9E Model series: 33D-9E Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    John Deere Model: Mowers Model series: Various Models Approved: Yes
    Manitou Model: MI 15D / MI 18D Model series: MI 15D / MI 18D Model type: Rough Terrain Forklifts Brand of engine: 4TNE92 Approved: Yes
    Manitou Model: MI 20D / MI 25D / MI 30D / MI 35D Model series: MI 20D / MI 25D / MI 30D / MI 35D Model type: Rough Terrain Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GP030-040SVX Model series: GP030-040SVX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GP040-070SVX Model series: GP040-070SVX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GP040-070VX Model series: GP040-070VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO30VX Model series: GPO30VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO30VX, GPO35VX & GP40VX Model series: GPO30VX, GPO35VX & GP40VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO40VX, GPO50VX, GPO60VX & GPO70VX Model series: GPO40VX, GPO50VX, GPO60VX & GPO70VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO50VX & GPO60VX Model series: GPO50VX & GPO60VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: VERACITOR VX SER. 16-20 Model series: VERACITOR VX SER. 16-20 Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: VERACITOR VX SER. 20-35 Model series: VERACITOR VX SER. 20-35 Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
