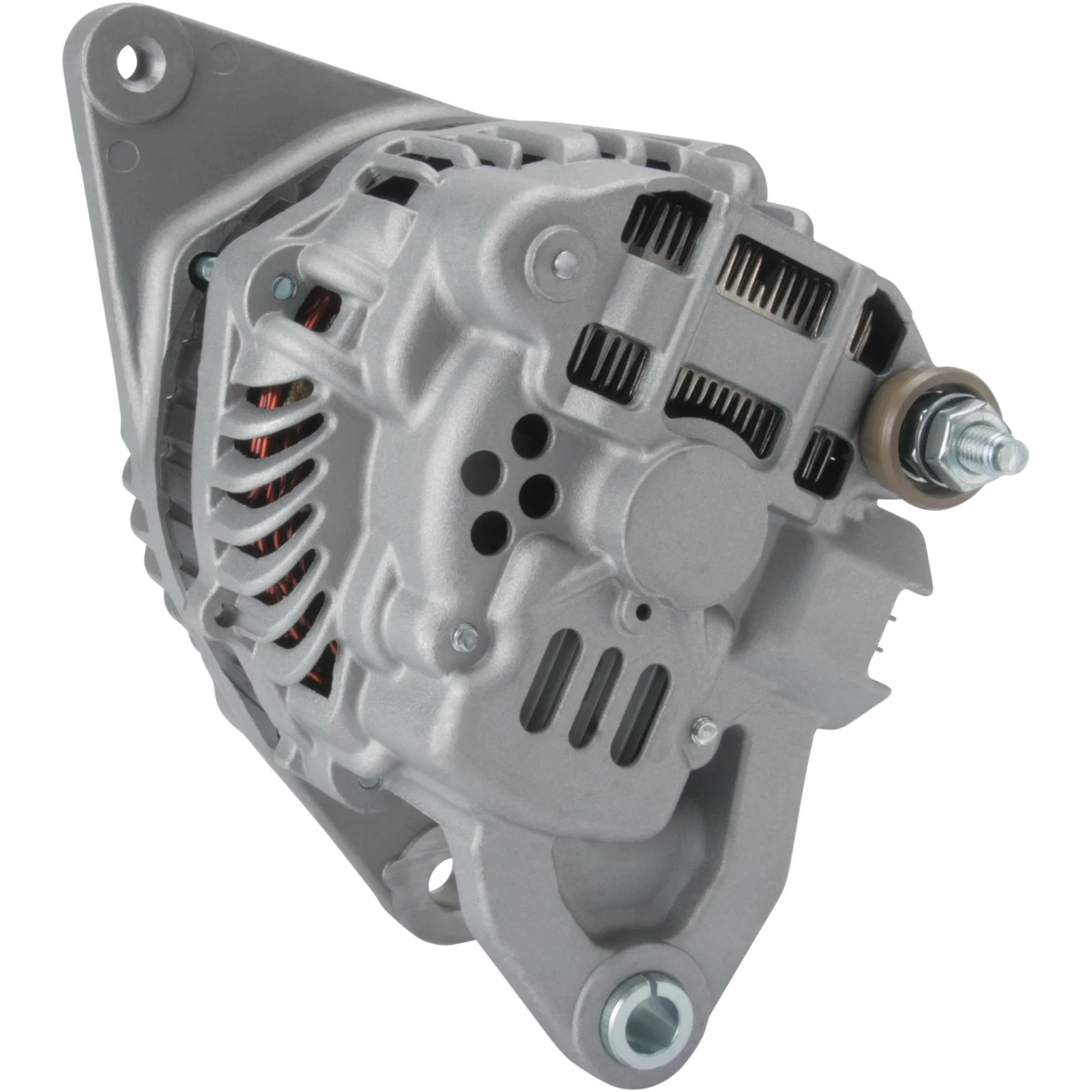

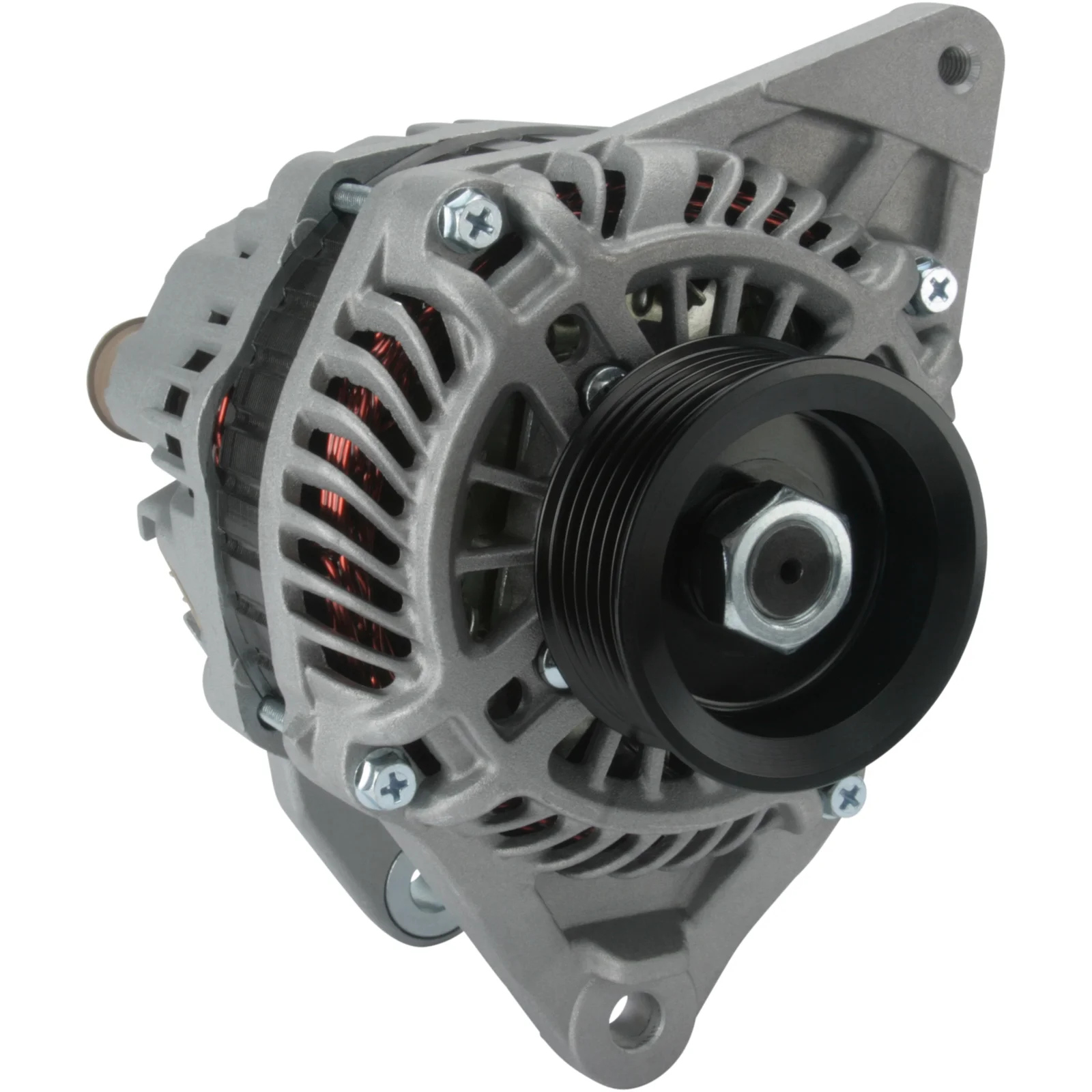

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115477

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Strøm: 90, Rotasjon: CW, montering. brakett avstand: 66,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 90
Drevkugg avstand: 38.50
Bredde/beslag arm: 13.00
Festebrakett avstand: 66.00
Braketthull: 10.20
Belt. justering brakkethull pos.: 7
Belt. justering brakethull 1: M8
Drevkugg dia.: 64.00
Groper/drevkugg: 6
Radius: 90.00
Radius 2: 96.00
B+: M8
Posisjon/B+ i min.: 13
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL68
Total lengde mm: 177.00
Drevkugg: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL68
Bracket hole 10.20
Position/B+ in min. 13
Prod. info BN
Pulley SP
Pulley dia. 64.00
Pulley dist. 38.50
Radius 90.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 177.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A005TG0491, A005TG0491ZT, A5TG0491, A5TG0491ZT, F032115477, 1800a007

  • Konkurrentreferens
    A5079, CAL35222, DRA0908, DRA0908N, LRA03337, 28-5949, 155.584.090, 226.187.902, 11415N, 11415RW, 210952, 210952A, 444247, 12061009, 0986083630

  • NormaliseratArtNr
    a005tg0491, a005tg0491zt, a5079, a5tg0491, a5tg0491zt, cal35222, dra0908, dra0908n, f032115477, lra03337, 1800a007, 11415n, 11415rw, 210952, 210952a, 285949, 444247, 12061009, 155584090, 226187902, 0986083630

  • Passar modeller
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KB4T Body: Pick Up From date: 01-11-2005 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4x4 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KB4T Body: Pick Up From date: 01-04-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: RWD Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KA4T Body: Pick Up From date: 01-04-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Body: Pick Up From date: 01-10-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KB_T, KA_T Body: Pick Up From date: 01-08-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: 4WD Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56 (16V) Type description: KA_T, KB_T Body: Pickup From date: 01-04-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D 4WD (KB4T) Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56 (16V) Type description: KA_T, KB_T Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Platform/Chassis Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56 (16V) Type description: KA_T, KB_T Body: Platform/Chassis From date: 01-08-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Triton Model series: Triton Model type: 4x4 Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KA_T, KB_T Body: Platform / Chassis From date: 01-09-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 90
    Drevkugg avstand: 38.50
    Bredde/beslag arm: 13.00
    Festebrakett avstand: 66.00
    Braketthull: 10.20
    Belt. justering brakkethull pos.: 7
    Belt. justering brakethull 1: M8
    Drevkugg dia.: 64.00
    Groper/drevkugg: 6
    Radius: 90.00
    Radius 2: 96.00
    B+: M8
    Posisjon/B+ i min.: 13
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL68
    Total lengde mm: 177.00
    Drevkugg: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL68
    Bracket hole 10.20
    Position/B+ in min. 13
    Prod. info BN
    Pulley SP
    Pulley dia. 64.00
    Pulley dist. 38.50
    Radius 90.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 13.00
    Amp 90
  • Kjøretøymatching

    • OEM
      A005TG0491, A005TG0491ZT, A5TG0491, A5TG0491ZT, F032115477, 1800a007

    • Konkurrentreferens
      A5079, CAL35222, DRA0908, DRA0908N, LRA03337, 28-5949, 155.584.090, 226.187.902, 11415N, 11415RW, 210952, 210952A, 444247, 12061009, 0986083630

    • NormaliseratArtNr
      a005tg0491, a005tg0491zt, a5079, a5tg0491, a5tg0491zt, cal35222, dra0908, dra0908n, f032115477, lra03337, 1800a007, 11415n, 11415rw, 210952, 210952a, 285949, 444247, 12061009, 155584090, 226187902, 0986083630

    • Passar modeller
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KB4T Body: Pick Up From date: 01-11-2005 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4x4 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KB4T Body: Pick Up From date: 01-04-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: RWD Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KA4T Body: Pick Up From date: 01-04-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Body: Pick Up From date: 01-10-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KB_T, KA_T Body: Pick Up From date: 01-08-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: 4WD Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56 (16V) Type description: KA_T, KB_T Body: Pickup From date: 01-04-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D 4WD (KB4T) Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56 (16V) Type description: KA_T, KB_T Body: Pickup Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 / Triton Model series: L200 / Triton Platform/Chassis Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56 (16V) Type description: KA_T, KB_T Body: Platform/Chassis From date: 01-08-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Triton Model series: Triton Model type: 4x4 Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56HP Type description: KA_T, KB_T Body: Platform / Chassis From date: 01-09-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
