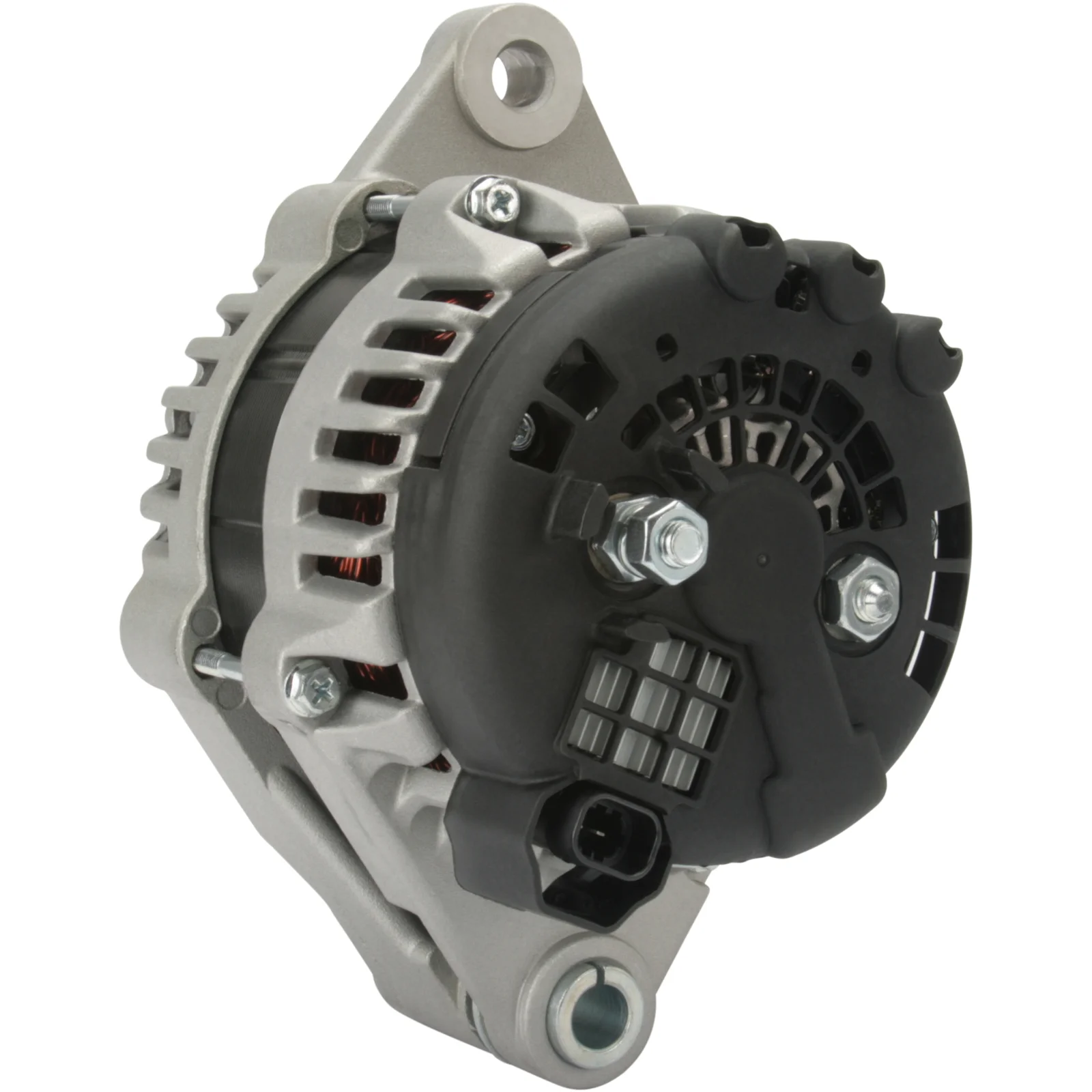

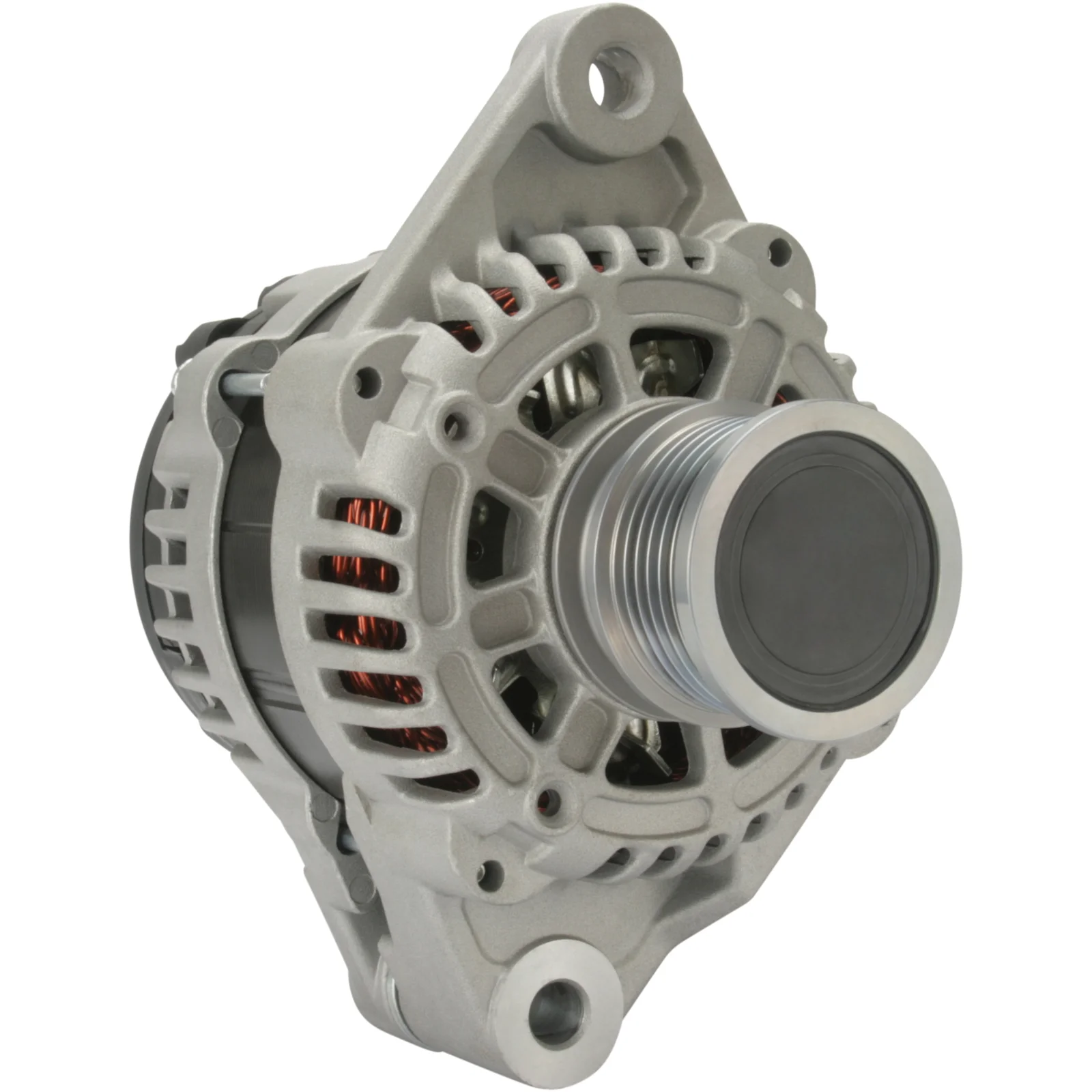

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115526

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: CW, Reimhjul diameter: 53.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 100
Reimskive dist.: 57.00
Bredde/holderarm: 18.00
Støttehull: 12.00
Bæltespenningsregulator støttehullposisjon.: 60
Bæltespenningsregulator støttehull 1: 12.00
Reimskive dia.: 53.00
Groover/reimskive: 6
Radius: 83.00
Radius 2: 81.00
B+: M8
Posisjon/B+ i min.: 40
Rotasjon: medurs
Kontakt nr.: PL180
Total lengde mm.: 196.00
Klemme type: L-F
Kommunikasjon: PWM
Reimskive: SP/FW
Regulator type: IR
Prod. info: BN
Merkninger: Denne Dynamo har en PWM-kontakt på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication PWM
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 60
Plug no. PL180
Bracket hole 12.00
Position/B+ in min. 40
Prod. info BN
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 57.00
Radius 83.00
Radius 2 81.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 196.00 mm
Width/holder arm 18.00
Amp 100

  • OEM
    F032115526, 1202236, 1204643, 13502583, 13579668, 95519835

  • Konkurrentreferens
    A1029PR, CAL42110, DRA1373, LRA03357, 8EL012430-581, 28-5969, 135.593.100, 228.183.1002, 228.192.1002, 4746, 112891, 113299, 302005RI, 440989, 443068, 443144, 12090720, 32004024, 0986083450, 0986086710

  • NormaliseratArtNr
    a1029pr, cal42110, dra1373, f032115526, lra03357, 8el012430581, 4746, 112891, 113299, 285969, 302005ri, 440989, 443068, 443144, 1202236, 1204643, 12090720, 13502583, 13579668, 32004024, 95519835, 135593100, 0986083450, 0986086710, 2281831002, 2281921002

  • Passar modeller
    Opel Model: Astra Gtc J Model series: Astra J GTC Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecotec Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Estate From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-09-2009 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DT Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-07-2014 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTJ Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-06-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2010 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-06-2010 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT,Z20DTJ,Y20DTJ Type description: P12 Body: Van From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra J GTC Model type: BiTurbo Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Sports Tourer Body: Estate From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-06-2011 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-12-2009 To date: 01-06-2011 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: Biturbo Size of motor: 2.0 Brand of engine: A20DTR Type description: A G09 Body: Estate From date: 01-09-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira Mk III Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
