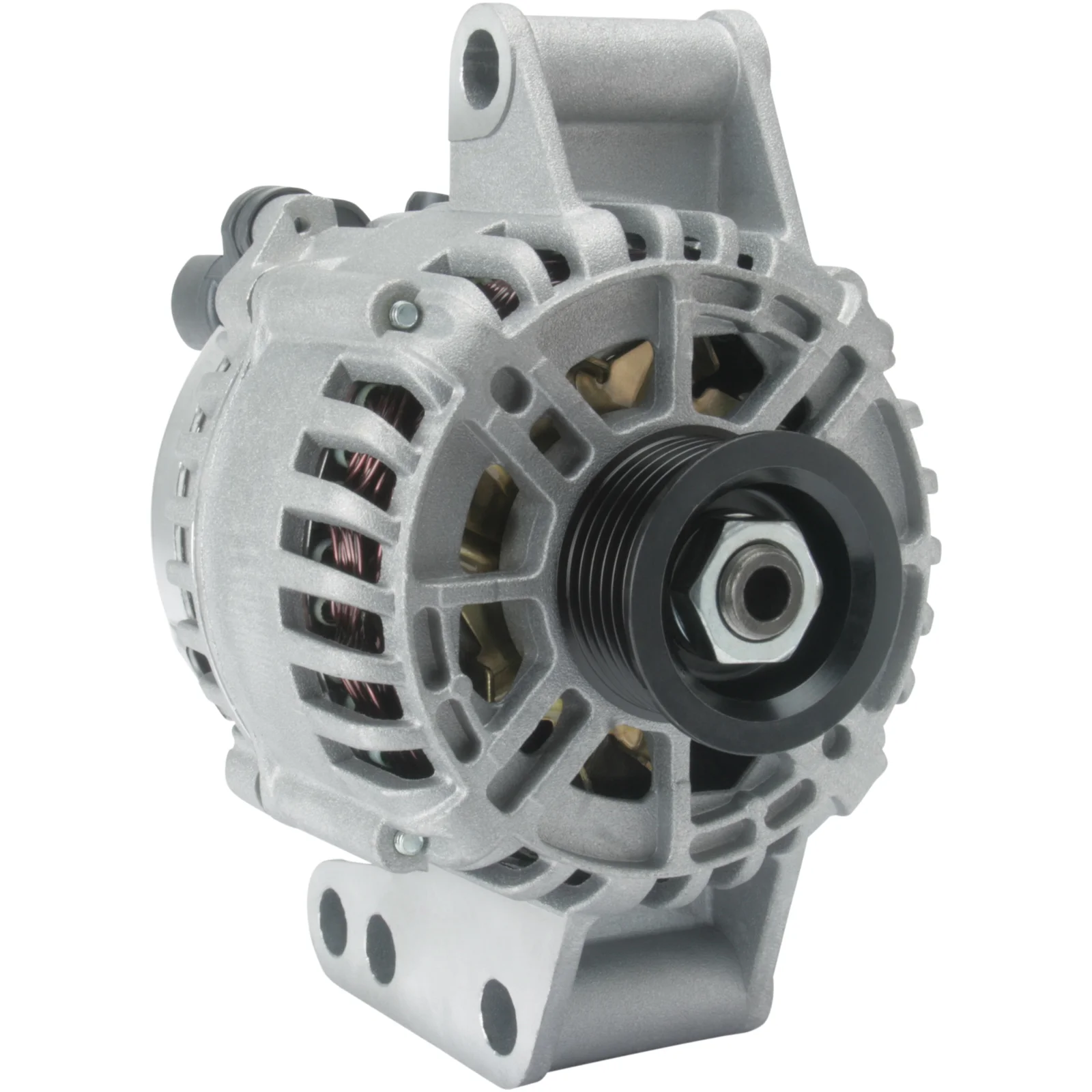

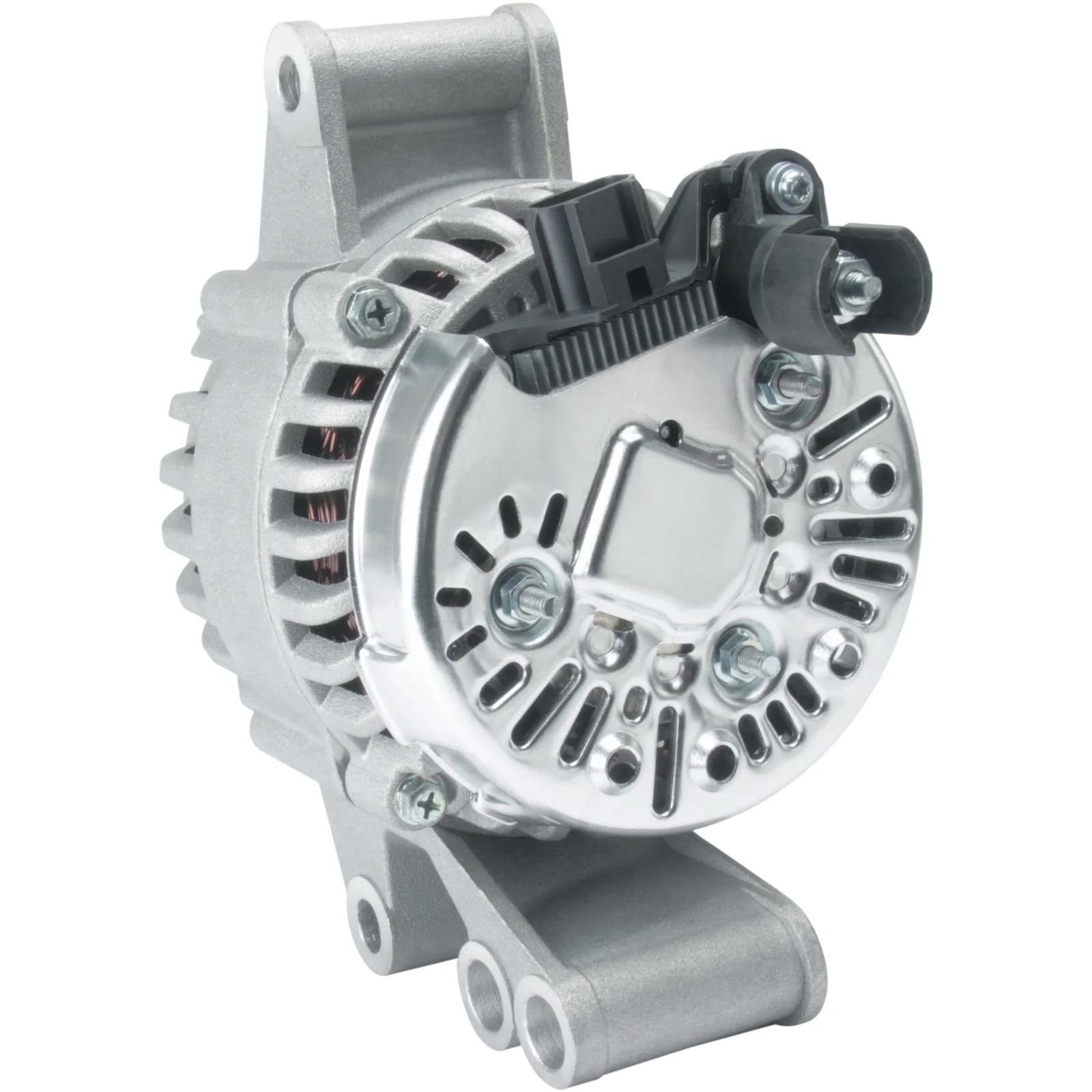

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115543

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amper: 90, Rotasjon: CW, Monteringsbrakett avstandslinje: 74,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Amp.: 90
Reimskive dist.: 41,00
Bredde/bøssingarm: 55,00
Monteringsbeslag dist.: 74,00
Beslagshull: 10,00x11,80
Reimspennjustering beslags hull pos.: 60
Reimspennjustering beslag hull 1: 10,00
Reimskive dia.: 48,00
Grooves/reimskive: 6
B+: M6
Posisjon/B+ i min.: 5
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL57
Total lengde mm: 171,00
Reimskive: SP
Spenningsregulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 60
Plug no. PL57
Bracket hole 10.00x11.80
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 48.00
Pulley dist. 41.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 171.00 mm
Width/holder arm 55.00
Amp 90

  • OEM
    F032115543, TG9C013, 3S5T10300AA, 3S5T10300AB, 3S5T10300AC, 1758ir, 1229424, 1450644, 1718577, 2542736, 2542736A

  • Konkurrentreferens
    A3595PR, A9023, CAL14104, DRA4258, DRA4258N, DRA4258X, 8EL011710-731, 8EL738134-001, 27-4850, 4713, 23348N, 112951, 200086, 210434, 210434A, 437453, 439488, 746898, 12049140, 32437453, 0986049141, 944390902550

  • NormaliseratArtNr
    a3595pr, a9023, cal14104, dra4258, dra4258n, dra4258x, f032115543, tg9c013, 3s5t10300aa, 3s5t10300ab, 3s5t10300ac, 8el011710731, 8el738134001, 1758ir, 4713, 23348n, 112951, 200086, 210434, 210434a, 274850, 437453, 439488, 746898, 1229424, 1450644, 1718577, 2542736, 2542736a, 12049140, 32437453, 0986049141, 944390902550

  • Passar modeller
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: A9A,A9B Type description: RB Body: Van From date: 01-09-2002 To date: 01-03-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: BAA Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4D Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4K Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4M Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4N Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4P Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4S Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9A Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9B Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 14
    Amp.: 90
    Reimskive dist.: 41,00
    Bredde/bøssingarm: 55,00
    Monteringsbeslag dist.: 74,00
    Beslagshull: 10,00x11,80
    Reimspennjustering beslags hull pos.: 60
    Reimspennjustering beslag hull 1: 10,00
    Reimskive dia.: 48,00
    Grooves/reimskive: 6
    B+: M6
    Posisjon/B+ i min.: 5
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL57
    Total lengde mm: 171,00
    Reimskive: SP
    Spenningsregulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 60
    Plug no. PL57
    Bracket hole 10.00x11.80
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 48.00
    Pulley dist. 41.00
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 171.00 mm
    Width/holder arm 55.00
    Amp 90
  • Kjøretøymatching

    • OEM
      F032115543, TG9C013, 3S5T10300AA, 3S5T10300AB, 3S5T10300AC, 1758ir, 1229424, 1450644, 1718577, 2542736, 2542736A

    • Konkurrentreferens
      A3595PR, A9023, CAL14104, DRA4258, DRA4258N, DRA4258X, 8EL011710-731, 8EL738134-001, 27-4850, 4713, 23348N, 112951, 200086, 210434, 210434A, 437453, 439488, 746898, 12049140, 32437453, 0986049141, 944390902550

    • NormaliseratArtNr
      a3595pr, a9023, cal14104, dra4258, dra4258n, dra4258x, f032115543, tg9c013, 3s5t10300aa, 3s5t10300ab, 3s5t10300ac, 8el011710731, 8el738134001, 1758ir, 4713, 23348n, 112951, 200086, 210434, 210434a, 274850, 437453, 439488, 746898, 1229424, 1450644, 1718577, 2542736, 2542736a, 12049140, 32437453, 0986049141, 944390902550

    • Passar modeller
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: A9A,A9B Type description: RB Body: Van From date: 01-09-2002 To date: 01-03-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: BAA Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4D Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4K Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4M Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4N Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4P Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4S Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9A Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9B Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      1 / 2
