HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115654

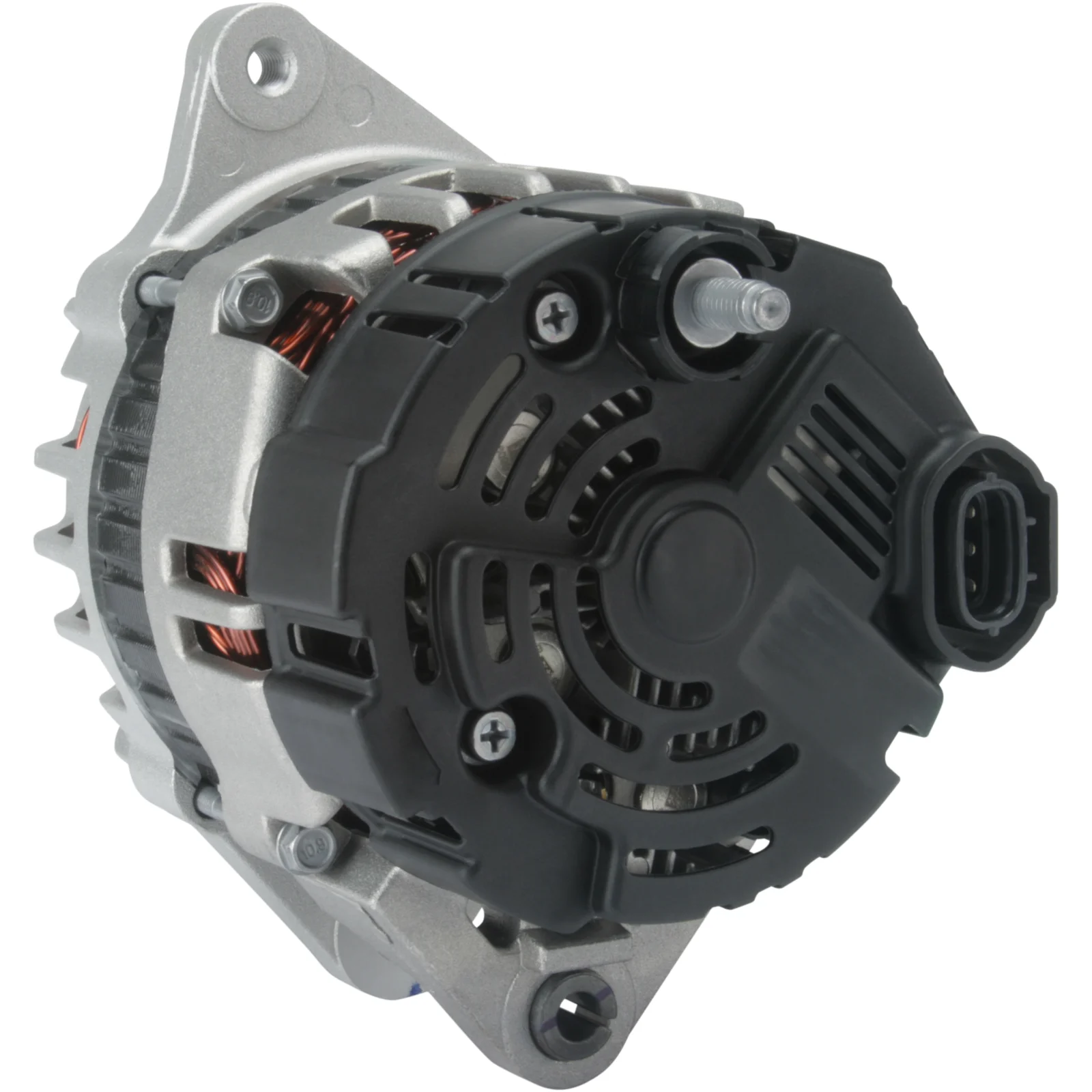

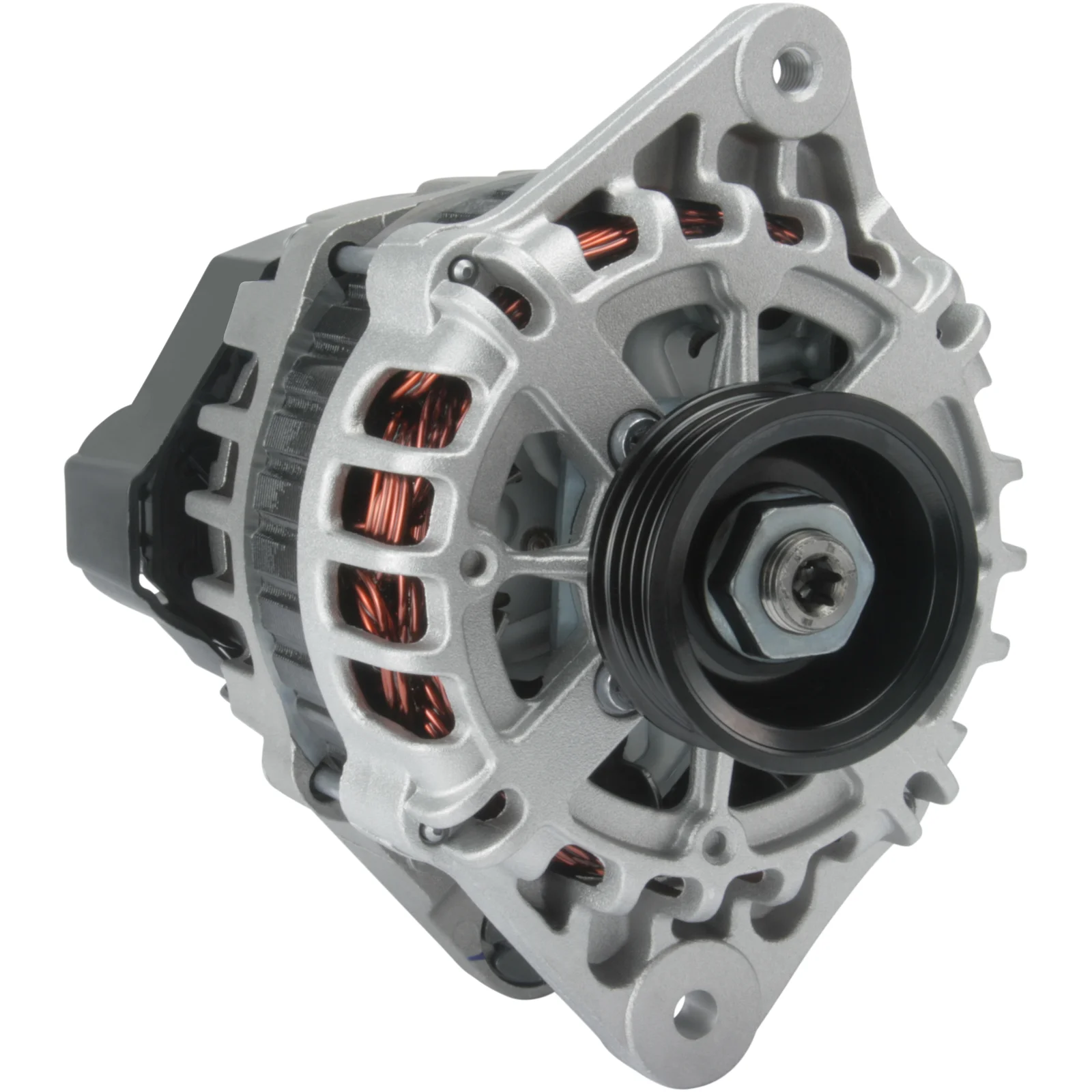

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 70, Rotasjon: CW, Montering. brakett avstand: 48.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 70
Drevkugg avstand: 38,00
Bredde/holderarm: 13,00
Festebrakett avstand: 48,00
Brakettgjennomføring: 8,20
Belt. justere brakkøy og posisjon: 3
Belt. justere brakkøy hullet 1: M8
Drevkugg dia.: 55,00
Grove/drevkugg: 4
Radius: 78,00
Radius 2: 80,00
B+: M8
Posisjon/B+ i min.: 60
D+ størrelse: Plugg
Rotasjon: med klokken
Plugg nr.: PL176
Total lengde mm: 169,00
Drevkugg: SP
Vifte: IF
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 48.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL176
Bracket hole 8.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 38.00
Radius 78.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 4
Voltage 14
Total length 169.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    F000BL0105, F000BL0122, F032115654, 2124ir, 37300-02600, 37300-02605, 37300-02850, 2607052, 2613777

  • Konkurrentreferens
    A0809S, A3315(VALEO), A3315S, CAL32149, DRA0793, DRA0793N, LRA03367, 8EL011713-061, 28-5979, 155.576.080, 155.585.070, 224.303.702, 209030, 209030A, 444335, 600321, 600741, 12061045, 0986083510

  • NormaliseratArtNr
    a0809s, a3315s, a3315valeo, cal32149, dra0793, dra0793n, f000bl0105, f000bl0122, f032115654, lra03367, 8el011713061, 2124ir, 209030, 209030a, 285979, 444335, 600321, 600741, 2607052, 2613777, 12061045, 155576080, 155585070, 224303702, 0986083510, 3730002600, 3730002605, 3730002850

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-01-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-12-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-01-2009 To date: 01-12-2013 Fuel: LPG Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-11-2008 To date: 01-12-2013 Fuel: Petrol Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.1 Brand of engine: G4HG Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
