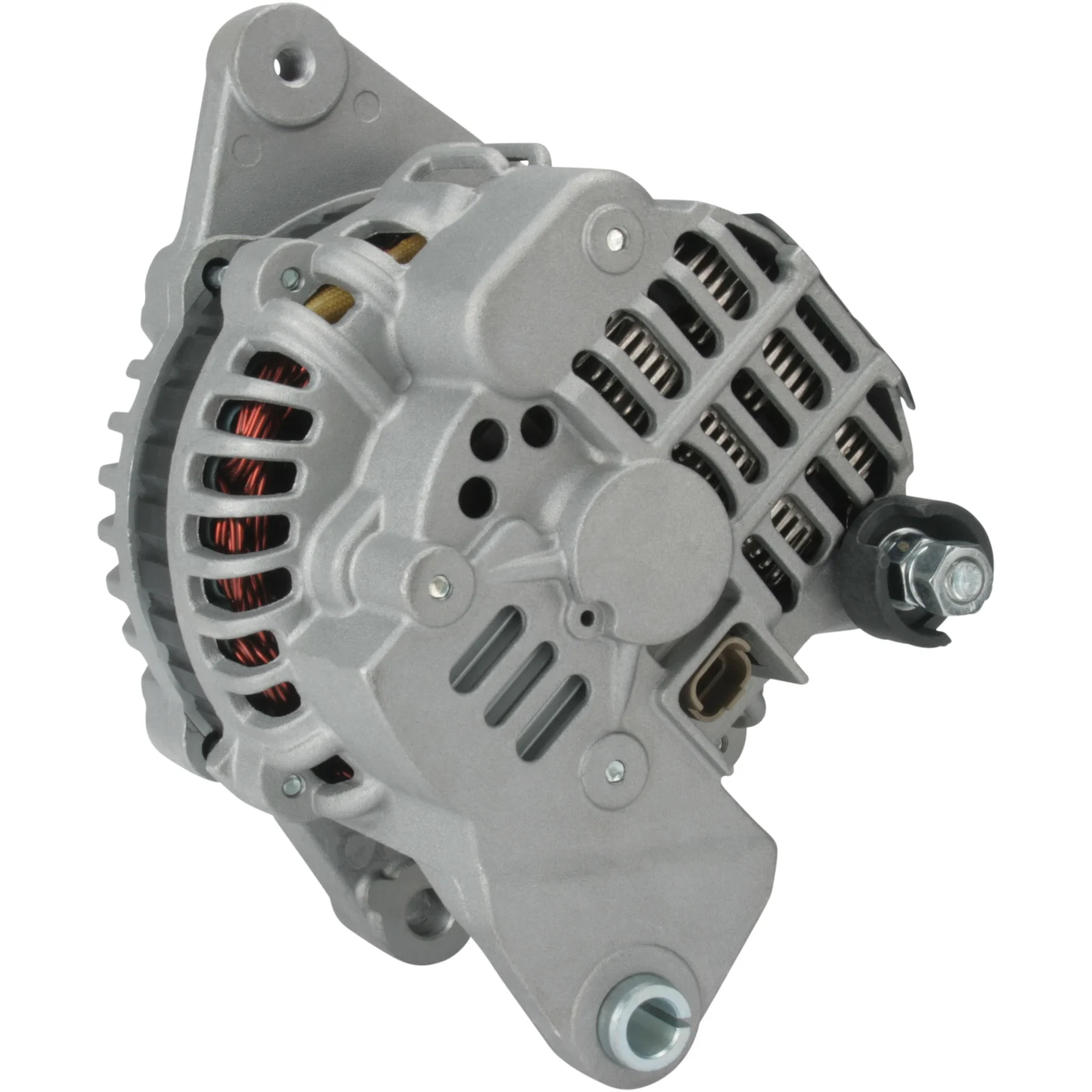

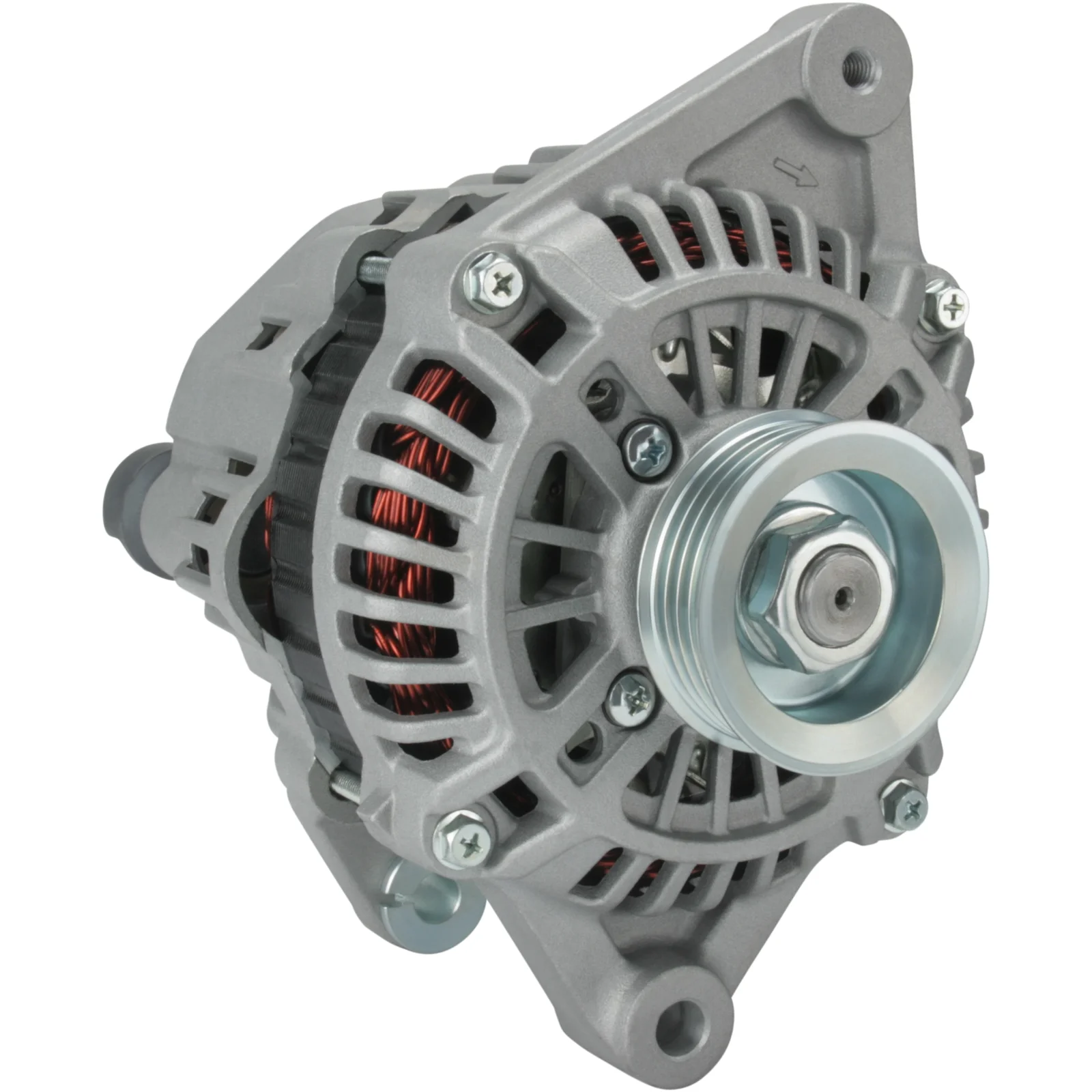

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115655

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand.: 67,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 14
Ampere: 110
Reimskive dist.: 52,00
Bredde/holderarm: 27,00
Festebrakett dist.: 67,50
Brakett hull: 10,40
Reimjusterings brakett hull pos.: 3
Reimjusterings brakett hull 1: M8
Reimskive diameter: 55,00
Grooves/reimskive: 4
Radius: 85,00
Radius 2: 94,00
B+: M8
Posisjon/B+ i min.: 15
D+-størrelse: Plugg
Rotasjon: med klokken
Plugg nr.: PL55
Total lengde mm: 172,00
Reimskive: SP
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 67.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL55
Bracket hole 10.40
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 52.00
Radius 85.00
D+ Size Plug
Radius 2 94.00
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 172.00 mm
Width/holder arm 27.00
Amp 110

  • OEM
    A002TC0391, a2tc0391, F032115655, 6001549064, 8200400891, 8200660053

  • Konkurrentreferens
    A5047, CAL35303, DRA1183, LRA03405, 28-6517, 230.349.1102, 575.594.110, 112644, 210710, 210710A, 440902, 440931, 554310RI, 12060940

  • NormaliseratArtNr
    a002tc0391, a2tc0391, a5047, cal35303, dra1183, f032115655, lra03405, 112644, 210710, 210710a, 286517, 440902, 440931, 554310ri, 12060940, 575594110, 2303491102, 6001549064, 8200400891, 8200660053

  • Passar modeller
    Dacia Model: Logan Model series: Logan Model type: Express Size of motor: 1.4 Brand of engine: K7J710 Type description: KS_, FS_ Body: Van From date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: Express Size of motor: 1.6 Brand of engine: K7M710 Type description: KS_, FS_ Body: Van From date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: LPG Size of motor: 1.6 Brand of engine: K7M710 Type description: KS0B, FS0B Body: Estate From date: 01-11-2008 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: K7M718 Type description: LS_ From date: 01-08-2004 To date: 01-03-2011 Fuel: Petrol/Electro Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.4 Brand of engine: K7J710 Body: Estate From date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.6 Brand of engine: K7M710 Body: Estate From date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.6 Brand of engine: K7M710 Body: Pick Up From date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Type of engine: i Size of motor: 1.4 Brand of engine: K7J710 From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Type of engine: i Size of motor: 1.6 Brand of engine: K7M710 From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Type of engine: MPi Size of motor: 1.4 Brand of engine: K7J710 Type description: LS0A From date: 01-02-2006 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Type of engine: MPi Size of motor: 1.4 Brand of engine: K7J714 Type description: LS0A From date: 01-02-2006 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Sandero Model series: Sandero Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: K7M718 Body: Hatchback From date: 01-06-2008 To date: 01-12-2012 Fuel: Petrol/Electro Approved: Yes
    Dacia Model: Sandero Model series: Sandero Model type: LPG Type of engine: MPi Size of motor: 1.4 Brand of engine: K7J714 Body: Hatchback From date: 01-01-2009 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Sandero Model series: Sandero Size of motor: 1.4 Brand of engine: K7J710 Body: Hatchback From date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Dacia Model: Sandero Model series: Sandero Size of motor: 1.6 Brand of engine: K7M710 Body: Hatchback From date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Logan Model series: Logan Model type: Express Size of motor: 1.6 Body: Van From date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Logan Model series: Logan Size of motor: 1.4 Brand of engine: K7J710 Type description: KS_ Body: Estate From date: 01-10-2007 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Renault Model: Logan Model series: Logan Size of motor: 1.4 Brand of engine: K7J710 Type description: LS_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Logan Model series: Logan Size of motor: 1.6 Brand of engine: K7M710 Type description: LS_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero Model series: Sandero Size of motor: 1.4 Brand of engine: K7J710 Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero Model series: Sandero Size of motor: 1.6 Brand of engine: K7M710 Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero/Stepway Model series: Sandero/Stepway Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: K7J714 Type description: BS_ Body: Hatchback From date: 01-02-2009 Fuel: Petrol/Electro Approved: Yes
    Renault Model: Tondar Model series: Tondar 90 Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: K7J714 Type description: LS_ From date: 01-02-2008 To date: 01-10-2013 Fuel: Petrol/Electro Approved: Yes
