HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115675

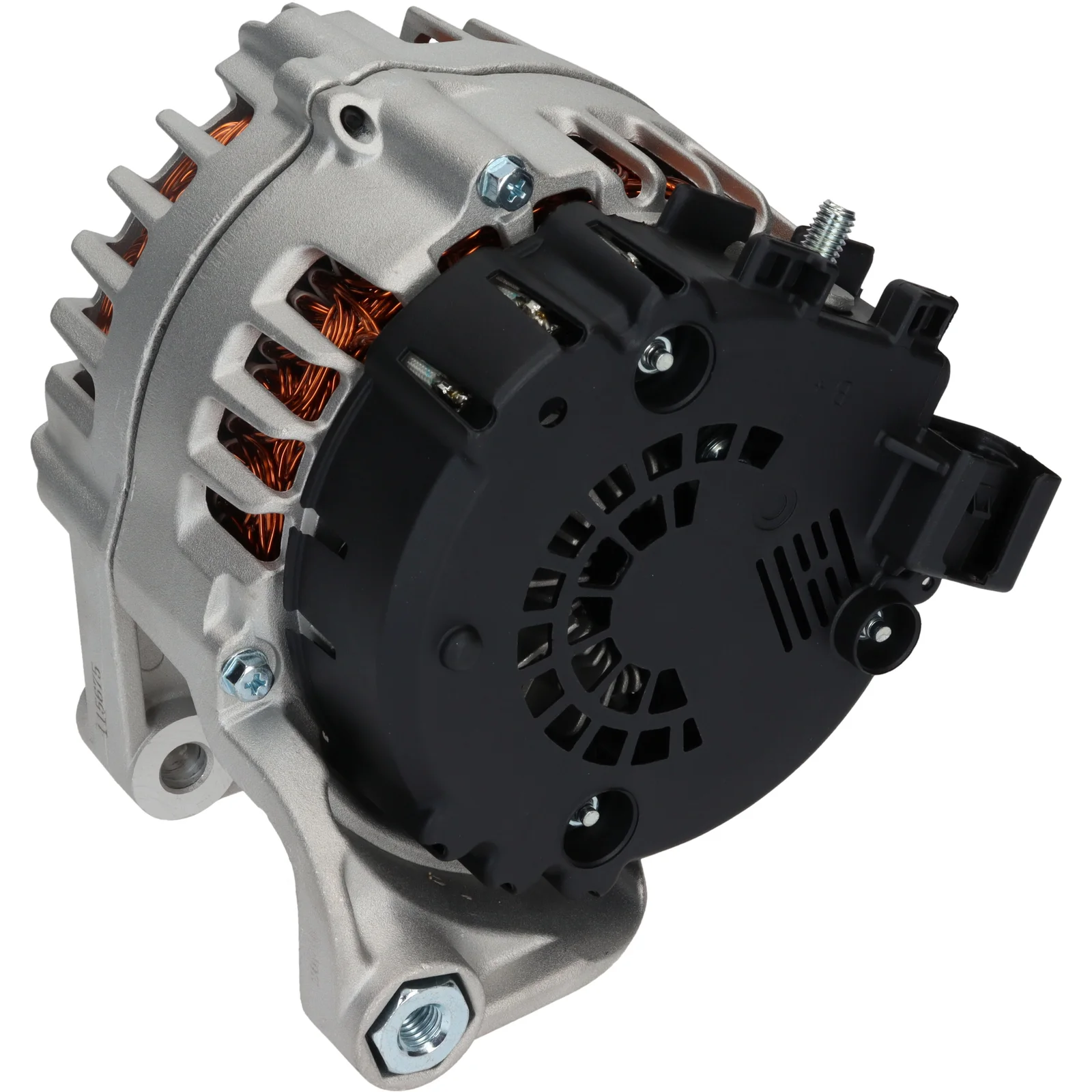

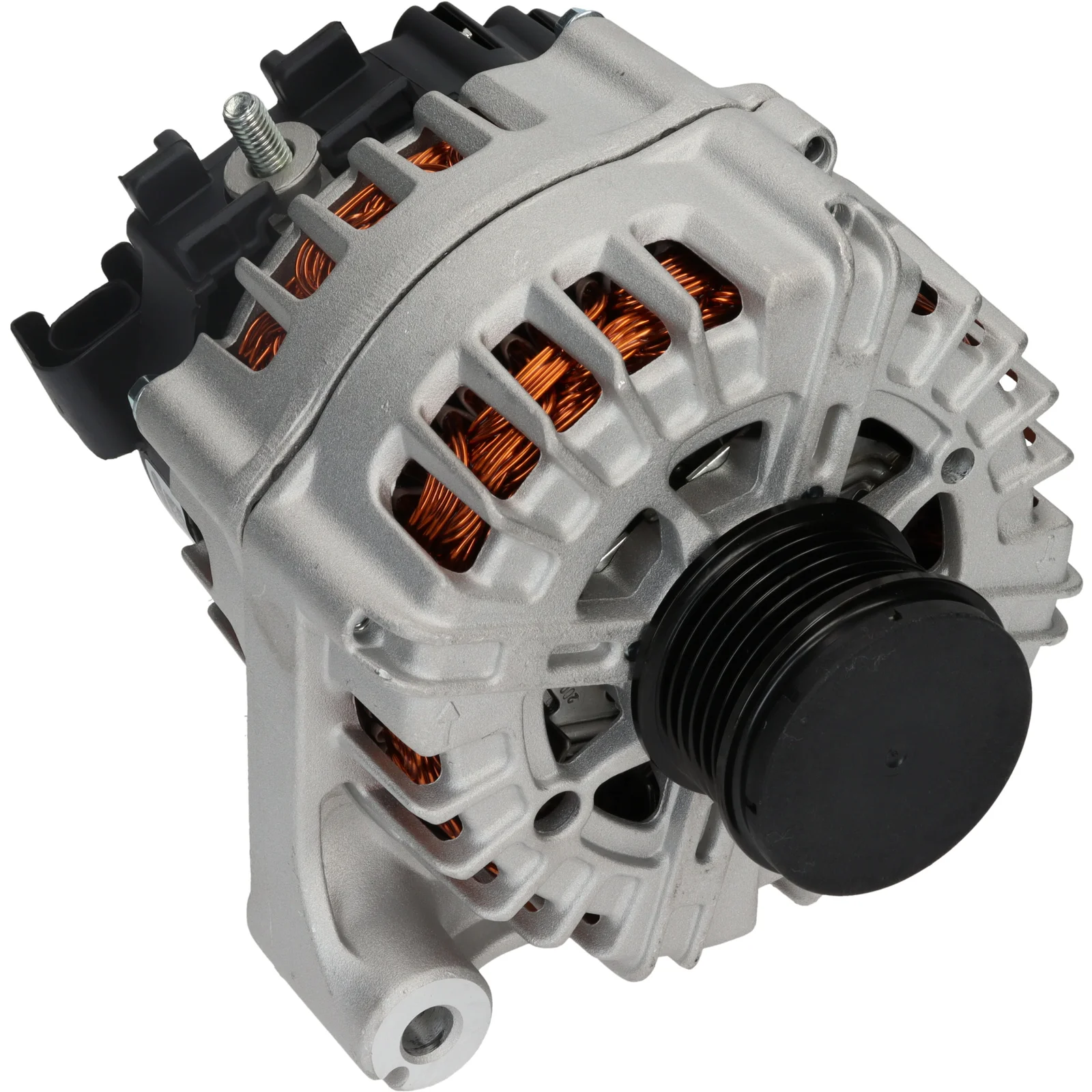

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Festebrakettavstand: 75,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 180
Bøssing av remskive: 58.00
Bredde/holderarm: 28.00
Monteringsbrakett avstand: 75.00
Brakettåpning: 10.50
Justering av remskiveposisjon: 45
Justering av remskiveåpning 1: 10.50
Remskivediameter: 54.00
Riller/remskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 3
Rotasjon: med urviseren
koblingsnummer: PL125
Total lengde mm: 189.00
Terminaltype: COM
Kommunikasjon: LIN
Remskive: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 58.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 189.00 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032115675, FG18S045, 1986A00574, 2143ir, 2607244, 2607244D, 2607244E, 2617511, 8519890, 12317823343, 12317823344

  • Konkurrentreferens
    A3416PR, A3416S, CAL15530, DRA1054, 8EL011712-861, 28-6830, 215.191.1802, 215.584.180, 22637N-OE, 209149, 209149A, 440430, 12090537, 32082850, 0986082850

  • NormaliseratArtNr
    a3416pr, a3416s, cal15530, dra1054, f032115675, fg18s045, 8el011712861, 1986a00574, 2143ir, 22637noe, 209149, 209149a, 286830, 440430, 2607244, 2607244d, 2607244e, 2617511, 8519890, 12090537, 32082850, 215584180, 0986082850, 2151911802, 12317823343, 12317823344

  • Passar modeller
    BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.6 Brand of engine: N47D16A Type description: F20, F21 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.6 Brand of engine: N47D16A Type description: F21 Body: Hatchback From date: 01-07-2012 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Model type: Gran Turismo Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-03-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-11-2012 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: Gran Turismo Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-03-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Model type: Touring Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-07-2012 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-07-2012 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20D Type description: F30, F35, F80 From date: 01-03-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20D Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 4 Model series: 420 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F33, F83 Body: Convertible From date: 01-10-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 14
    Amp: 180
    Bøssing av remskive: 58.00
    Bredde/holderarm: 28.00
    Monteringsbrakett avstand: 75.00
    Brakettåpning: 10.50
    Justering av remskiveposisjon: 45
    Justering av remskiveåpning 1: 10.50
    Remskivediameter: 54.00
    Riller/remskive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 3
    Rotasjon: med urviseren
    koblingsnummer: PL125
    Total lengde mm: 189.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Remskive: SP/FW
    Vifte: IF
    Regulator type: IR
    Merknader: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 10.50
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 58.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 189.00 mm
    Width/holder arm 28.00
    Amp 180
  • Kjøretøymatching

    • OEM
      F032115675, FG18S045, 1986A00574, 2143ir, 2607244, 2607244D, 2607244E, 2617511, 8519890, 12317823343, 12317823344

    • Konkurrentreferens
      A3416PR, A3416S, CAL15530, DRA1054, 8EL011712-861, 28-6830, 215.191.1802, 215.584.180, 22637N-OE, 209149, 209149A, 440430, 12090537, 32082850, 0986082850

    • NormaliseratArtNr
      a3416pr, a3416s, cal15530, dra1054, f032115675, fg18s045, 8el011712861, 1986a00574, 2143ir, 22637noe, 209149, 209149a, 286830, 440430, 2607244, 2607244d, 2607244e, 2617511, 8519890, 12090537, 32082850, 215584180, 0986082850, 2151911802, 12317823343, 12317823344

    • Passar modeller
      BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.6 Brand of engine: N47D16A Type description: F20, F21 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.6 Brand of engine: N47D16A Type description: F21 Body: Hatchback From date: 01-07-2012 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Model type: Gran Turismo Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-03-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-11-2012 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Model type: Gran Turismo Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-03-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Model type: Touring Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-07-2012 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-07-2013 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-07-2012 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20D Type description: F30, F35, F80 From date: 01-03-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20D Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 4 Model series: 420 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F33, F83 Body: Convertible From date: 01-10-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      1 / 3
