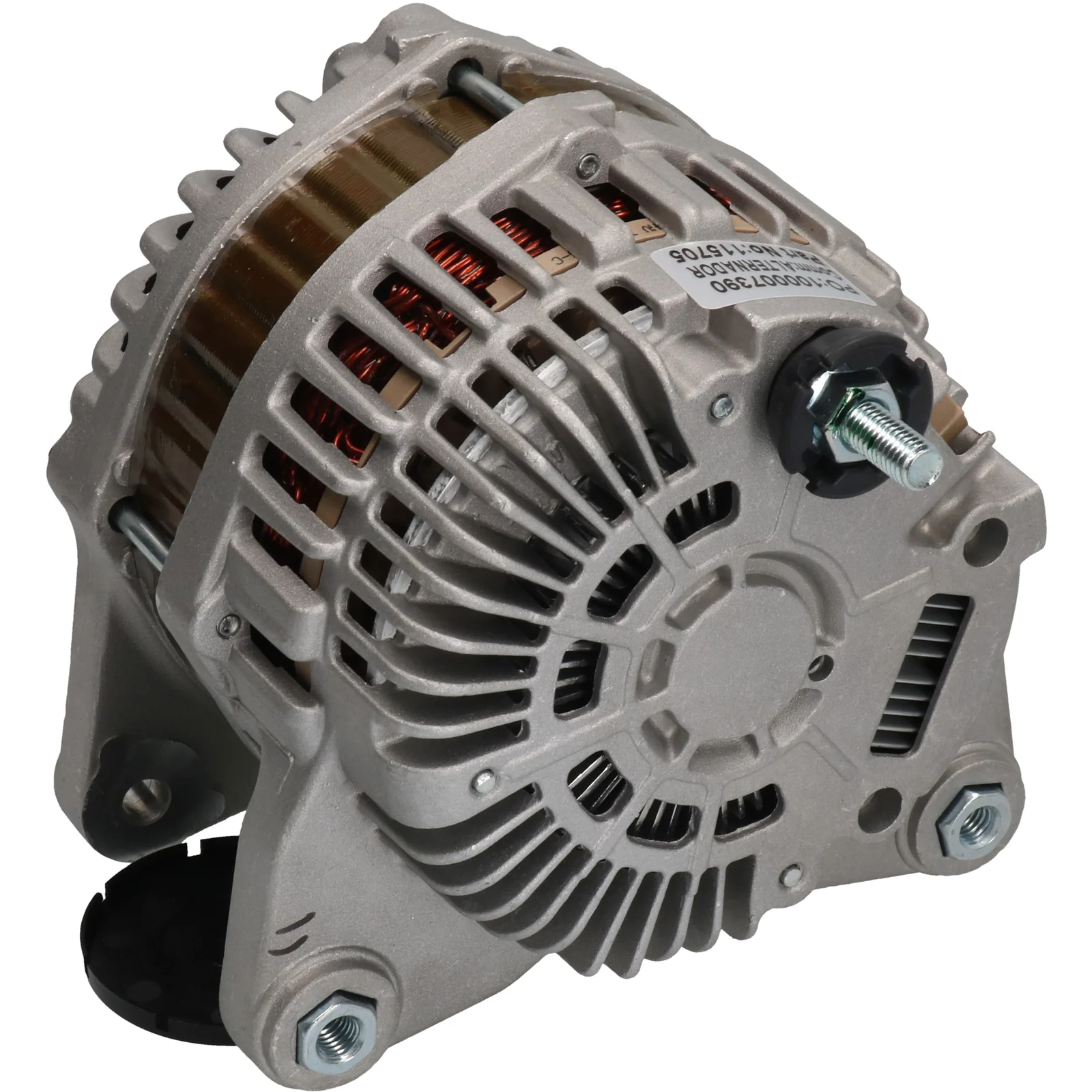

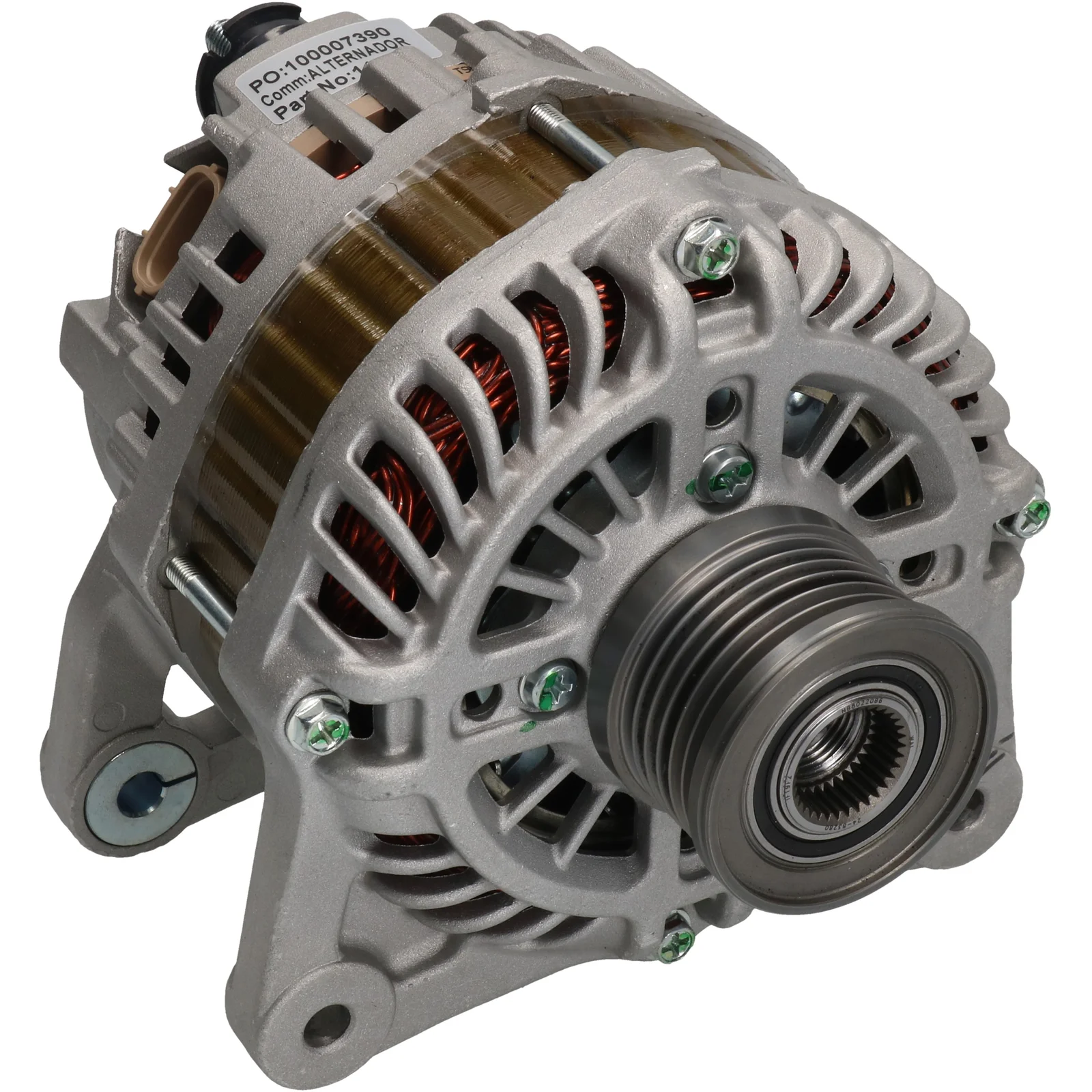

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115705

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampère: 110, Rotasjon: CW, monteringsbeslag avstand: 58,50

Beskrivelse

Spenning: 14
Ampere: 110
Remskivedistanse: 38,50
Bredde/holderarm: 14,00
Utetak for monteringsbrakett: 58,50
Brakett-låsehull: 8,50
Belt. justering brakketthull pos.: 45
Belt. justeringsbrakett hull 1: 8,50
Remskivediameter: 50,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 10
Rotasjon: med urviseren
Stikkontakt nr.: PL163
Remskive: SP/FW
Vifte: IF
Regulator type: IR
Produsentinformasjon: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 58.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL163
Bracket hole 8.50
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Width/holder arm 14.00
Amp 110

  • OEM
    A002TJ0581, A002TJ0581ZE, A2TG1581AC, A2TJ0581, A2TJ0581ZE, F032115705, 2191ir, 23100-1FC1A, 23100-JD21A, 23100-ZW40B

  • Konkurrentreferens
    A5122, A5271, CAL35357, DRA0865, DRA0865N, lra03644, 28-6784, 165.597.110, 227.324.1102, 11414N, 849121, 12061024, 0986082920

  • NormaliseratArtNr
    a002tj0581, a002tj0581ze, a2tg1581ac, a2tj0581, a2tj0581ze, a5122, a5271, cal35357, dra0865, dra0865n, f032115705, lra03644, 2191ir, 11414n, 23100jd21a, 23100zw40b, 231001fc1a, 286784, 849121, 12061024, 165597110, 0986082920, 2273241102

  • Passar modeller
    Dongfeng (DFL) Model: Qashqai Model series: Qashqai Size of motor: 2.0 Brand of engine: MR20DE From date: 01-03-2008 To date: 01-09-2015 Fuel: Gasoline Approved: Yes
    Nissan (Dongfeng) Model: Qashqai Model series: Qashqai Size of motor: 2.0 Brand of engine: MR20DE From date: 01-01-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Nissan Model: Dualis Model series: Dualis Model type: 4x4 Size of motor: 2.0 Type description: J10, NJ10 Body: Closed Off-Road Vehicle From date: 01-01-2010 To date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Qashqai / Qashqai +2 Model series: Qashqai / Qashqai +2 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, NJ10, JJ10E Body: SUV From date: 01-01-2010 To date: 01-04-2014 Fuel: Petrol Approved: Yes
    Nissan Model: Qashqai / Qashqai +2 Model series: Qashqai / Qashqai +2 Van Model type: All-wheel Drive Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10E Body: SUV Van From date: 01-03-2013 To date: 01-04-2014 Fuel: Petrol Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai +2 Model type: 4x4 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai +2 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Petrol Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Model type: 4x4 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Ampere: 110
    Remskivedistanse: 38,50
    Bredde/holderarm: 14,00
    Utetak for monteringsbrakett: 58,50
    Brakett-låsehull: 8,50
    Belt. justering brakketthull pos.: 45
    Belt. justeringsbrakett hull 1: 8,50
    Remskivediameter: 50,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 10
    Rotasjon: med urviseren
    Stikkontakt nr.: PL163
    Remskive: SP/FW
    Vifte: IF
    Regulator type: IR
    Produsentinformasjon: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 58.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL163
    Bracket hole 8.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 14.00
    Amp 110
  • Kjøretøymatching

    • OEM
      A002TJ0581, A002TJ0581ZE, A2TG1581AC, A2TJ0581, A2TJ0581ZE, F032115705, 2191ir, 23100-1FC1A, 23100-JD21A, 23100-ZW40B

    • Konkurrentreferens
      A5122, A5271, CAL35357, DRA0865, DRA0865N, lra03644, 28-6784, 165.597.110, 227.324.1102, 11414N, 849121, 12061024, 0986082920

    • NormaliseratArtNr
      a002tj0581, a002tj0581ze, a2tg1581ac, a2tj0581, a2tj0581ze, a5122, a5271, cal35357, dra0865, dra0865n, f032115705, lra03644, 2191ir, 11414n, 23100jd21a, 23100zw40b, 231001fc1a, 286784, 849121, 12061024, 165597110, 0986082920, 2273241102

    • Passar modeller
      Dongfeng (DFL) Model: Qashqai Model series: Qashqai Size of motor: 2.0 Brand of engine: MR20DE From date: 01-03-2008 To date: 01-09-2015 Fuel: Gasoline Approved: Yes
      Nissan (Dongfeng) Model: Qashqai Model series: Qashqai Size of motor: 2.0 Brand of engine: MR20DE From date: 01-01-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Nissan Model: Dualis Model series: Dualis Model type: 4x4 Size of motor: 2.0 Type description: J10, NJ10 Body: Closed Off-Road Vehicle From date: 01-01-2010 To date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Qashqai / Qashqai +2 Model series: Qashqai / Qashqai +2 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, NJ10, JJ10E Body: SUV From date: 01-01-2010 To date: 01-04-2014 Fuel: Petrol Approved: Yes
      Nissan Model: Qashqai / Qashqai +2 Model series: Qashqai / Qashqai +2 Van Model type: All-wheel Drive Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10E Body: SUV Van From date: 01-03-2013 To date: 01-04-2014 Fuel: Petrol Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai +2 Model type: 4x4 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai +2 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai / Qashqai +2 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10E Body: Box Body / Estate From date: 01-03-2013 To date: 01-04-2014 Fuel: Petrol Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Model type: 4x4 Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai Size of motor: 2.0 Brand of engine: MR20DE Type description: J10, JJ10 From date: 01-02-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
